Model # AFR15DAE2 Official GE air conditioner
Here are the diagrams and repair parts for Official GE AFR15DAE2 air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
AFR15DAE2 Air Conditioner
#NI

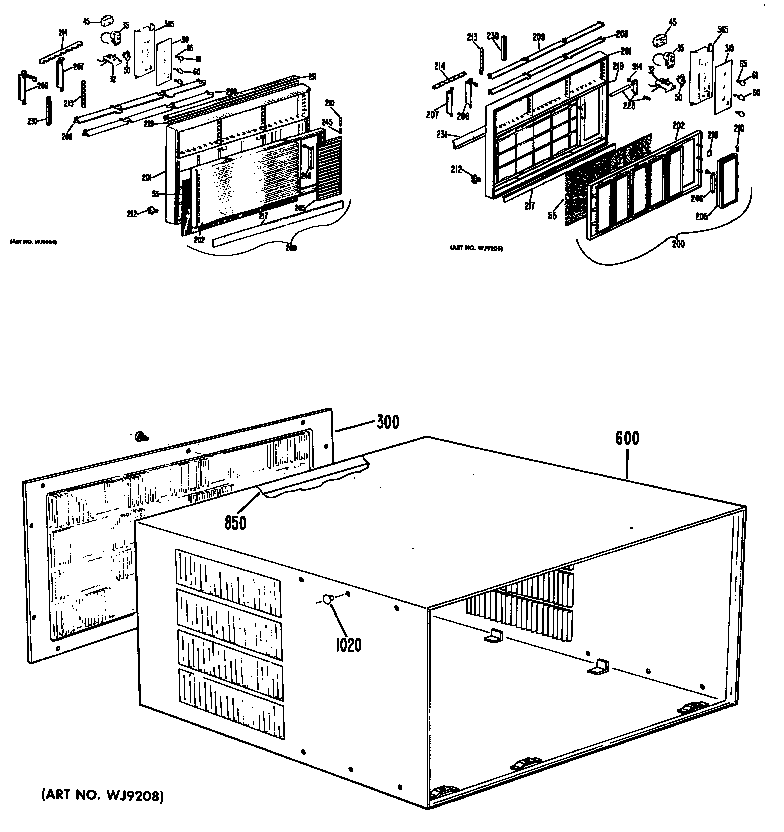

All parts diagram
Screw
Part #WZ4X386
This item is not returnable
$3.49
In Stock
#20

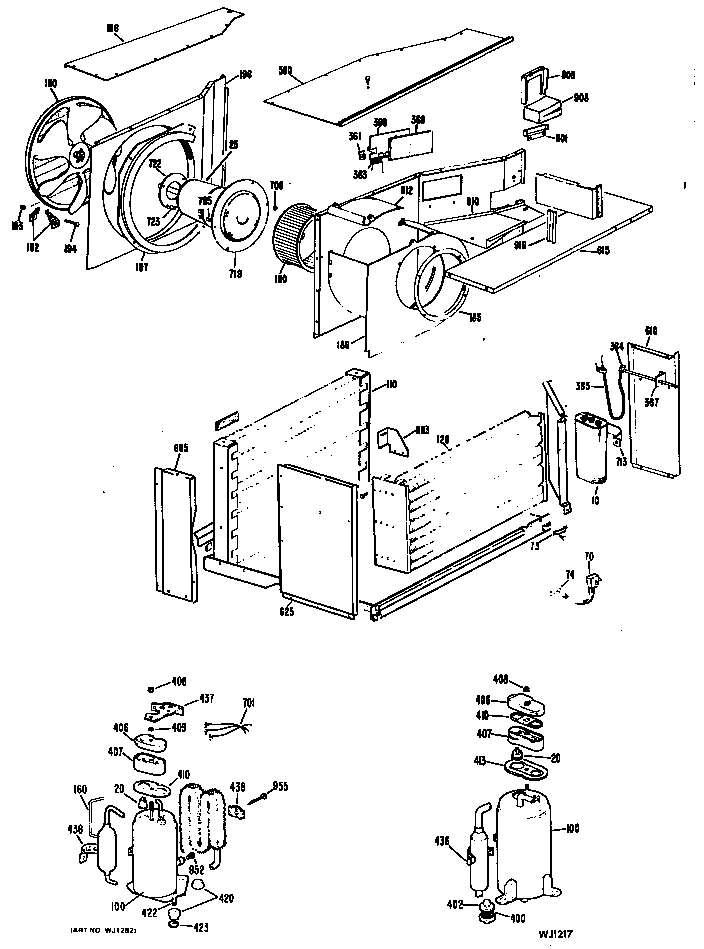

Chassis diagram
Com overload
Part #WJ23X174
$72.73
In Stock
#400B
Chassis diagram
Spring gr
Part #WJ2X258
$30.24
In Stock
#NI
All parts diagram
Screw
Part #WZ4X362
This item is not returnable
$4.99
In Stock
#160A
Chassis diagram
Capillary
Part #WJ53X130
$47.18
In Stock
#NI
All parts diagram
Clamp
Part #WJ3X284
Replaced by #WR1X1843
?
Manufacturer substitution
This part replaces WJ3X284. Substitute parts can look different from the original.
$15.09
In Stock
#NI
All parts diagram
Screw
Part #WZ4X288
Replaced by #WZ4X288D
?
Manufacturer substitution
This part replaces WZ4X288. Substitute parts can look different from the original.
$28.49
In Stock
#360A
Chassis diagram
Dmp-door-asm
Part #WJ70X166
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Brace barrier to shroud
Part #WJ65X321
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Screw strike plate
Part #WZ5X245
The manufacturer no longer makes this part, and there's no substitute part
