Model # 31523450 Official Craftsman motorized miter saw

Here are the diagrams and repair parts for Official Craftsman 31523450 motorized miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Bearing 610510-002
#72

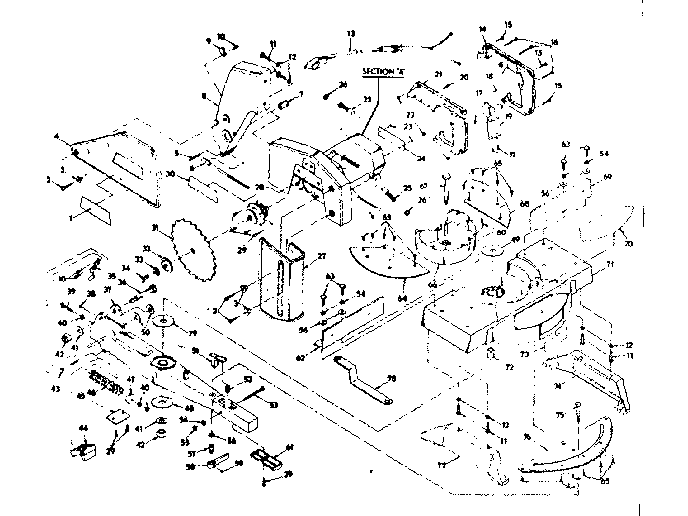

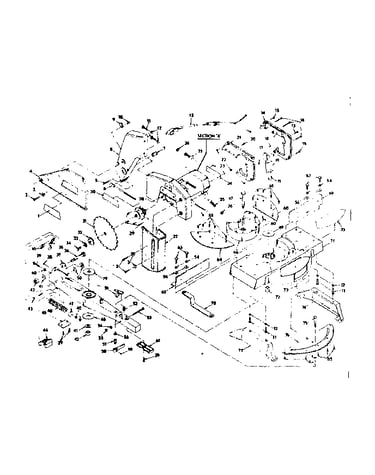

Unit parts diagram

Bearing

Part #610510-002

The manufacturer no longer makes this part, and there's no substitute part

Blade Screw 989645-001
#34

Unit parts diagram

Blade screw

Part #989645-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 617103-001
#17

Unit parts diagram

Screw

Part #617103-001

The manufacturer no longer makes this part, and there's no substitute part

Blade 612370-001
#31

Unit parts diagram

Blade

Part #612370-001

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 929058-005
#40

Unit parts diagram

Hex nut

Part #929058-005

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-024
#19

Field and armature assembly diagram

Screw

Part #617966-024

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 612864-002
#45

Unit parts diagram

Cover plate

Part #612864-002

The manufacturer no longer makes this part, and there's no substitute part

Bearing 620332-001
#11

Field and armature assembly diagram

Bearing

Part #620332-001

The manufacturer no longer makes this part, and there's no substitute part

Lever 989437-002
#44

Unit parts diagram

Lever

Part #989437-002

The manufacturer no longer makes this part, and there's no substitute part

Neoprne Plug 623019-002
#16

Field and armature assembly diagram

Neoprne plug

Part #623019-002

The manufacturer no longer makes this part, and there's no substitute part
