Model # 867772931 Official Kenmore gas-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 867772931 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Capacitor 77353
#22

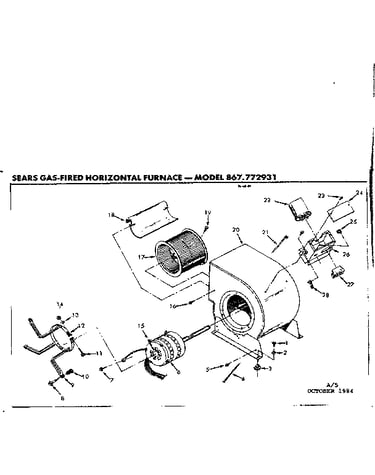

Blower assembly diagram

Capacitor

Part #77353

Replaced by #PAKTRCF5

?
Manufacturer substitution
This part replaces 77353. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09 |
24% OFF Phone Price : $4.09
Back Order
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#17

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Furnace Door Switch 607900
#13

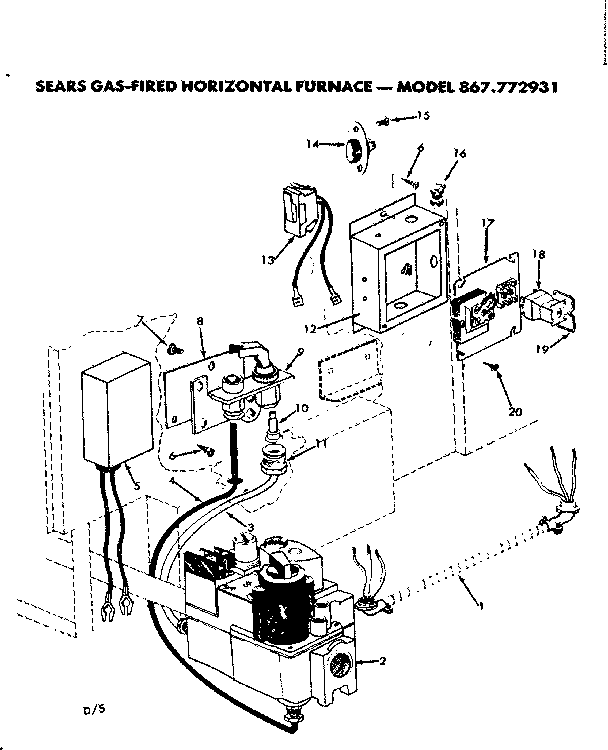

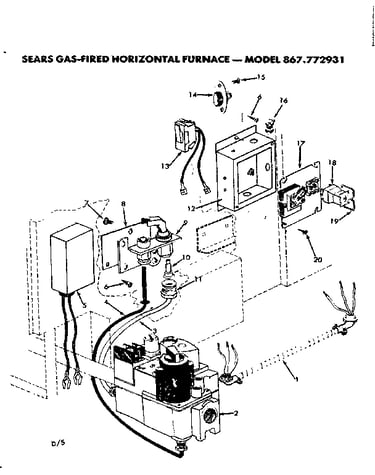

Controls diagram

Furnace door switch

Part #607900

$22.66 |
18% OFF Phone Price : $27.66
In Stock
Furnace Blower Fan Motor Mounting Kit 609227

#NI

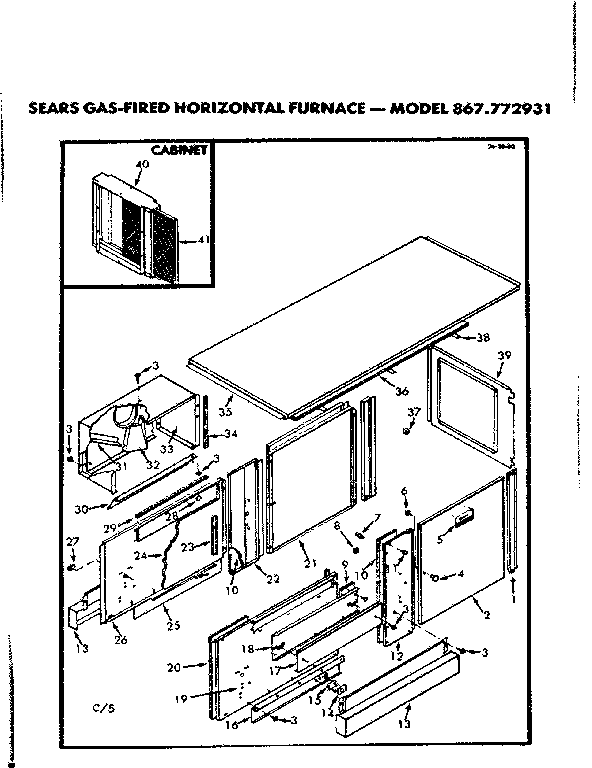

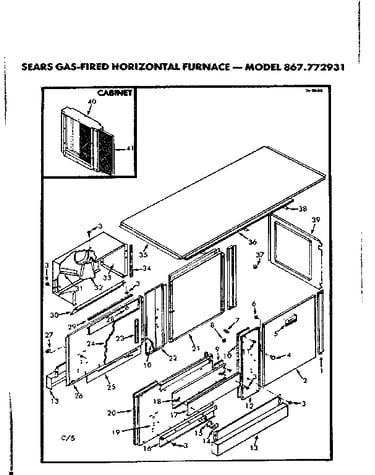

All parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Flat Washer STD551025
#2

Blower assembly diagram

Flat washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Heat Exchanger 93489
#17

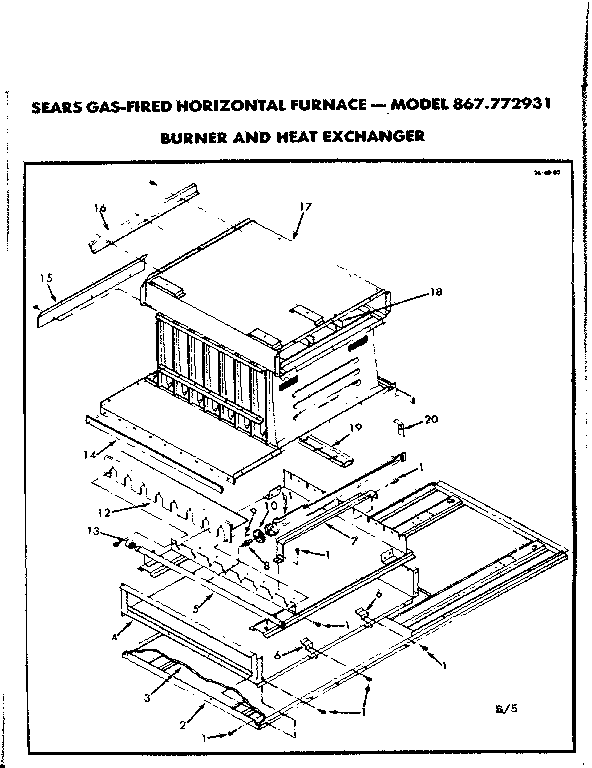

Burner and heat exchanger diagram

Heat exchanger

Part #93489

Replaced by #606632

?
Manufacturer substitution
This part replaces 93489. Substitute parts can look different from the original.
$1455.14
In Stock
Thermocouple 504335
#4

Controls diagram

Thermocouple

Part #504335

The manufacturer no longer makes this part, and there's no substitute part

Control 607421
#14

Controls diagram

Control

Part #607421

Replaced by #3L05-1

?
Manufacturer substitution
This part replaces 607421. Substitute parts can look different from the original.
$35.55 |
12% OFF Phone Price : $40.55
In Stock
Screw STD611005
Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Transformer 97298
#17

Controls diagram

Transformer

Part #97298

The manufacturer no longer makes this part, and there's no substitute part
