Model # WML55011HW1 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool WML55011HW1 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Microwave High-voltage Diode W10492278
#3

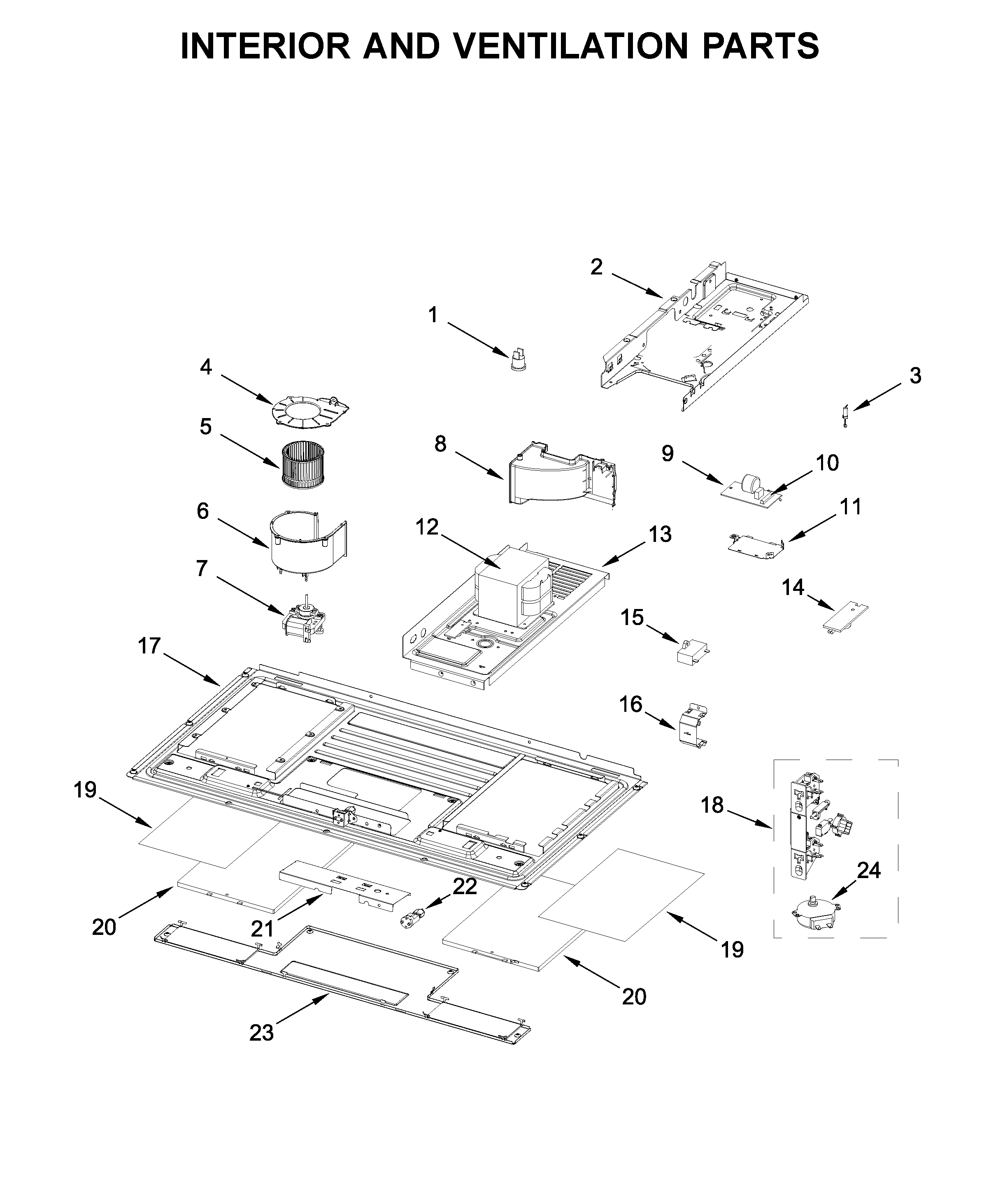

Interior and ventilation parts diagram

Microwave high-voltage diode

Part #W10492278

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10492278. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
18% OFF MSRP : $30.00
In Stock
Turntable Motor W10466420
#7

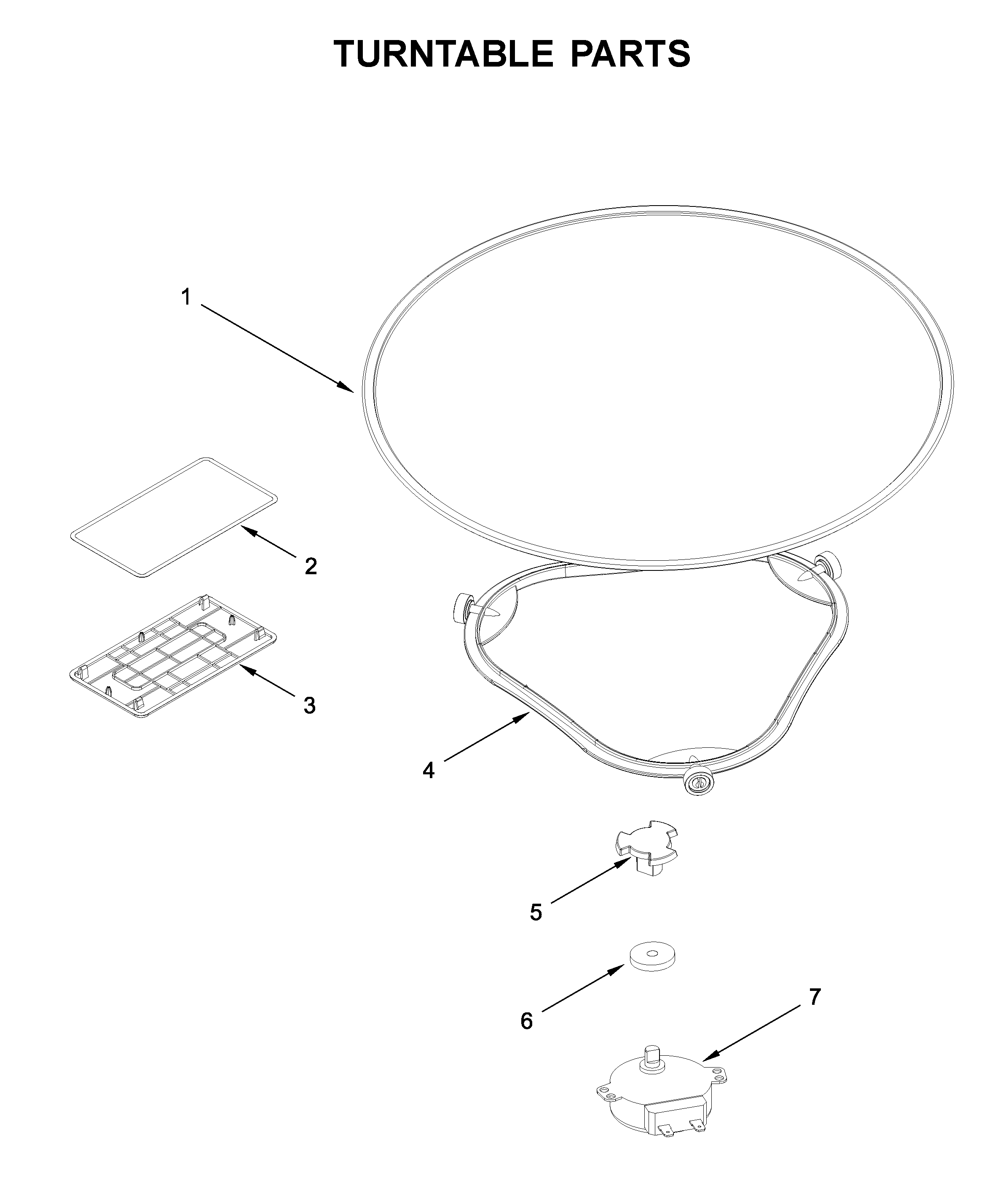

Turntable parts diagram

Turntable motor

Part #W10466420

Replaced by #WPW10466420

?
Manufacturer substitution
This part replaces W10466420. Substitute parts can look different from the original.
$31.11 |
37% OFF MSRP : $49.00
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

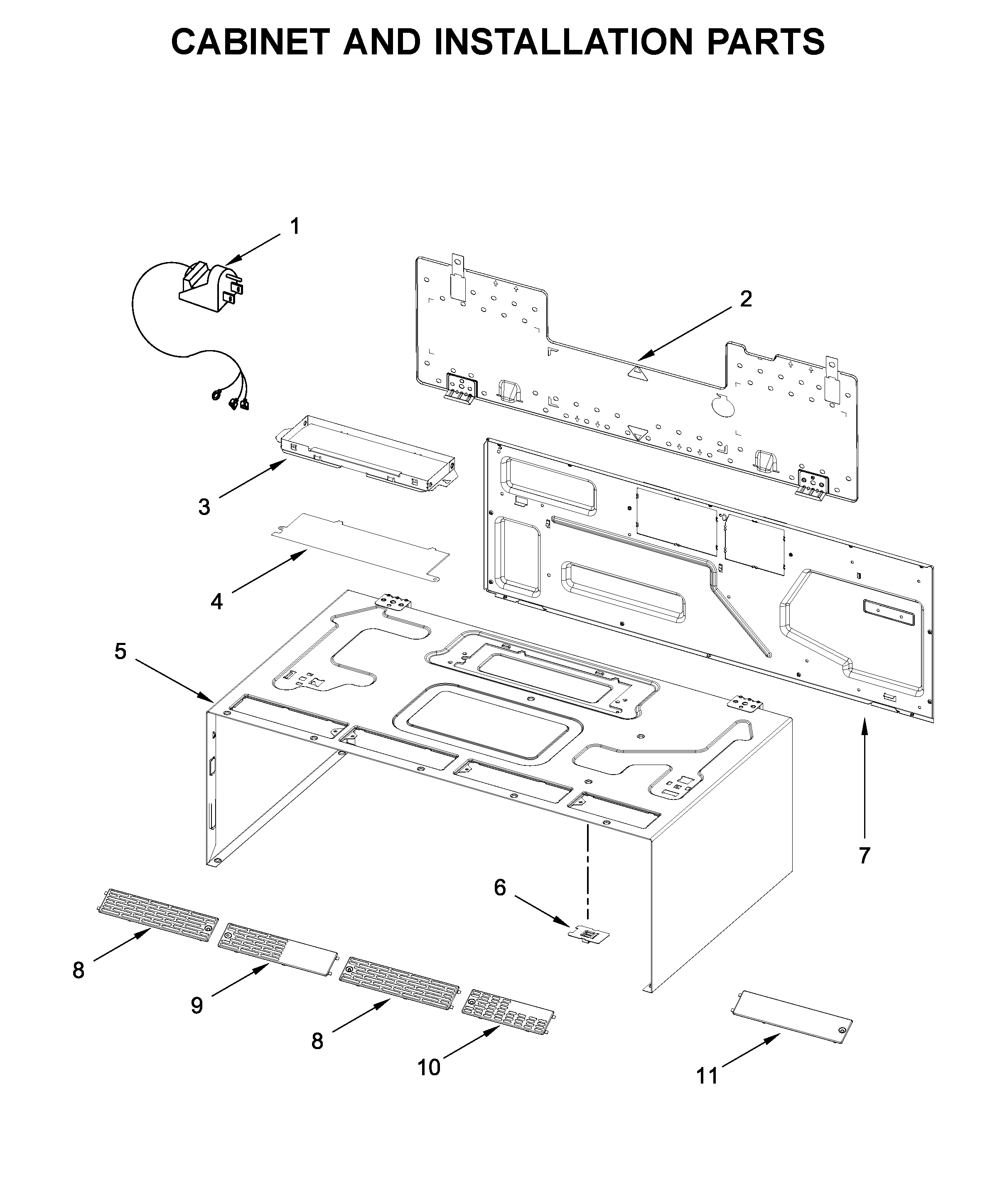

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

$50.70 |
23% OFF MSRP : $66.00
In Stock
Microwave Surface Light Bulb (replaces W10208564, W10618217, W10892536, W11414610) W10709921
Microwave surface light bulb (replaces w10208564, w10618217, w10892536, w11414610)

Part #W10709921

$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Glass Turntable Tray W10337247
#1

Turntable parts diagram

Microwave glass turntable tray

Part #W10337247

Replaced by #W11367904

?
Manufacturer substitution
This part replaces W10337247. Substitute parts can look different from the original.
$57.69 |
8% OFF Phone Price : $62.69
In Stock
Badge, Whirl W10884775
#2

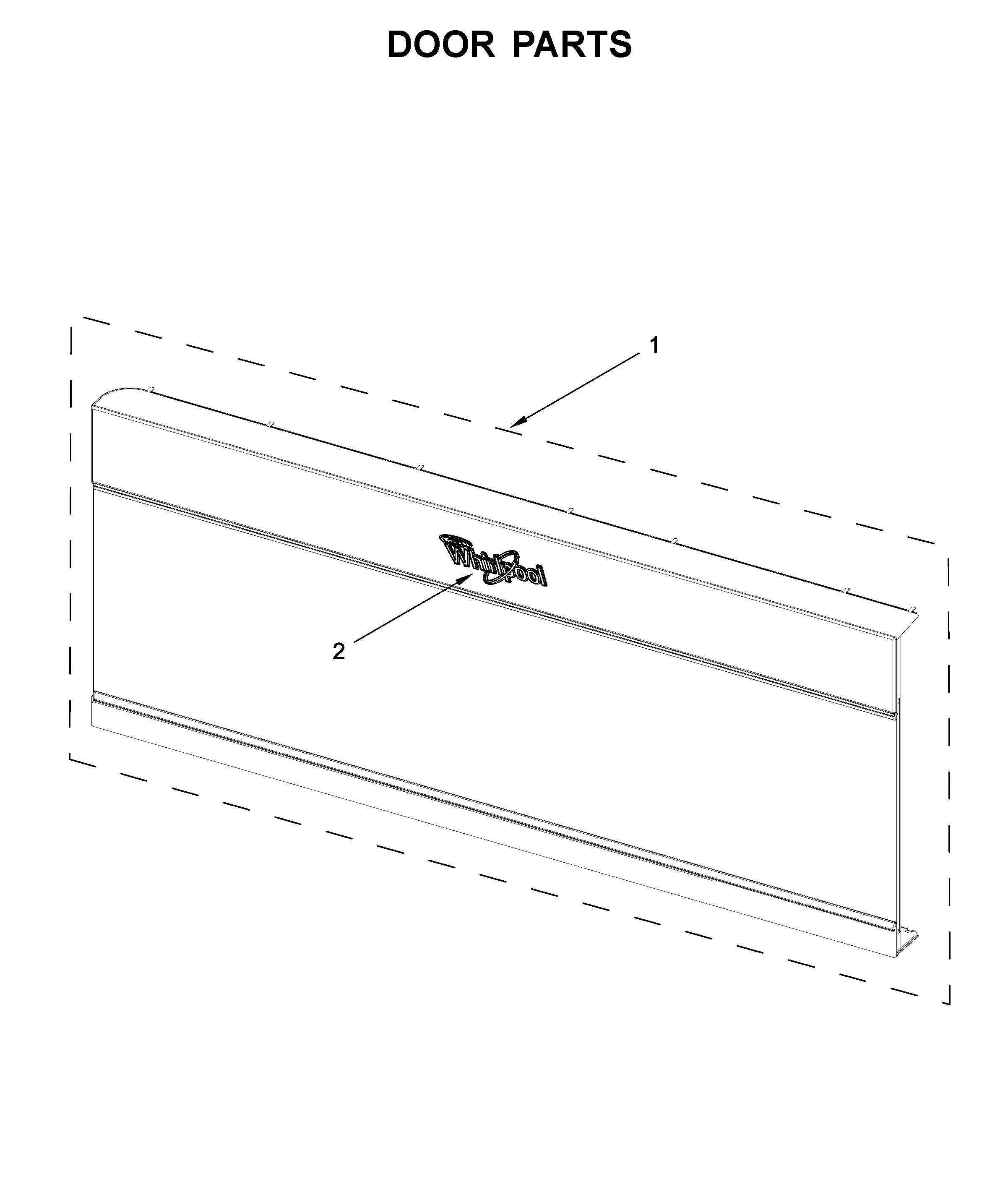

Door parts diagram

Badge, whirl

Part #W10884775

Replaced by #W11178521

?
Manufacturer substitution
This part replaces W10884775. Substitute parts can look different from the original.
$33.73 |
14% OFF MSRP : $39.00
In Stock
Microwave Wall Mounting Plate W11086258
#2

Cabinet and installation parts diagram

Microwave wall mounting plate

Part #W11086258

Replaced by #W11368557

?
Manufacturer substitution
This part replaces W11086258. Substitute parts can look different from the original.
$20.33 |
20% OFF Phone Price : $25.33
In Stock
Magnetron W11115131
#23

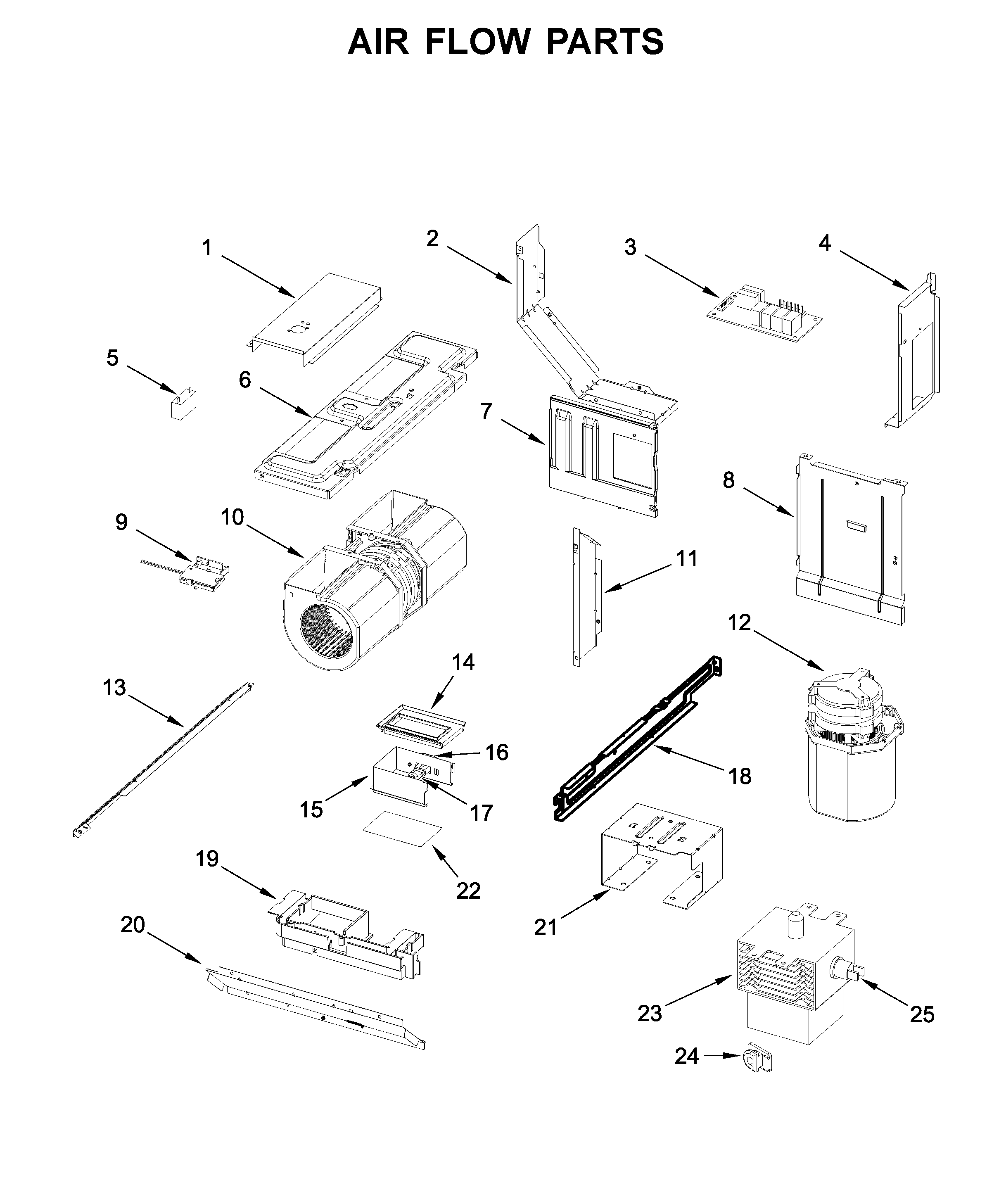

Air flow parts diagram

Magnetron

Part #W11115131

$192.96
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly (replaces W11295720) W11255493
#18

Interior and ventilation parts diagram

Microwave door latch housing and interlock switch assembly (replaces w11295720)

Part #W11255493

$31.04 |
14% OFF Phone Price : $36.04
In Stock
Microwave Electronic Control Board W11129648
#7

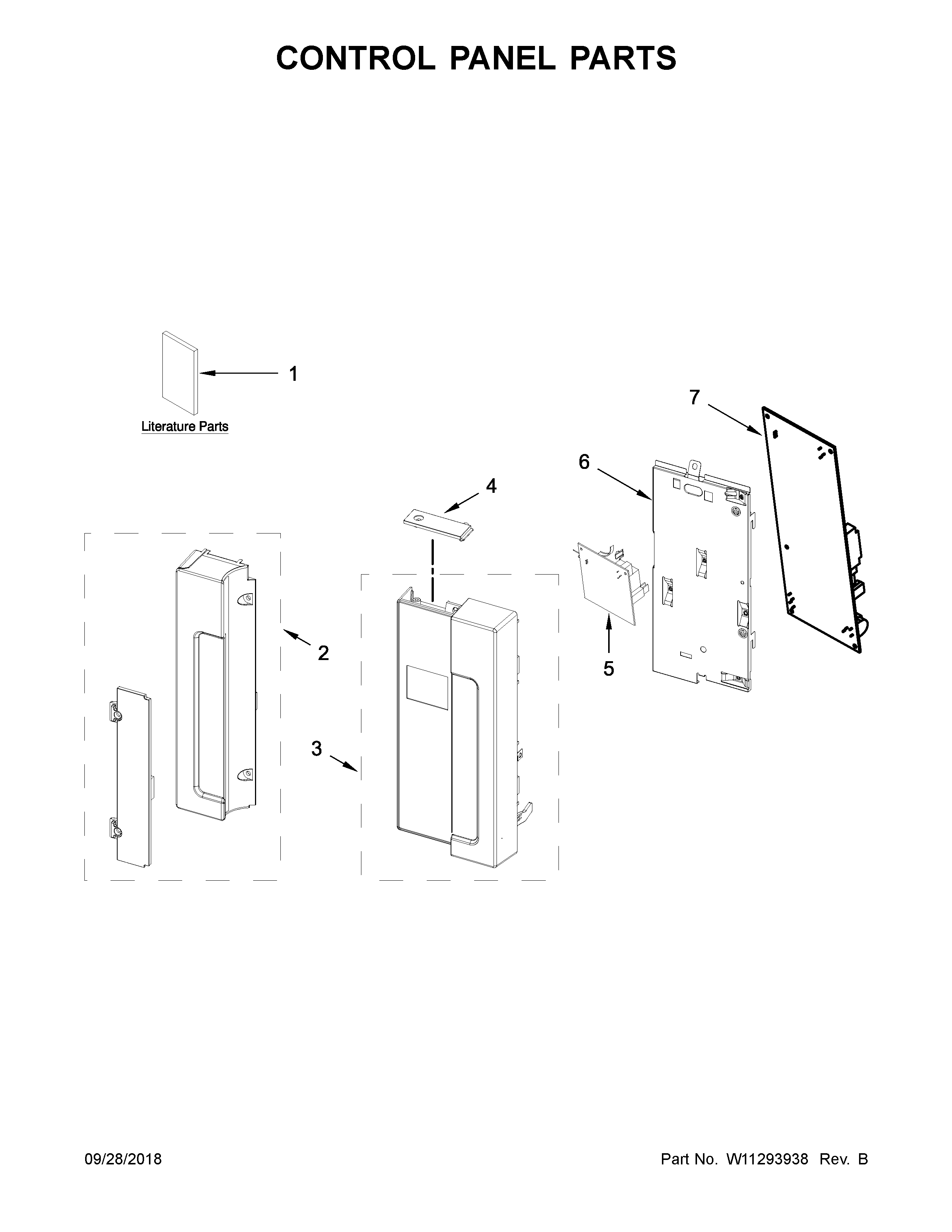

Control panel parts diagram

Microwave electronic control board

Part #W11129648

$69.29 |
7% OFF Phone Price : $74.29
In Stock
