Model # SV720-0011 Official Kohler engine

Here are the diagrams and repair parts for Official Kohler SV720-0011 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

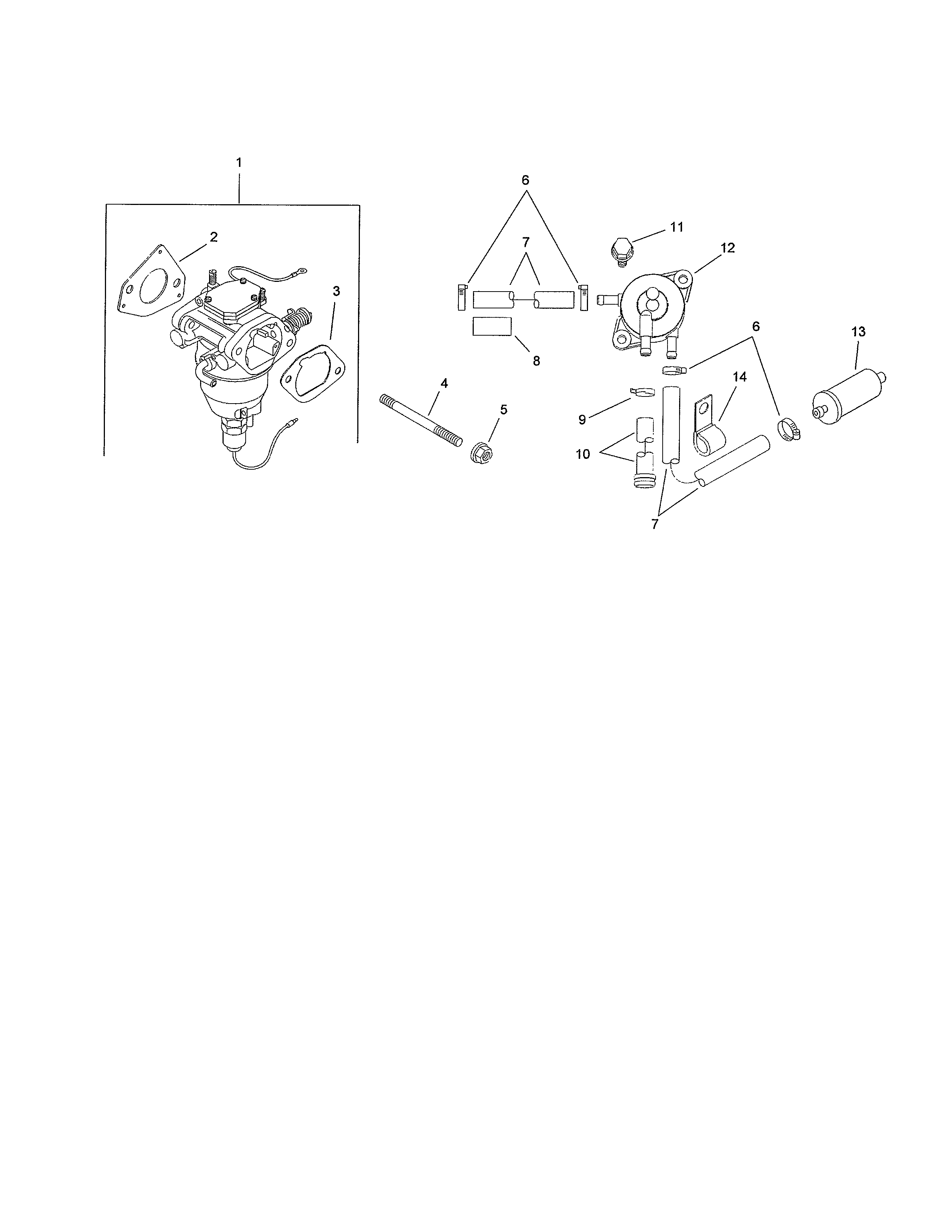

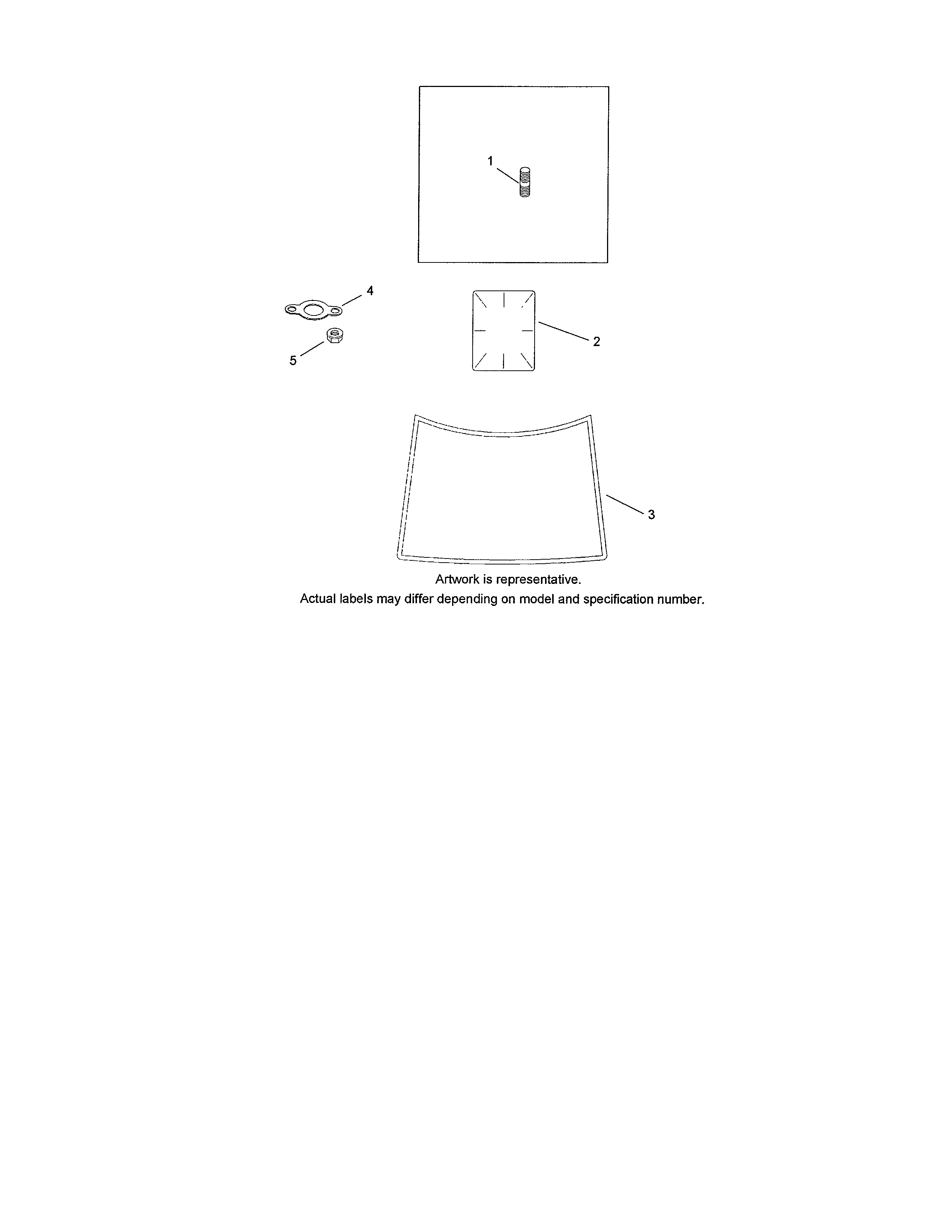

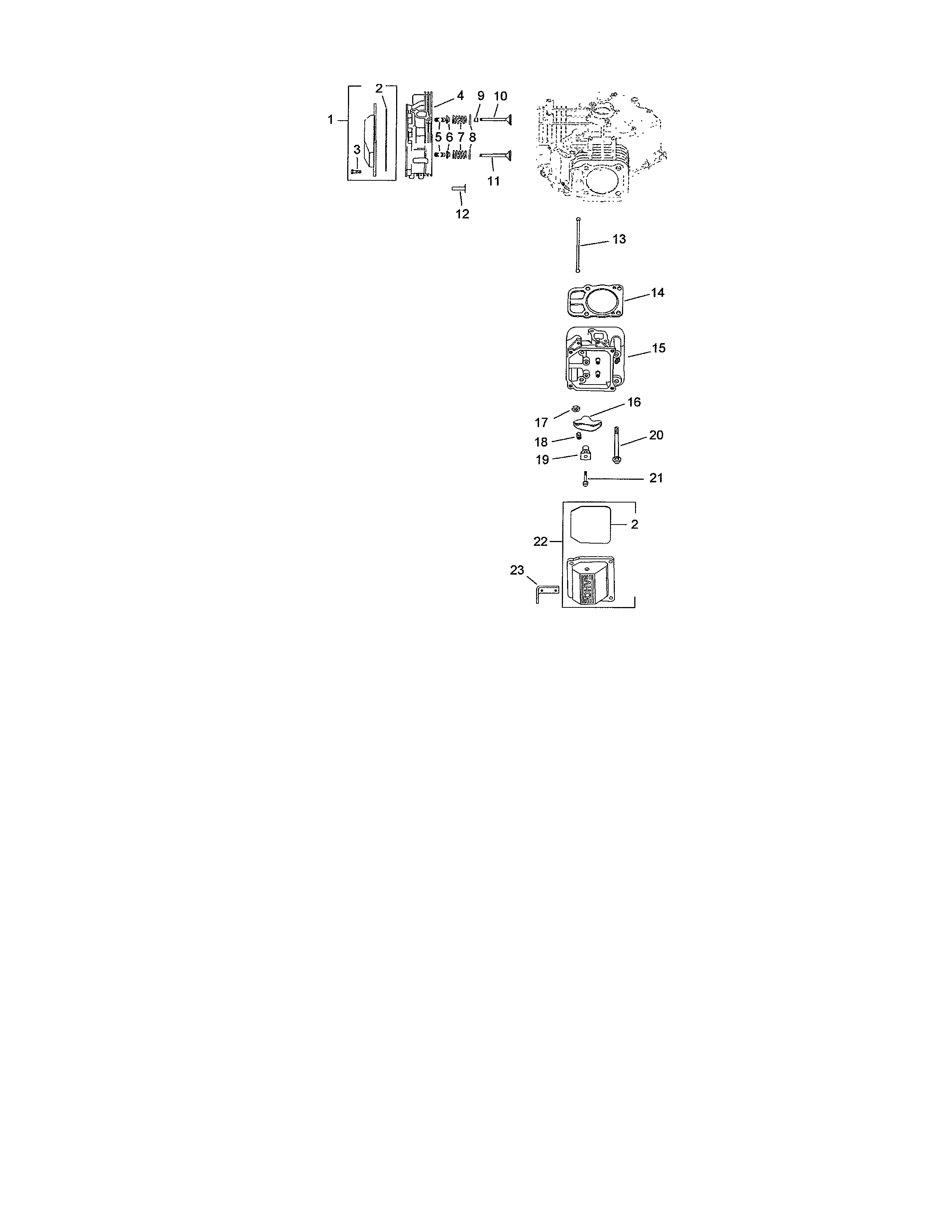

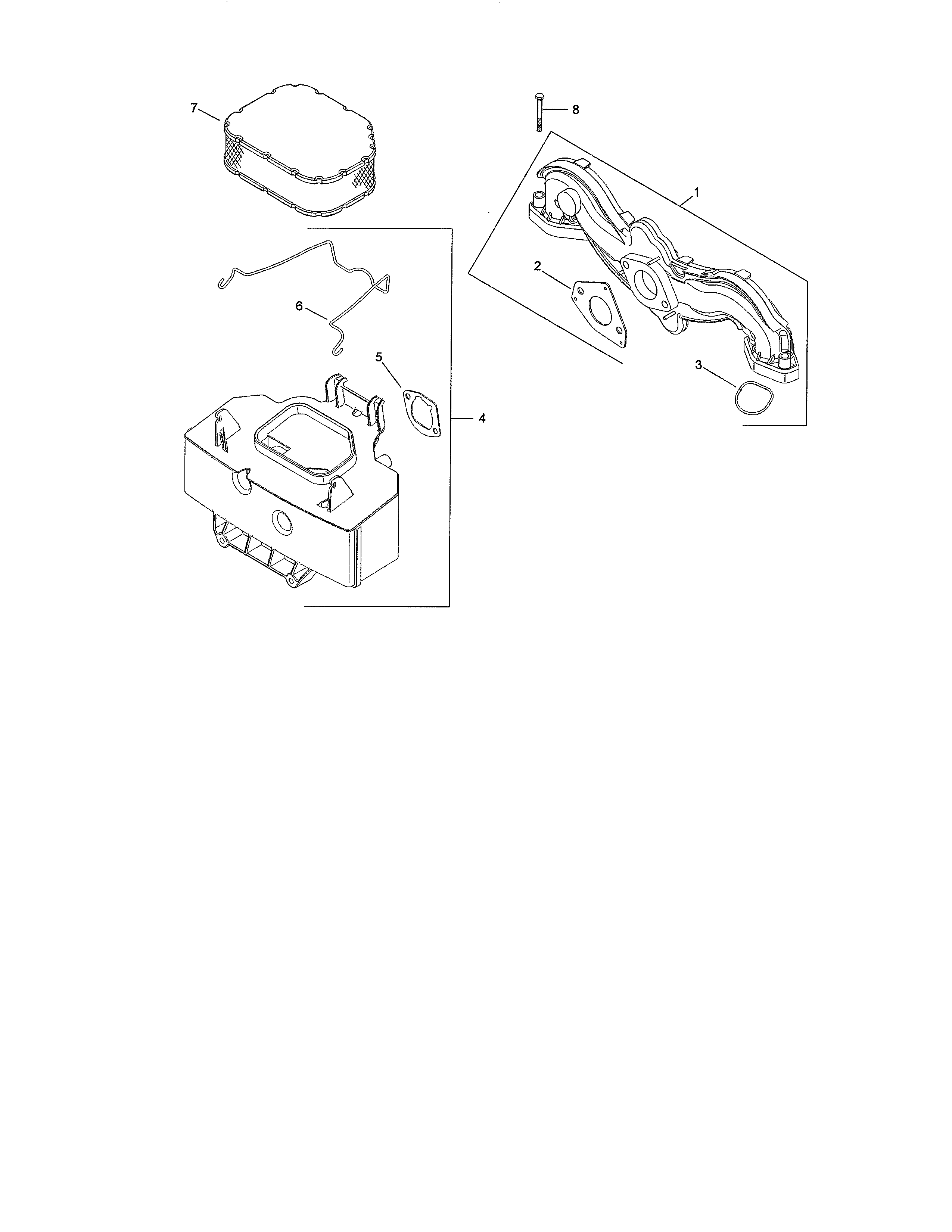

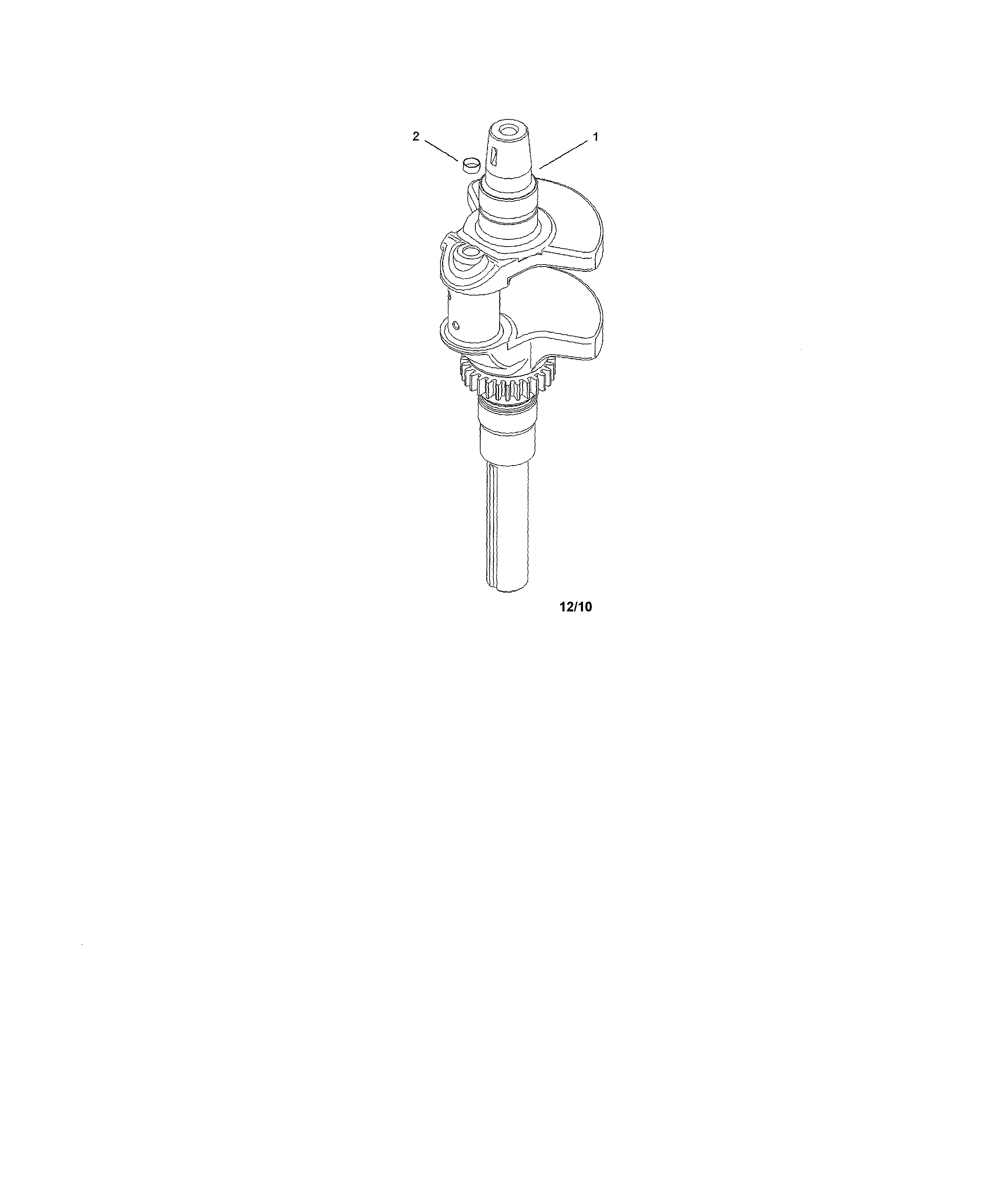

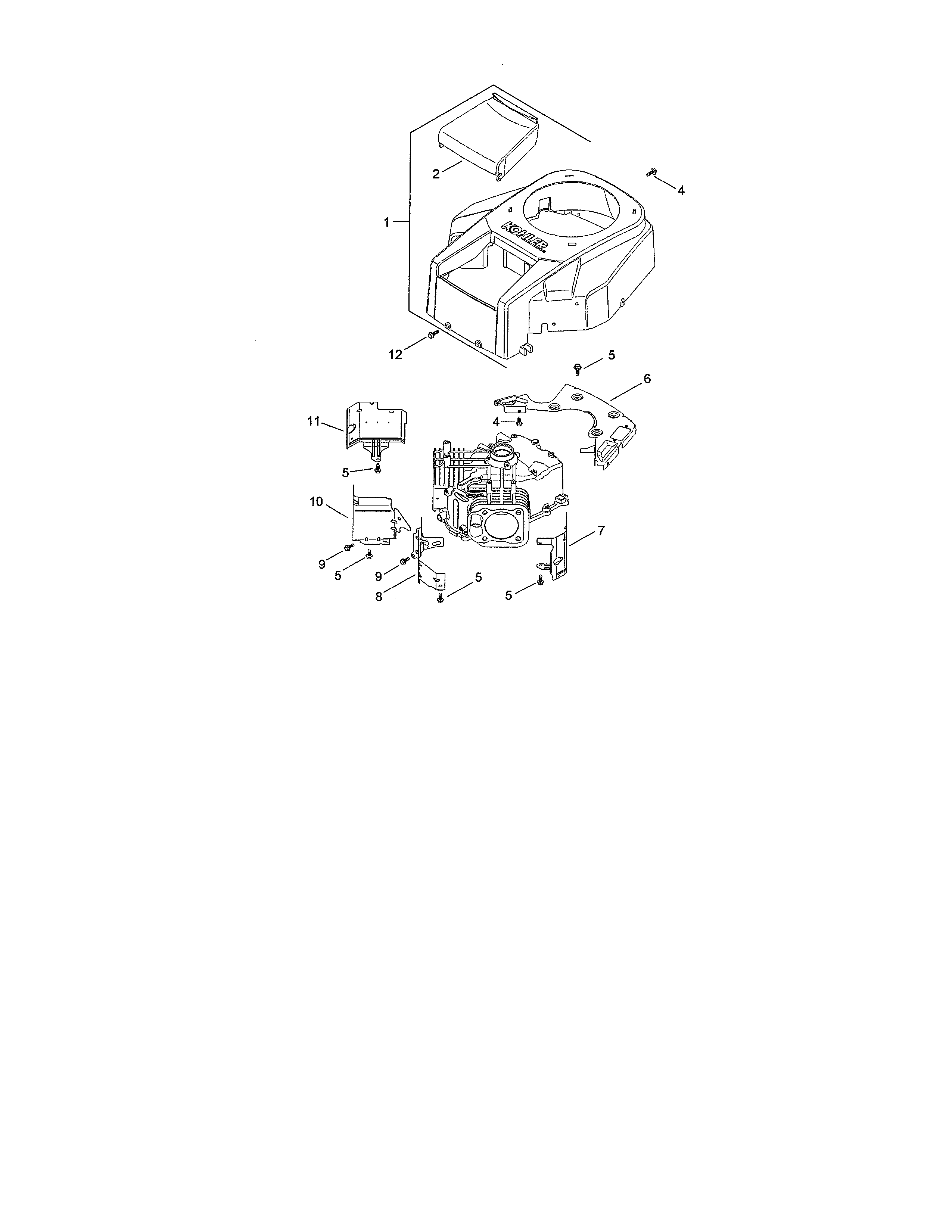

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Lawn & Garden Equipment Engine Starter Motor 32-098-01-S
#2

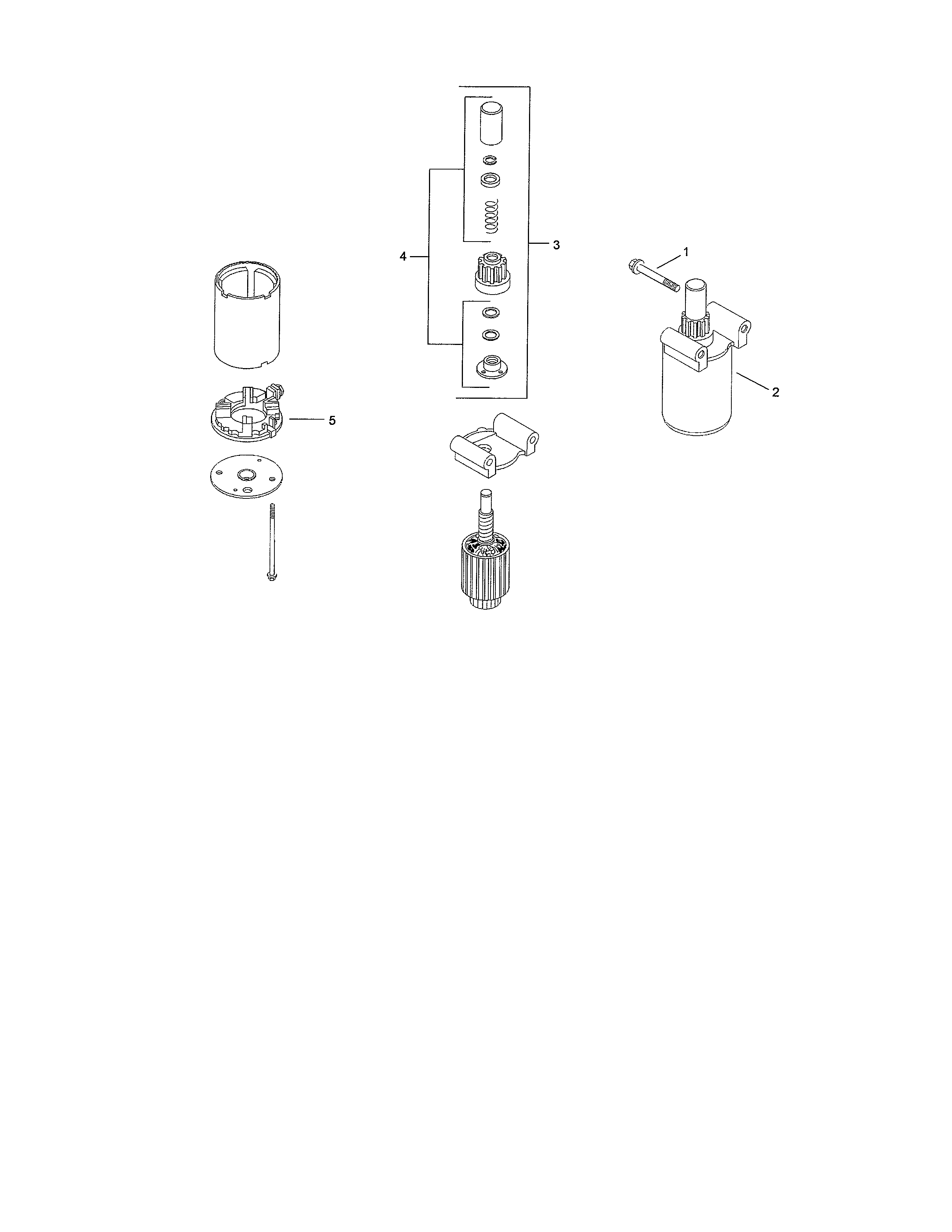

Starting system assembly diagram

Lawn & garden equipment engine starter motor

Part #32-098-01-S

Replaced by #32-098-10-S

?
Manufacturer substitution
This part replaces 32-098-01-S. Substitute parts can look different from the original.
BEST SELLER
$194.63 |
6% OFF Phone Price : $206.63
In Stock
Seal 52-032-08-S
#8

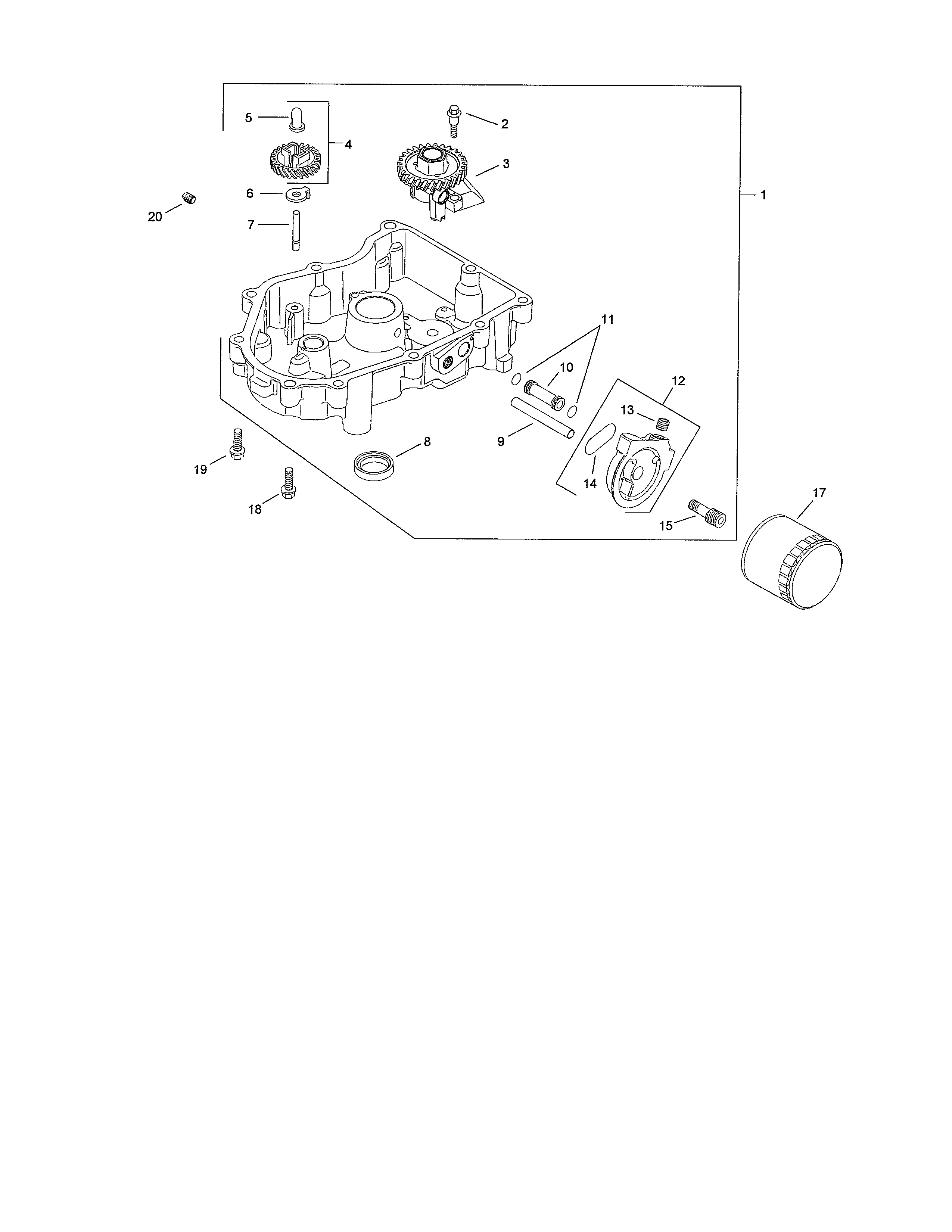

Oil pan / lubrication assembly diagram

Seal

Part #52-032-08-S

Replaced by #25-032-06-S

?
Manufacturer substitution
This part replaces 52-032-08-S. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Ignition Module 24-584-01-S
#16

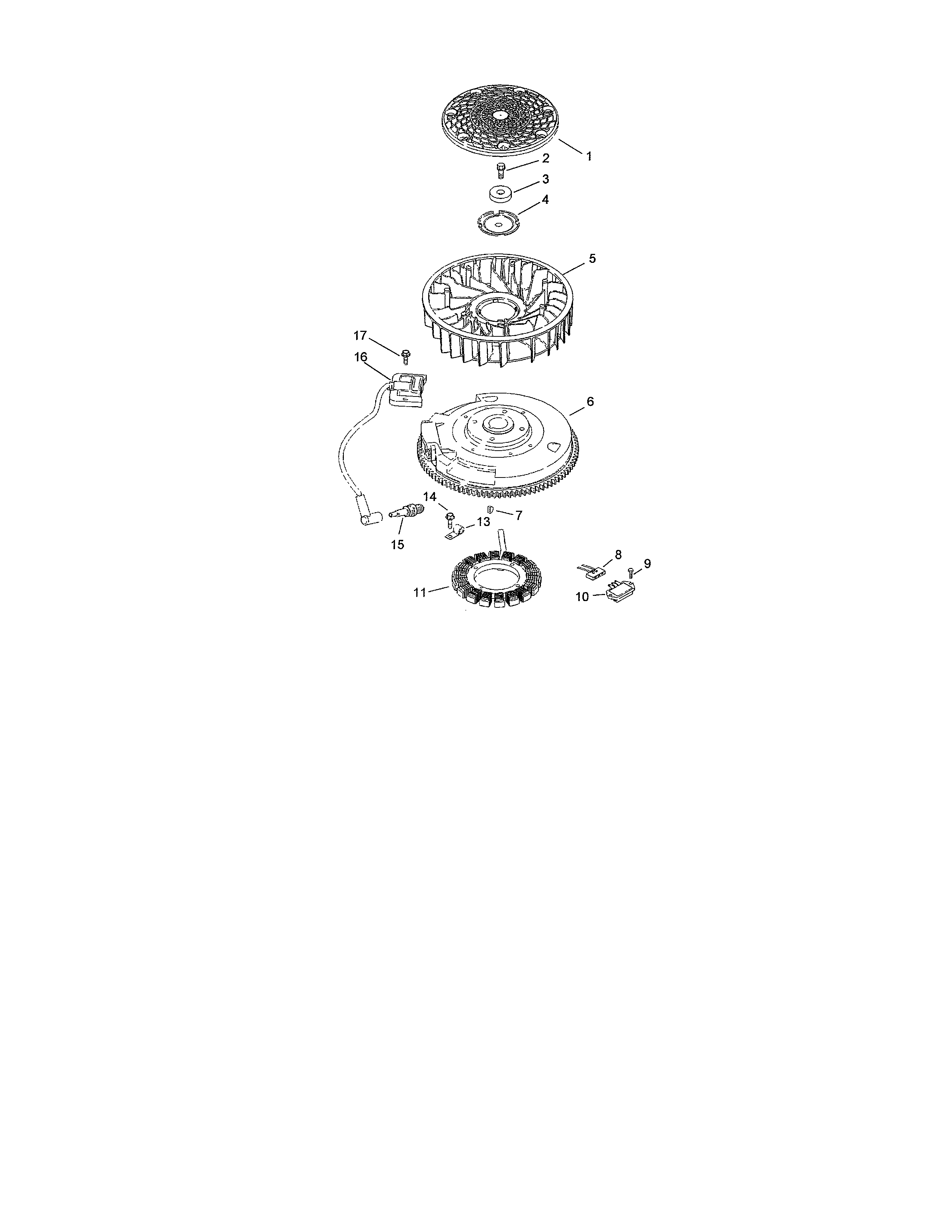

Ignition / electrical assembly diagram

Ignition module

Part #24-584-01-S

Replaced by #24-584-201-S

?
Manufacturer substitution
This part replaces 24-584-01-S. Substitute parts can look different from the original.
$85.82 |
7% OFF Phone Price : $91.82
In Stock
Regulator 41-403-09-S
#10

Ignition / electrical assembly diagram

Regulator

Part #41-403-09-S

Replaced by #25-403-37-S

?
Manufacturer substitution
This part replaces 41-403-09-S. Substitute parts can look different from the original.
$102.27 |
11% OFF Phone Price : $114.27
In Stock
Lawn & Garden Equipment Engine Drain Plug (replaces 25-139-57, Kh-25-139-57-s, Kh-x-75-10, X-75-10, X-75-10-s) 25-139-57-S
#20

Oil pan / lubrication assembly diagram

Lawn & garden equipment engine drain plug (replaces 25-139-57, kh-25-139-57-s, kh-x-75-10, x-75-10, x-75-10-s)

Part #25-139-57-S

This item is not returnable
$3.74 |
21% OFF Phone Price : $4.74
In Stock
Craftsman Lawn & Garden Equipment Engine Bushing 25-158-08-S
#5

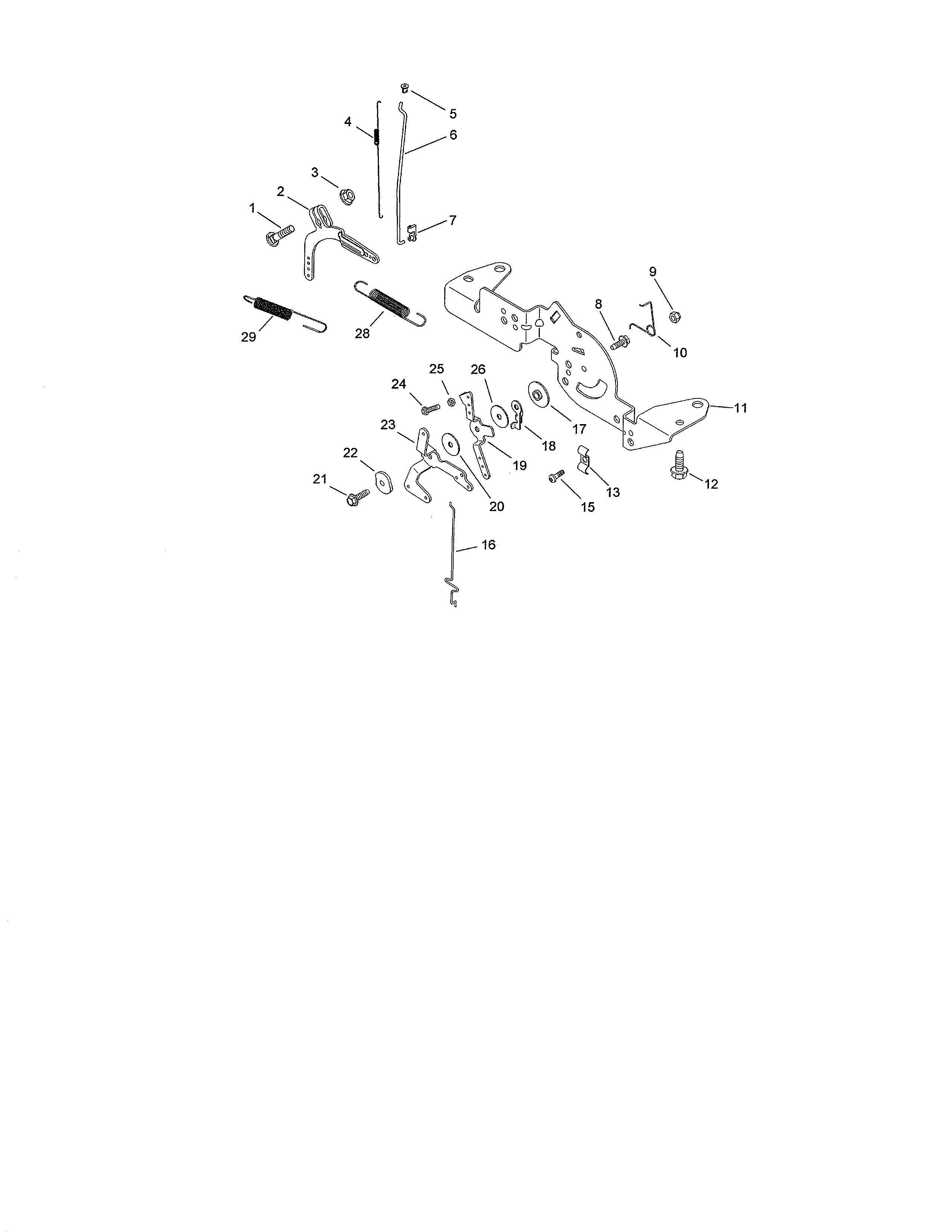

Engine control assembly diagram

Craftsman lawn & garden equipment engine bushing

Part #25-158-08-S

This item is not returnable
$7.03 |
12% OFF Phone Price : $8.03
In Stock
Lawn & Garden Equipment Engine Choke Linkage 24-079-22-S
#16

Engine control assembly diagram

Lawn & garden equipment engine choke linkage

Part #24-079-22-S

This item is not returnable
$9.53 |
10% OFF Was : $10.59
In Stock
Dipstick Assembly 32-038-01-S
#1

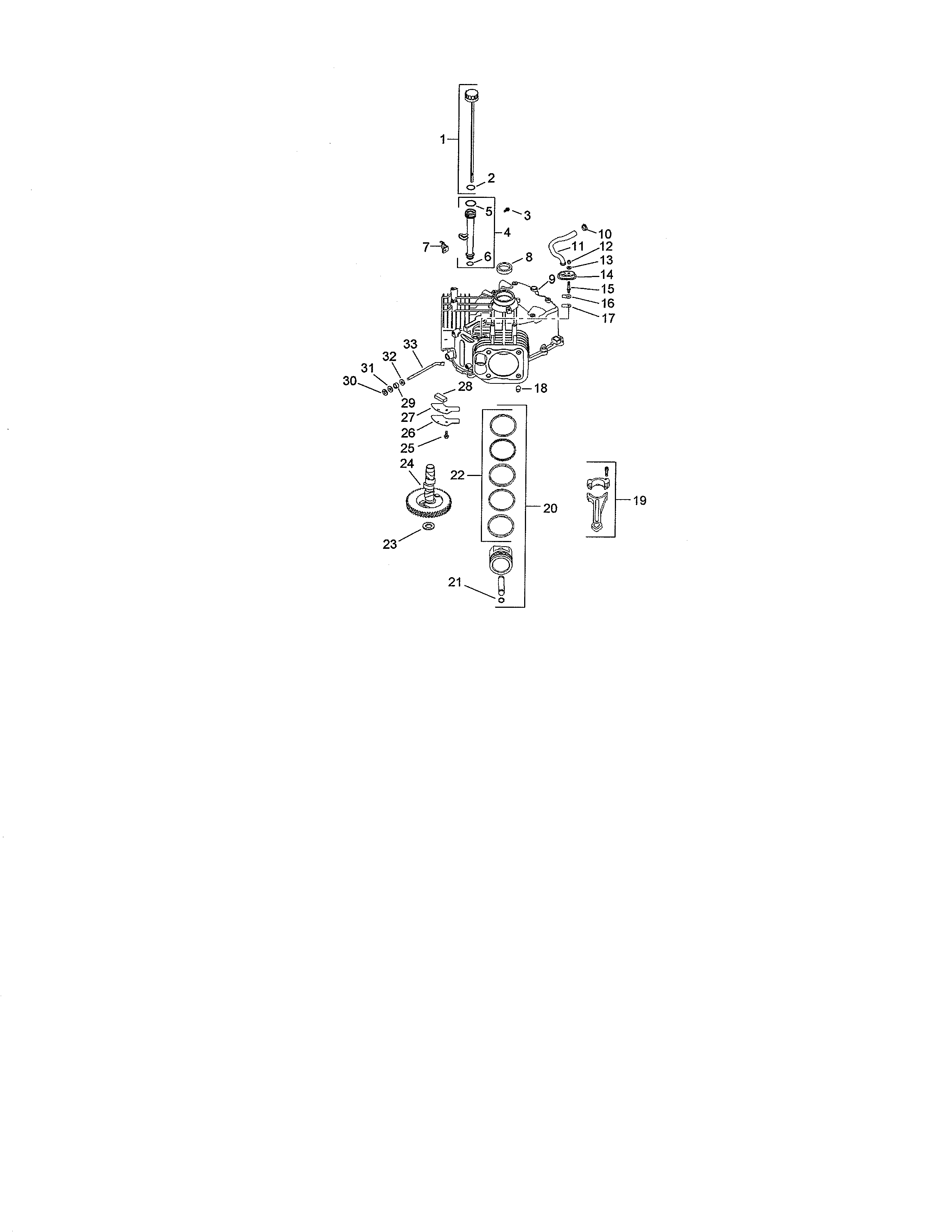

Crankcase assembly diagram

Dipstick assembly

Part #32-038-01-S

Replaced by #32-755-32-S

?
Manufacturer substitution
This part replaces 32-038-01-S. Substitute parts can look different from the original.
This item is not returnable
$24.27 |
20% OFF Phone Price : $30.27
In Stock
Lawn & Garden Equipment Engine Governor Spring 24-089-55-S
#28

Engine control assembly diagram

Lawn & garden equipment engine governor spring

Part #24-089-55-S

This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Craftsman Lawn Tractor Engine Extension Spring 24-089-01-S
#4

Engine control assembly diagram

Craftsman lawn tractor engine extension spring

Part #24-089-01-S

$10.69
In Stock
