Model # 11621167 Official Kenmore powermate vacuum attachment parts

Here are the diagrams and repair parts for Official Kenmore 11621167 powermate vacuum attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Bridge 742422
#41

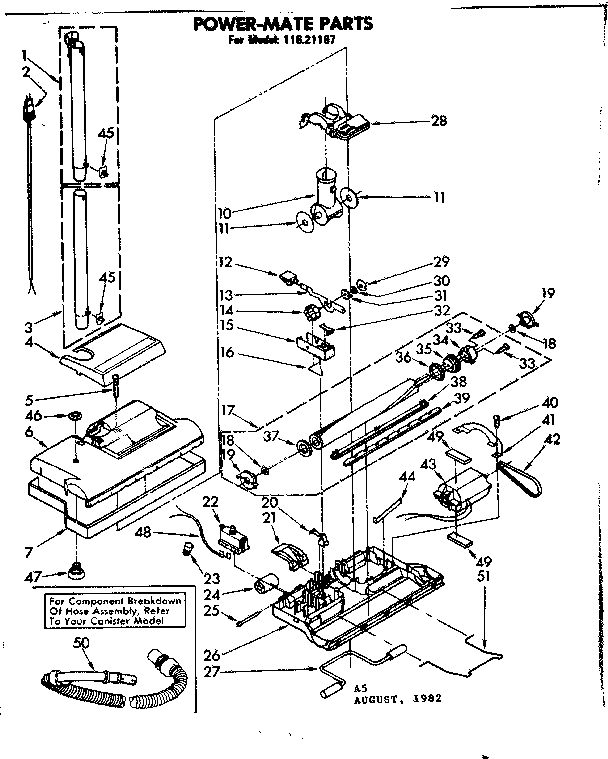

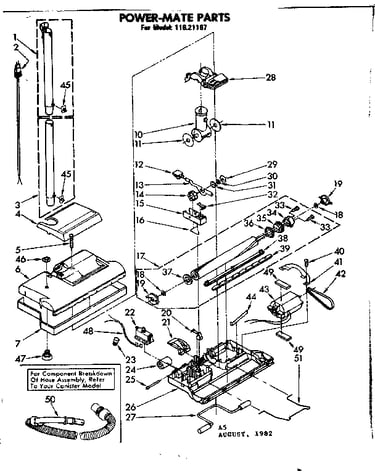

Powermate parts diagram

Bridge

Part #742422

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#50

Powermate parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#22

Powermate parts diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Washer 725635
#30

Powermate parts diagram

Washer

Part #725635

The manufacturer no longer makes this part, and there's no substitute part

Axle 742009
#27

Powermate parts diagram

Axle

Part #742009

The manufacturer no longer makes this part, and there's no substitute part

Base 742701
#26

Powermate parts diagram

Base

Part #742701

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Ratchet (white) 742016
#32

Powermate parts diagram

Vacuum ratchet (white)

Part #742016

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 742509
#34

Powermate parts diagram

End brush (black)

Part #742509

The manufacturer no longer makes this part, and there's no substitute part

Lever 742017
#13

Powermate parts diagram

Lever

Part #742017

The manufacturer no longer makes this part, and there's no substitute part

Bearing 742036
#19

Powermate parts diagram

Bearing

Part #742036

The manufacturer no longer makes this part, and there's no substitute part
