Craftsman 247380901 16" gas rotary lawn mower Parts
Here are the diagrams and repair parts for Craftsman 247380901 16" gas rotary lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 247380901 16" Gas Rotary Lawn Mower

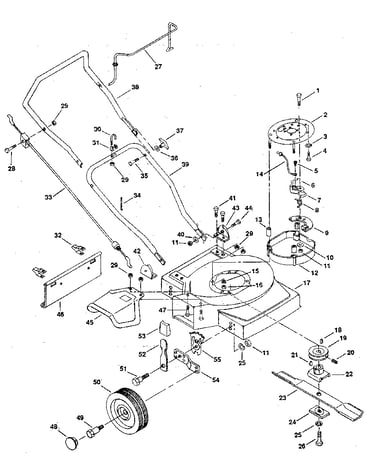

Replacement parts diagram
Knob
Part #706-10488Replaced by #720-04072A
Manufacturer substitutionThis part replaces 706-10488. Substitute parts can look different from the original.In Stock$11.2315% OFF Phone Price : $13.23
Qty
Replacement parts diagram
Screw
Part #706-10072-32-09Replaced by #710-1174
Manufacturer substitutionThis part replaces 706-10072-32-09. Substitute parts can look different from the original.This item is not returnableIn Stock$12.9613% OFF Phone Price : $14.96QtyReplacement parts diagram
Blade Bolt
Part #706-10006-16Replaced by #710-1039
Manufacturer substitutionThis part replaces 706-10006-16. Substitute parts can look different from the original.This item is not returnableIn Stock$6.74QtyReplacement parts diagram
Spacer Ring
Part #706-10778-01
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Bracket, Left
Part #706-10684-02-90
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Pivot Arm
Part #N15262B
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Set Screw, 5/16-18 X 3/8-in, 2-pack
Part #STD503103
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Lock Nut
Part #STD541431
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Handle
Part #706-13831-01-91
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Screw
Part #STD522506
The manufacturer no longer makes this part, and there's no substitute part
