Model # GWT645RHS0 Official Gibson washer - p5995332920

Here are the diagrams and repair parts for Official Gibson GWT645RHS0 washer - p5995332920, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

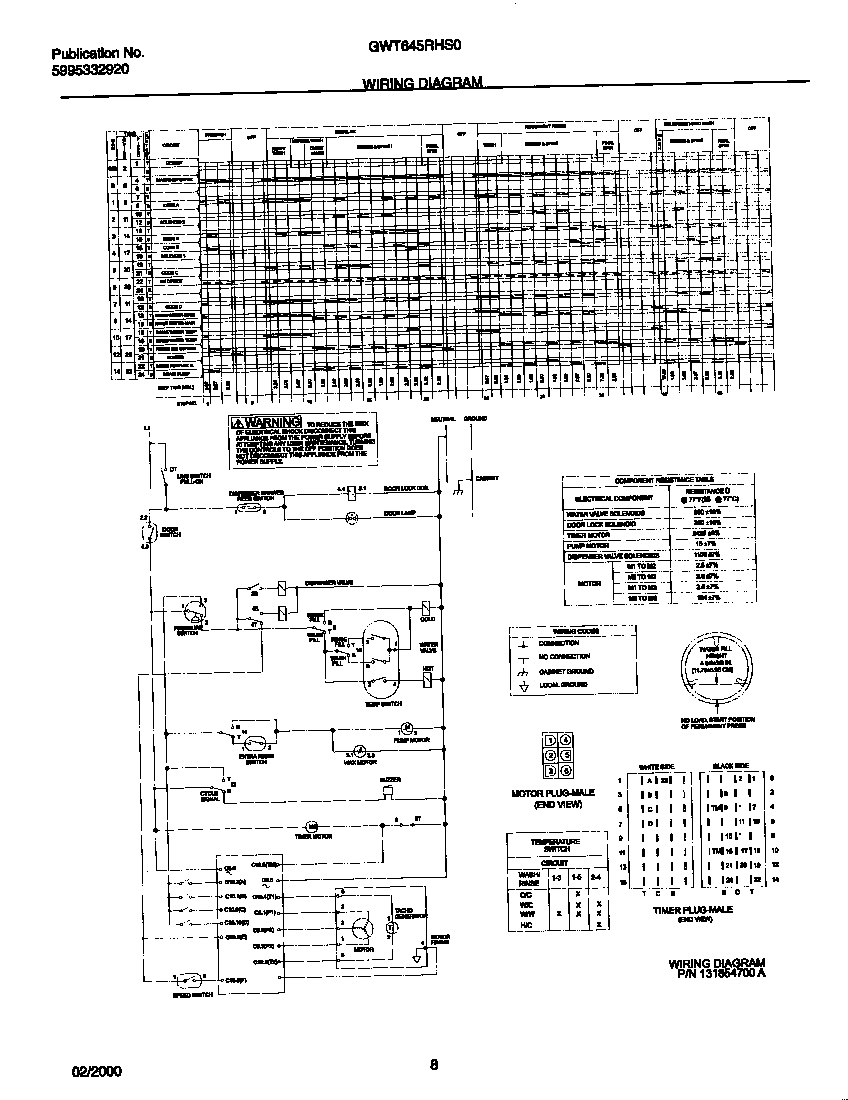

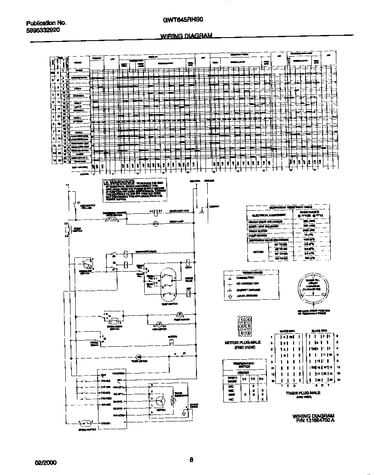

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Door Strike 131763300
#14

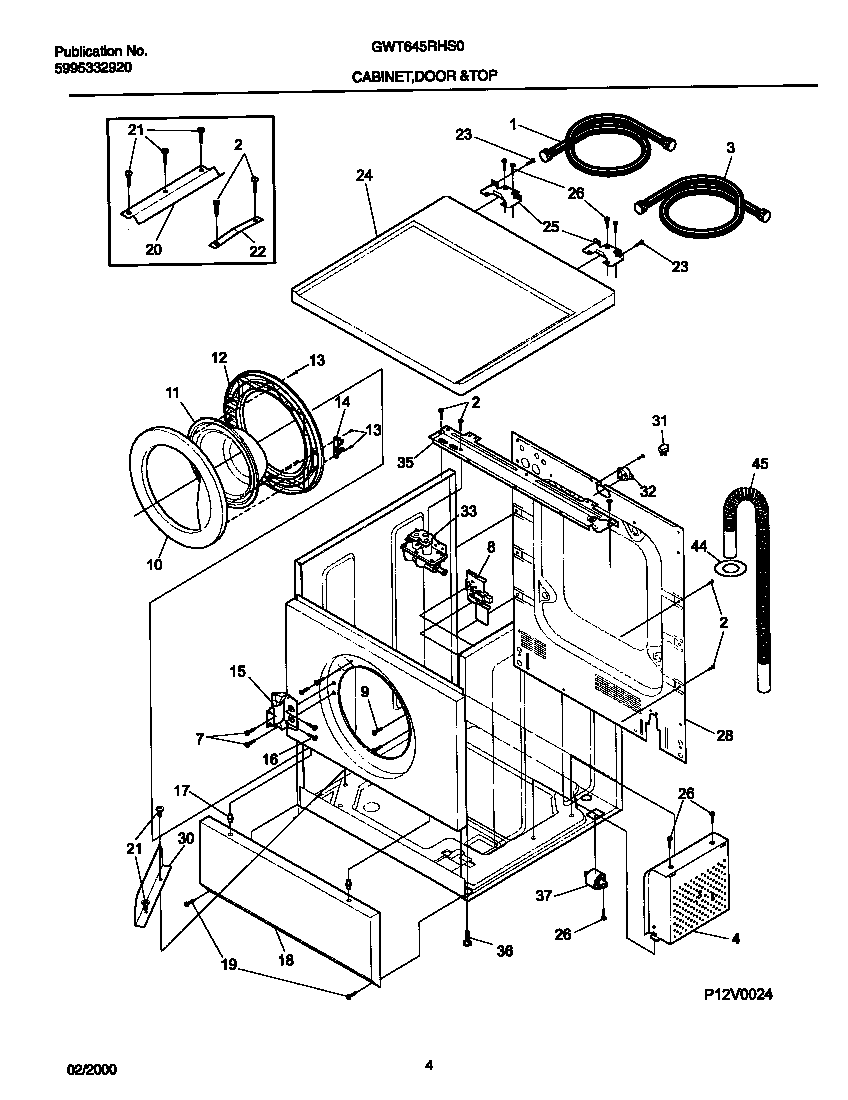

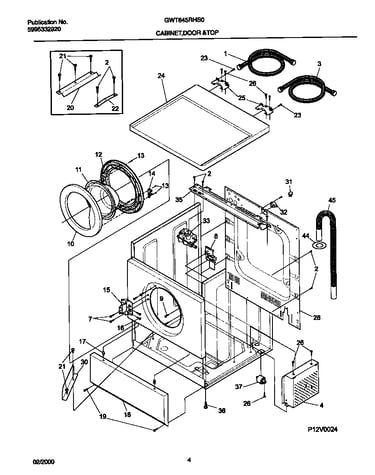

P12v0024 wshr cab,door diagram

Door strike

Part #131763300

Replaced by #131763310

?
Manufacturer substitution
This part replaces 131763300. Substitute parts can look different from the original.
BEST SELLER
$13.67 |
13% OFF Phone Price : $15.67
In Stock
Door Catch 131763200
#8

P12v0024 wshr cab,door diagram

Door catch

Part #131763200

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763200. Substitute parts can look different from the original.
BEST SELLER
$108.01 |
8% OFF Phone Price : $118.01
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
36% OFF MSRP : $17.00
In Stock
Bearing Shell 131462800
#22

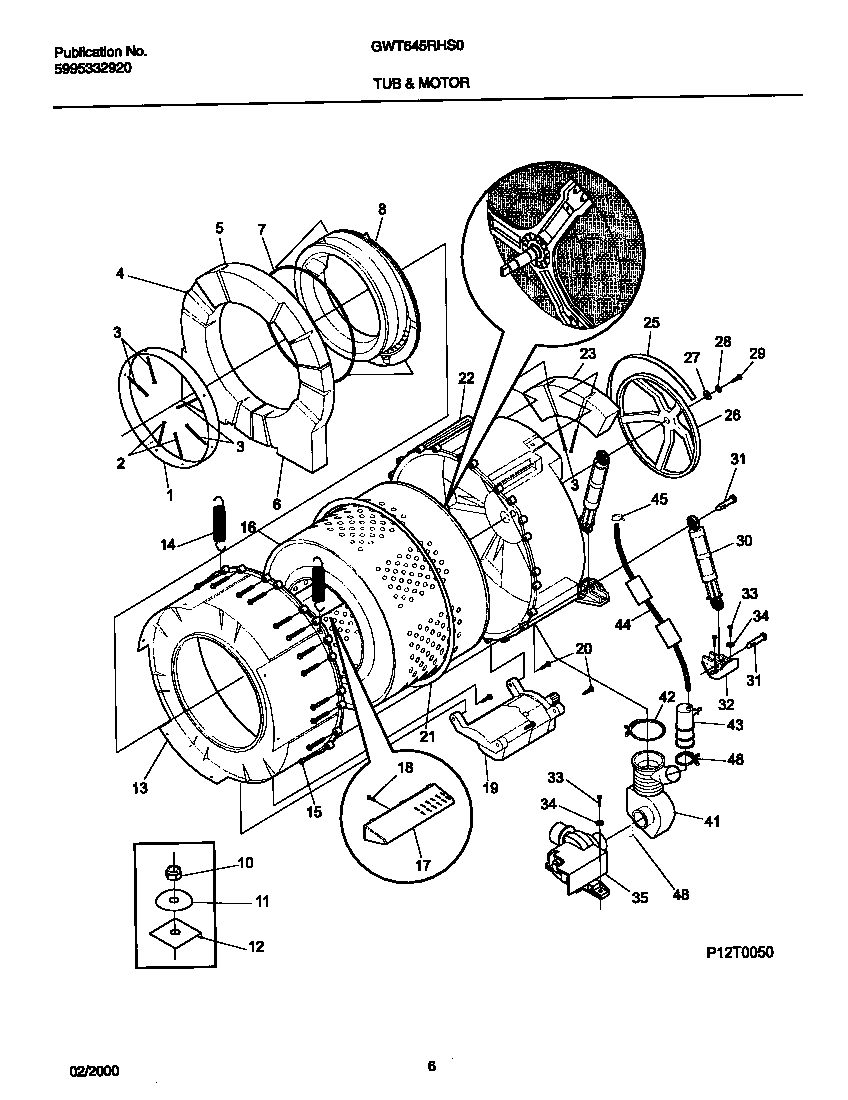

P12t0050 wshr tub,motor diagram

Bearing shell

Part #131462800

Replaced by #131525500

?
Manufacturer substitution
This part replaces 131462800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$557.67 |
$10.00 OFF Phone Price : $567.67
In Stock
Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

$14.09 |
12% OFF Phone Price : $16.09
In Stock
Tub Gasket 131275900
#21

P12t0050 wshr tub,motor diagram

Tub gasket

Part #131275900

Replaced by #134146100

?
Manufacturer substitution
This part replaces 131275900. Substitute parts can look different from the original.
BEST SELLER
$48.10 |
9% OFF Phone Price : $53.10
In Stock
Siphon Screw 131303300
#9

P12v0024 wshr cab,door diagram

Siphon screw

Part #131303300

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131303300. Substitute parts can look different from the original.
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Bellows 131277100
#8

P12t0050 wshr tub,motor diagram

Bellows

Part #131277100

Replaced by #5303937187

?
Manufacturer substitution
This part replaces 131277100. Substitute parts can look different from the original.
BEST SELLER
$97.83 |
9% OFF Phone Price : $107.83
In Stock
Washer Spin Basket (replaces 131274700) 131618500
#16

P12t0050 wshr tub,motor diagram

Washer spin basket (replaces 131274700)

Part #131618500

This item is not returnable
$578.89 |
$10.00 OFF Phone Price : $588.89
In Stock
Washer Drain Hose (replaces 131268800) 131461200
#45

P12v0024 wshr cab,door diagram

Washer drain hose (replaces 131268800)

Part #131461200

This item is not returnable
$26.79 |
16% OFF Phone Price : $31.79
In Stock
