Model # JMV8208CB4 Official Jenn-Air microwave/hood combo
Here are the diagrams and repair parts for Official Jenn-Air JMV8208CB4 microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

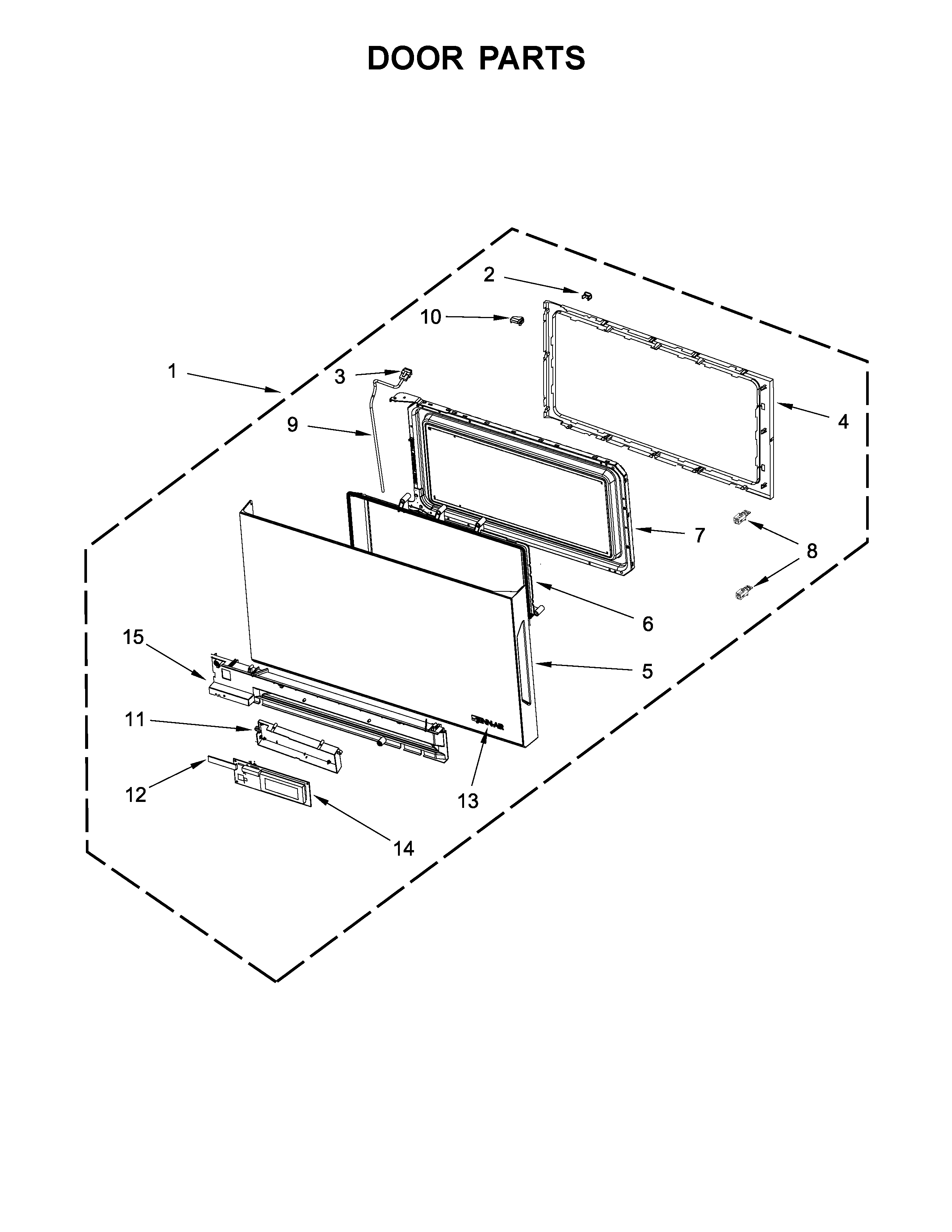

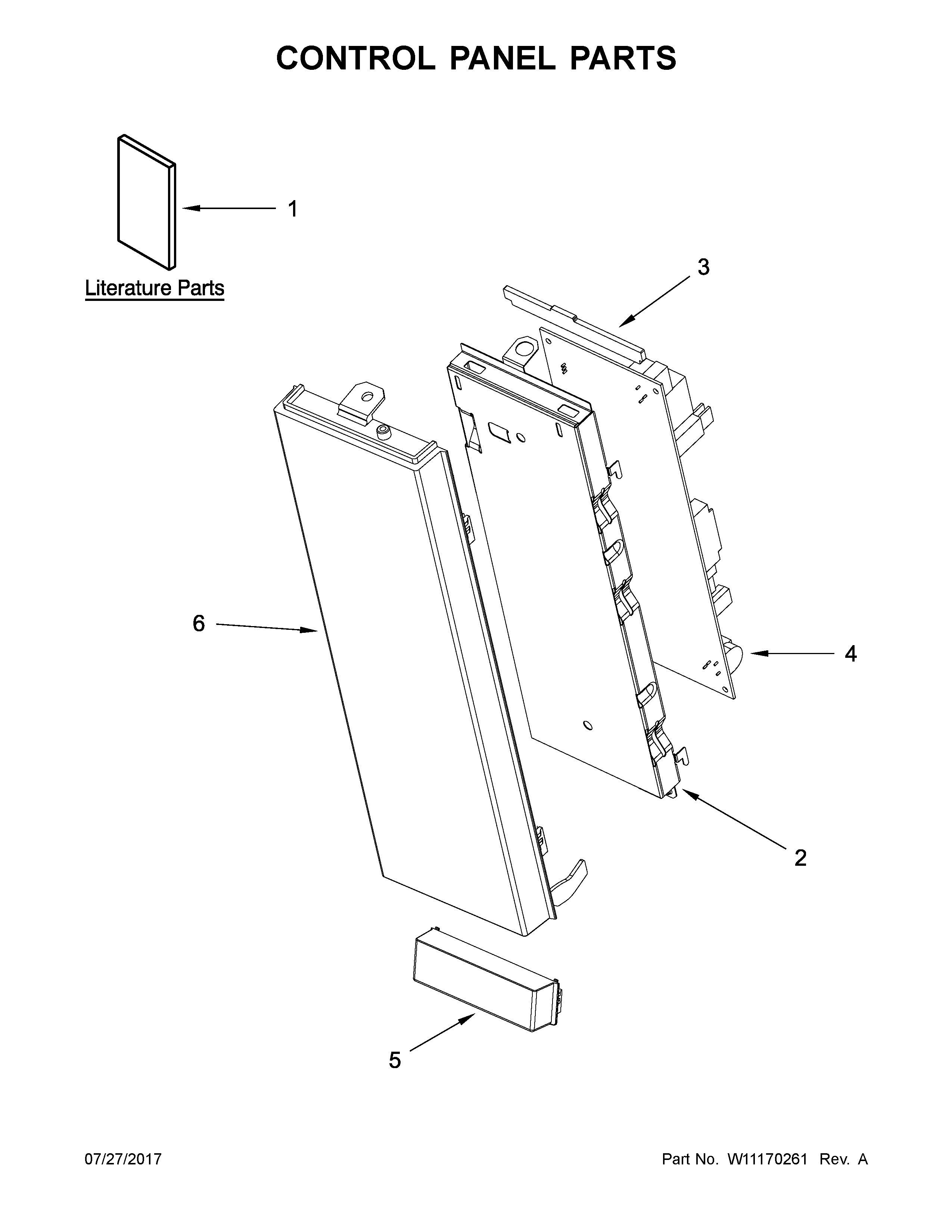

SELECT DIAGRAM
Browse Parts for
JMV8208CB4 Microwave/Hood Combo
#13

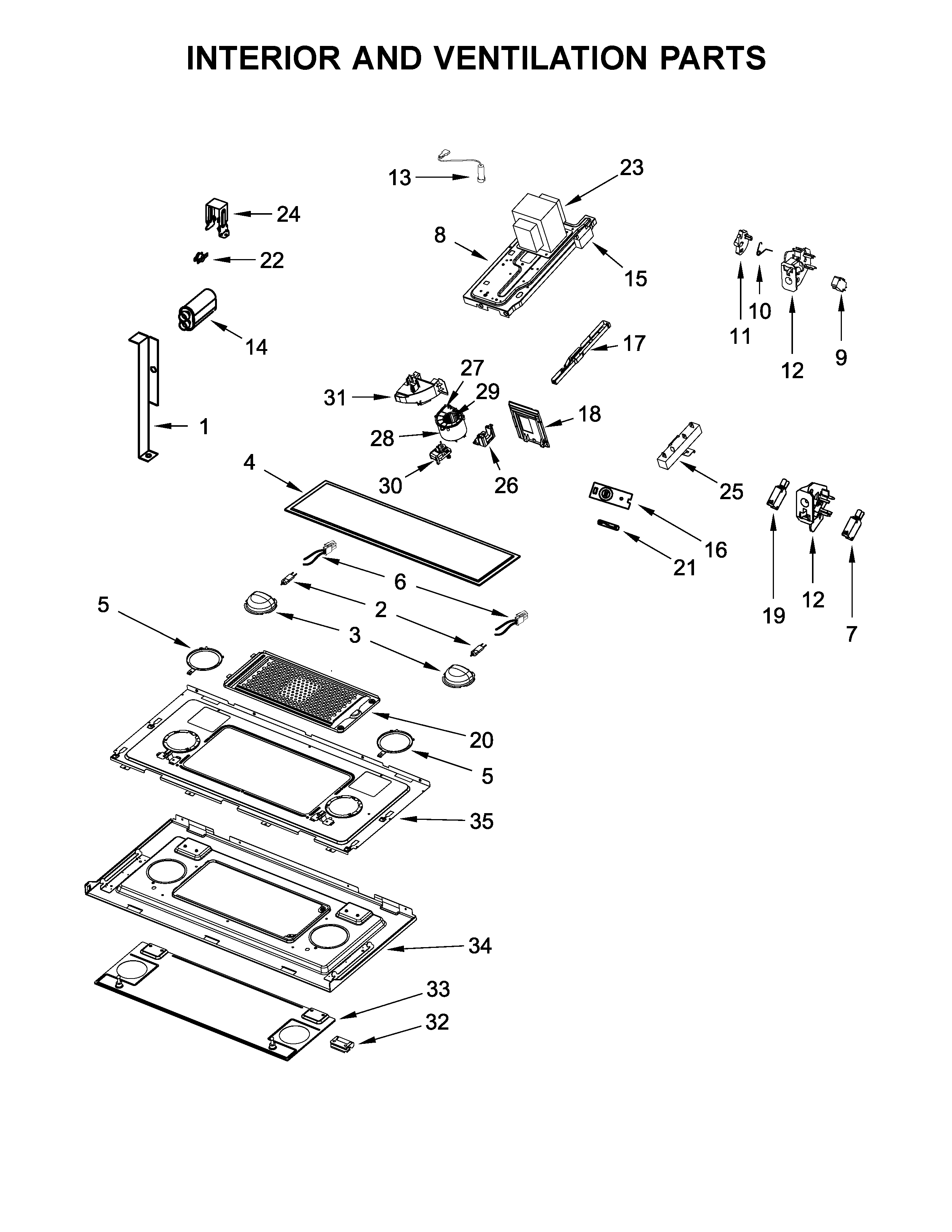

Interior and ventilation parts diagram
Diode
Part #W10575765
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
$23.42 |
20% OFF Phone Price : $29.42
In Stock
#7
Interior and ventilation parts diagram
Microwave door interlock switch (replaces w10211973)
Part #W10269458
$23.51 |
20% OFF Phone Price : $29.51
In Stock
#12
Interior and ventilation parts diagram
Microwave door interlock support, upper
Part #8206419
Replaced by #WP8206419
?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
$12.11 |
14% OFF Phone Price : $14.11
In Stock
#21
Interior and ventilation parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$55.83
In Stock
#4
Interior and ventilation parts diagram
Filter
Part #W10208631
Replaced by #W10208631A
?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
$25.49 |
19% OFF Phone Price : $31.49
In Stock
#15

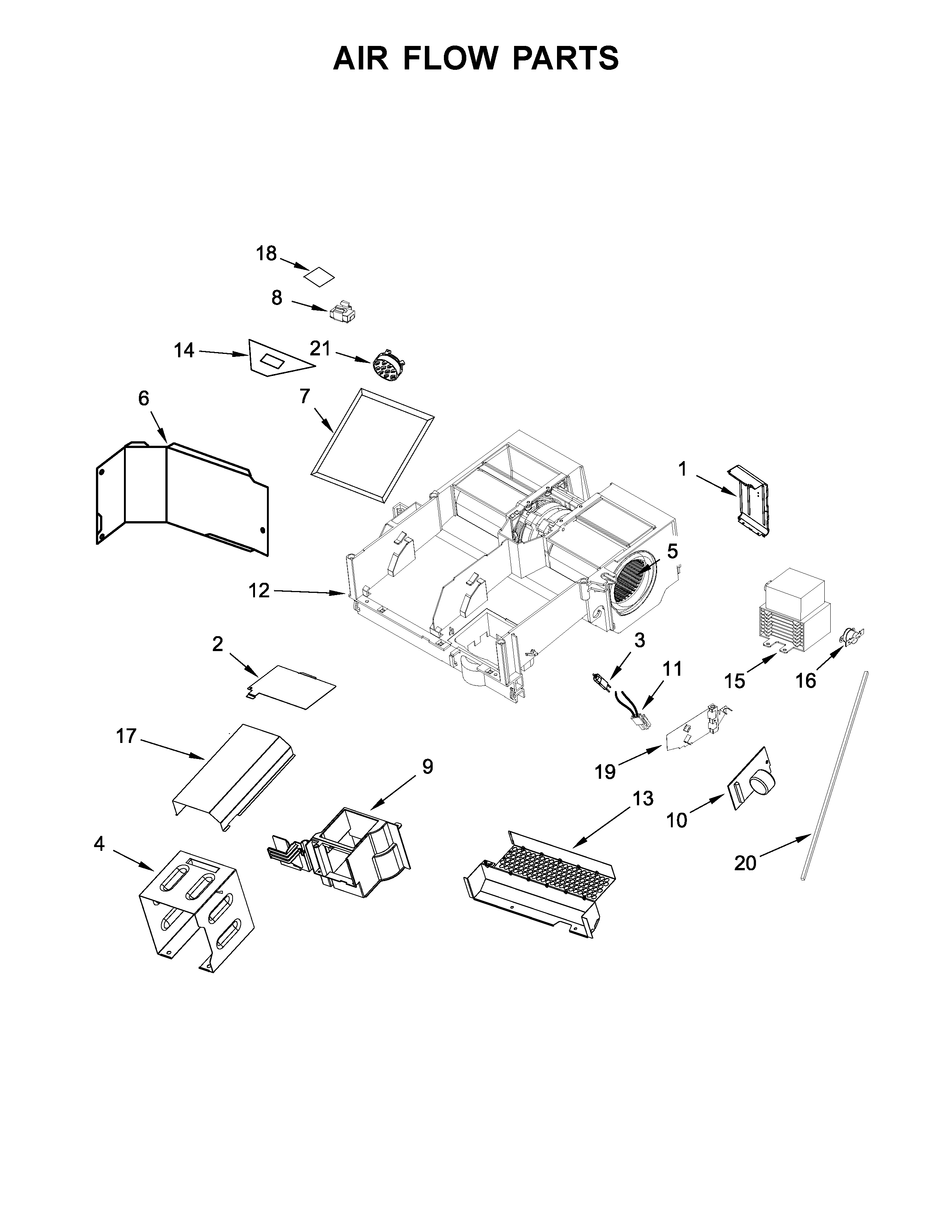

Air flow parts diagram
Magnetron
Part #W10754514
The manufacturer no longer makes this part, and there's no substitute part
#1

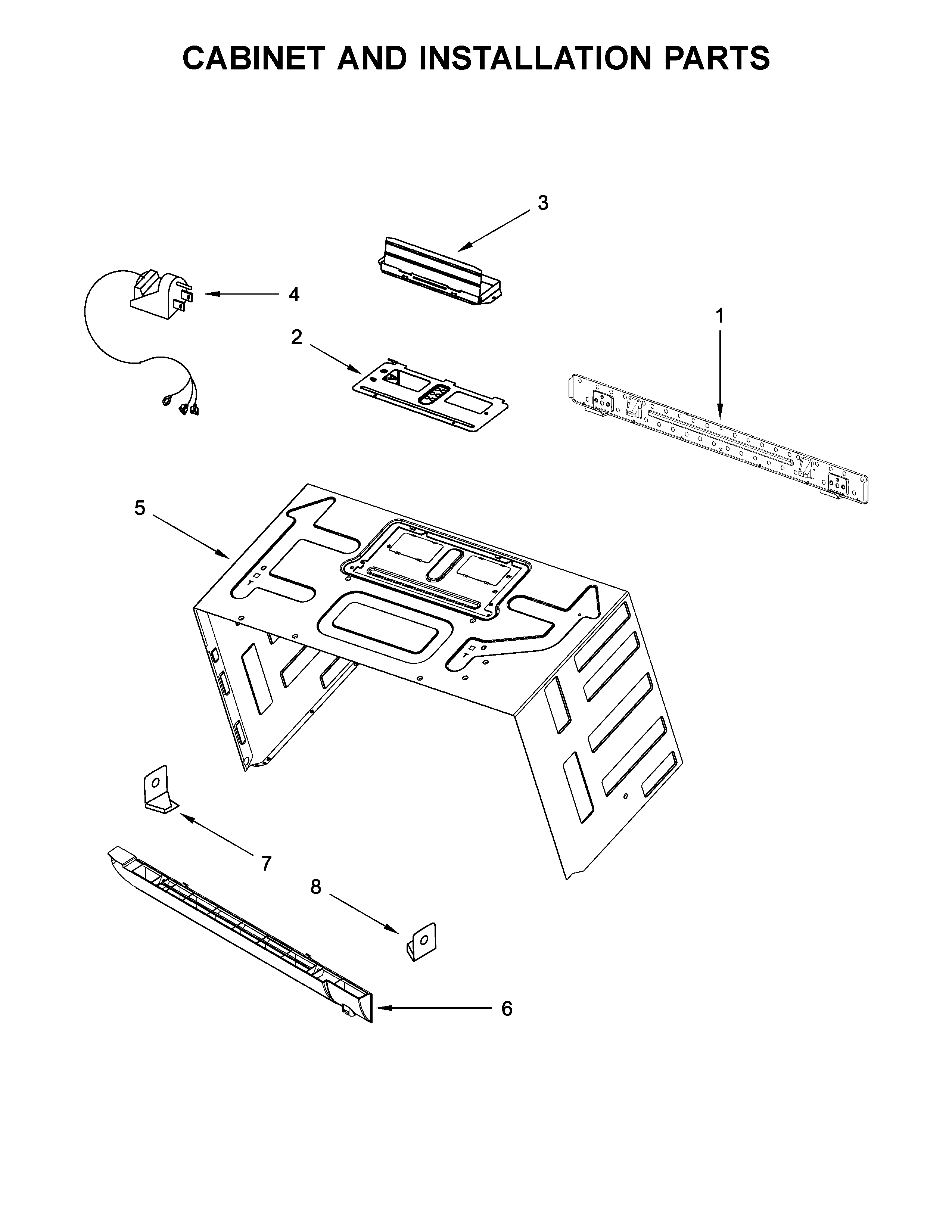

Cabinet and installation parts diagram
Microwave mounting plate (replaces w10440498)
Part #W11025649
$12.77 |
14% OFF Phone Price : $14.77
Back Order
#10
Air flow parts diagram
Microwave/hood filter
Part #W10531156
Replaced by #WPW10531156
?
Manufacturer substitution
This part replaces W10531156. Substitute parts can look different from the original.
$66.28
In Stock
#3
Cabinet and installation parts diagram
Microwave vent damper
Part #W10748710
Replaced by #W10843943
?
Manufacturer substitution
This part replaces W10748710. Substitute parts can look different from the original.
$52.95 |
10% OFF Phone Price : $58.95
In Stock
#6

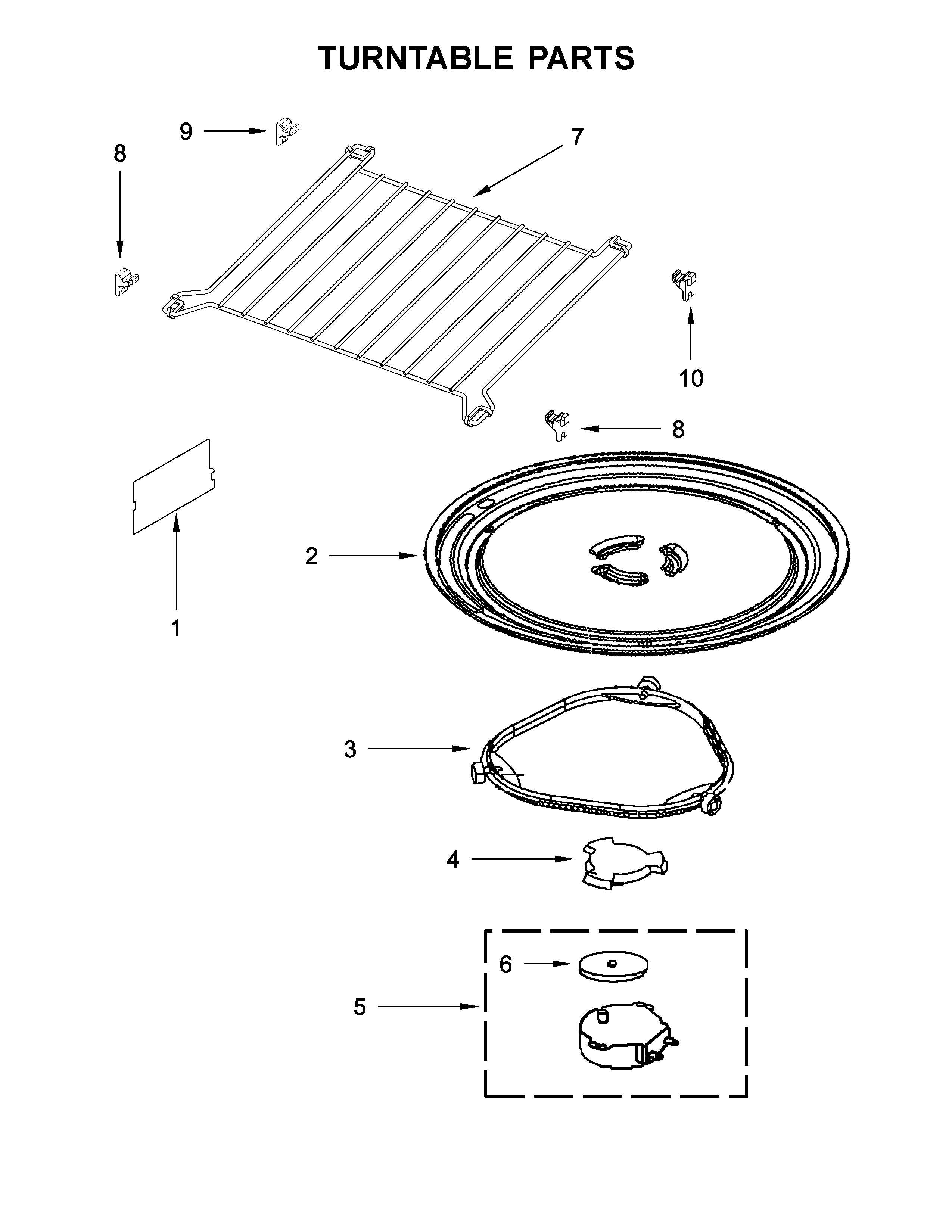

Turntable parts diagram
Microwave turntable motor spacer (replaces 4393588, 8206101)
Part #8184109
This item is not returnable
$6.17 |
14% OFF Phone Price : $7.17
In Stock
