Model # DW926K2 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW926K2 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Lead 391090-00
#10

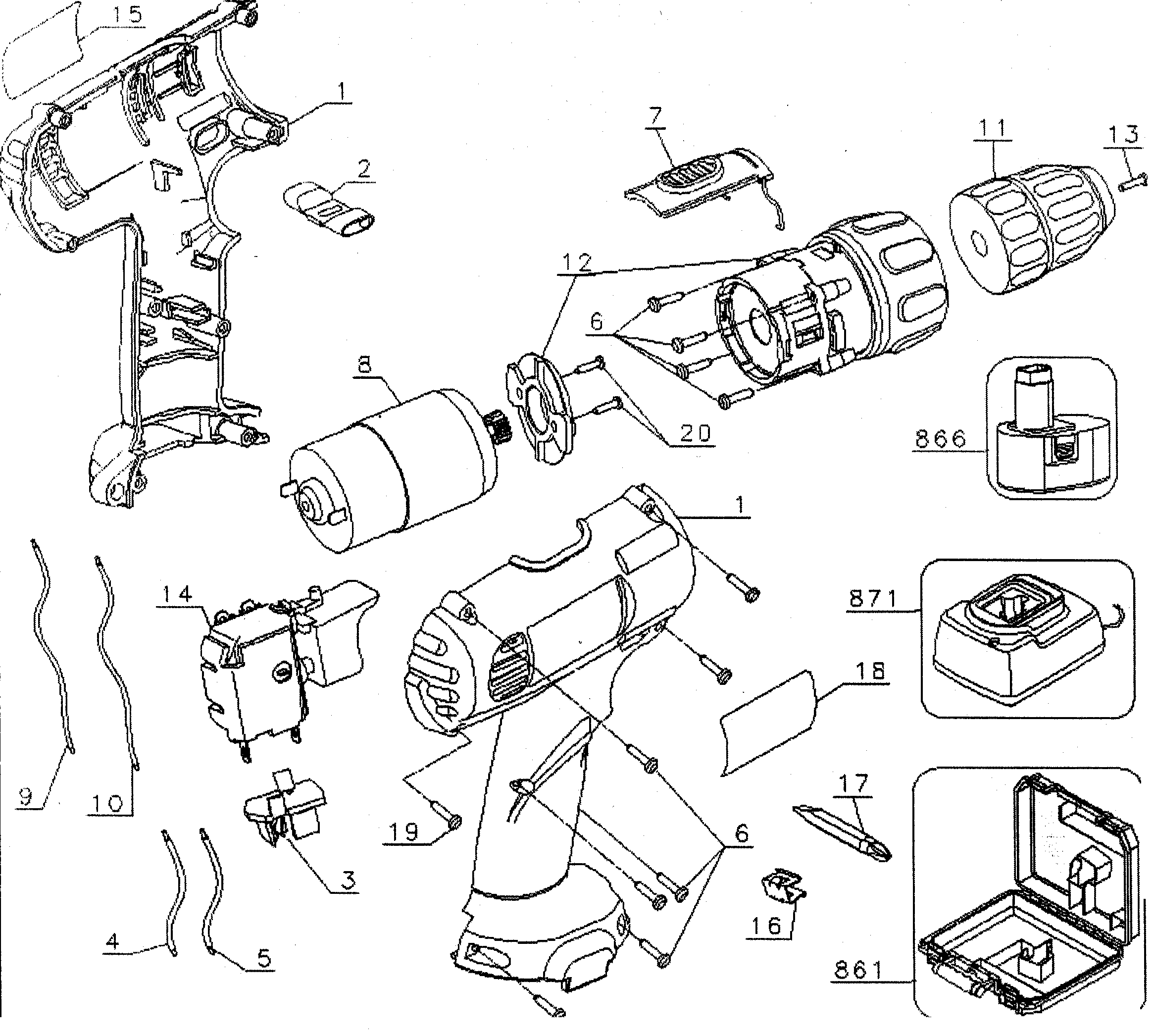

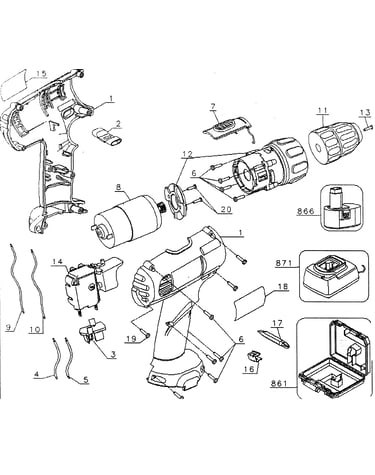

Drill diagram

Lead

Part #391090-00

The manufacturer no longer makes this part, and there's no substitute part

Button(fwd 389080-00
#2

Drill diagram

Button(fwd

Part #389080-00

The manufacturer no longer makes this part, and there's no substitute part

Kit Box 389108-00
#861

Drill diagram

Kit box

Part #389108-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Screw 562160-01
#20

Drill diagram

Angle grinder screw

Part #562160-01

The manufacturer no longer makes this part, and there's no substitute part

Shift 391996-00
#7

Drill diagram

Shift

Part #391996-00

The manufacturer no longer makes this part, and there's no substitute part

Keyless Chuck 330075-43
#11

Drill diagram

Keyless chuck

Part #330075-43

The manufacturer no longer makes this part, and there's no substitute part

Housing 393414-00
#1

Drill diagram

Housing

Part #393414-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#16

Drill diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw 149518-01
#13

Drill diagram

Power tool screw

Part #149518-01

The manufacturer no longer makes this part, and there's no substitute part

Charger 391675-00
#871

Drill diagram

Charger

Part #391675-00

The manufacturer no longer makes this part, and there's no substitute part
