Model # WMH53520CS3 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool WMH53520CS3 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

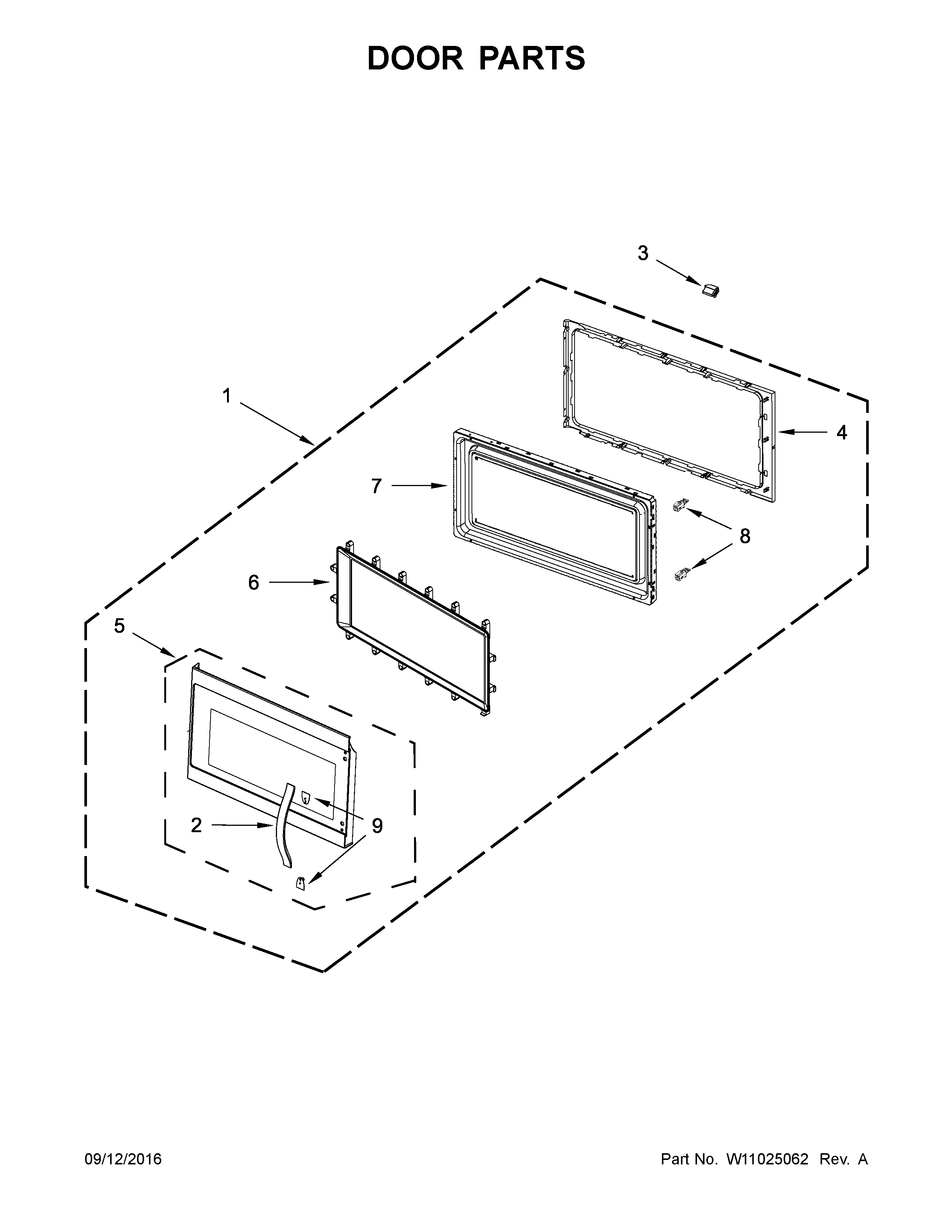

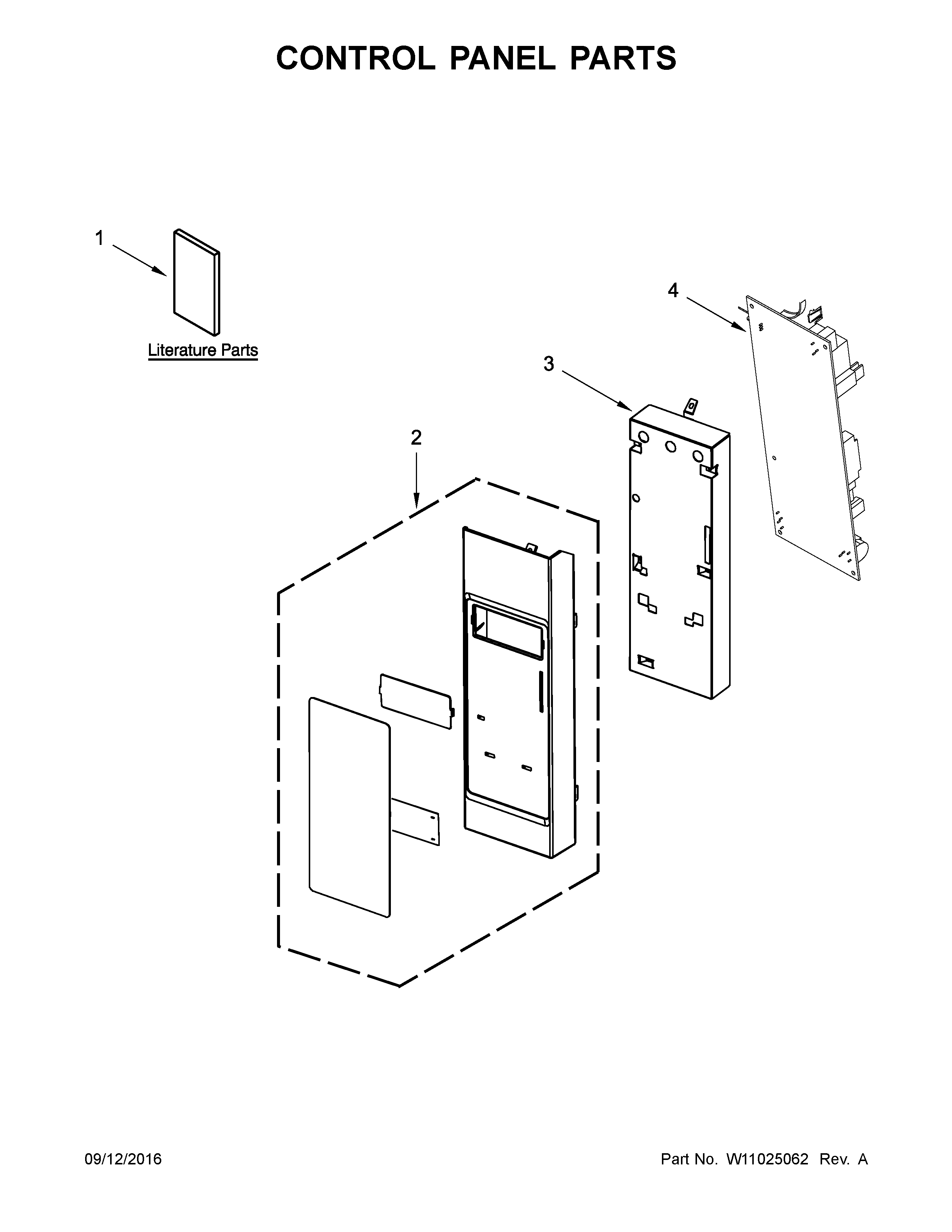

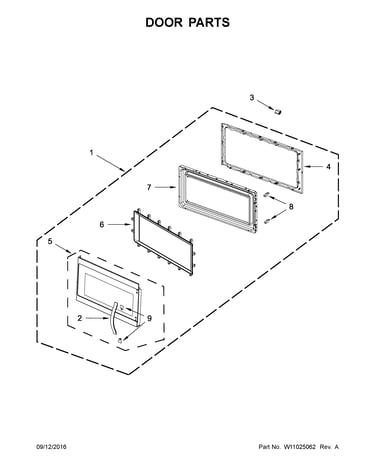

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Diode W10575765
#13

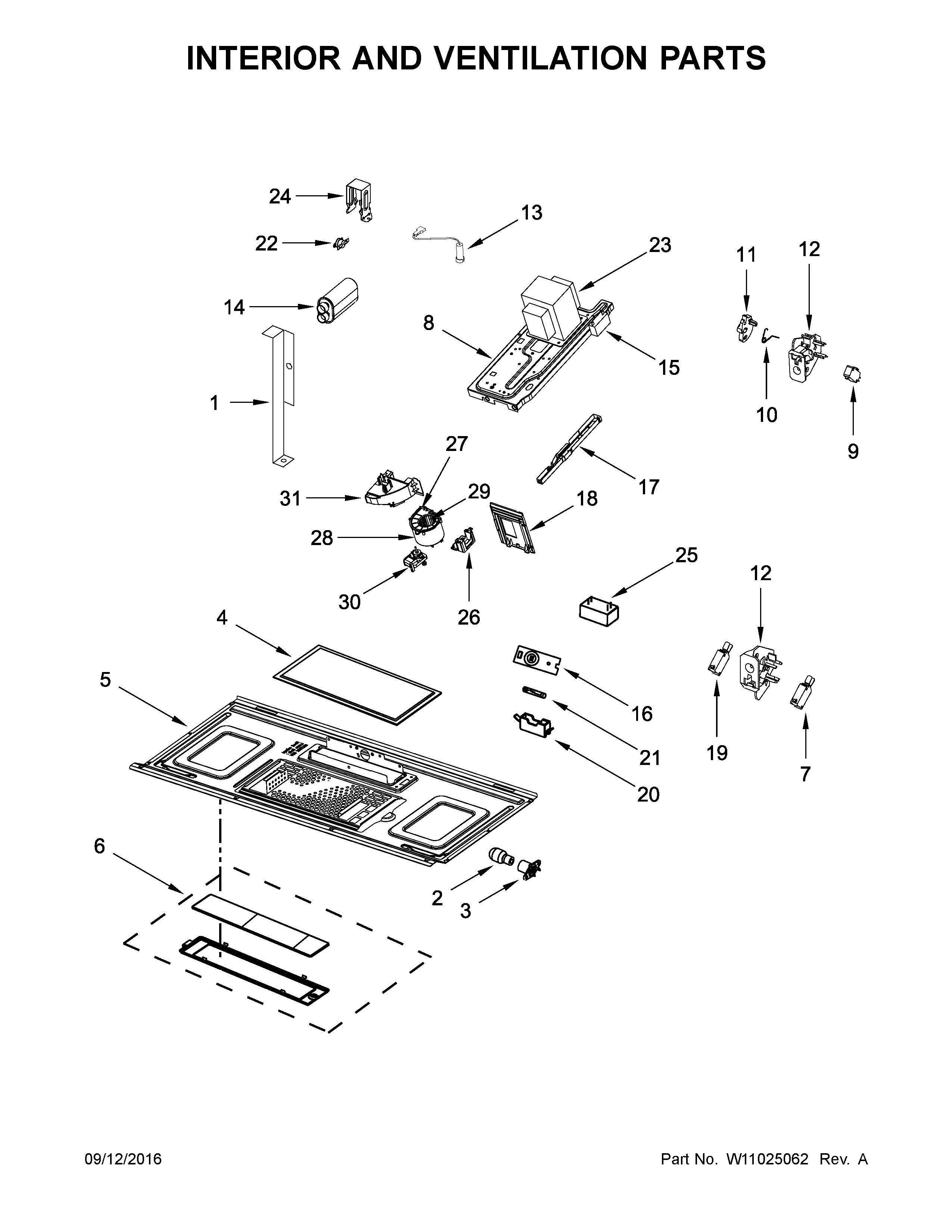

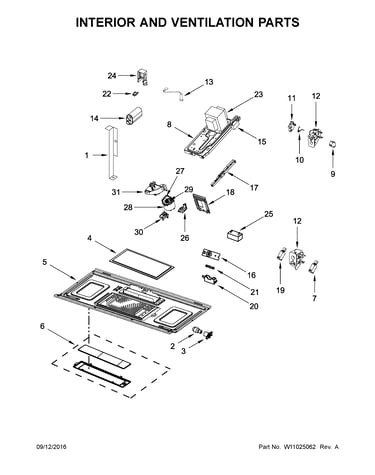

Interior and ventilation parts diagram

Diode

Part #W10575765

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
18% OFF MSRP : $30.00
In Stock
Microwave Door Switch W10269457
#19

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.36 |
71% OFF MSRP : $15.00
In Stock
Microwave Door Interlock Switch (replaces W10211973) W10269458
#7

Interior and ventilation parts diagram

Microwave door interlock switch (replaces w10211973)

Part #W10269458

BEST SELLER
$25.93 |
30% OFF MSRP : $37.00
In Stock
Microwave Door Interlock Switch W10269460
#9

Interior and ventilation parts diagram

Microwave door interlock switch

Part #W10269460

BEST SELLER
$39.99 |
11% OFF Phone Price : $44.99
In Stock
Cam Plate W10156811
#11

Interior and ventilation parts diagram

Cam plate

Part #W10156811

Replaced by #W10562613

?
Manufacturer substitution
This part replaces W10156811. Substitute parts can look different from the original.
BEST SELLER
$11.59 |
45% OFF MSRP : $21.00
In Stock
Microwave Waveguide Cover W10533497
#1

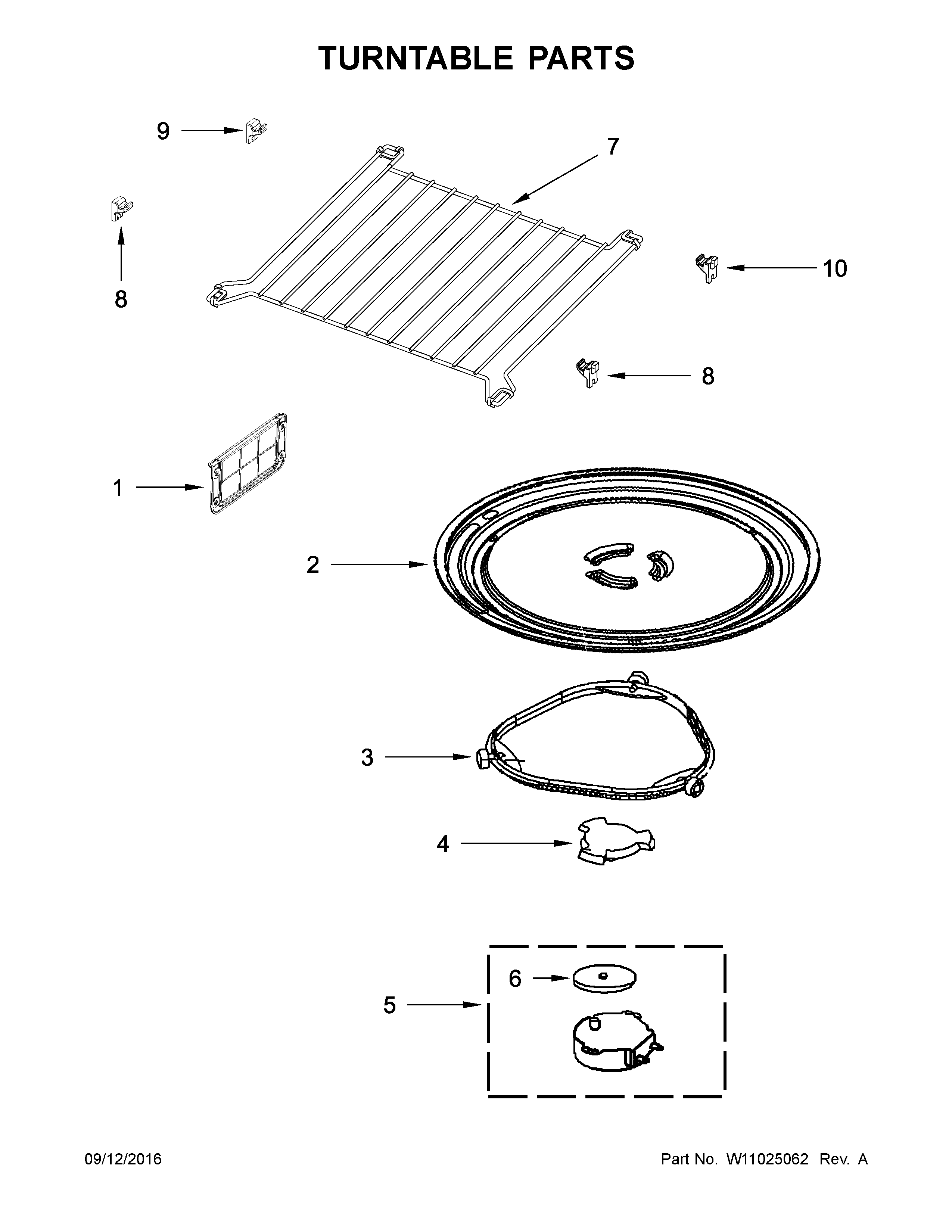

Turntable parts diagram

Microwave waveguide cover

Part #W10533497

BEST SELLER
This item is not returnable
$16.25 |
11% OFF Phone Price : $18.25
In Stock
Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
62% OFF MSRP : $17.00
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$35.32 |
12% OFF Phone Price : $40.32
In Stock
Magnetron W10754514
#15

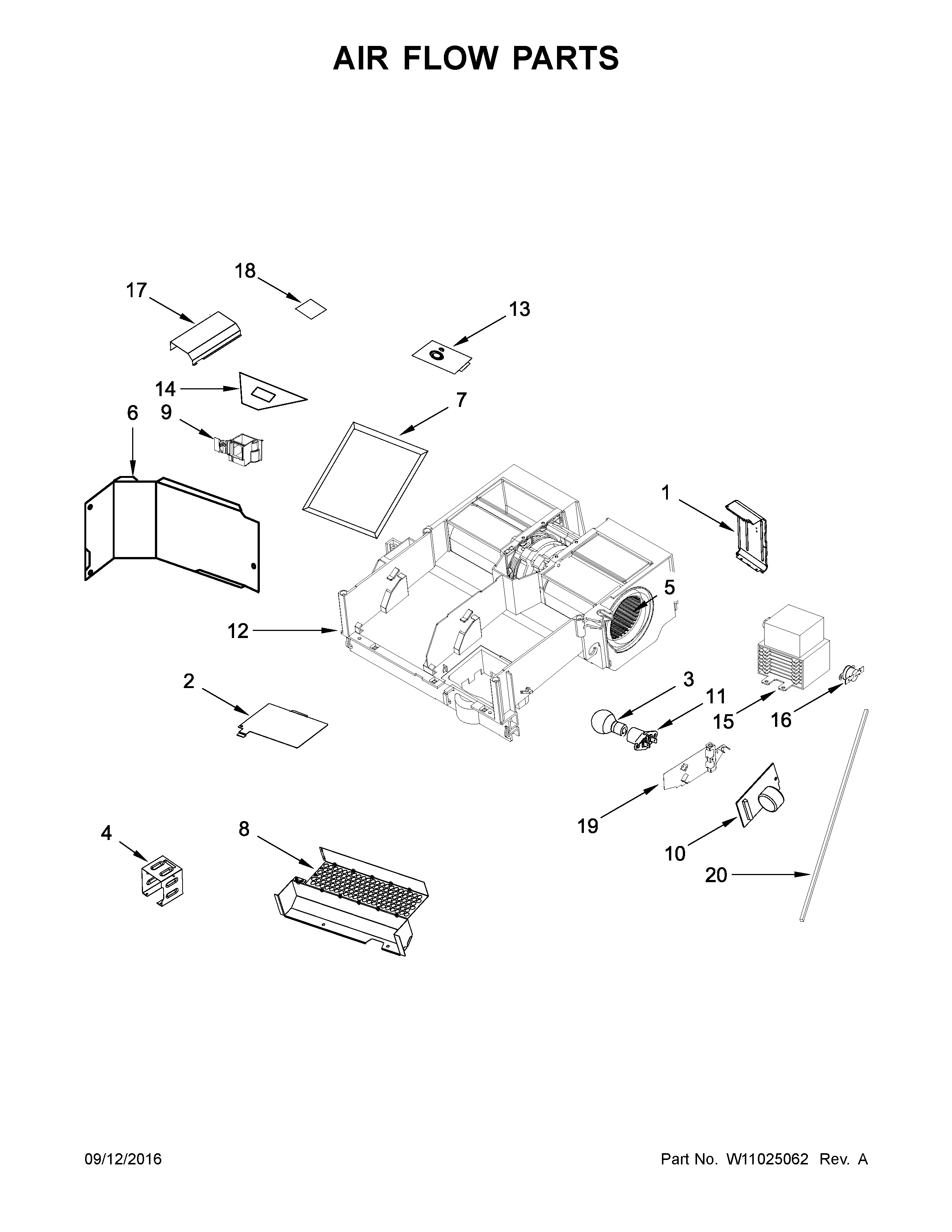

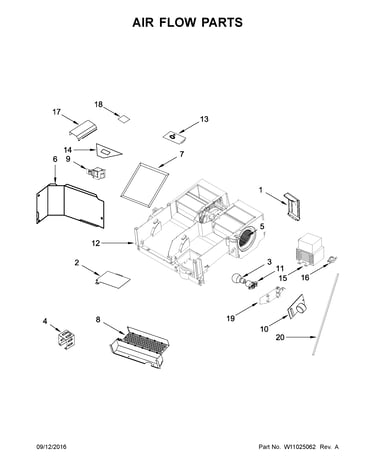

Air flow parts diagram

Magnetron

Part #W10754514

The manufacturer no longer makes this part, and there's no substitute part

Microwave Mounting Plate W10440498
#1

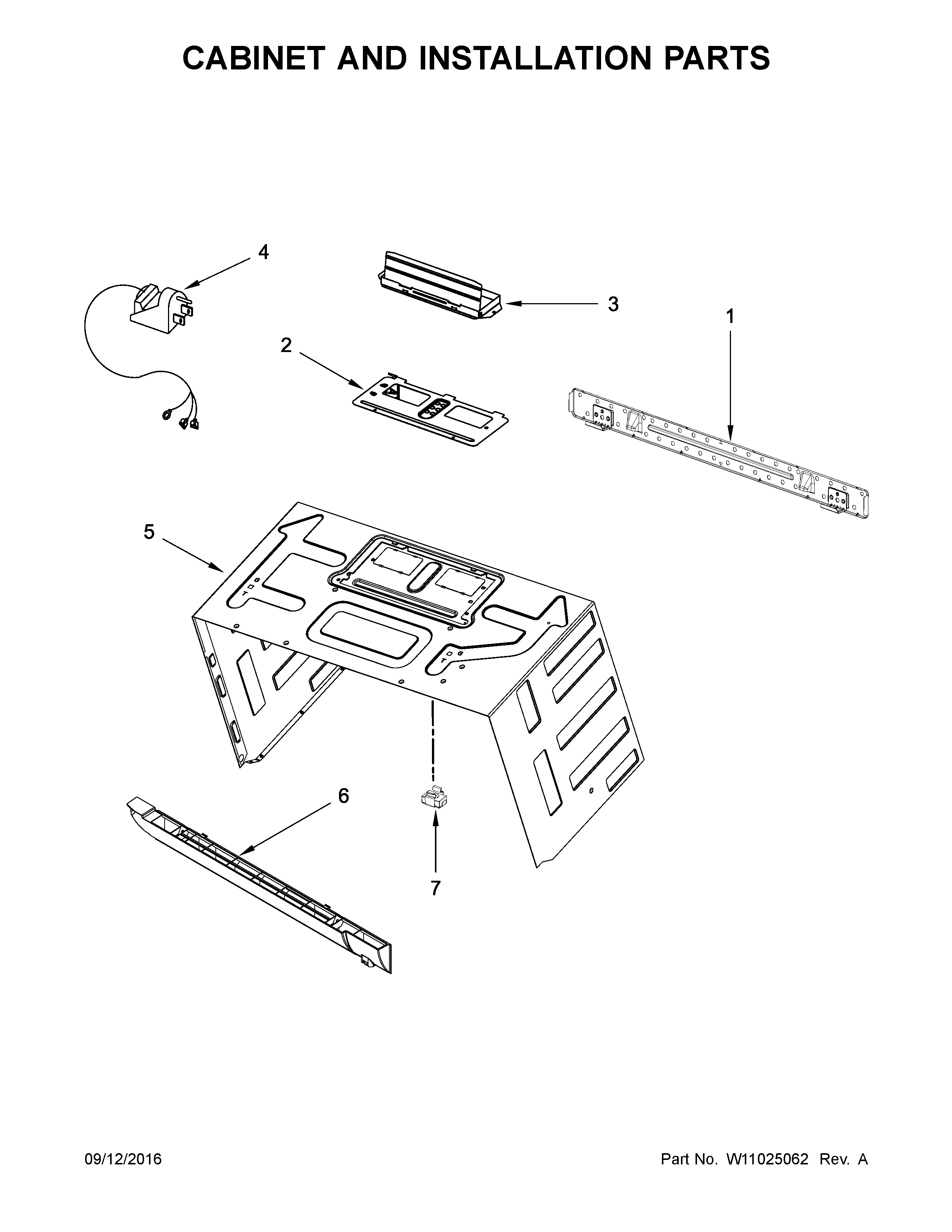

Cabinet and installation parts diagram

Microwave mounting plate

Part #W10440498

Replaced by #W11025649

?
Manufacturer substitution
This part replaces W10440498. Substitute parts can look different from the original.
BEST SELLER
$12.77 |
14% OFF Phone Price : $14.77
In Stock
