Model # 260505790 Official LXI fm stereo cassette tape player

Here are the diagrams and repair parts for Official LXI 260505790 fm stereo cassette tape player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

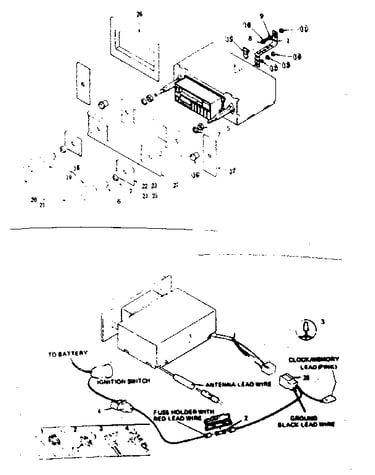

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Screw 2912304A
#21

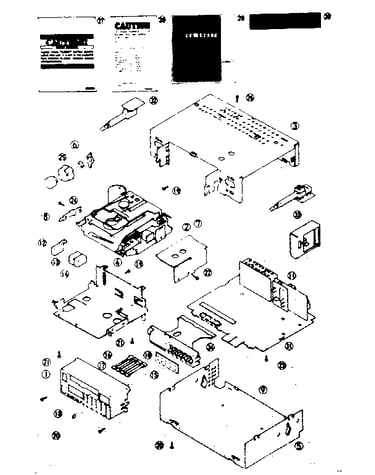

Cabinet and chassis diagram

Screw

Part #2912304A

Replaced by #46-57526-3

?
Manufacturer substitution
This part replaces 2912304A. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cover 2104256
#5

Cabinet and chassis diagram

Cover

Part #2104256

The manufacturer no longer makes this part, and there's no substitute part

Lifter 62D18400812
#93

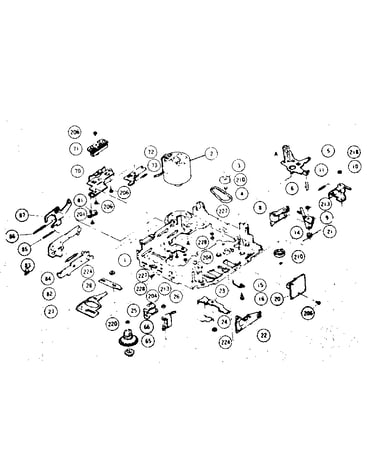

Mechanism diagram

Lifter

Part #62D18400812

The manufacturer no longer makes this part, and there's no substitute part

Center Pulley 62D18400128
#14

Mechanism diagram

Center pulley

Part #62D18400128

The manufacturer no longer makes this part, and there's no substitute part

Dst Cvr Assy 2144197A
#1F

Cabinet and chassis diagram

Dst cvr assy

Part #2144197A

The manufacturer no longer makes this part, and there's no substitute part

Actuator 62D18400311
#34

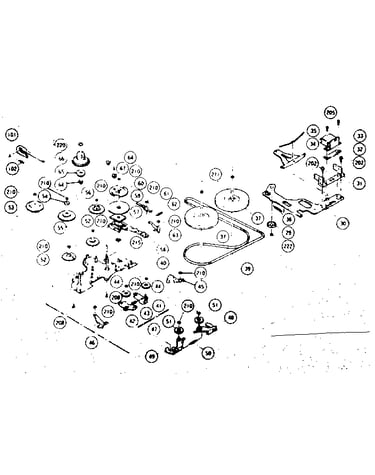

Main gear assembly diagram

Actuator

Part #62D18400311

The manufacturer no longer makes this part, and there's no substitute part

Change Plate Ass'y 62D184001502
#5

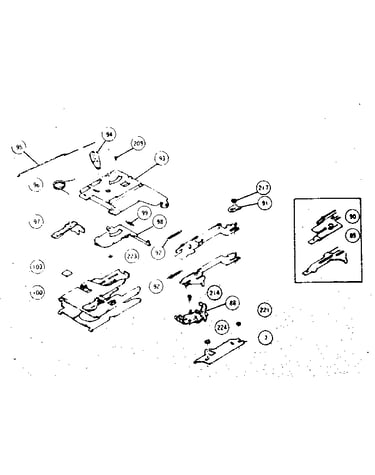

Mechanism diagram

Change plate ass'y

Part #62D184001502

The manufacturer no longer makes this part, and there's no substitute part

Spring 2572027A
#1E

Cabinet and chassis diagram

Spring

Part #2572027A

The manufacturer no longer makes this part, and there's no substitute part

Spring 62D18400810
#86

Mechanism diagram

Spring

Part #62D18400810

The manufacturer no longer makes this part, and there's no substitute part

E Ring 1.5 62D95000000
#223

Mechanism diagram

E ring 1.5

Part #62D95000000

The manufacturer no longer makes this part, and there's no substitute part
