Kenmore
Central Air Conditioner

Model # 867816672 Official Kenmore air conditioner condensing unit

Here are the diagrams and repair parts for Official Kenmore 867816672 air conditioner condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |

Contactor 92337
#9A

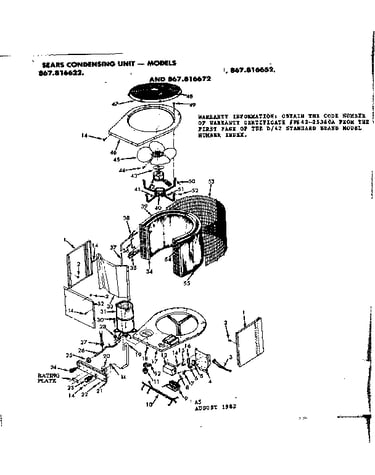

Unit parts diagram

Contactor

Part #92337

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 95883
#42C

Unit parts diagram

Fan motor

Part #95883

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 95883. Substitute parts can look different from the original.
BEST SELLER
In Stock
Motor 96799
#42B

Unit parts diagram

Motor

Part #96799

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 96799. Substitute parts can look different from the original.
BEST SELLER
In Stock
Capacitor 706438
#16C

Unit parts diagram

Capacitor

Part #706438

Replaced by #12907

?
Manufacturer substitution
This part replaces 706438. Substitute parts can look different from the original.
This item is not returnable
$4.87
17% OFF Phone Price : $5.87
In Stock
Compressor 711057
#31B

Unit parts diagram

Compressor

Part #711057

The manufacturer no longer makes this part, and there's no substitute part

Contactor 95425
#9C

Unit parts diagram

Contactor

Part #95425

Replaced by #90-170

?
Manufacturer substitution
This part replaces 95425. Substitute parts can look different from the original.
$35.09
12% OFF Phone Price : $40.09
In Stock
Contactor 704410
#9B

Unit parts diagram

Contactor

Part #704410

Replaced by #90-170

?
Manufacturer substitution
This part replaces 704410. Substitute parts can look different from the original.
$35.09
12% OFF Phone Price : $40.09
In Stock
Capacitor 711812
#5C

Unit parts diagram

Capacitor

Part #711812

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 707222
#45B

Unit parts diagram

Fan blade

Part #707222

Replaced by #1080764

?
Manufacturer substitution
This part replaces 707222. Substitute parts can look different from the original.
In Stock
Nut STD541425
#50

Unit parts diagram

Nut

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part
