Craftsman
Lawn & Garden Engine

Model # 143572062 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143572062 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |

Tube 27627
Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

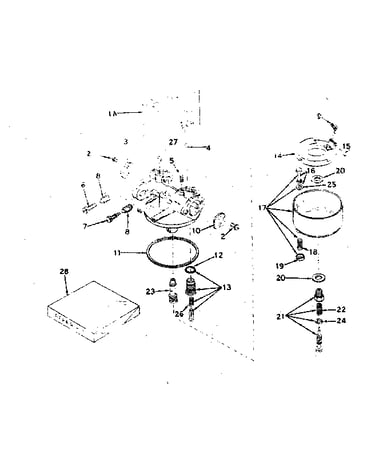

Carburetor no. 631251 diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Link 31968
#42

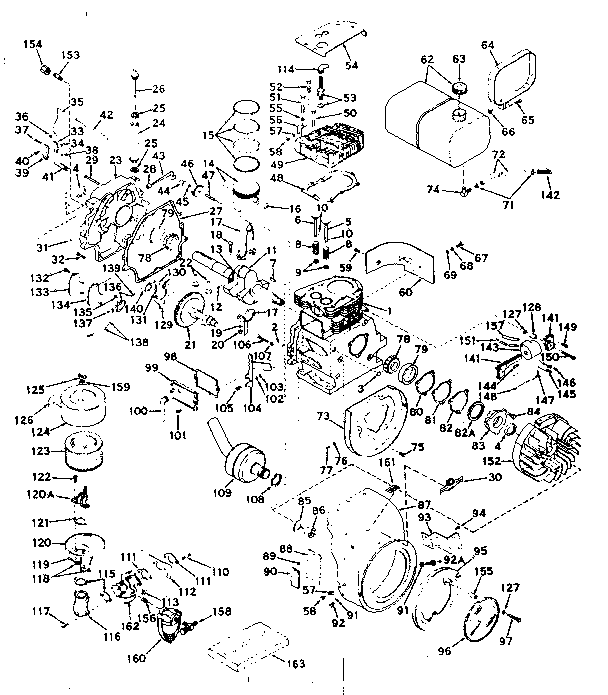

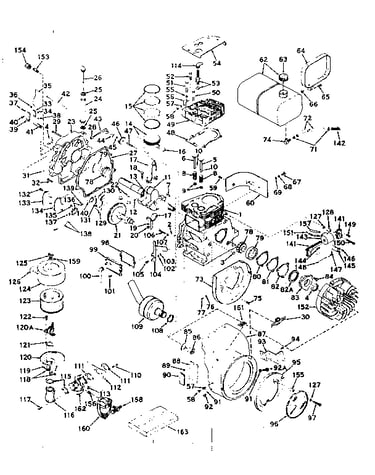

Basic engine diagram

/gvnr link

Part #31968

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

Carburetor no. 631251 diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31993A
#163

Basic engine diagram

Gasket set

Part #31993A

The manufacturer no longer makes this part, and there's no substitute part

Camshaft 32245
#21

Basic engine diagram

Camshaft

Part #32245

The manufacturer no longer makes this part, and there's no substitute part

Cylndr Cover 31452
#126

Basic engine diagram

Cylndr cover

Part #31452

The manufacturer no longer makes this part, and there's no substitute part

Tank Strap 31979
#64

Basic engine diagram

Tank strap

Part #31979

The manufacturer no longer makes this part, and there's no substitute part

Spring 32096
#27

Carburetor no. 631251 diagram

Spring

Part #32096

The manufacturer no longer makes this part, and there's no substitute part

Washer 650168
Washer

Part #650168

The manufacturer no longer makes this part, and there's no substitute part
