Model # EUT1B1/P4020007801 Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana EUT1B1-P4020007801 commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Sealer M0275598
#22

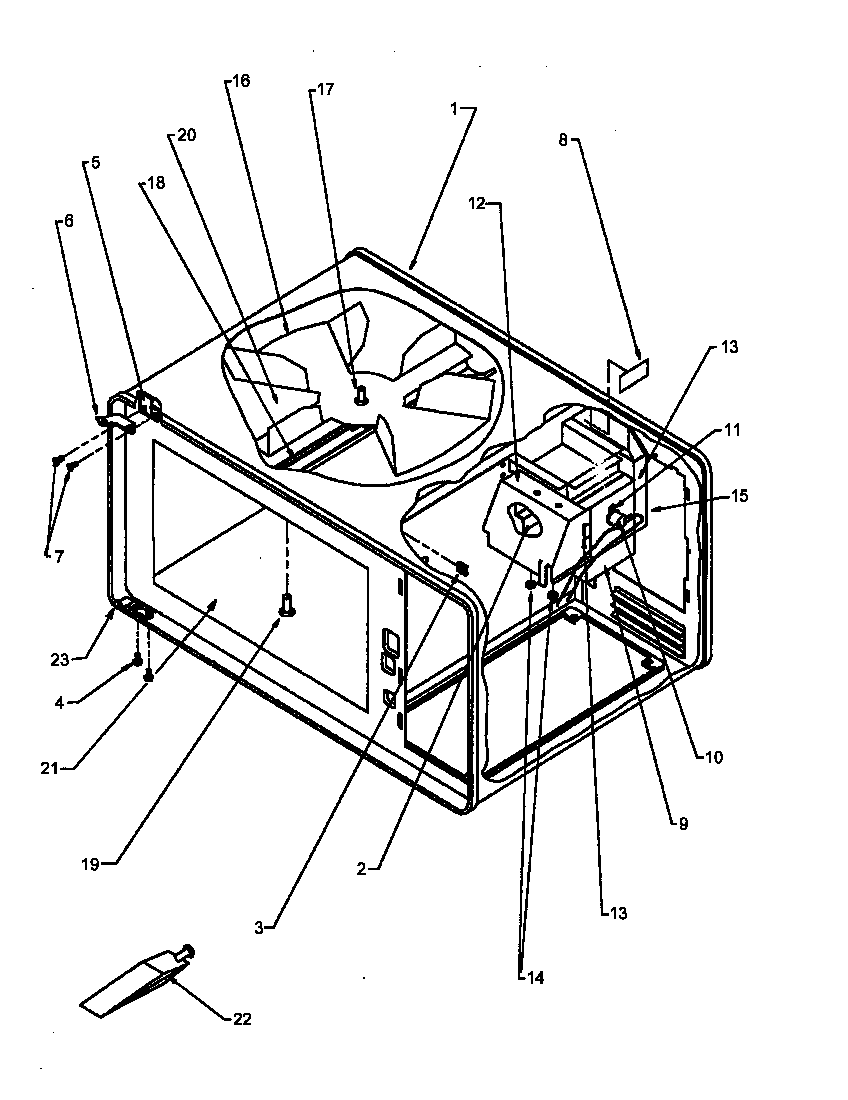

Cavity assembly diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
$14.99
46% OFF MSRP : $28.00
In Stock
Capacitor 10804108
#16

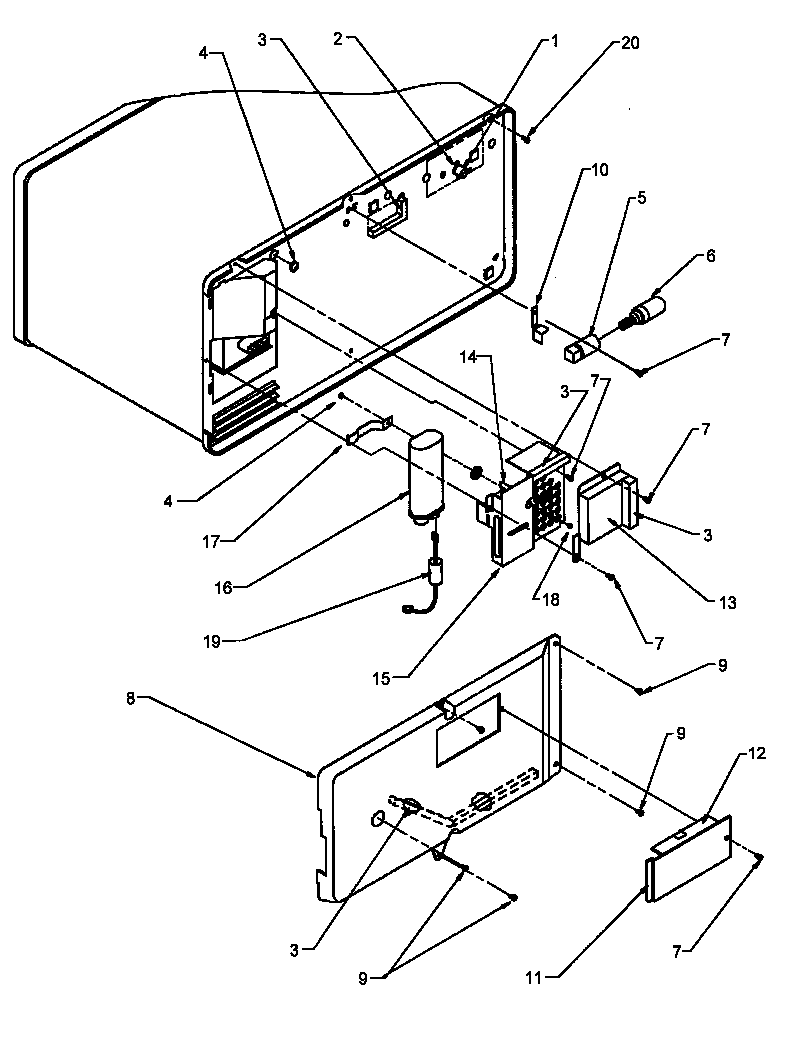

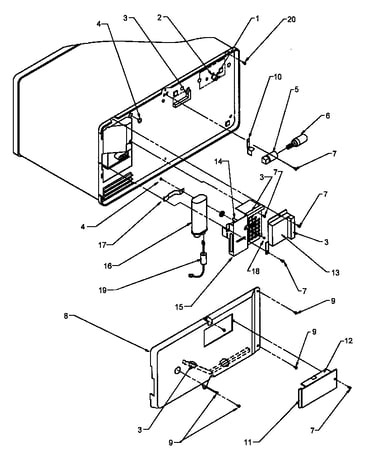

Back-side electical components diagram

Capacitor

Part #10804108

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 10804108. Substitute parts can look different from the original.
$85.65
14% OFF MSRP : $100.00
In Stock
Screw 5051032202
#7

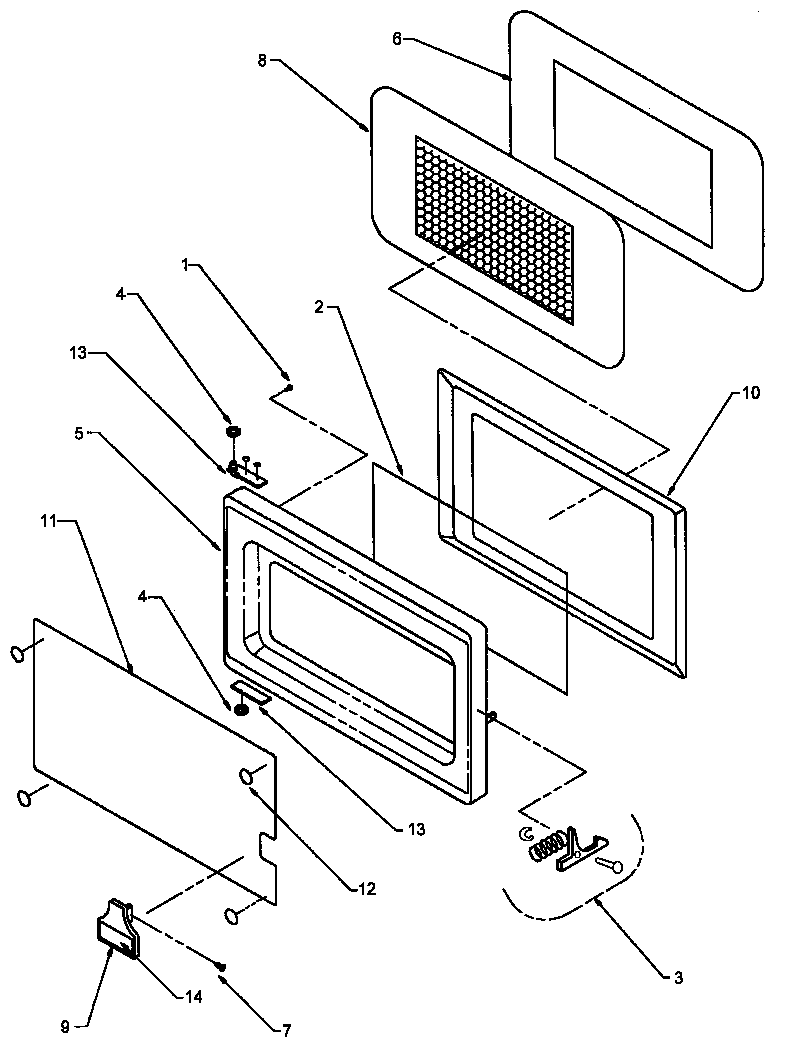

Door assembly diagram

Screw

Part #5051032202

Replaced by #M0208943

?
Manufacturer substitution
This part replaces 5051032202. Substitute parts can look different from the original.
This item is not returnable
In Stock
Element 4 Tu 5149-V
#1

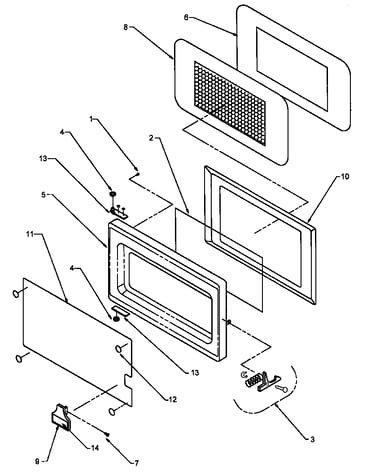

Door assembly diagram

Element 4 tu

Part #5149-V

Replaced by #5149-V

?
Manufacturer substitution
This part replaces 5149-V. Substitute parts can look different from the original.
This item is not returnable
In Stock
Diode B8383102
#19

Back-side electical components diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$25.29
17% OFF Phone Price : $30.29
In Stock
Screw 5149-C
#4

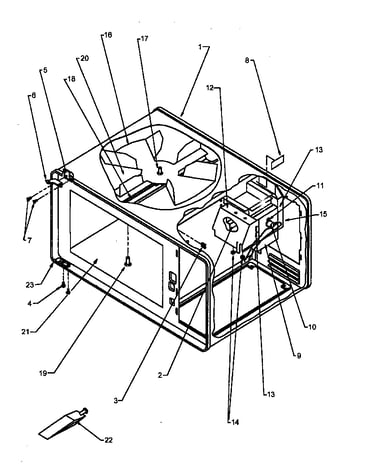

Cavity assembly diagram

Screw

Part #5149-C

The manufacturer no longer makes this part, and there's no substitute part

Rivet-pop 5067-CC
#25

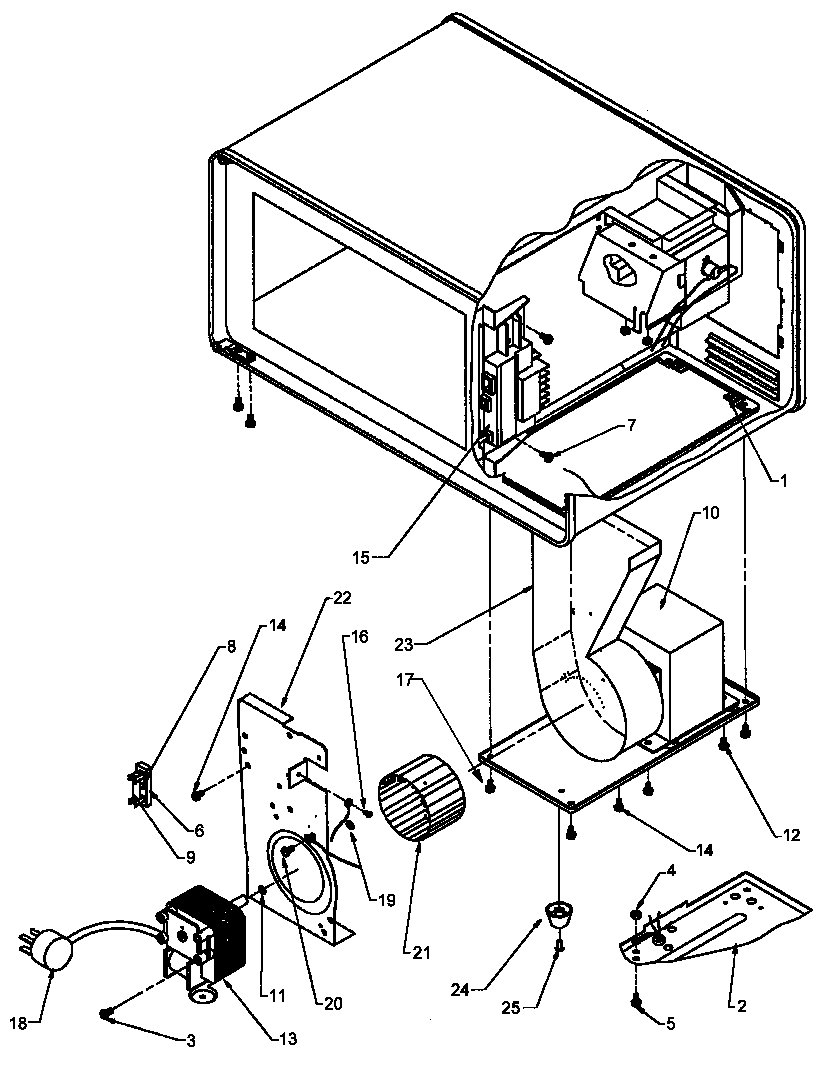

Interior electrical components and mounting parts diagram

Rivet-pop

Part #5067-CC

The manufacturer no longer makes this part, and there's no substitute part

U-clip 5039TT
#1

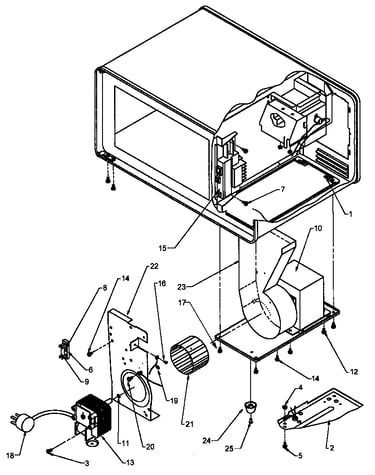

Interior electrical components and mounting parts diagram

U-clip

Part #5039TT

The manufacturer no longer makes this part, and there's no substitute part

"kit, Middle" R0163294
#2

Door assembly diagram

"kit, middle"

Part #R0163294

The manufacturer no longer makes this part, and there's no substitute part

Decorative Panel Assembly (includes Key Pad) (m1) R0163277
#1

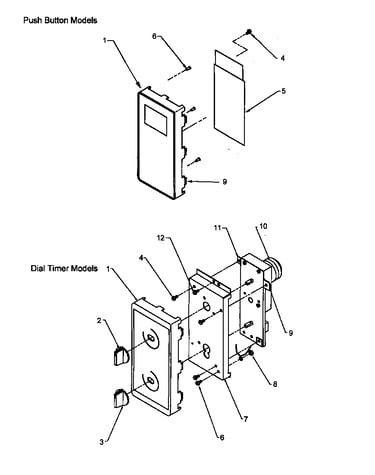

Control panel assembly diagram

Decorative panel assembly (includes key pad) (m1)

Part #R0163277

The manufacturer no longer makes this part, and there's no substitute part
