KitchenAid KEMS376TBL1 built-in oven with microwave Parts

Here are the diagrams and repair parts for KitchenAid KEMS376TBL1 built-in oven with microwave, as well as links to manuals and error code tables, if available.

KitchenAid KEMS376TBL1 built-in oven with microwave
By Schematic
By Part

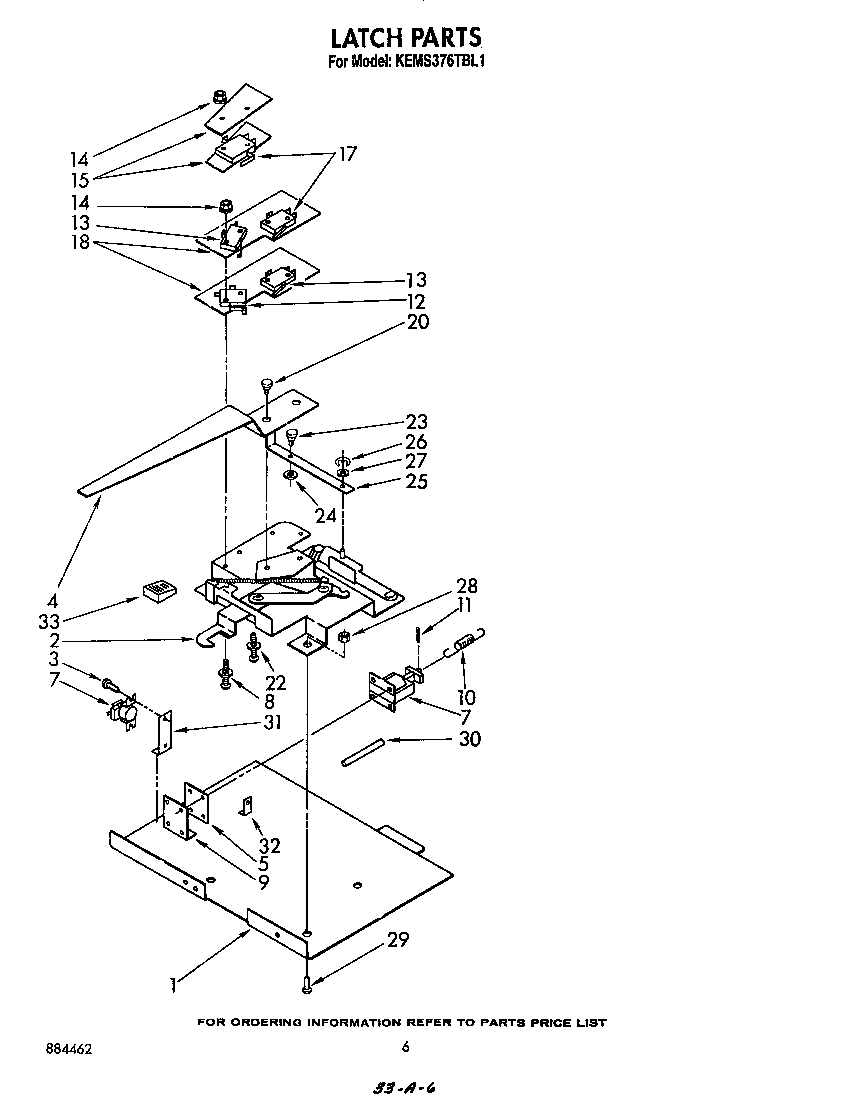

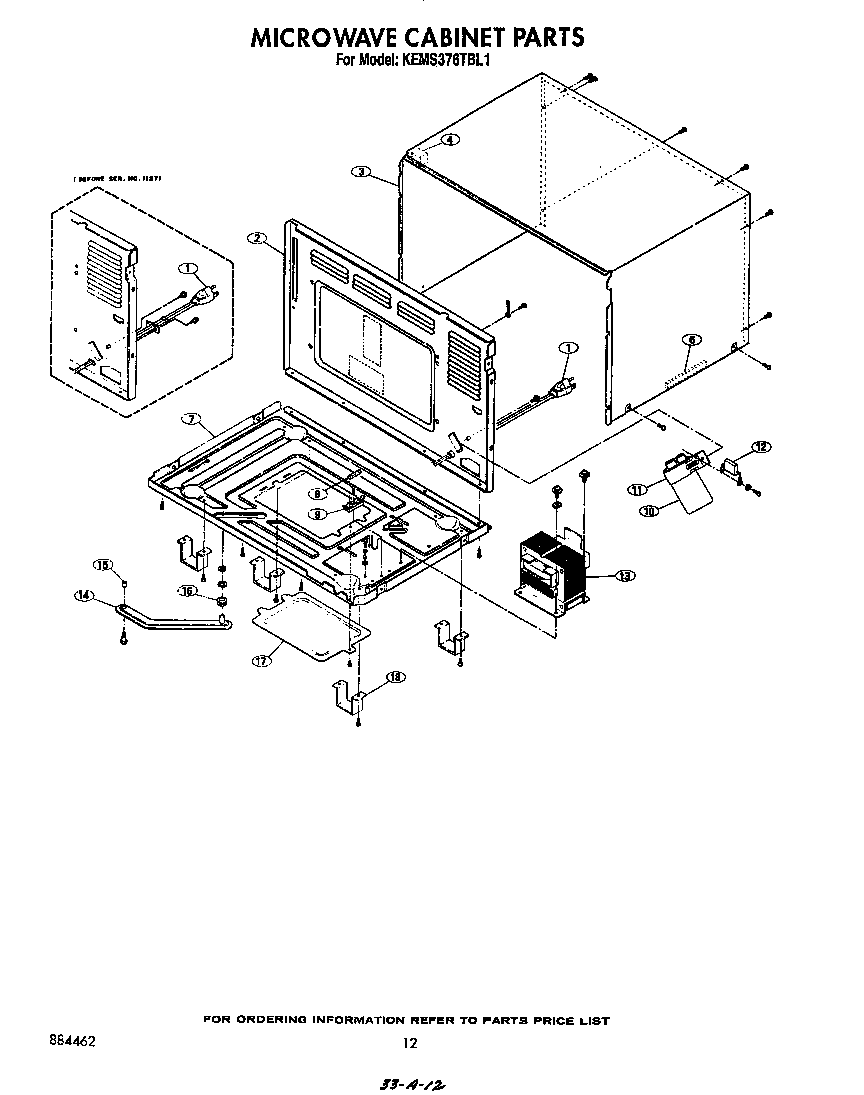

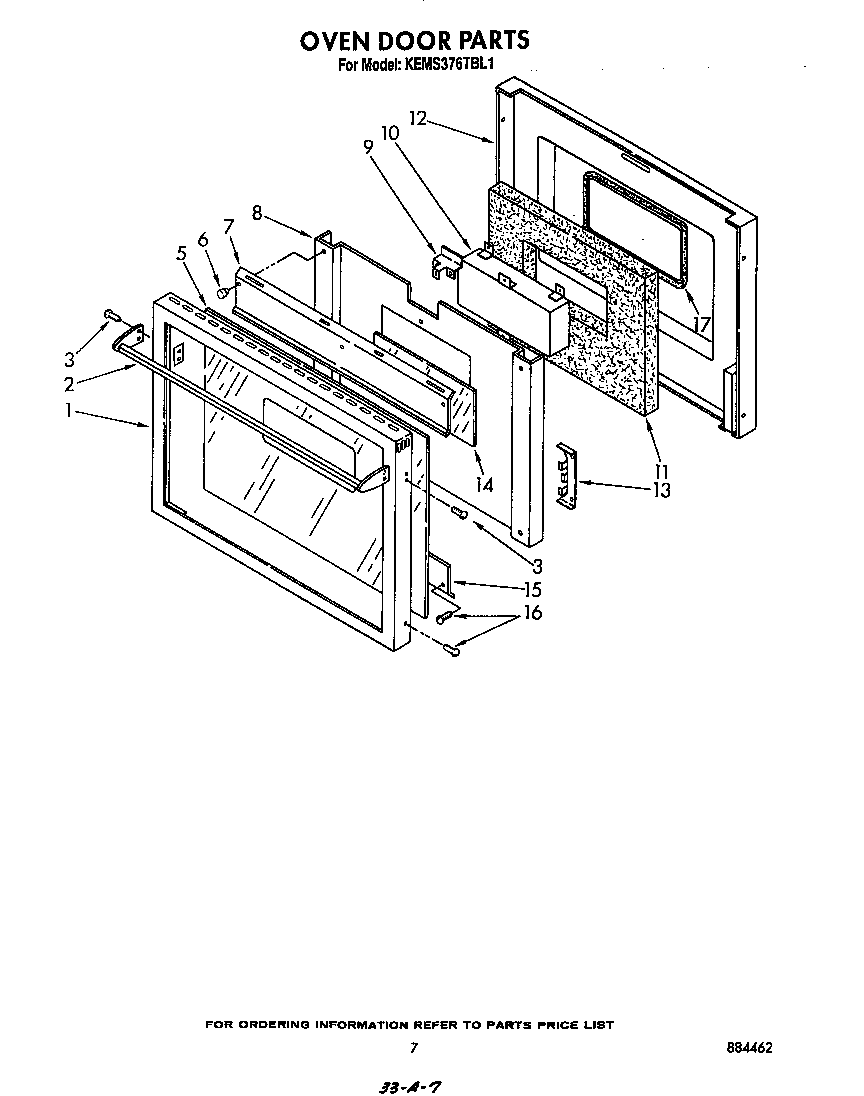

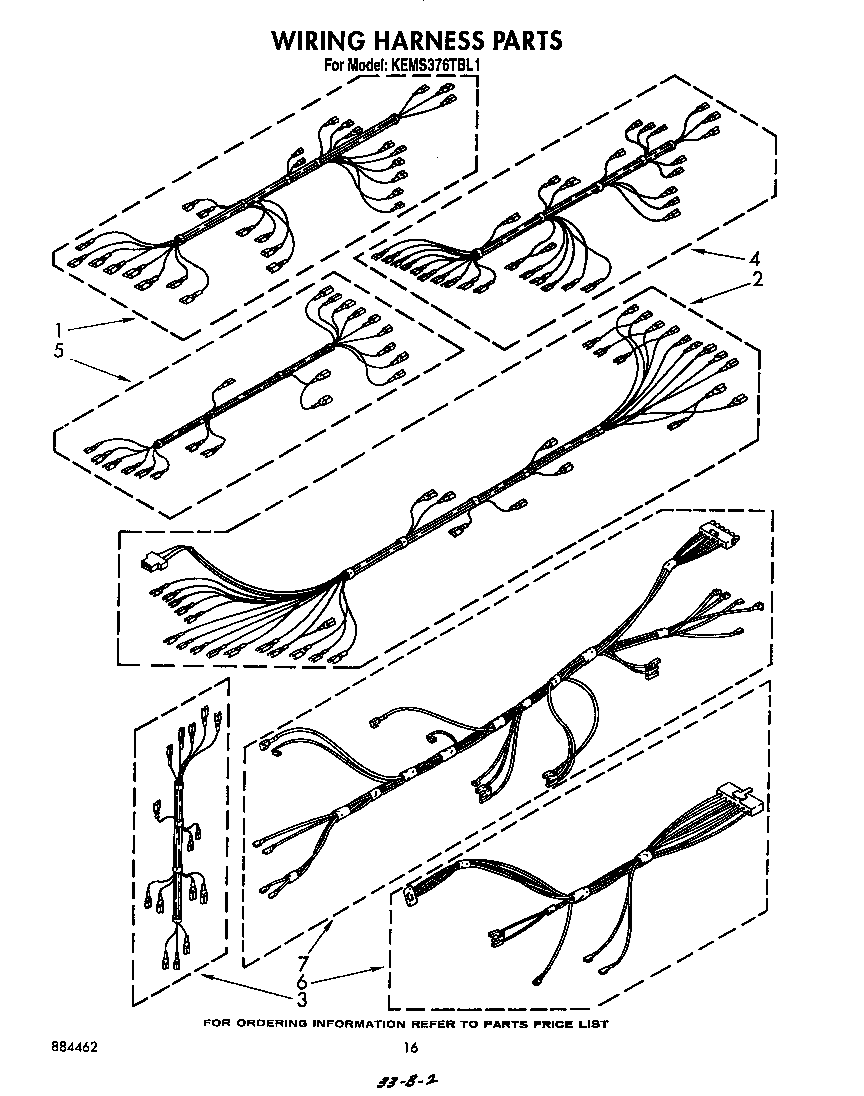

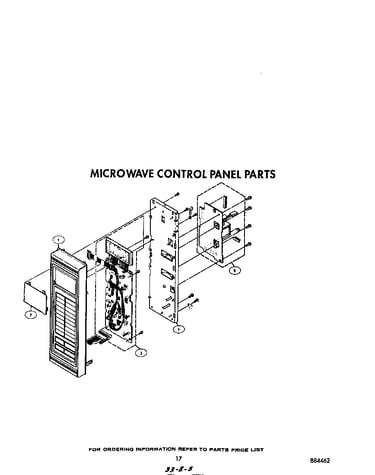

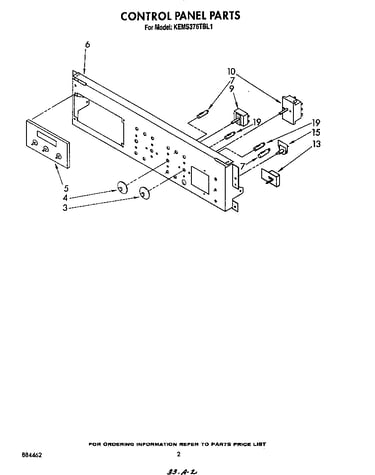

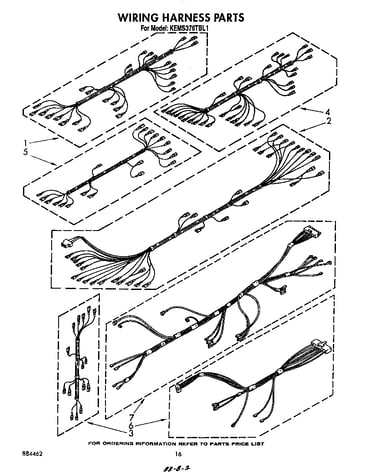

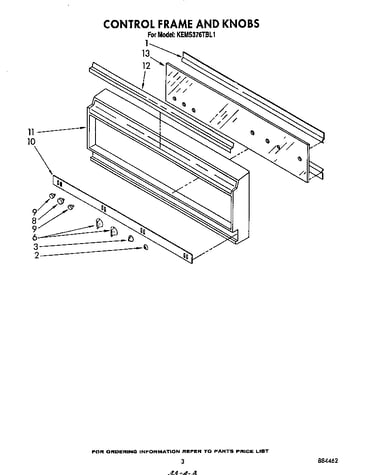

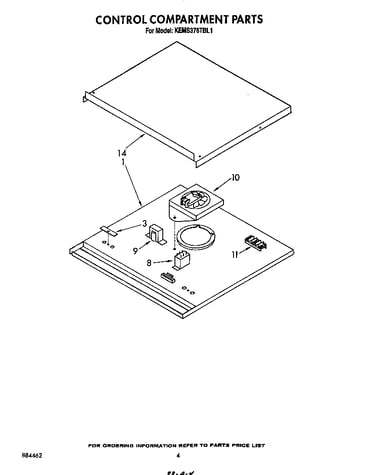

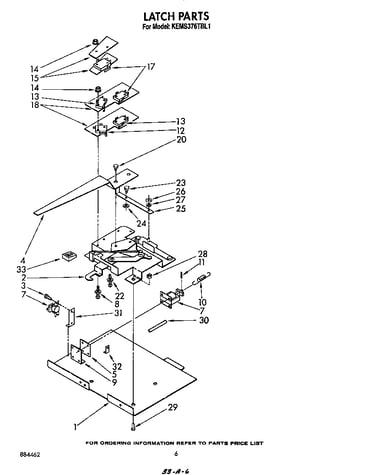

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KEMS376TBL1 Built-In Oven with Microwave

  • Range Bake Element for KitchenAid KEMS376TBL1 - Part WP3177420

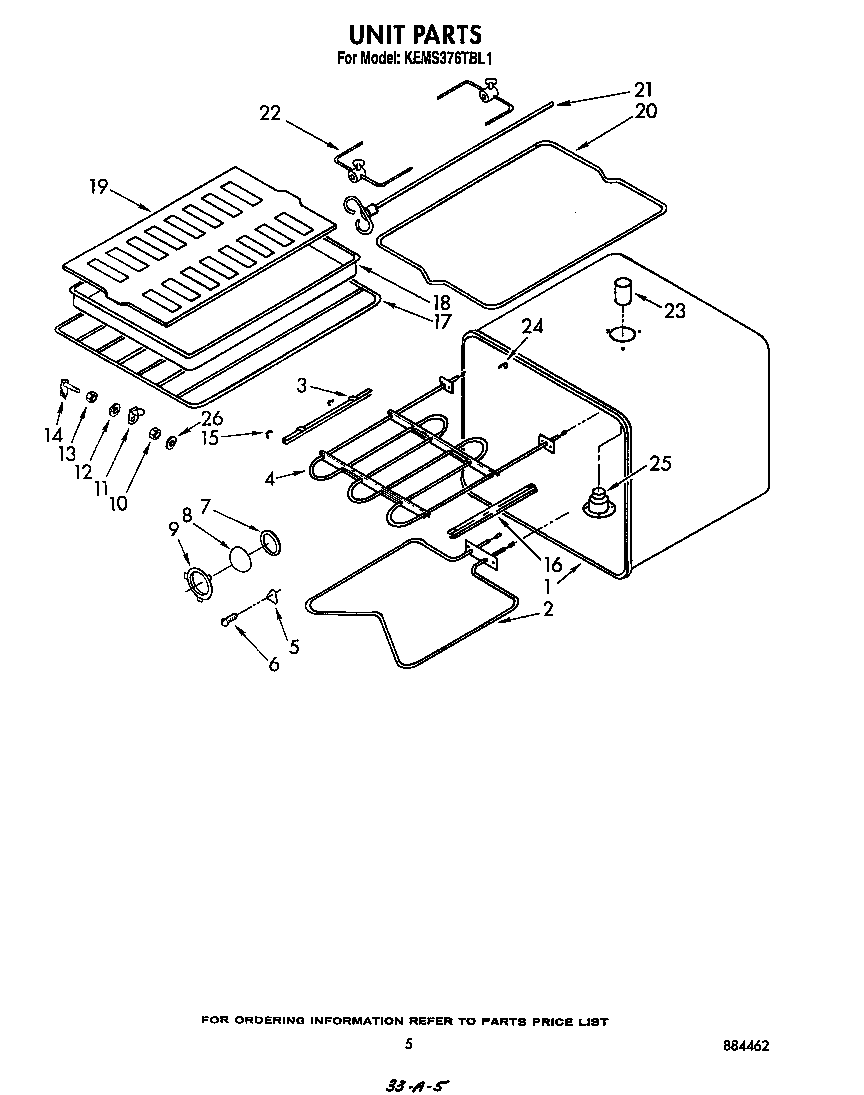

    Unit diagram

    Bake Element

    Part #3177423

    Replaced by #WP3177420

    Info Icon
    Manufacturer substitution
    This part replaces 3177423. Substitute parts can look different from the original.
    In Stock
    $109.53
    10% OFF Phone Price : $121.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for KitchenAid KEMS376TBL1 - Part 4396923

    Unit diagram

    Grid Broil

    Part #4164251

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 4164251. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Bulb for KitchenAid KEMS376TBL1 - Part 8009

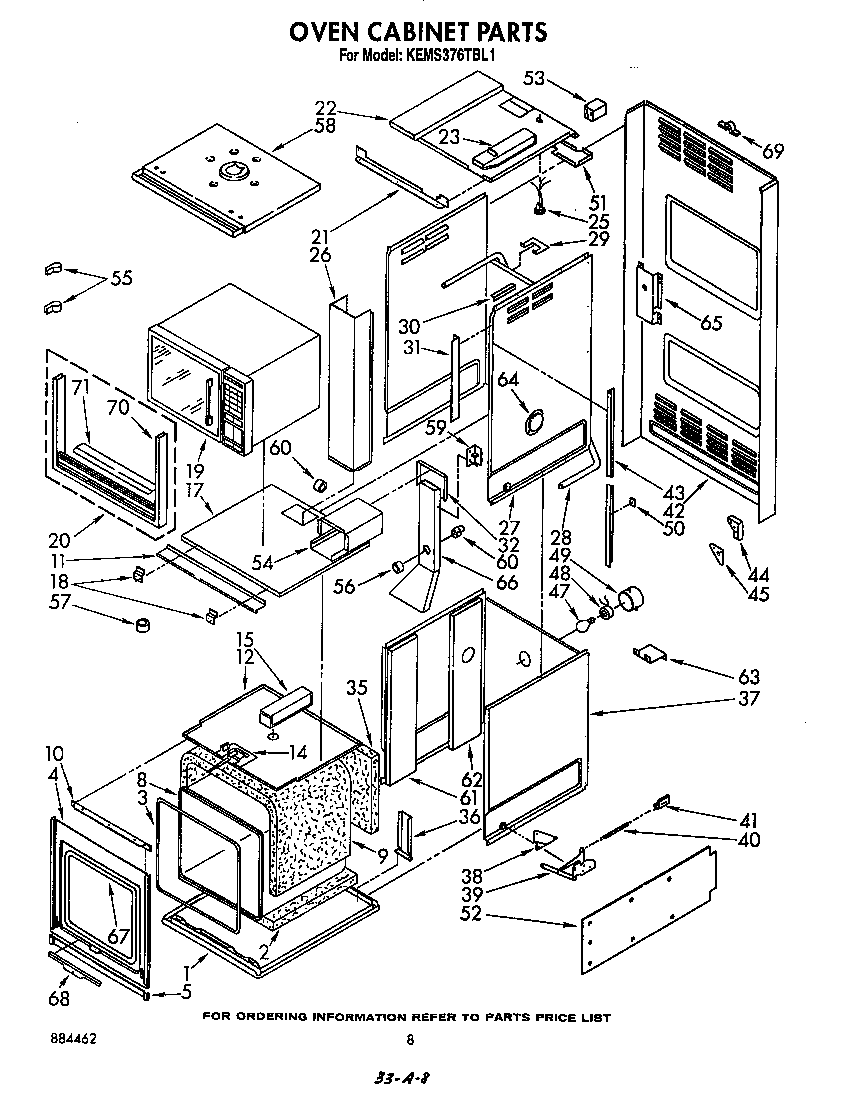

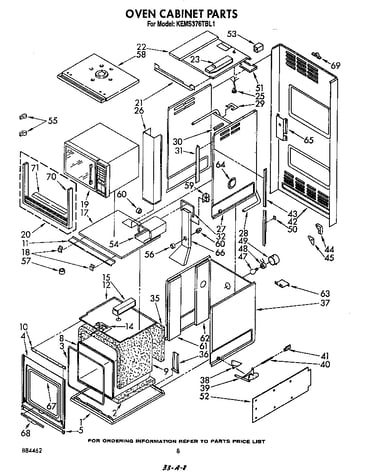

    Oven cabinet diagram

    Light Bulb

    Part #311255

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces 311255. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for KitchenAid KEMS376TBL1 - Part 4396923

    Unit diagram

    Broiler Pan

    Part #3179791

    Replaced by #4396923

    Info Icon
    Manufacturer substitution
    This part replaces 3179791. Substitute parts can look different from the original.
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Receptacle for KitchenAid KEMS376TBL1 - Part 4164293

    Unit diagram

    Receptacle

    Part #4164293
    In Stock
    $48.24
    Minus Item
    Qty
    Plus Item
  • Freezer Light Bulb for KitchenAid KEMS376TBL1 - Part WPA3073101

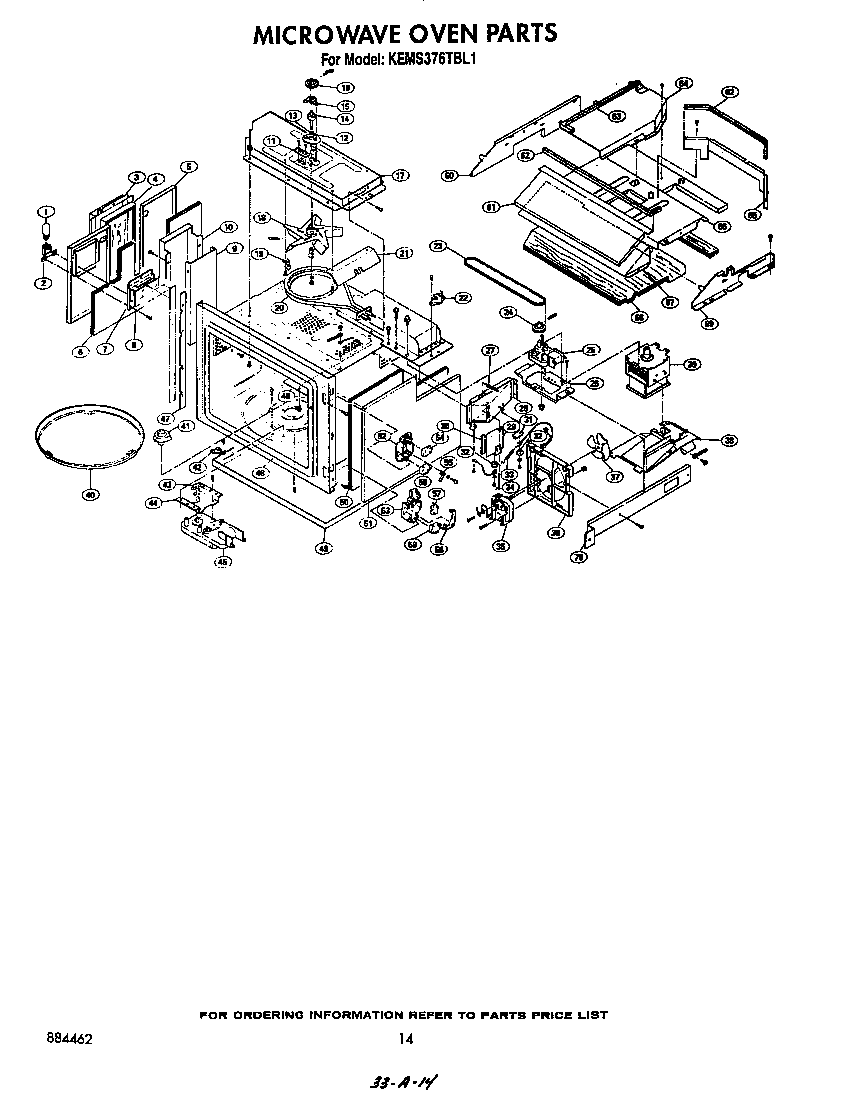

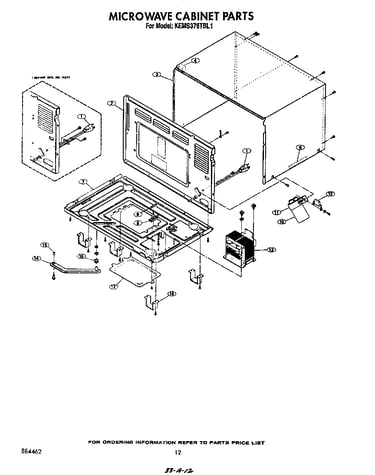

    Microwave oven diagram

    Light Bulb

    Part #4164470

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 4164470. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Lock Washer for KitchenAid KEMS376TBL1 - Part 4159493

    Oven cabinet diagram

    Lock Washer

    Part #4159493

    Replaced by #4159493

    Info Icon
    Manufacturer substitution
    This part replaces 4159493. Substitute parts can look different from the original.
    In Stock
    $37.03
    Minus Item
    Qty
    Plus Item

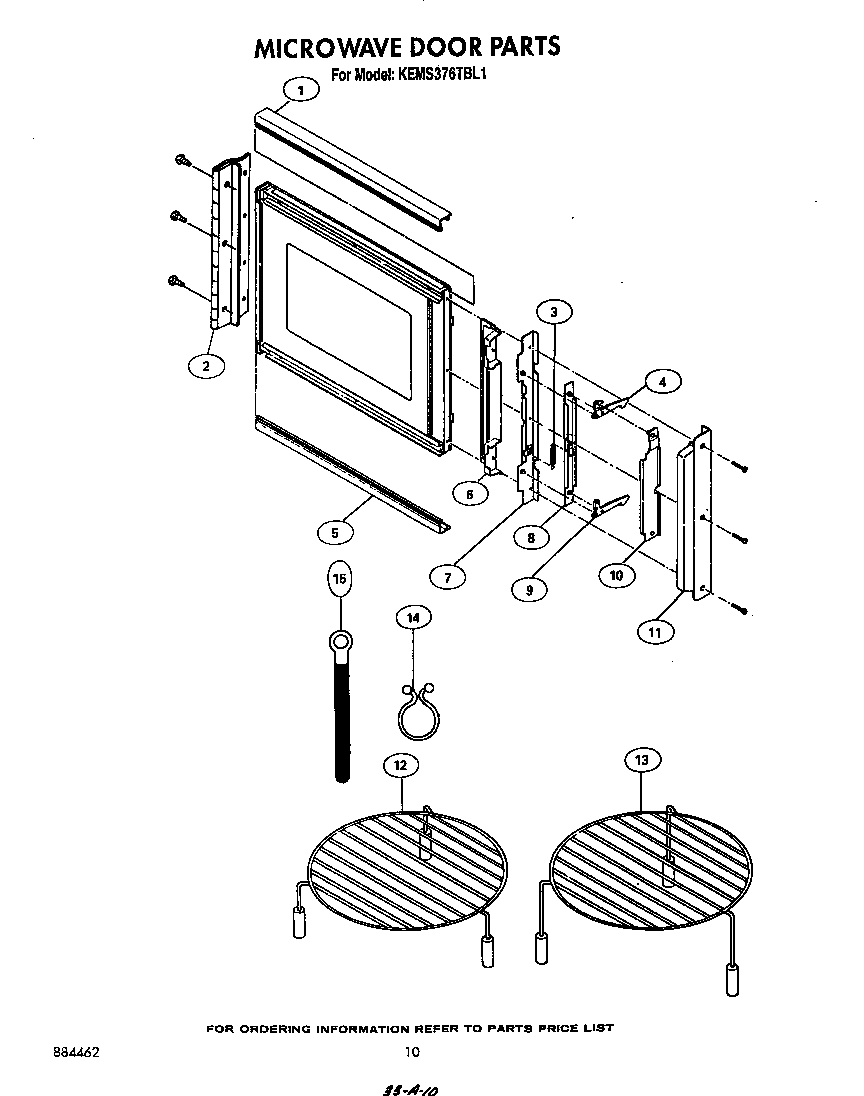

  • Microwave Door Primary Interlock Switch for KitchenAid KEMS376TBL1 - Part 4392027

    Microwave oven diagram

    Switch

    Part #4164500

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4164500. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for KitchenAid KEMS376TBL1 - Part 4392027

    Microwave oven diagram

    Switch

    Part #4164502

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4164502. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Primary Interlock Switch for KitchenAid KEMS376TBL1 - Part 4392027

    Switch

    Part #4164501

    Replaced by #4392027

    Info Icon
    Manufacturer substitution
    This part replaces 4164501. Substitute parts can look different from the original.
    In Stock
    $84.43
    7% OFF Phone Price : $90.43Info Icon
    Minus Item
    Qty
    Plus Item
