Amana
Countertop Microwave

Model # 2039.004 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 2039004 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

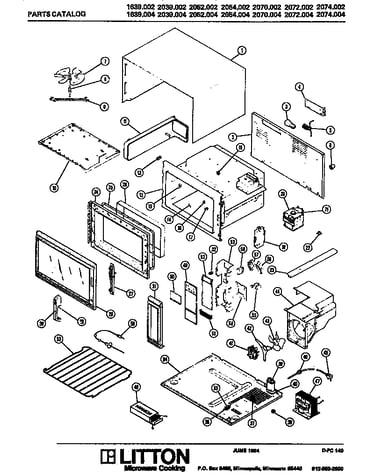

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |

Blower Duct Assembly M65D283
Blower duct assembly

Part #M65D283

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Frame (2039, 2052, 2054) M7D636
#31B

(1639.002) (1639.004) (2039.002) (2039.004) (2052.002) (2052.004) (2054.002) (2054.004) (2070.002) (2070.004) (2072.002) (2072.004) diagram

Control panel frame (2039, 2052, 2054)

Part #M7D636

The manufacturer no longer makes this part, and there's no substitute part

Outer Door Assembly M70D76
#28A

(1639.002) (1639.004) (2039.002) (2039.004) (2052.002) (2052.004) (2054.002) (2054.004) (2070.002) (2070.004) (2072.002) (2072.004) diagram

Outer door assembly

Part #M70D76

The manufacturer no longer makes this part, and there's no substitute part

Transformer Mounting Plate M8D289
Transformer mounting plate

Part #M8D289

The manufacturer no longer makes this part, and there's no substitute part

Door Latch Assembly M20D218
Door latch assembly

Part #M20D218

The manufacturer no longer makes this part, and there's no substitute part

Probe Jack M14D246
Probe jack

Part #M14D246

The manufacturer no longer makes this part, and there's no substitute part

Outer Door Assembly (2039, 2052, 2054) M70D87
#28B

(1639.002) (1639.004) (2039.002) (2039.004) (2052.002) (2052.004) (2054.002) (2054.004) (2070.002) (2070.004) (2072.002) (2072.004) diagram

Outer door assembly (2039, 2052, 2054)

Part #M70D87

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mounting M1D901
Screw, handle mounting

Part #M1D901

The manufacturer no longer makes this part, and there's no substitute part

Scew, Duct Mounting M1D897
Scew, duct mounting

Part #M1D897

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Grounding M1D888
Screw, cord grounding

Part #M1D888

The manufacturer no longer makes this part, and there's no substitute part
