Reciprocating Saw

Model # 315171081 Official Craftsman reciprocation saw

Here are the diagrams and repair parts for Official Craftsman 315171081 reciprocation saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

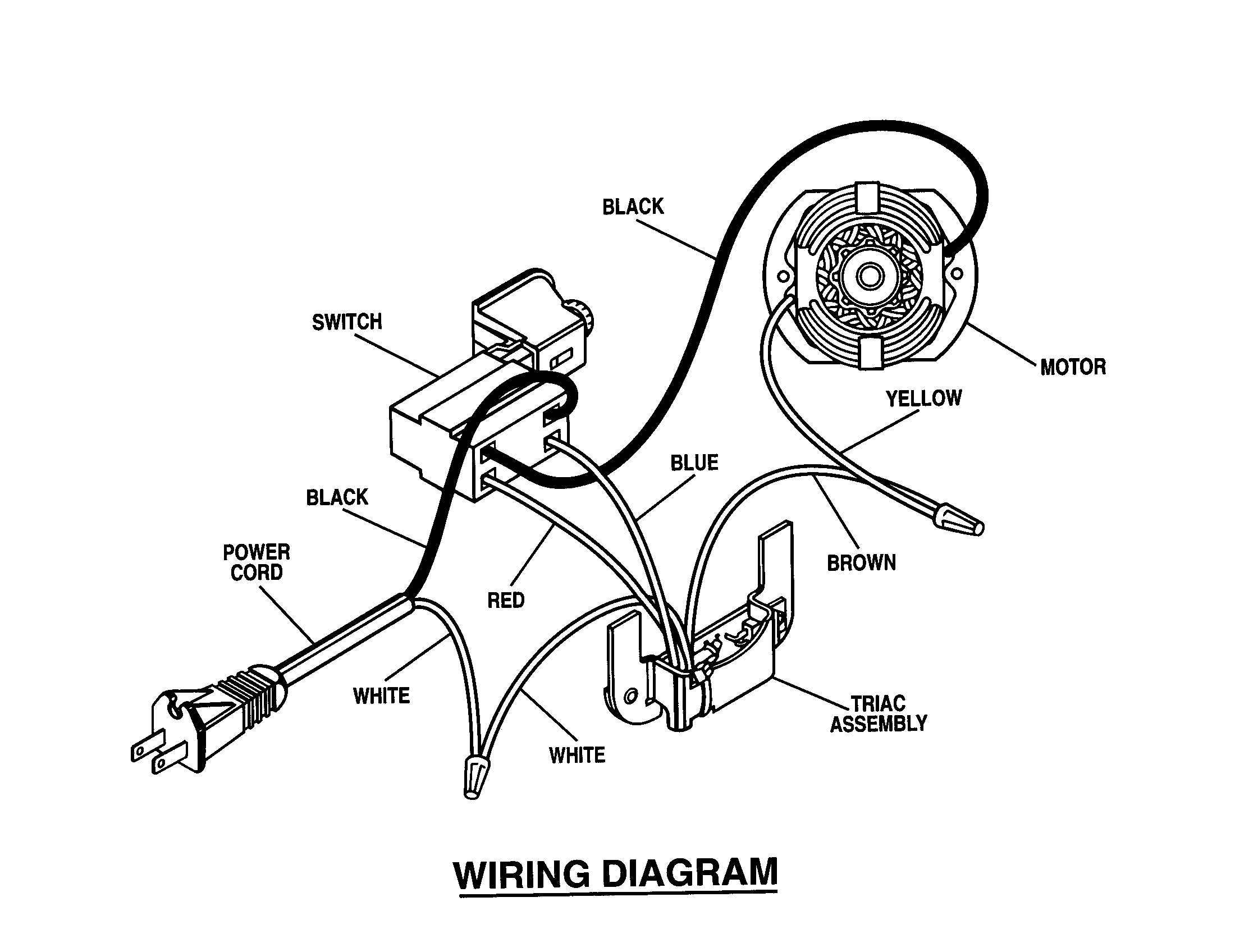

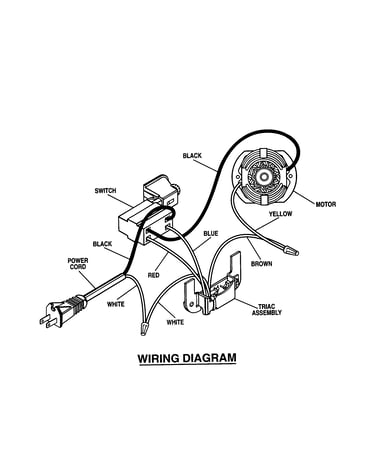

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Screw 617966-028
#1

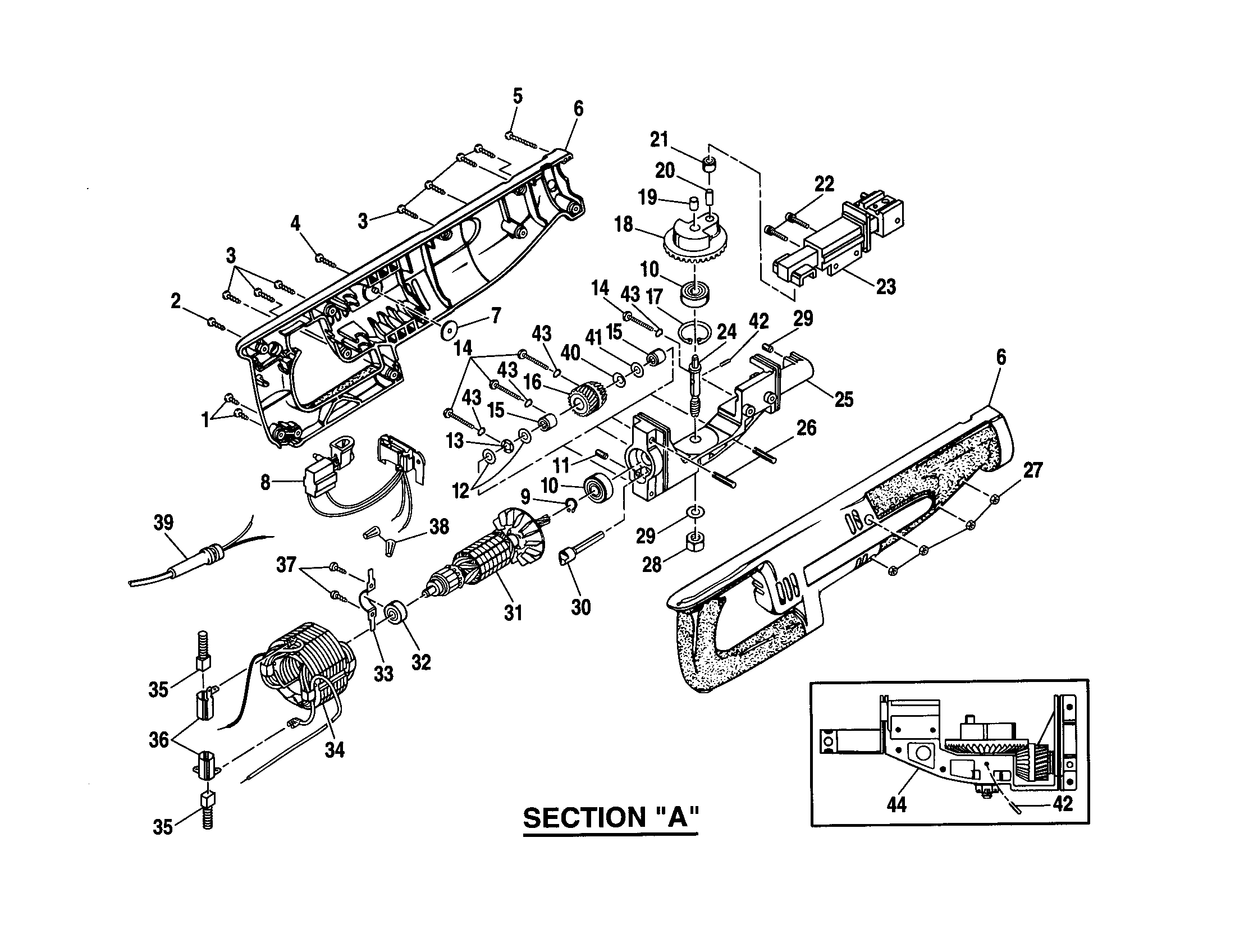

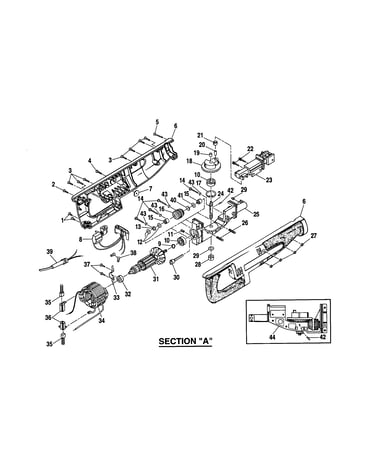

Housing/control/gear assembly diagram

Screw

Part #617966-028

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 607406-011
#28

Housing/control/gear assembly diagram

Hex nut

Part #607406-011

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Base Assembly 998277-004
#7

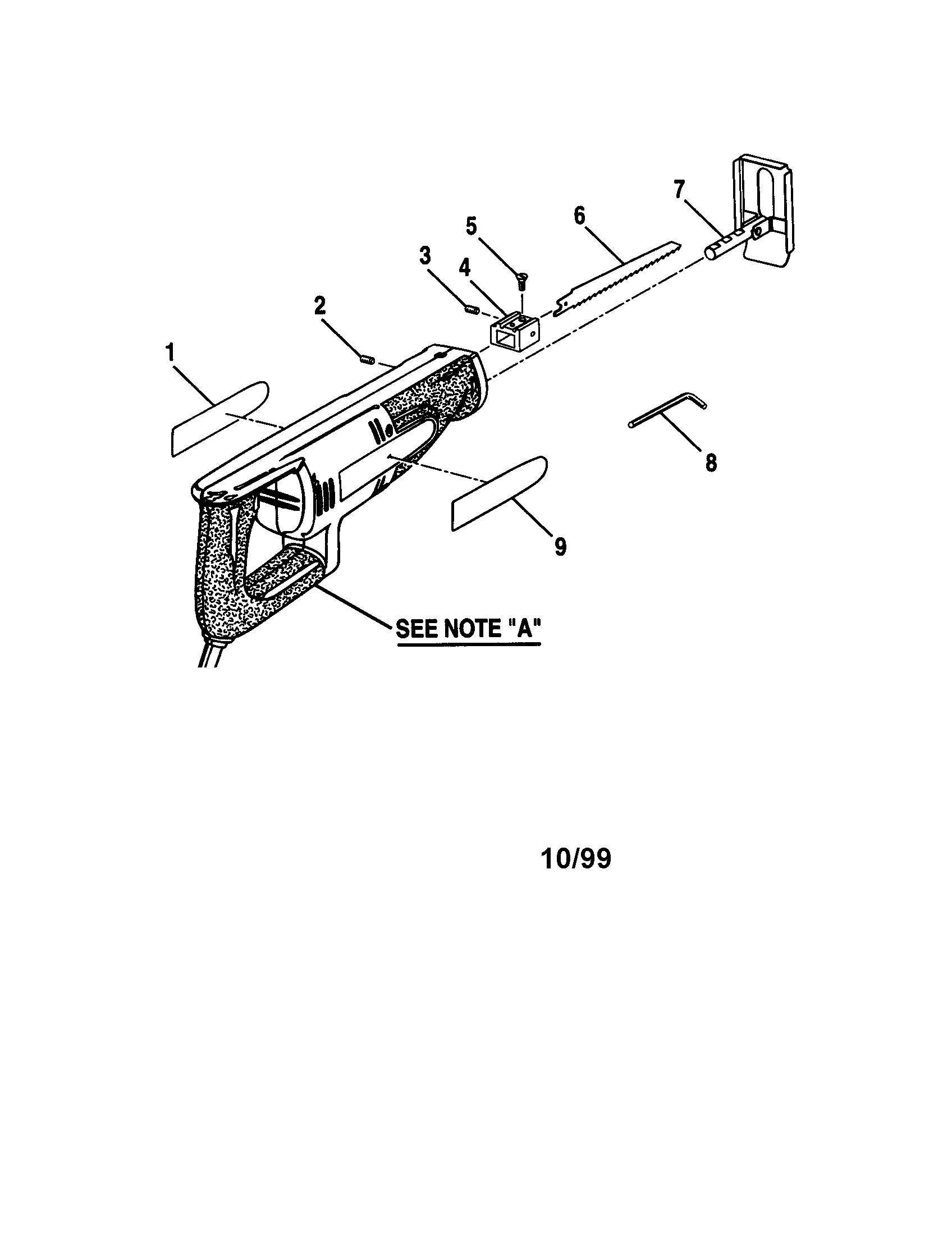

Electric reciprocating saw diagram

Reciprocating saw base assembly

Part #998277-004

The manufacturer no longer makes this part, and there's no substitute part

Switch 998322-002
#8A

Housing/control/gear assembly diagram

Switch

Part #998322-002

The manufacturer no longer makes this part, and there's no substitute part

Cord 999507-001
#39

Housing/control/gear assembly diagram

Cord

Part #999507-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 8-32 614658-041
#14

Housing/control/gear assembly diagram

Screw 8-32

Part #614658-041

The manufacturer no longer makes this part, and there's no substitute part

Bearing 980826-001
#32

Housing/control/gear assembly diagram

Bearing

Part #980826-001

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Motor Brush Holder 611967-001
#36

Housing/control/gear assembly diagram

Reciprocating saw motor brush holder

Part #611967-001

The manufacturer no longer makes this part, and there's no substitute part

Needle Bearing 612801-005
#15

Housing/control/gear assembly diagram

Needle bearing

Part #612801-005

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 622170-003
#43

Housing/control/gear assembly diagram

Lock washer

Part #622170-003

The manufacturer no longer makes this part, and there's no substitute part
