Amana ARCF48U01D/P9885206C counterflow & upflow air conditioner a-coil & housing assembly Parts

Here are the diagrams and repair parts for Amana ARCF48U01D/P9885206C counterflow & upflow air conditioner a-coil & housing assembly, as well as links to manuals and error code tables, if available.

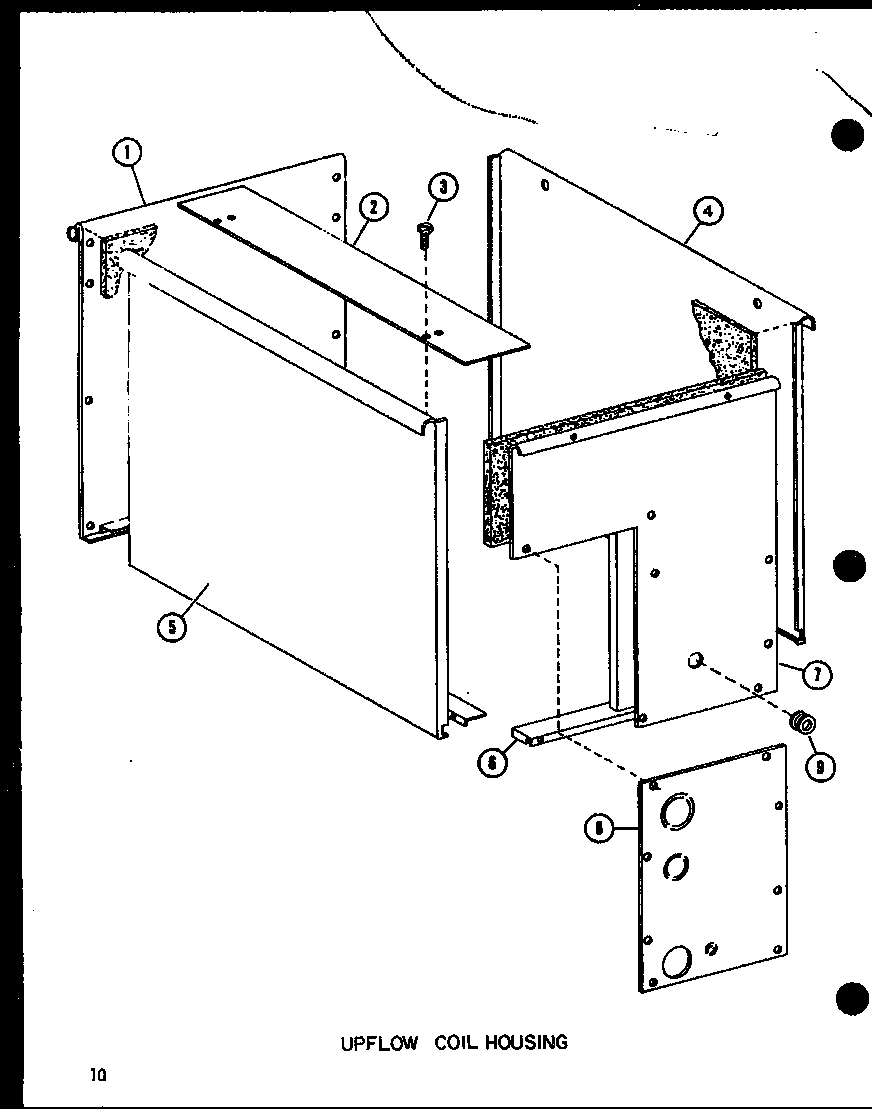

Amana ARCF48U01D/P9885206C counterflow & upflow air conditioner a-coil & housing assembly
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ARCF48U01D/P9885206C Counterflow & Upflow Air Conditioner A-Coil & Housing Assembly

  • Refrigerator Screw for Amana ARCF48U01D/P9885206C - Part WP489464

    Screw

    Part #M0211217

    Replaced by #WP489464

    Info Icon
    Manufacturer substitution
    This part replaces M0211217. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana ARCF48U01D/P9885206C - Part WP90767

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Wire Joint for Amana ARCF48U01D/P9885206C - Part WPA0317601

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Wire Joint

    Part #A0317601

    Replaced by #WPA0317601

    Info Icon
    Manufacturer substitution
    This part replaces A0317601. Substitute parts can look different from the original.
    In Stock
    $31.04
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana ARCF48U01D/P9885206C - Part WP489427

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Tap Screw

    Part #M0224956

    Replaced by #WP489427

    Info Icon
    Manufacturer substitution
    This part replaces M0224956. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.67
    12% OFF Phone Price : $8.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Cable Tie for Amana ARCF48U01D/P9885206C - Part WPW10339879

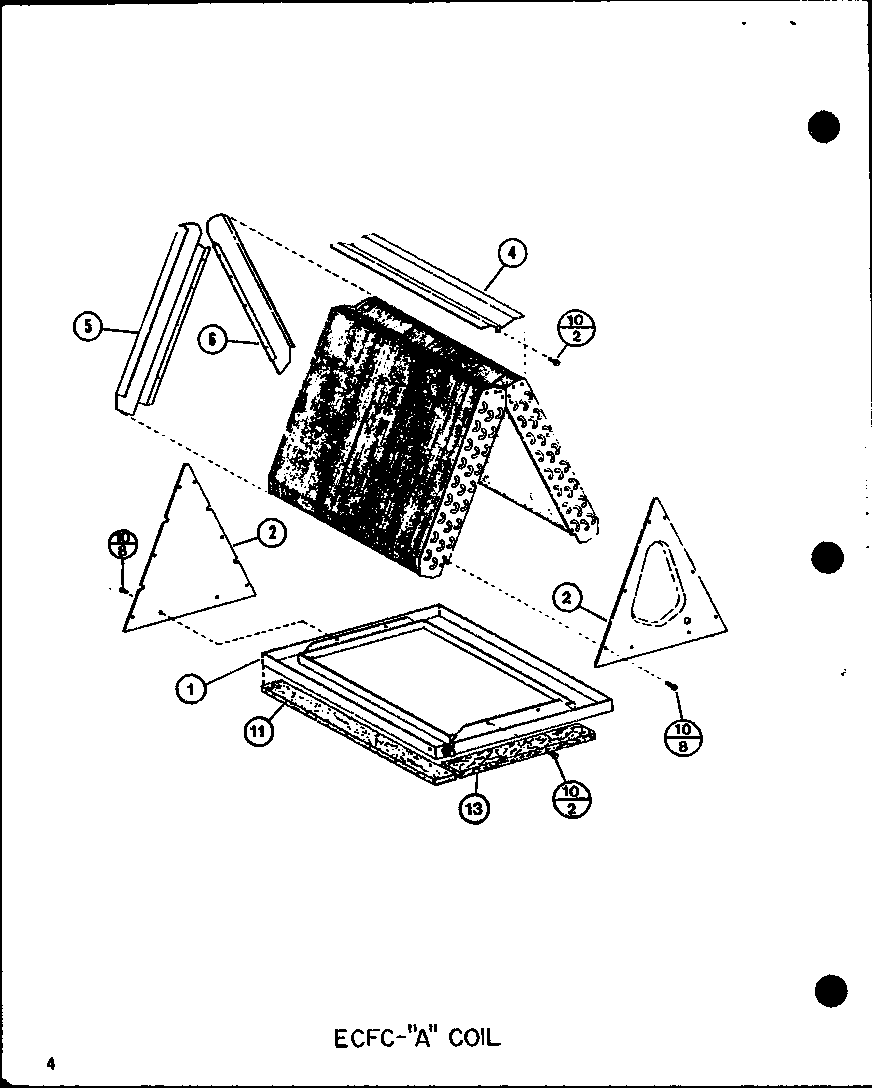

    (acfc18aovb/p9968001c) (acfc24aovb/p9968002c) (acfc30aovb/p9968003c) (acfc36aovb/p9968004c) diagram

    Tie

    Part #M0321202

    Replaced by #WPW10339879

    Info Icon
    Manufacturer substitution
    This part replaces M0321202. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Start Relay for Amana ARCF48U01D/P9885206C - Part 10142301

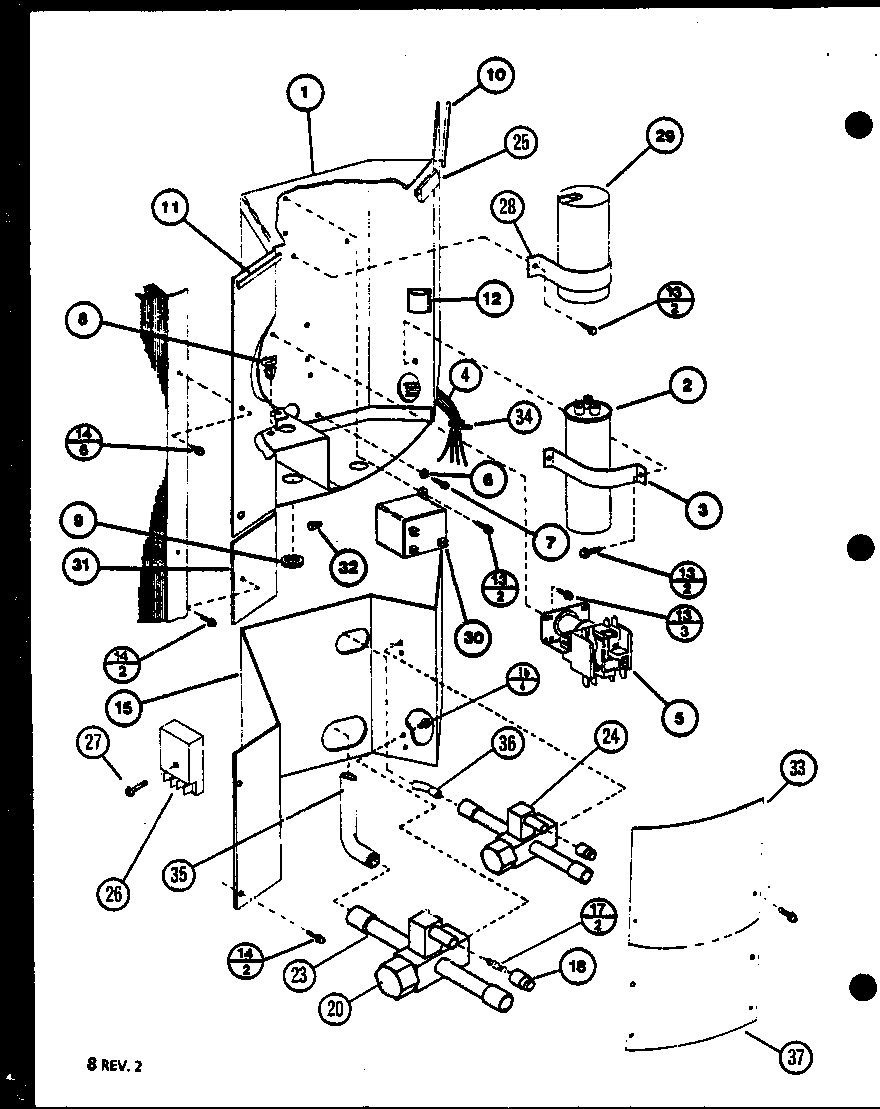

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Start Relay

    Part #10142301

    The manufacturer no longer makes this part, and there's no substitute part

  • Tube, Coupling, Liquid for Amana ARCF48U01D/P9885206C - Part B1424401

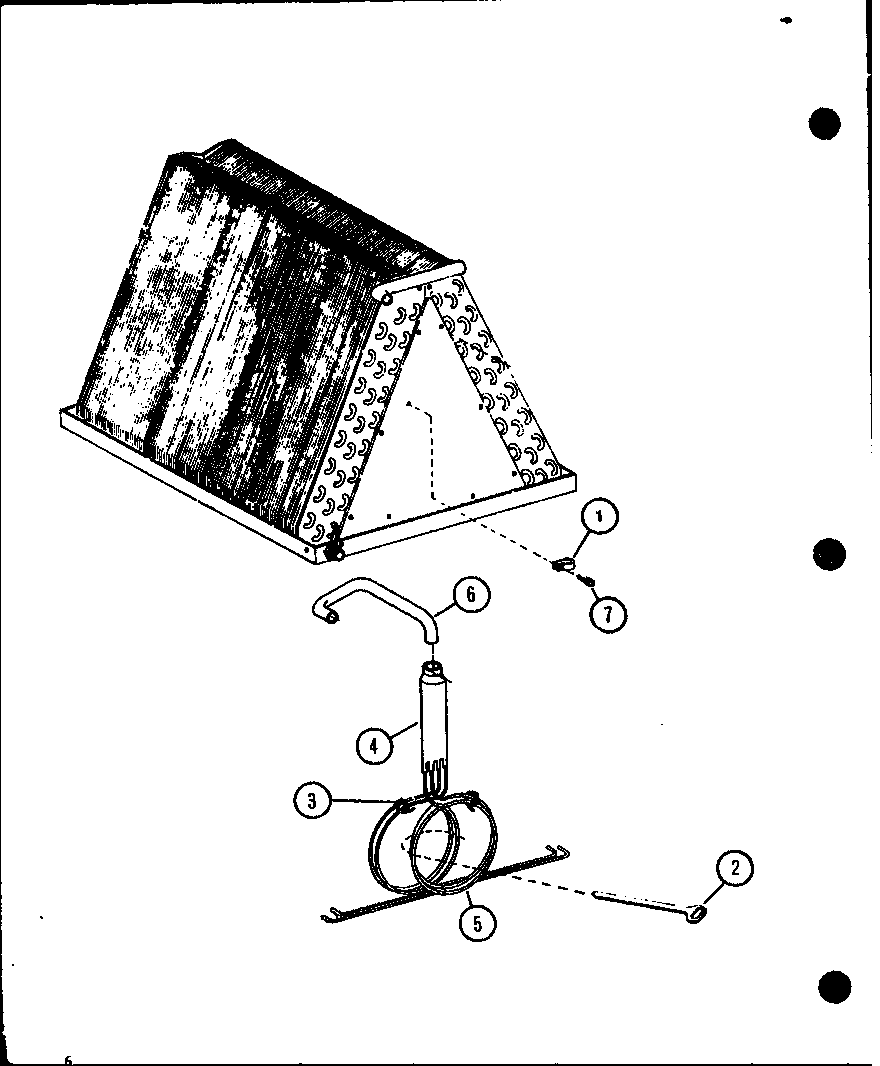

    (acfc18aovb/p9968001c) (acfc24aovb/p9968002c) (acfc30aovb/p9968003c) (acfc36aovb/p9968004c) diagram

    Tube, Coupling, Liquid

    Part #B1424401

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor, 45/7.5 Mfd, 440v. for Amana ARCF48U01D/P9885206C - Part D6789030

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Capacitor, 45/7.5 Mfd, 440v.

    Part #D6789030

    The manufacturer no longer makes this part, and there's no substitute part

  • Brace - Ign. Control for Amana ARCF48U01D/P9885206C - Part M0104102

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Brace - Ign. Control

    Part #M0104102

    The manufacturer no longer makes this part, and there's no substitute part

  • Control Cover, Lower for Amana ARCF48U01D/P9885206C - Part 10024604

    (arcf42u01b/p9917917c) (arcf48u01b/p9917918c) (arcf60u01b/p9917919c) (arcf42u01d/p9885205c) (arcf48u01d/p9885206c) (arcf60u01d/p9885208c) (arcf60u01e/p1128001c) diagram

    Control Cover, Lower

    Part #10024604

    The manufacturer no longer makes this part, and there's no substitute part
