Amana C64TMA/P7814406M microwave

Amana C64TMA/P7814406M microwave Parts

Here are the diagrams and repair parts for Amana C64TMA/P7814406M microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for C64TMA/P7814406M Microwaves

  • Freezer Light Bulb for Amana C64TMA/P7814406M - Part WPA3073101

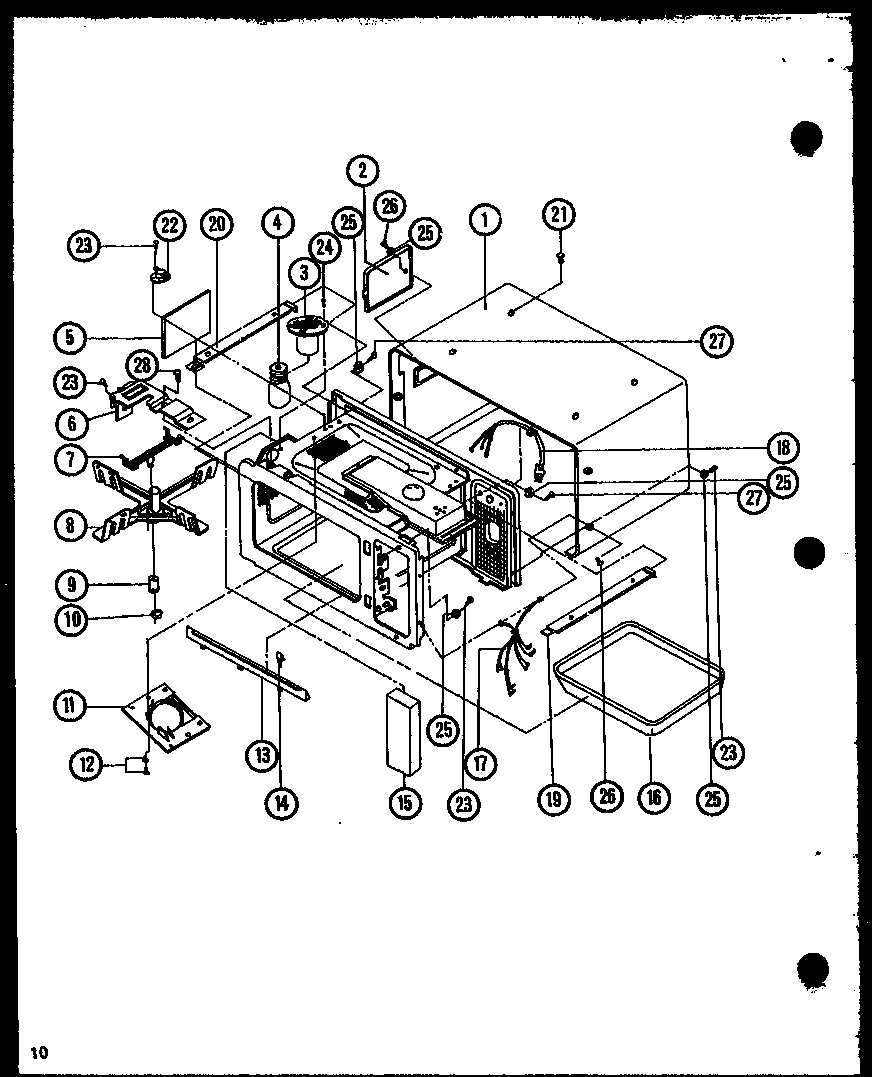

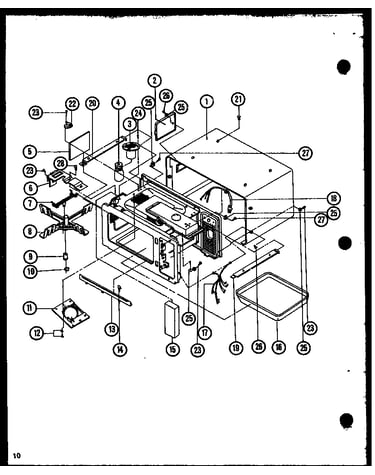

    Stirrer/wire harness diagram

    Lamp

    Part #R0812005

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces R0812005. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for Amana C64TMA/P7814406M - Part WP56001036

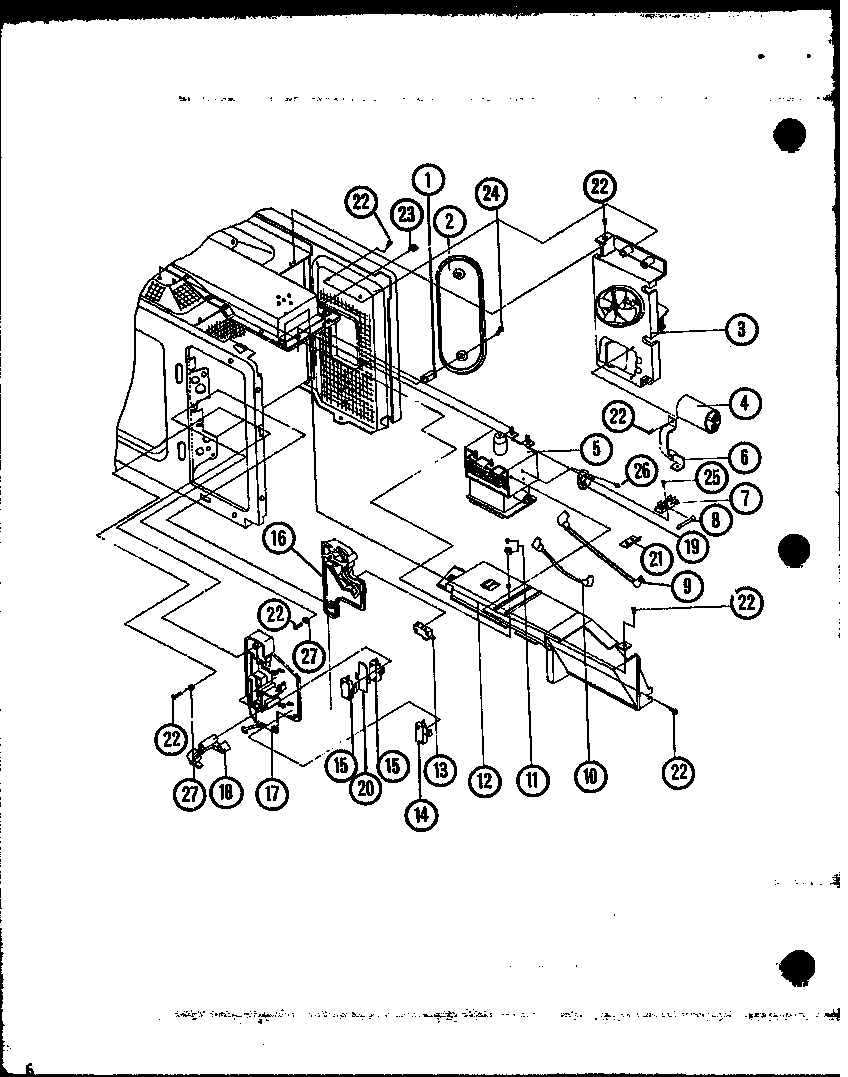

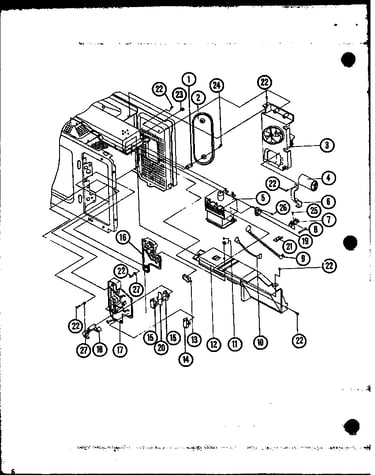

    Capacitor/magnetron diagram

    Switch

    Part #R0802523

    Replaced by #WP56001036

    Info Icon
    Manufacturer substitution
    This part replaces R0802523. Substitute parts can look different from the original.
    In Stock
    $105.59
    Minus Item
    Qty
    Plus Item
  • Microwave Rectifier for Amana C64TMA/P7814406M - Part WP13091701

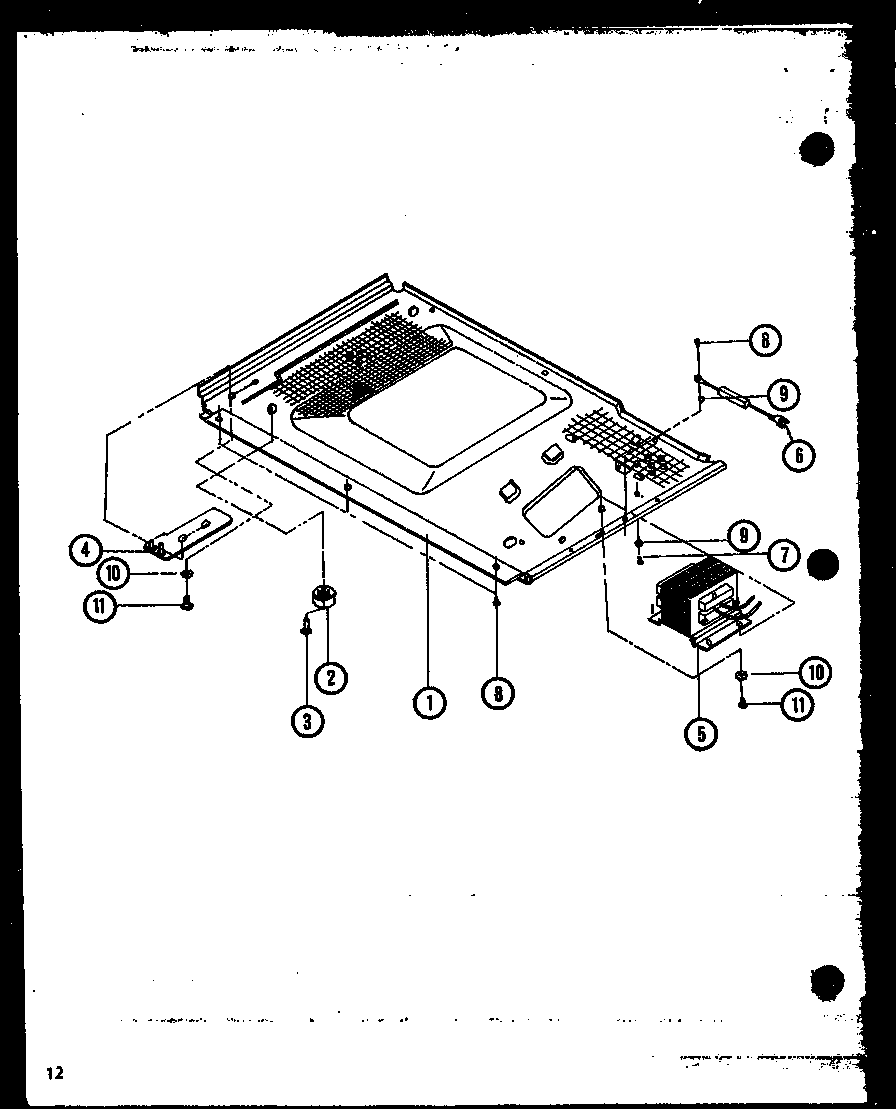

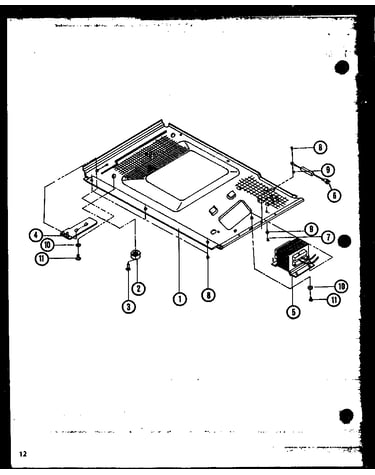

    Transformer/base plate diagram

    Diode

    Part #R0809508

    Replaced by #WP13091701

    Info Icon
    Manufacturer substitution
    This part replaces R0809508. Substitute parts can look different from the original.
    In Stock
    $25.52
    19% OFF Phone Price : $31.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse, 15-amp for Amana C64TMA/P7814406M - Part WPM0805102

    Capacitor/magnetron diagram

    Fan

    Part #R0809509

    Replaced by #WPM0805102

    Info Icon
    Manufacturer substitution
    This part replaces R0809509. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.08
    14% OFF Phone Price : $7.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Ferrite for Amana C64TMA/P7814406M - Part R0806516

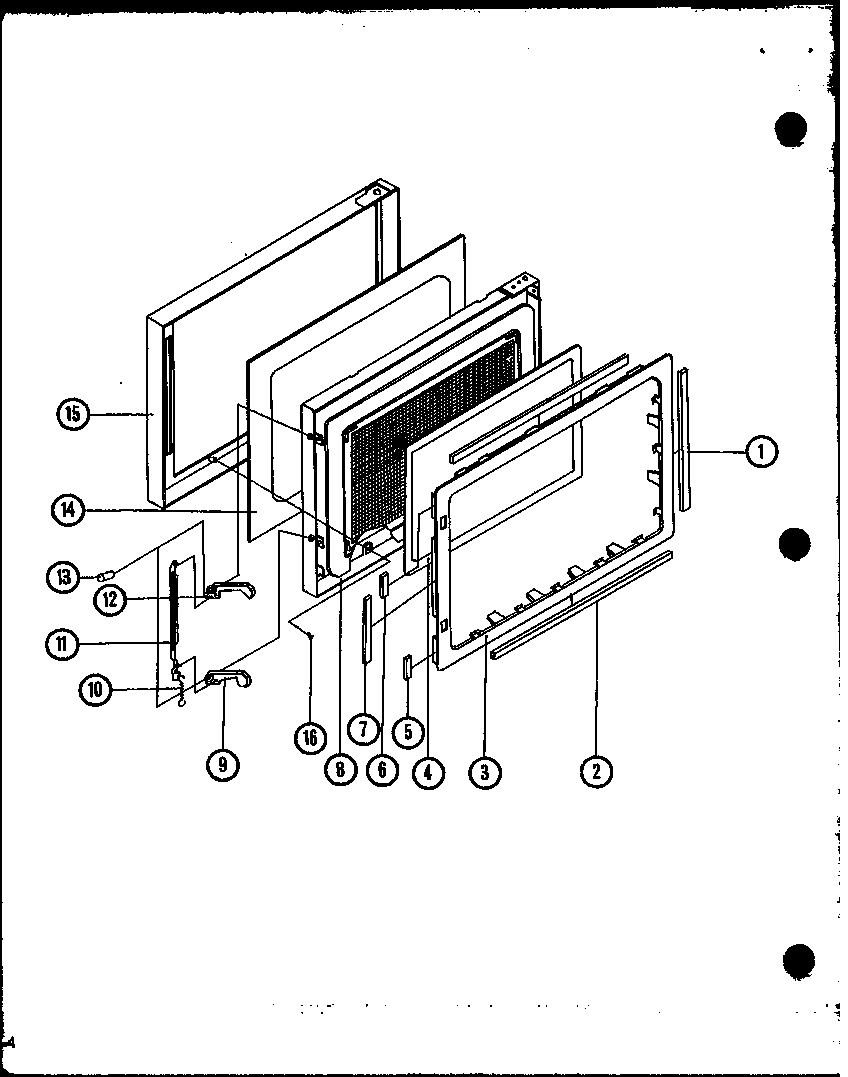

    Door diagram

    Ferrite

    Part #R0806516

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Amana C64TMA/P7814406M - Part R0800043

    Screw

    Part #R0800043

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for Amana C64TMA/P7814406M - Part R0805613

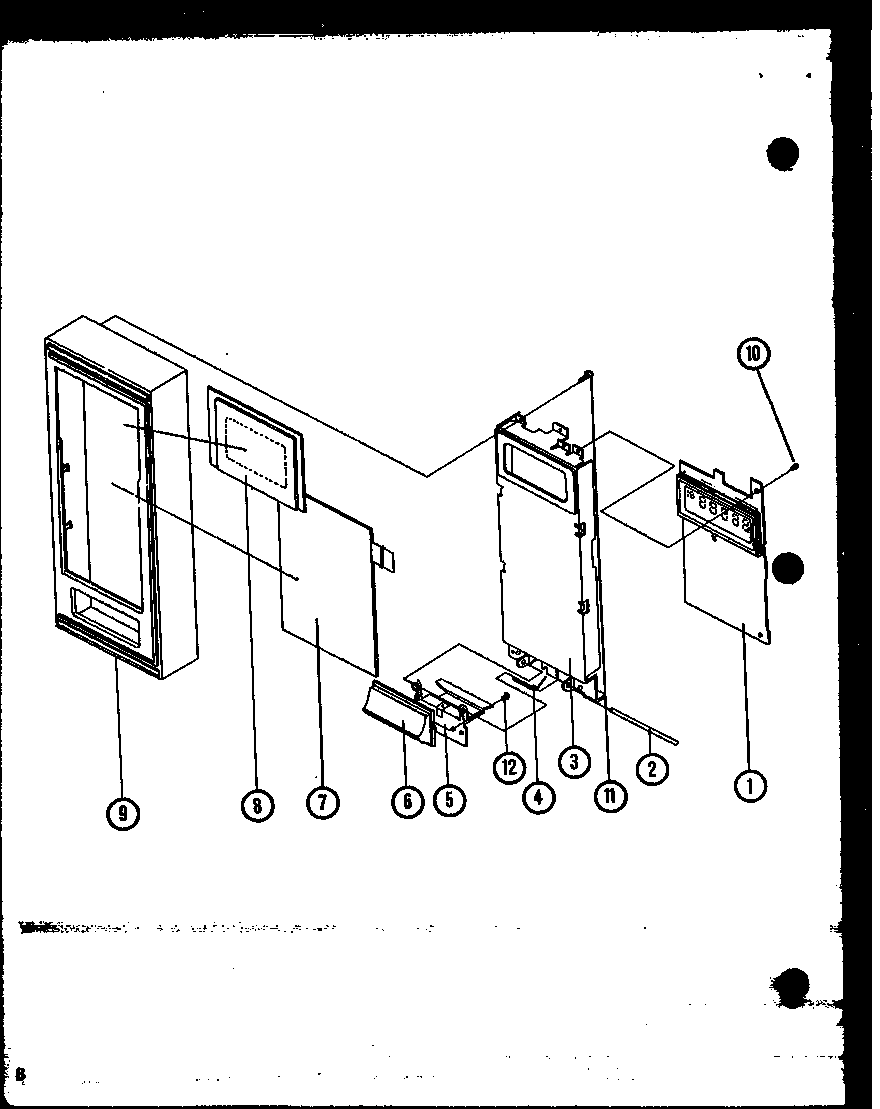

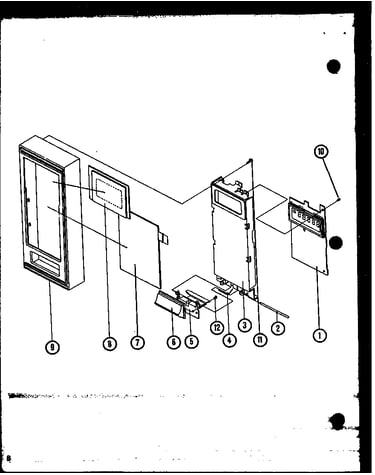

    Control panel diagram

    Spring

    Part #R0805613

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket for Amana C64TMA/P7814406M - Part R0805612

    Control panel diagram

    Bracket

    Part #R0805612

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Amana C64TMA/P7814406M - Part R0800052

    Screw

    Part #R0800052

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel for Amana C64TMA/P7814406M - Part R0803012

    Stirrer/wire harness diagram

    Panel

    Part #R0803012

    The manufacturer no longer makes this part, and there's no substitute part
