Craftsman
Walk-Behind Mower

Model # 13191079 Official Craftsman 20" lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191079 20" lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Blade 56400
#19

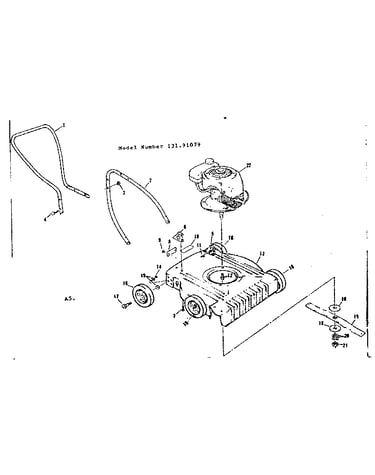

Replacement parts diagram

Blade

Part #56400

Replaced by #145106

?
Manufacturer substitution
This part replaces 56400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$13.39 |
13% OFF Phone Price : $15.39
In Stock
Washer 54005
#15

Replacement parts diagram

Washer

Part #54005

The manufacturer no longer makes this part, and there's no substitute part

Nut 53490
#3

Replacement parts diagram

Nut

Part #53490

The manufacturer no longer makes this part, and there's no substitute part

Handle 60606
#2

Replacement parts diagram

Handle

Part #60606

The manufacturer no longer makes this part, and there's no substitute part

Wheel Tire 63655
#16

Replacement parts diagram

Wheel tire

Part #63655

The manufacturer no longer makes this part, and there's no substitute part

Label 58643
#10

Replacement parts diagram

Label

Part #58643

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 455563
#11

Replacement parts diagram

Cotter pin

Part #455563

The manufacturer no longer makes this part, and there's no substitute part

Cup Washer 54867
#20

Replacement parts diagram

Cup washer

Part #54867

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 62886
#6

Replacement parts diagram

Bracket assembly

Part #62886

The manufacturer no longer makes this part, and there's no substitute part

Parts List 63678

#NI

All parts diagram

Parts list

Part #63678

The manufacturer no longer makes this part, and there's no substitute part
