Frigidaire
Chest Freezer

Model # FPRU19F8WF5 Official Frigidaire chest freezer

Here are the diagrams and repair parts for Official Frigidaire FPRU19F8WF5 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Frigidaire Refrigerator Water Filter FPPWFU01
#25

Cabinet diagram

Frigidaire refrigerator water filter

Part #FPPWFU01

BEST SELLER

Get free shipping with Automatic Reorder

$62.83 |
7% OFF Phone Price : $67.83
In Stock
Refrigerator Temperature Sensor 5303918775
#15

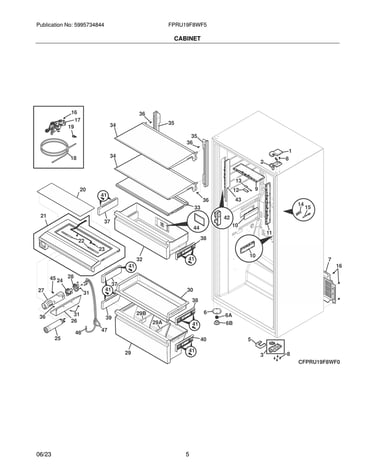

Cabinet diagram

Refrigerator temperature sensor

Part #5303918775

BEST SELLER
$19.74 |
9% OFF Phone Price : $21.74
In Stock
Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#16

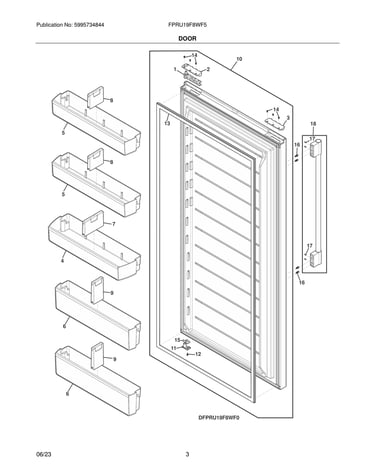

Door diagram

Refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$15.49 |
11% OFF Phone Price : $17.49
In Stock
Freezer Door Handle Set Screw, #10-32 X 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402) 218755402
#17

Door diagram

Freezer door handle set screw, #10-32 x 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402)

Part #218755402

BEST SELLER
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Refrigerator Water Filter Head 5304524817
#24

Cabinet diagram

Refrigerator water filter head

Part #5304524817

BEST SELLER
$63.93 |
7% OFF Phone Price : $68.93
In Stock
Refrigerator Filter Dryer A19676501
#10

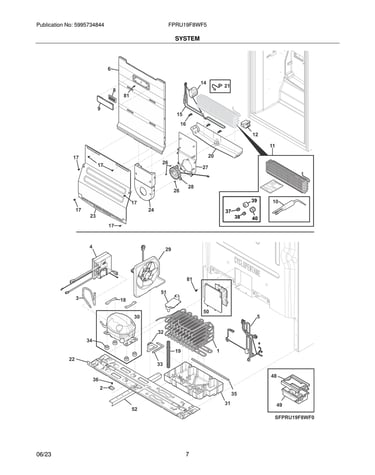

System diagram

Refrigerator filter dryer

Part #A19676501

BEST SELLER
$81.09
In Stock
Refrigerator Strap 5308000110
#16

System diagram

Refrigerator strap

Part #5308000110

$52.30 |
9% OFF Phone Price : $57.30
In Stock
Refrigerator Evaporator Fan Motor And Blade 5304523741
Refrigerator evaporator fan motor and blade

Part #5304523741

$95.57 |
20% OFF MSRP : $120.00
In Stock
Freezer Door Gasket (replaces 5304523811) 5304524887
#13

Door diagram

Freezer door gasket (replaces 5304523811)

Part #5304524887

$180.77 |
5% OFF Phone Price : $190.77
In Stock
Compressor 5304530136
#30

System diagram

Compressor

Part #5304530136

$153.10
In Stock
