Frigidaire AHW12NT5F1 room air conditioner - lf34088110 Parts
Here are the diagrams and repair parts for Frigidaire AHW12NT5F1 room air conditioner - lf34088110, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM

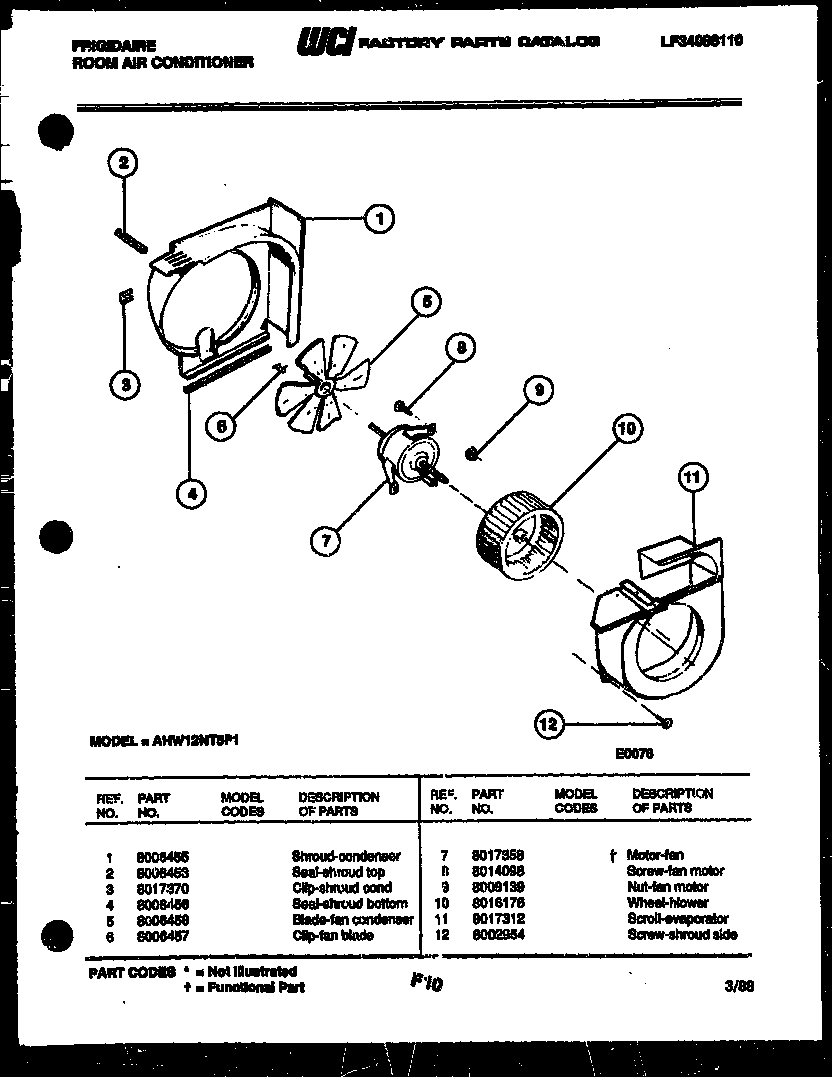

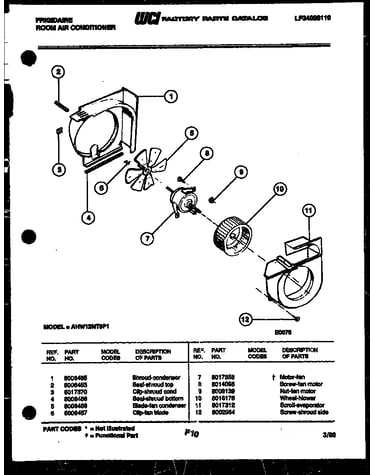

Browse Parts for AHW12NT5F1 Room Air Conditioner - LF34088110

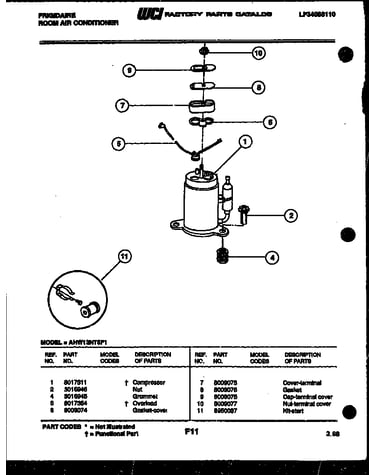

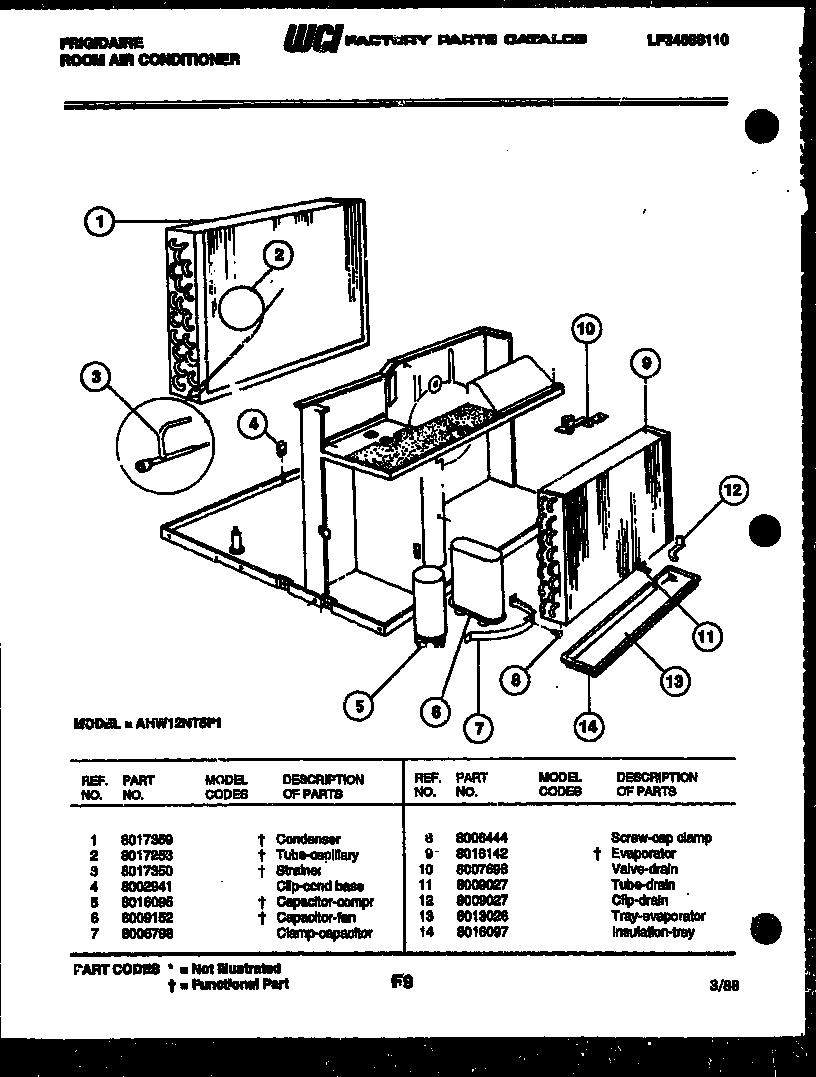

Compressor parts diagram
Grommet
Part #3015945Replaced by #5303015945
Manufacturer substitutionThis part replaces 3015945. Substitute parts can look different from the original.In Stock$48.73
Qty

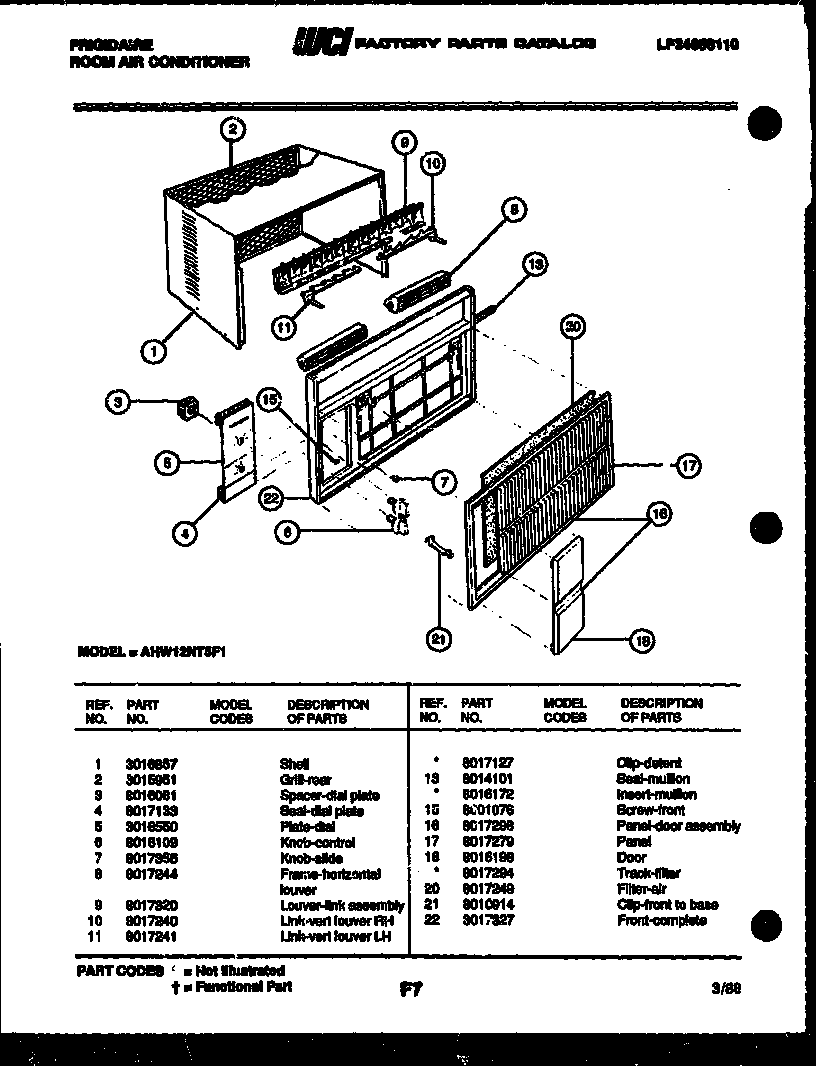

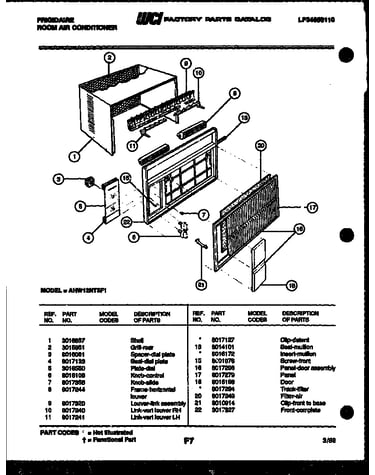

Cabinet parts diagram
Rear Grille
Part #3015951Replaced by #5304426658
Manufacturer substitutionThis part replaces 3015951. Substitute parts can look different from the original.In Stock$34.81QtyCabinet parts diagram
Door
Part #8016198
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Clip
Part #8017127
The manufacturer no longer makes this part, and there's no substitute part

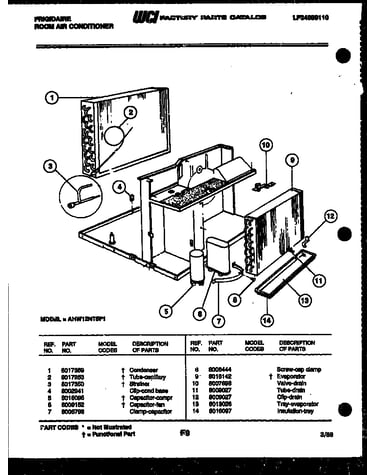

Compressor parts diagram
Gasket
Part #8009076
The manufacturer no longer makes this part, and there's no substitute part
Compressor parts diagram
Nut
Part #8009077
The manufacturer no longer makes this part, and there's no substitute part

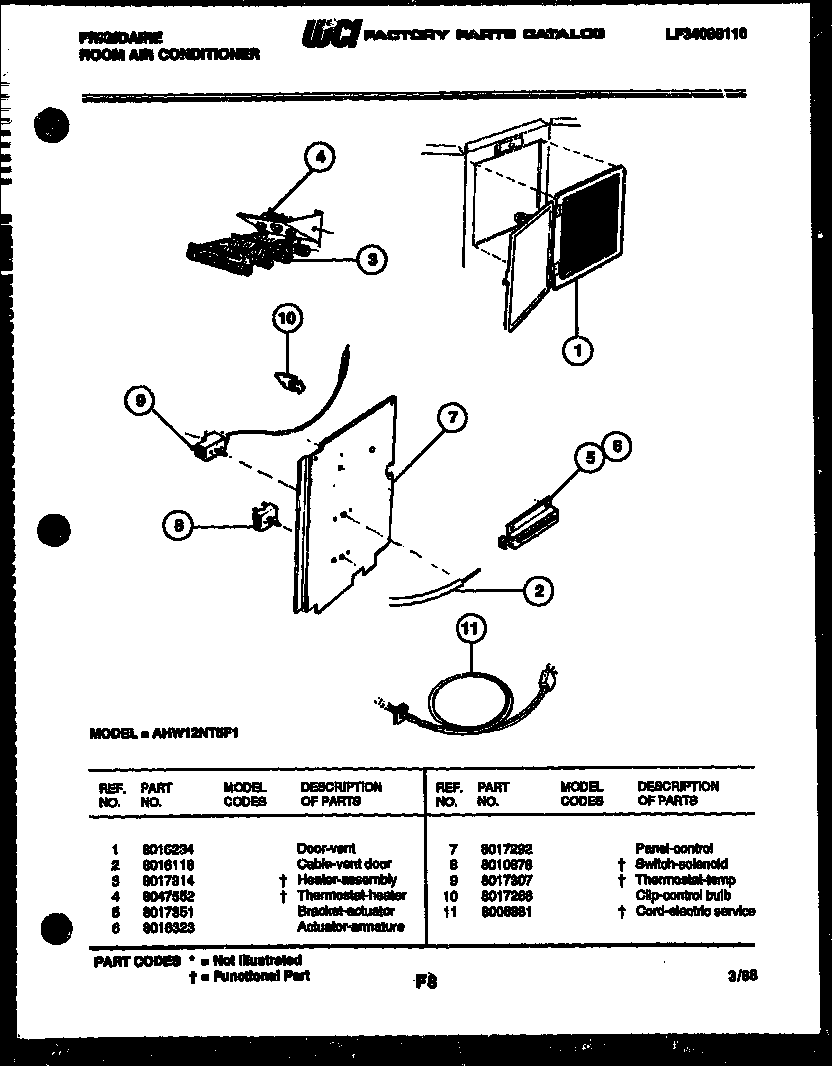

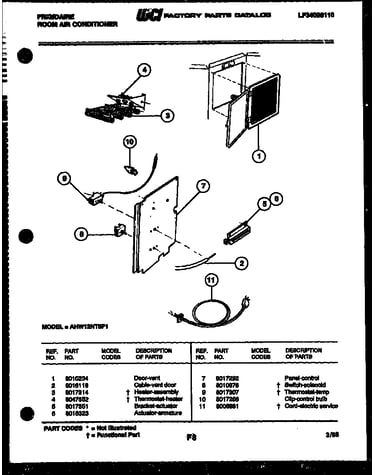

Electrical parts diagram
Actuator Bracket
Part #8017351
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Louver-link Assembly
Part #8017320
The manufacturer no longer makes this part, and there's no substitute part
Compressor parts diagram
Compressor
Part #8017311
The manufacturer no longer makes this part, and there's no substitute part
Compressor parts diagram
Overload
Part #8017354
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your room air conditioners
Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …
Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…
Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…
Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…
Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…
Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…
Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…
Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…
Main causes: clogged drain hole, air conditioner not leveled properly…
Effective articles & videos to help repair your room air conditioners
Learn about a new feature added to the Search Bar on Sears PartsDirect…
Learn how to tell whether a fuse is blown…
Find out how to protect your smart appliances from malevolent invasions by hackers.…
