Craftsman
Circular Saw

Model # 3152711080 Official Craftsman saw

Here are the diagrams and repair parts for Official Craftsman 3152711080 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

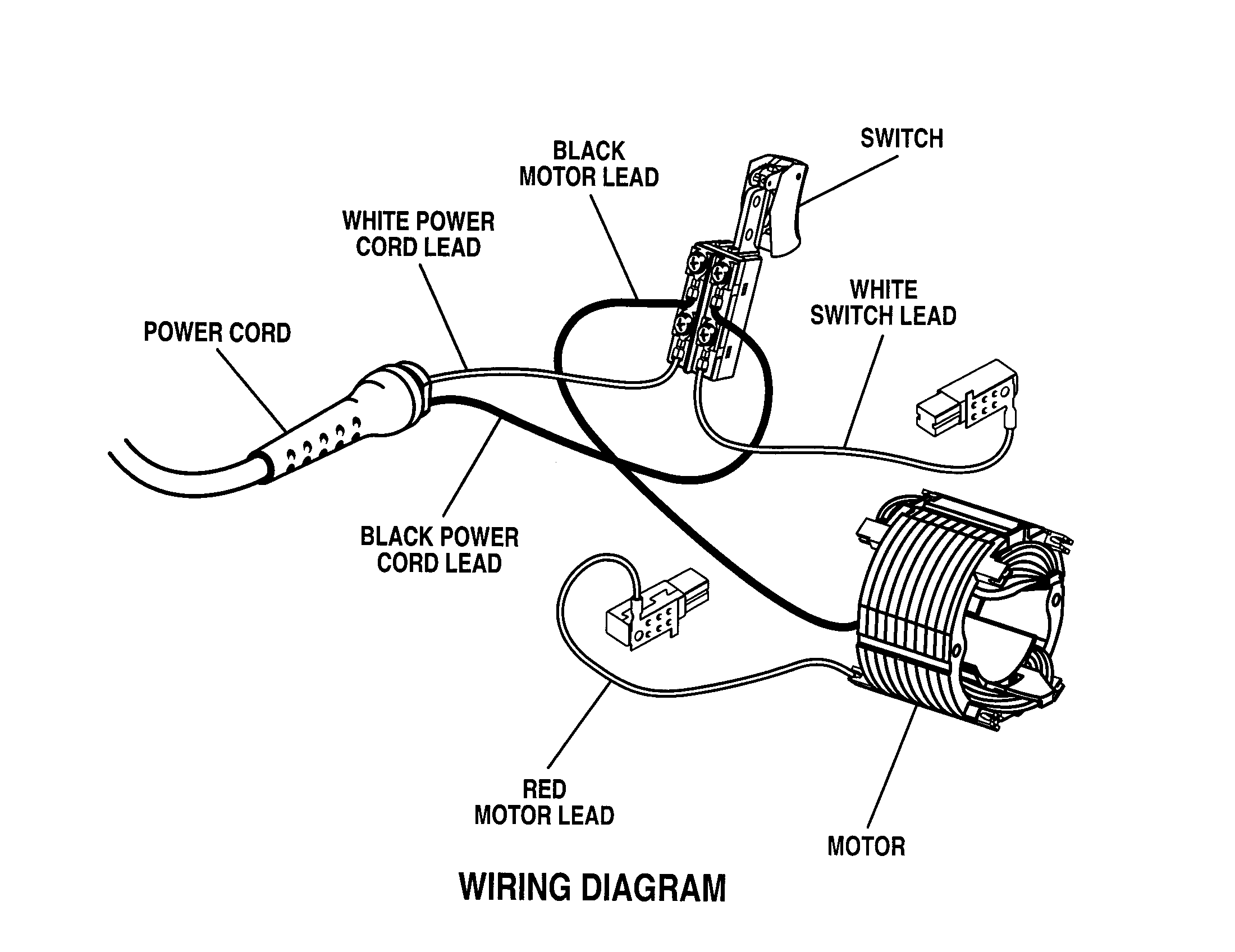

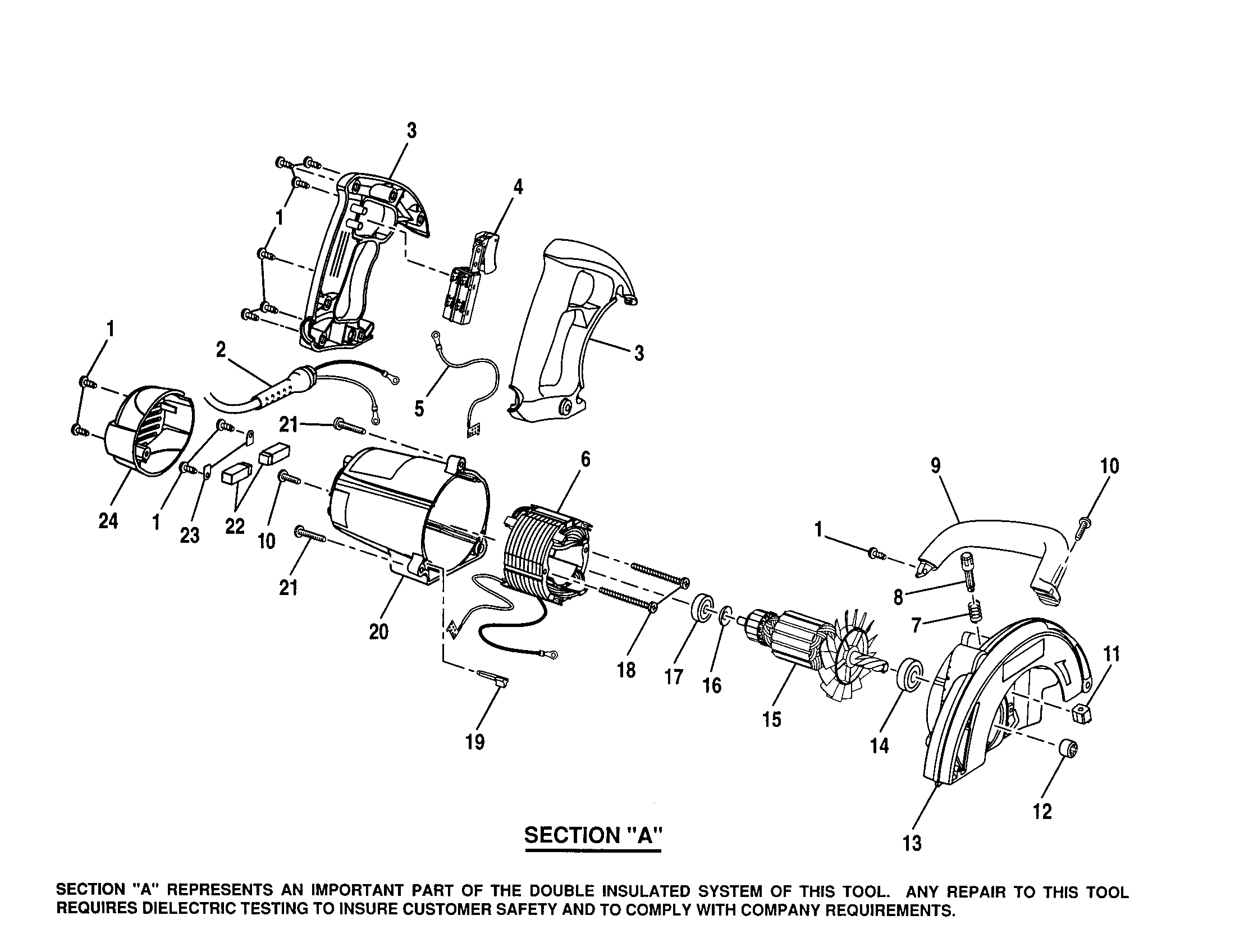

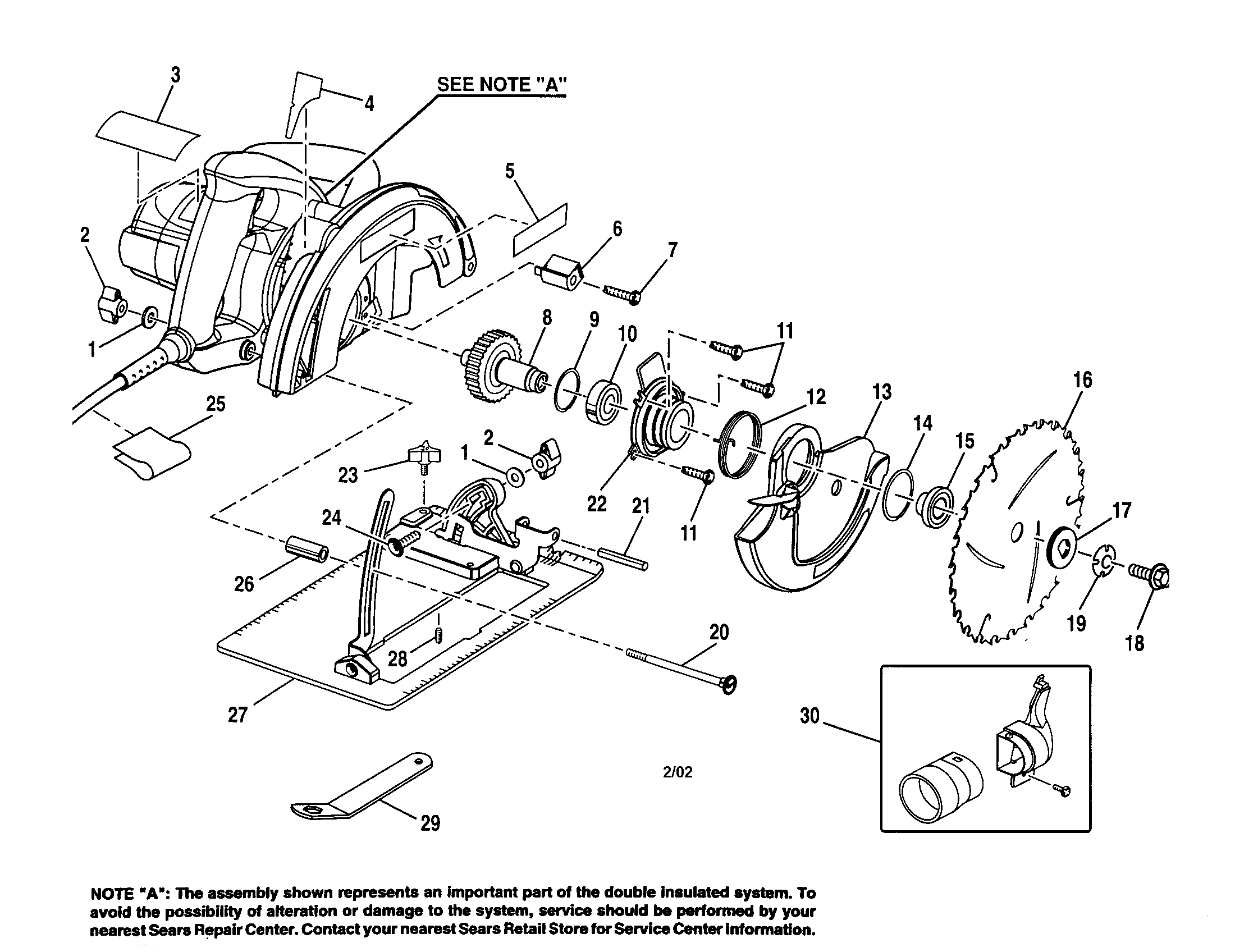

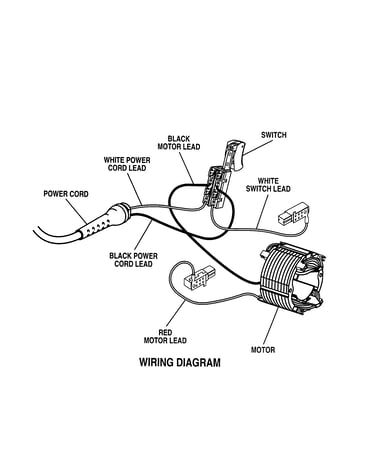

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Circular Saw Blade Bolt 612999-001
#18

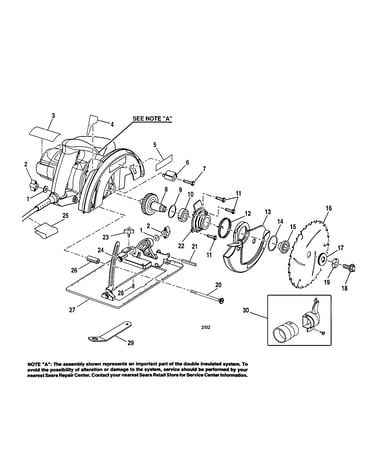

Blade/base/guard diagram

Circular saw blade bolt

Part #612999-001

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt STD532510
#24

Blade/base/guard diagram

Carriage bolt

Part #STD532510

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 941401-310
#21

Blade/base/guard diagram

Roll pin

Part #941401-310

The manufacturer no longer makes this part, and there's no substitute part

Screw 8pk 982492-131
#7

Blade/base/guard diagram

Screw 8pk

Part #982492-131

The manufacturer no longer makes this part, and there's no substitute part

Shaft 5542101
#8

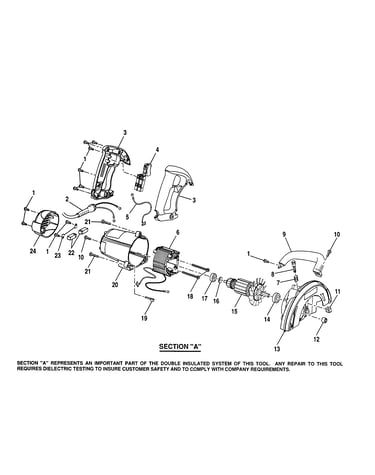

Handle/housing diagram

Shaft

Part #5542101

The manufacturer no longer makes this part, and there's no substitute part

Rack 6889601
#11

Handle/housing diagram

Rack

Part #6889601

The manufacturer no longer makes this part, and there's no substitute part

Housing 5531901
#20

Handle/housing diagram

Housing

Part #5531901

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Armature 982202-003
#15

Handle/housing diagram

Armature

Part #982202-003

The manufacturer no longer makes this part, and there's no substitute part

Wrench 974716-001
#29

Blade/base/guard diagram

Wrench

Part #974716-001

The manufacturer no longer makes this part, and there's no substitute part
