Craftsman
Reciprocating Saw

Model # 172171730 Official Craftsman saw

Here are the diagrams and repair parts for Official Craftsman 172171730 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Blades 3pk B09.F.01
#NI

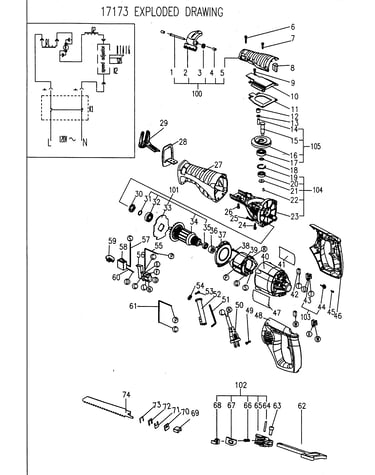

Saw diagram

Blades 3pk

Part #B09.F.01

The manufacturer no longer makes this part, and there's no substitute part

Brand SB09.0.15.3-00
#47

Saw diagram

Brand

Part #SB09.0.15.3-00

The manufacturer no longer makes this part, and there's no substitute part

Saw Blade SB09F.01-00
#75

Saw diagram

Saw blade

Part #SB09F.01-00

The manufacturer no longer makes this part, and there's no substitute part

Loop STA05.04-00
#19

Saw diagram

Loop

Part #STA05.04-00

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Gear Case Cover Bracket SB09.0.09-00
#10

Saw diagram

Reciprocating saw gear case cover bracket

Part #SB09.0.09-00

The manufacturer no longer makes this part, and there's no substitute part

Top Cover SB09.0.05.31-00
#5

Saw diagram

Top cover

Part #SB09.0.05.31-00

The manufacturer no longer makes this part, and there's no substitute part

Shell SB09.0.01.0-00
#40

Saw diagram

Shell

Part #SB09.0.01.0-00

The manufacturer no longer makes this part, and there's no substitute part

Screw SW55.58.0-00
#53

Saw diagram

Screw

Part #SW55.58.0-00

The manufacturer no longer makes this part, and there's no substitute part

Ring SW61.55.0-00
#31

Saw diagram

Ring

Part #SW61.55.0-00

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Sliding Rod Seal ST15.02.01-00
#71

Saw diagram

Reciprocating saw sliding rod seal

Part #ST15.02.01-00

The manufacturer no longer makes this part, and there's no substitute part
