Model # 217585850 Official Craftsman 7.5-hp gamefisher outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585850 7.5-hp gamefisher outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

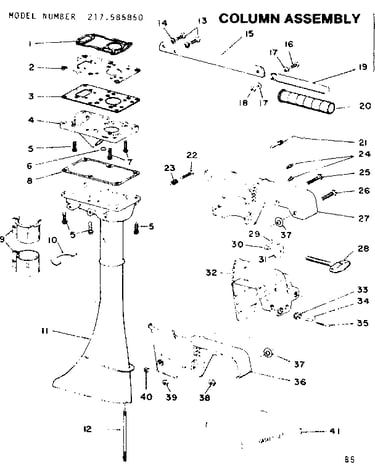

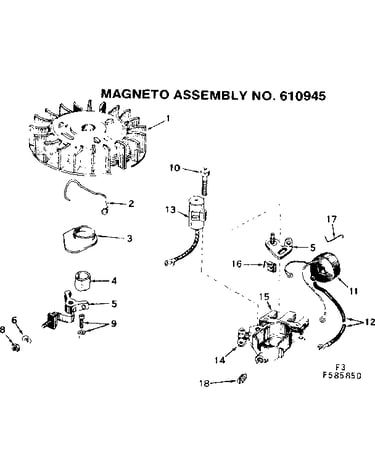

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 232 parts |

#14

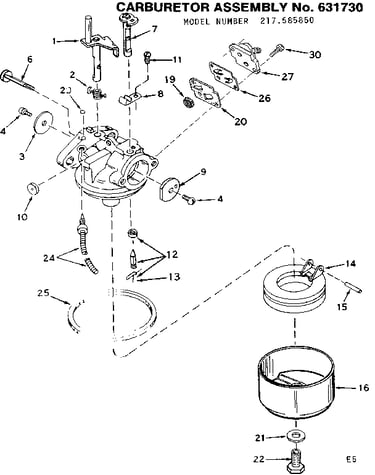

Carburetor assembly diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

#43

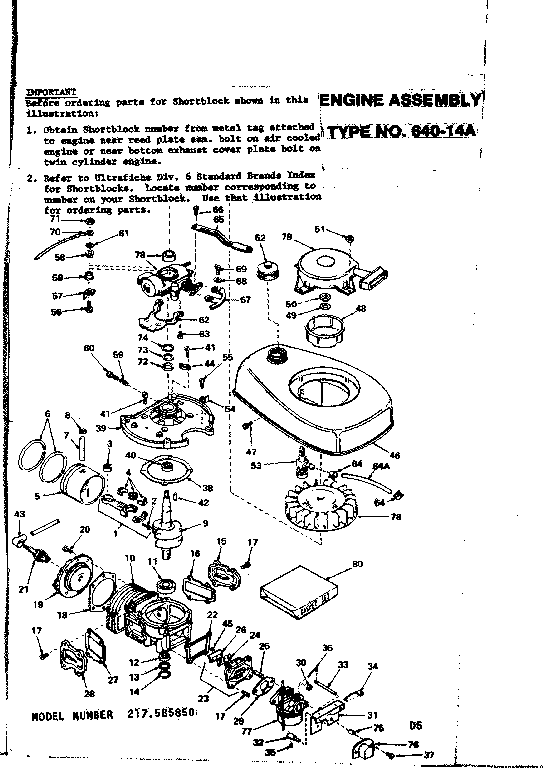

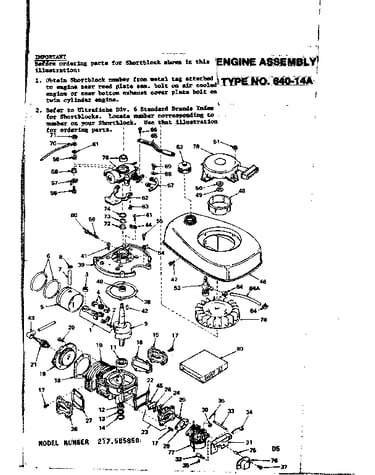

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

#53

Engine assembly diagram

Fuel fitting

Part #29683

The manufacturer no longer makes this part, and there's no substitute part

#59

Engine assembly diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

#21

Carburetor assembly diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

#79

Engine assembly diagram

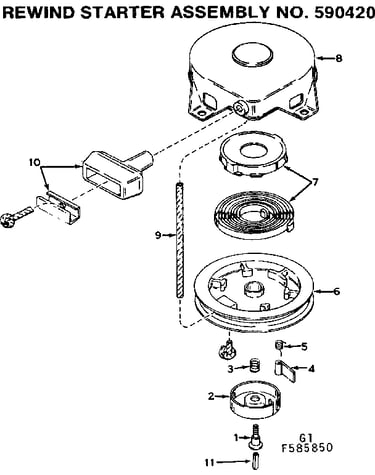

Starter

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Screw

Part #650506

The manufacturer no longer makes this part, and there's no substitute part

#36

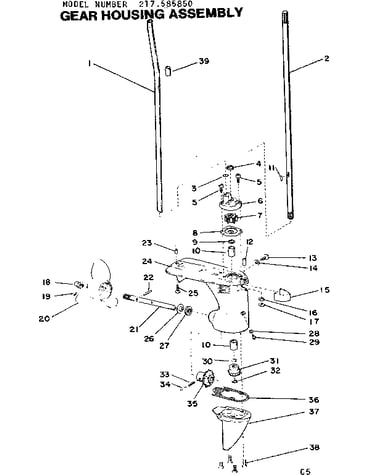

Gear housing assembly diagram

Boat motor gear housing gasket

Part #26364

The manufacturer no longer makes this part, and there's no substitute part

#21

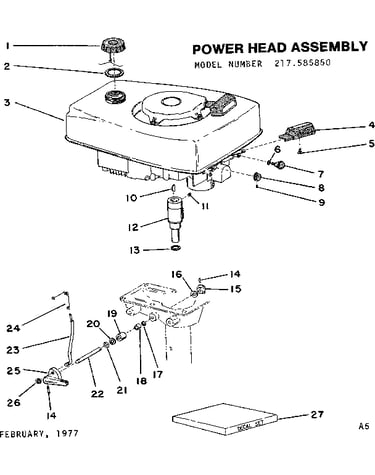

Power head assembly diagram

Washer

Part #4432

The manufacturer no longer makes this part, and there's no substitute part
