Model # DW364 TYPE5 Official DeWalt circular saw

Here are the diagrams and repair parts for Official DeWalt DW364-TYPE5 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

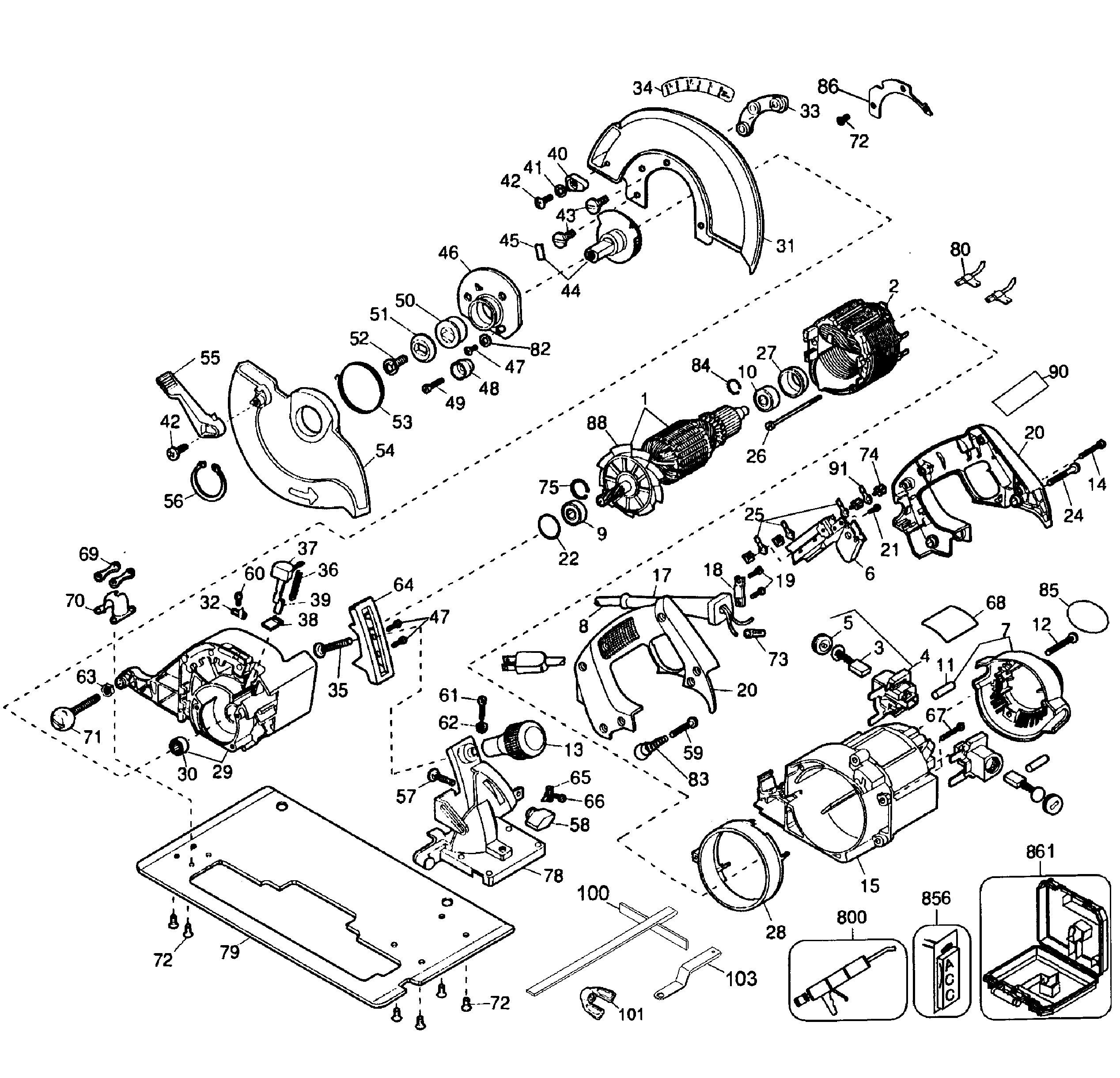

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Screw 098094-13
#42

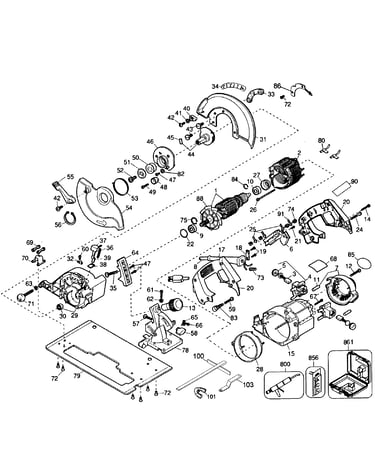

Saw circular diagram

Screw

Part #098094-13

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Blade Clamp Screw 145344-00
#52

Saw circular diagram

Circular saw blade clamp screw

Part #145344-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-20
#12

Saw circular diagram

Screw

Part #330019-20

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Power Cord 330079-98
#8

Saw circular diagram

Circular saw power cord

Part #330079-98

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 392666-00
#101

Saw circular diagram

Wing nut

Part #392666-00

The manufacturer no longer makes this part, and there's no substitute part

Lock Lever 145349-00
#39

Saw circular diagram

Lock lever

Part #145349-00

The manufacturer no longer makes this part, and there's no substitute part

Case Cover 610906-00
#46

Saw circular diagram

Case cover

Part #610906-00

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 32114-01
#73

Saw circular diagram

Twist-on wire connector

Part #32114-01

The manufacturer no longer makes this part, and there's no substitute part

Carriage B 098128-35
#57

Saw circular diagram

Carriage b

Part #098128-35

The manufacturer no longer makes this part, and there's no substitute part

Slide 5140030-87
#33

Saw circular diagram

Slide

Part #5140030-87

The manufacturer no longer makes this part, and there's no substitute part
