Craftsman
Power Grinder

Model # 257191400 Official Craftsman grinder

Here are the diagrams and repair parts for Official Craftsman 257191400 grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#36

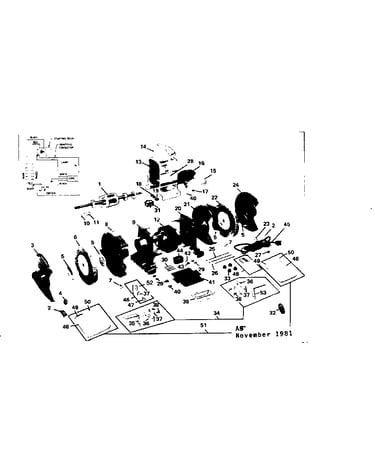

2 h.p. grinder diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551031
#35

2 h.p. grinder diagram

Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Base Bushing 5537401
#32

2 h.p. grinder diagram

Base bushing

Part #5537401

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, 1/2-in, 8-pack STD551050
#23

2 h.p. grinder diagram

Flat washer, 1/2-in, 8-pack

Part #STD551050

The manufacturer no longer makes this part, and there's no substitute part

Toggl Switch 4984992
#30

2 h.p. grinder diagram

Toggl switch

Part #4984992

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 4978534
#43

2 h.p. grinder diagram

Cable assembly

Part #4978534

The manufacturer no longer makes this part, and there's no substitute part

Grommet 3169206
#26

2 h.p. grinder diagram

Grommet

Part #3169206

The manufacturer no longer makes this part, and there's no substitute part

Nut L.h. 9428172
#4

2 h.p. grinder diagram

Nut l.h.

Part #9428172

The manufacturer no longer makes this part, and there's no substitute part

Eye Shield 22023394
#45

2 h.p. grinder diagram

Eye shield

Part #22023394

The manufacturer no longer makes this part, and there's no substitute part

Tl Rst L.h. 4998263
#37

2 h.p. grinder diagram

Tl rst l.h.

Part #4998263

The manufacturer no longer makes this part, and there's no substitute part
