Kenmore 5648786280 microwave/convection oven

Kenmore 5648786280 microwave/convection oven Parts

Here are the diagrams and repair parts for Kenmore 5648786280 microwave/convection oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

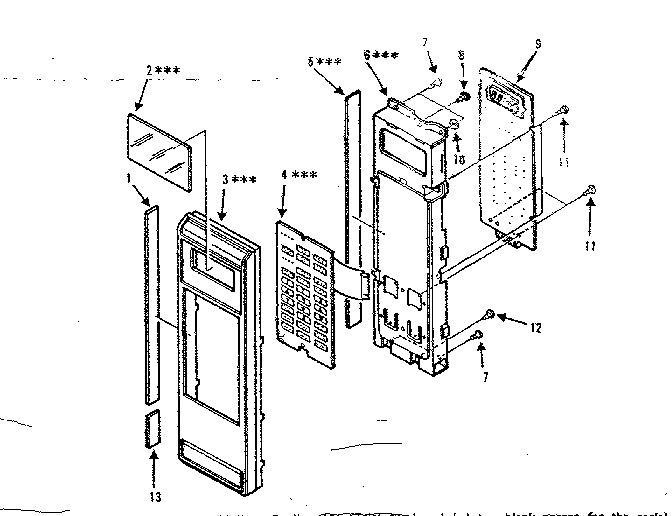

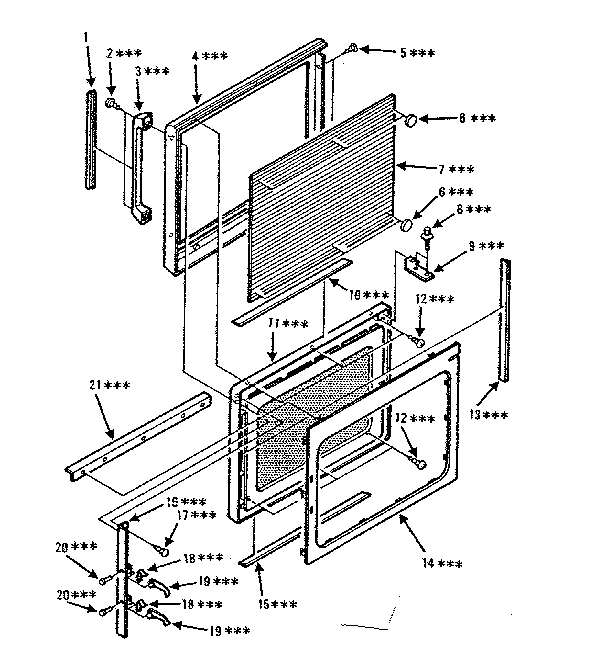

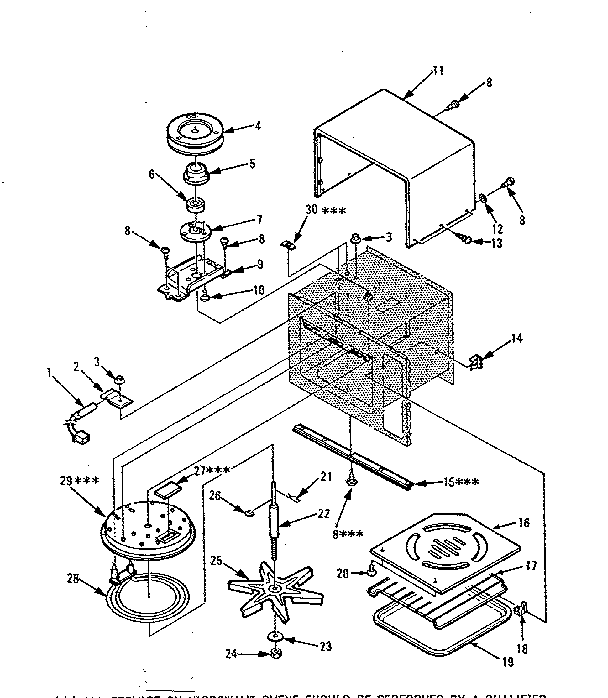

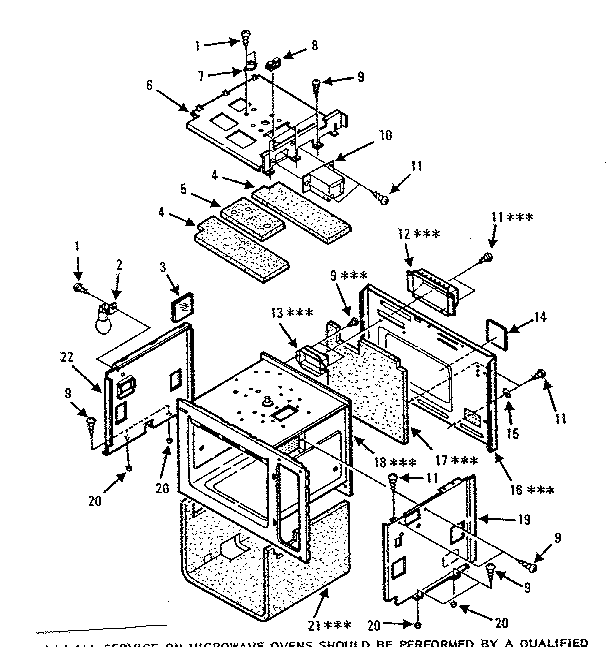

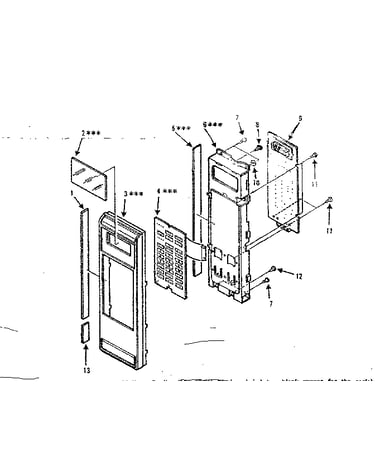

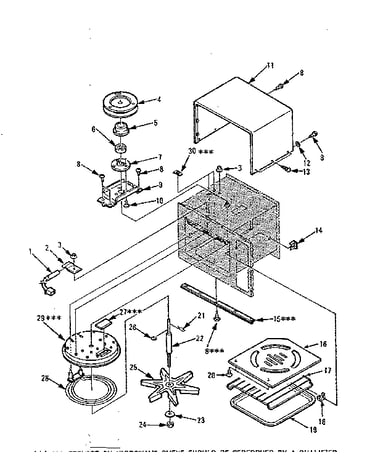

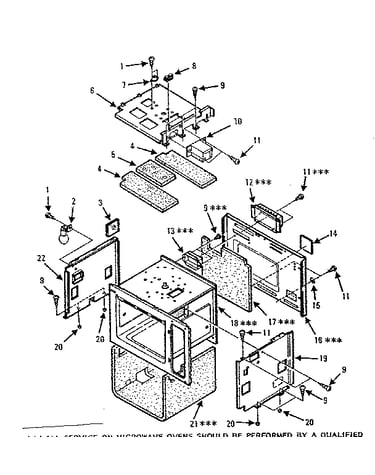

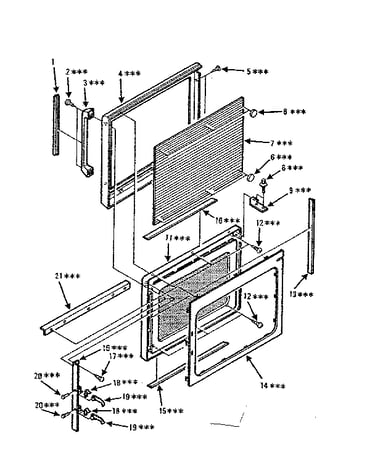

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 5648786280 Microwaves

  • Micro-switch for Kenmore 5648786280 - Part 11243

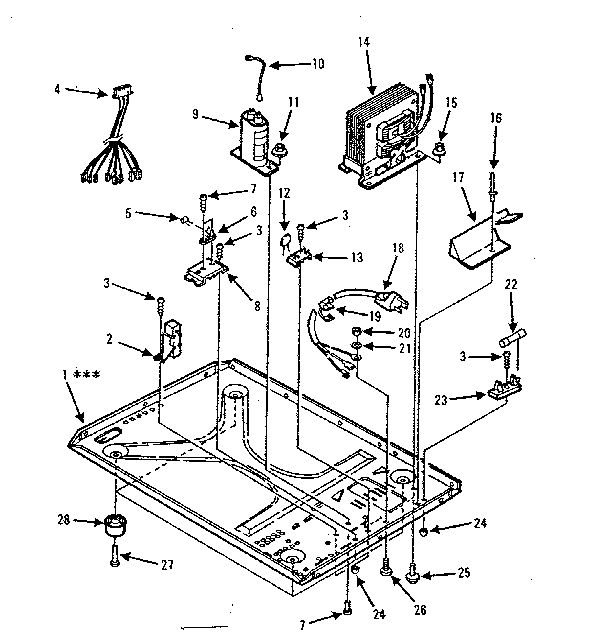

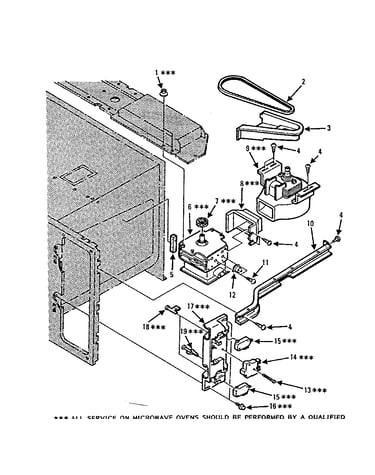

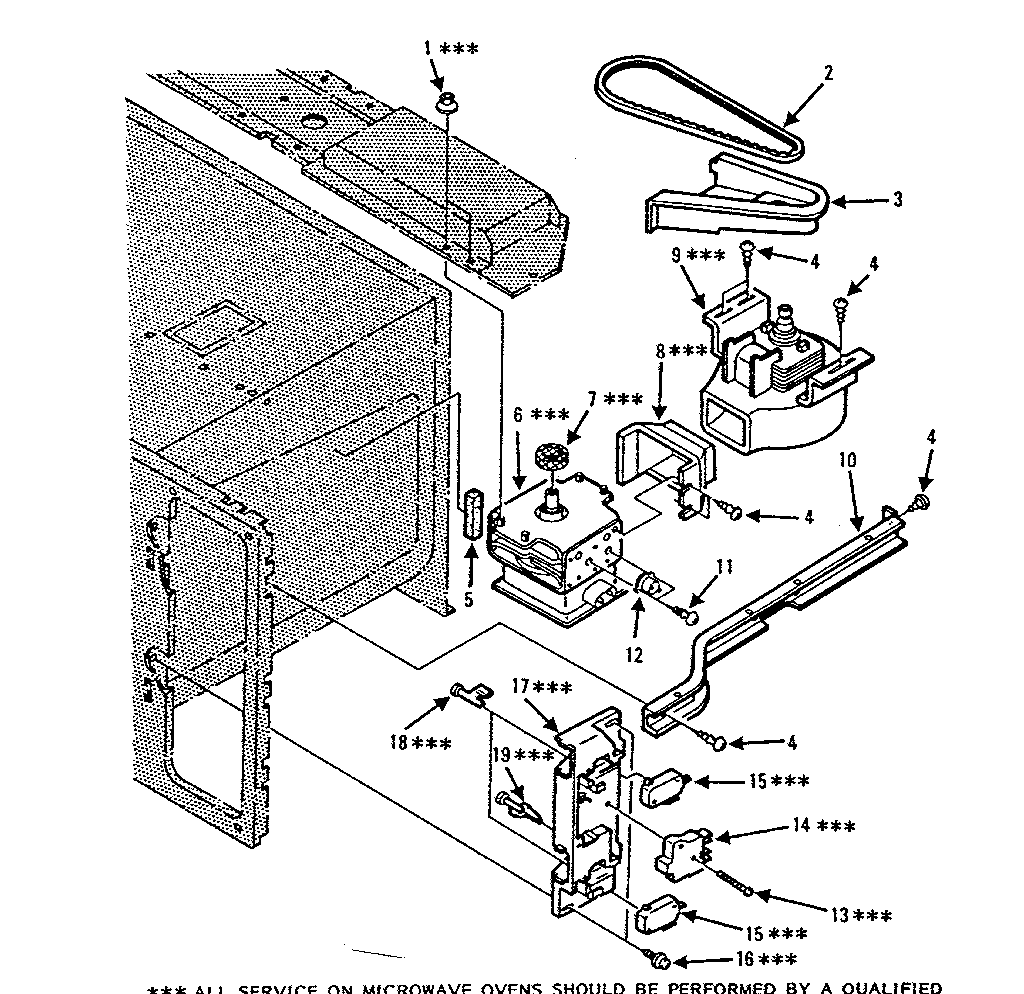

    Switches and microwave parts diagram

    Micro-switch

    Part #11243

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Fuse, 15-amp for Kenmore 5648786280 - Part 11255

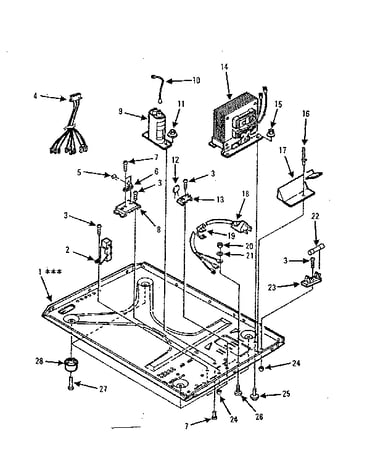

    Microwave parts diagram

    Microwave Fuse, 15-amp

    Part #11255

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Magnetron Thermostat for Kenmore 5648786280 - Part 11532

    Switches and microwave parts diagram

    Microwave Magnetron Thermostat

    Part #11532

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5648786280 - Part 11564

    Capacitor

    Part #11564

    The manufacturer no longer makes this part, and there's no substitute part

  • Micro-switch for Kenmore 5648786280 - Part 14281

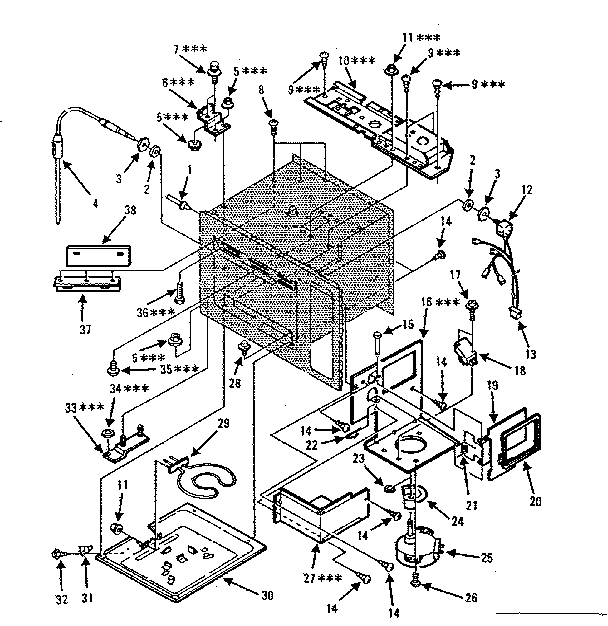

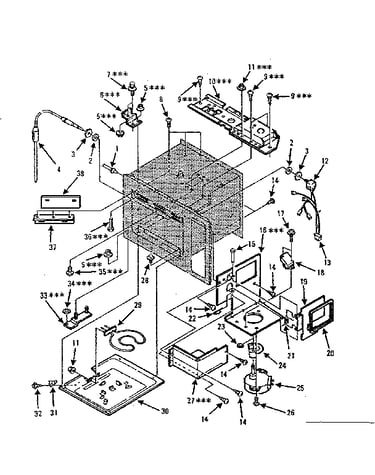

    Cavity parts-c diagram

    Micro-switch

    Part #14281

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5648786280 - Part 14252

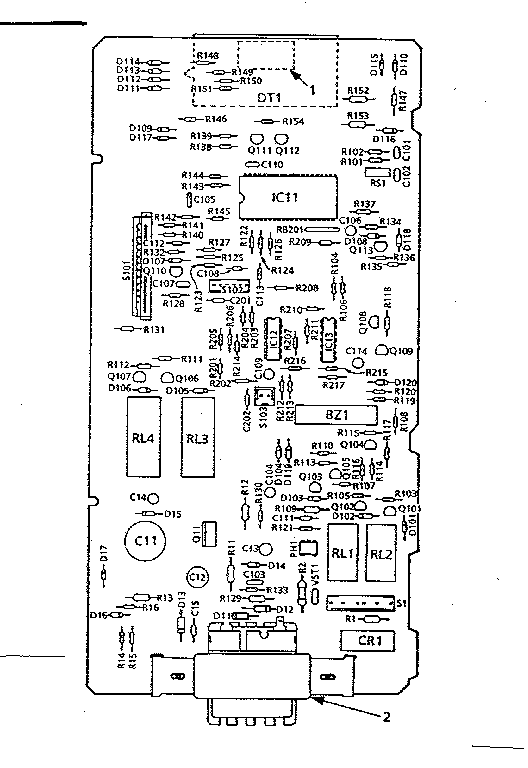

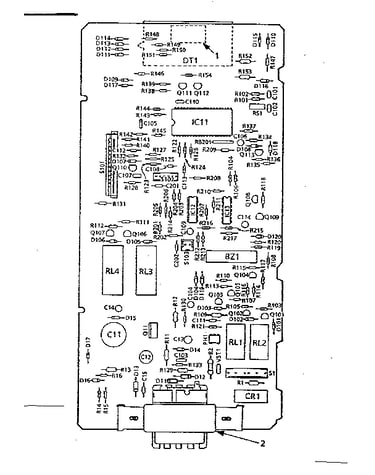

    Power and control circuit board (part no. 14173) diagram

    Capacitor

    Part #14252

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5648786280 - Part 14254

    Power and control circuit board (part no. 14173) diagram

    Capacitor

    Part #14254

    The manufacturer no longer makes this part, and there's no substitute part

  • Intg Circuit for Kenmore 5648786280 - Part 13041

    Power and control circuit board (part no. 14173) diagram

    Intg Circuit

    Part #13041

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Kenmore 5648786280 - Part 11730

    Power and control circuit board (part no. 14173) diagram

    Resistor

    Part #11730

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Kenmore 5648786280 - Part 13512

    Diode

    Part #13512

    The manufacturer no longer makes this part, and there's no substitute part
