Model # 11652612202 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652612202 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Vacuum Foam Filter 4370713
#8

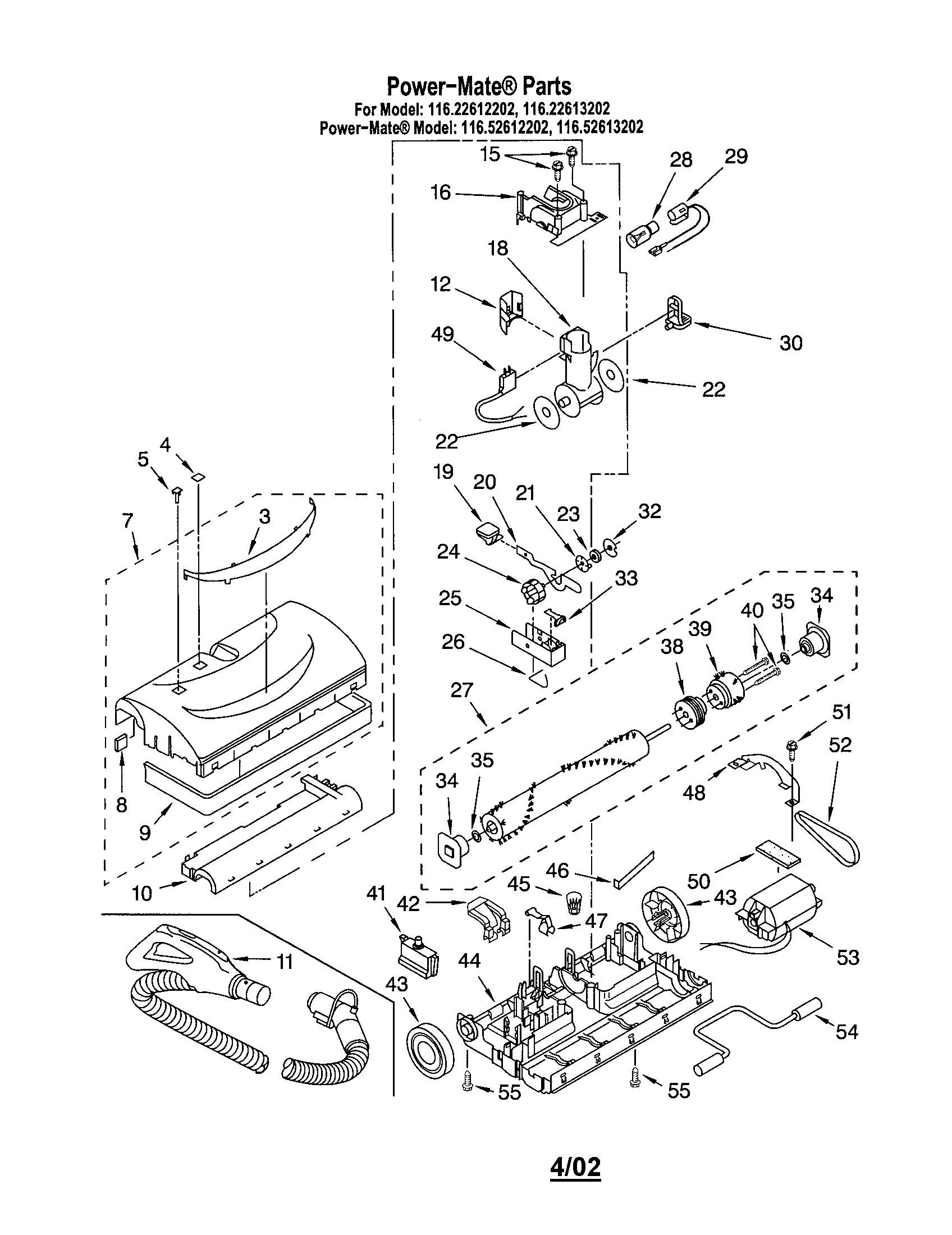

Power-mate diagram

Vacuum foam filter

Part #4370713

Replaced by #4370713

?
Manufacturer substitution
This part replaces 4370713. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$6.69 |
13% OFF Phone Price : $7.69
In Stock
Release 4370578
#42

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Wiring Diagram LIT747155

#NI

All parts diagram

Wiring diagram

Part #LIT747155

The manufacturer no longer makes this part, and there's no substitute part

Gasket 747156
#50

Power-mate diagram

Gasket

Part #747156

The manufacturer no longer makes this part, and there's no substitute part

End Brush (black) 8175101
#39

Power-mate diagram

End brush (black)

Part #8175101

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Ratchet (white) 742016
#33

Power-mate diagram

Vacuum ratchet (white)

Part #742016

The manufacturer no longer makes this part, and there's no substitute part

Sprckt-drv 8175122
#38

Power-mate diagram

Sprckt-drv

Part #8175122

The manufacturer no longer makes this part, and there's no substitute part

Washer 722909
#32

Power-mate diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4370720
#20

Power-mate diagram

Swivel

Part #4370720

The manufacturer no longer makes this part, and there's no substitute part
