Model # F4005-002 Official Hoover floor scrubber

Here are the diagrams and repair parts for Official Hoover F4005-002 floor scrubber, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |

Tank 43632028
#2

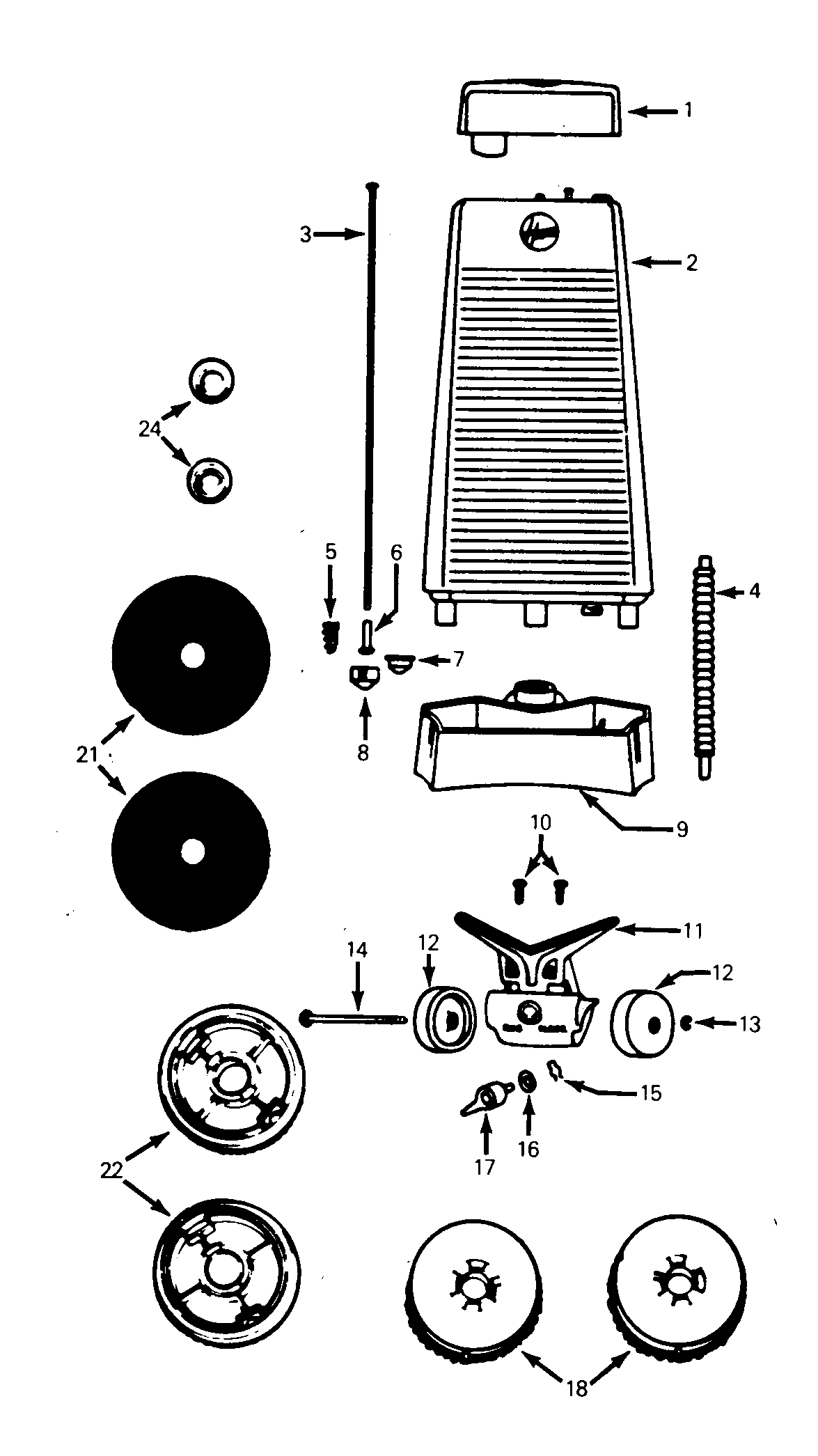

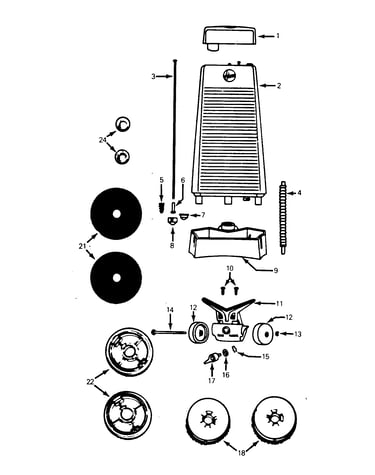

Tank, brushes_pads diagram

Tank

Part #43632028

The manufacturer no longer makes this part, and there's no substitute part

Washer 21312720
#12

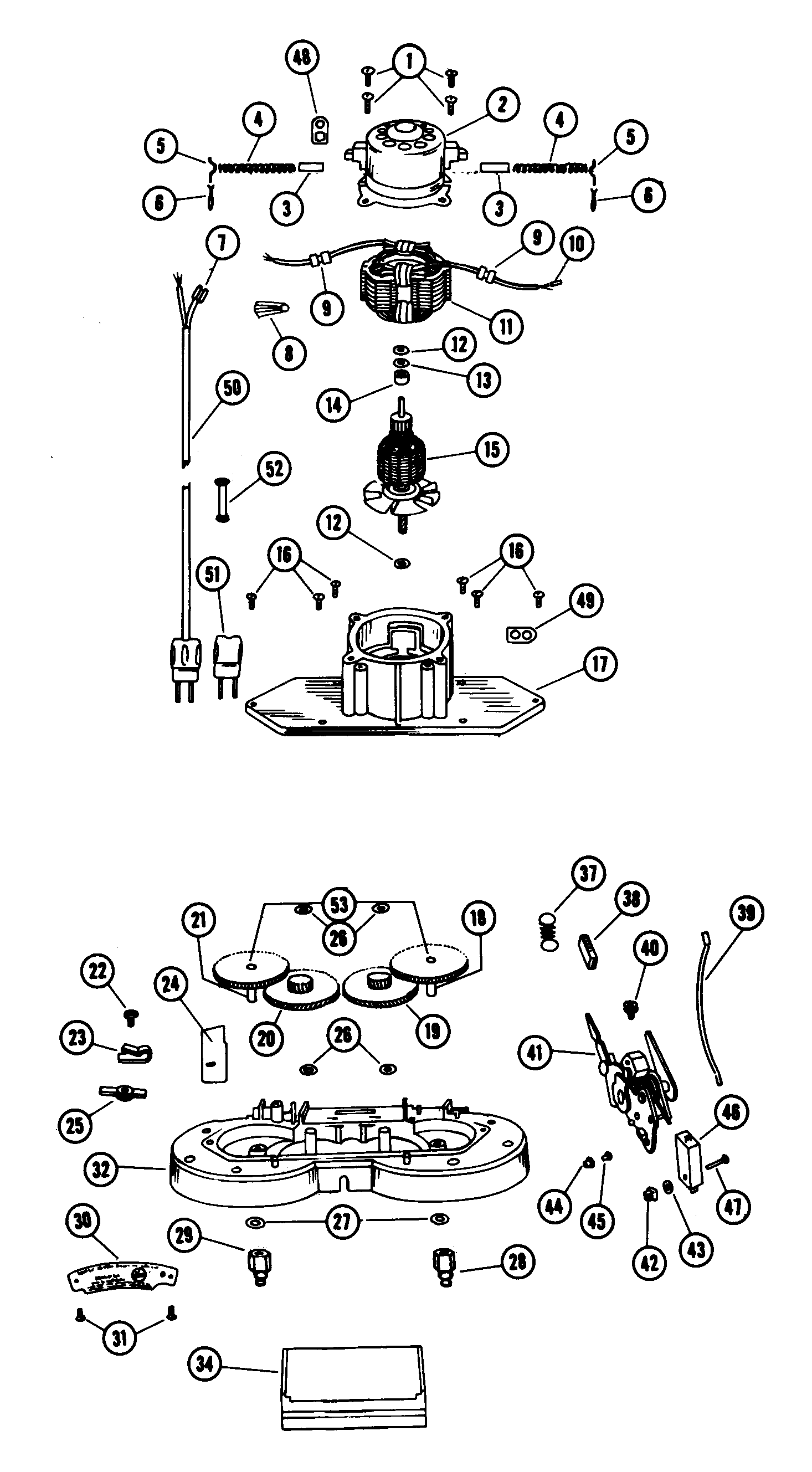

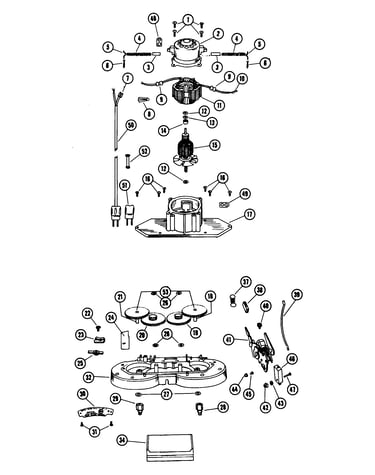

Motor assembly, switch, brushcarriers diagram

Washer

Part #21312720

The manufacturer no longer makes this part, and there's no substitute part

Motor Cap Assembly 42197002
#2A

Motor assembly, switch, brushcarriers diagram

Motor cap assembly

Part #42197002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 48648022
#1C

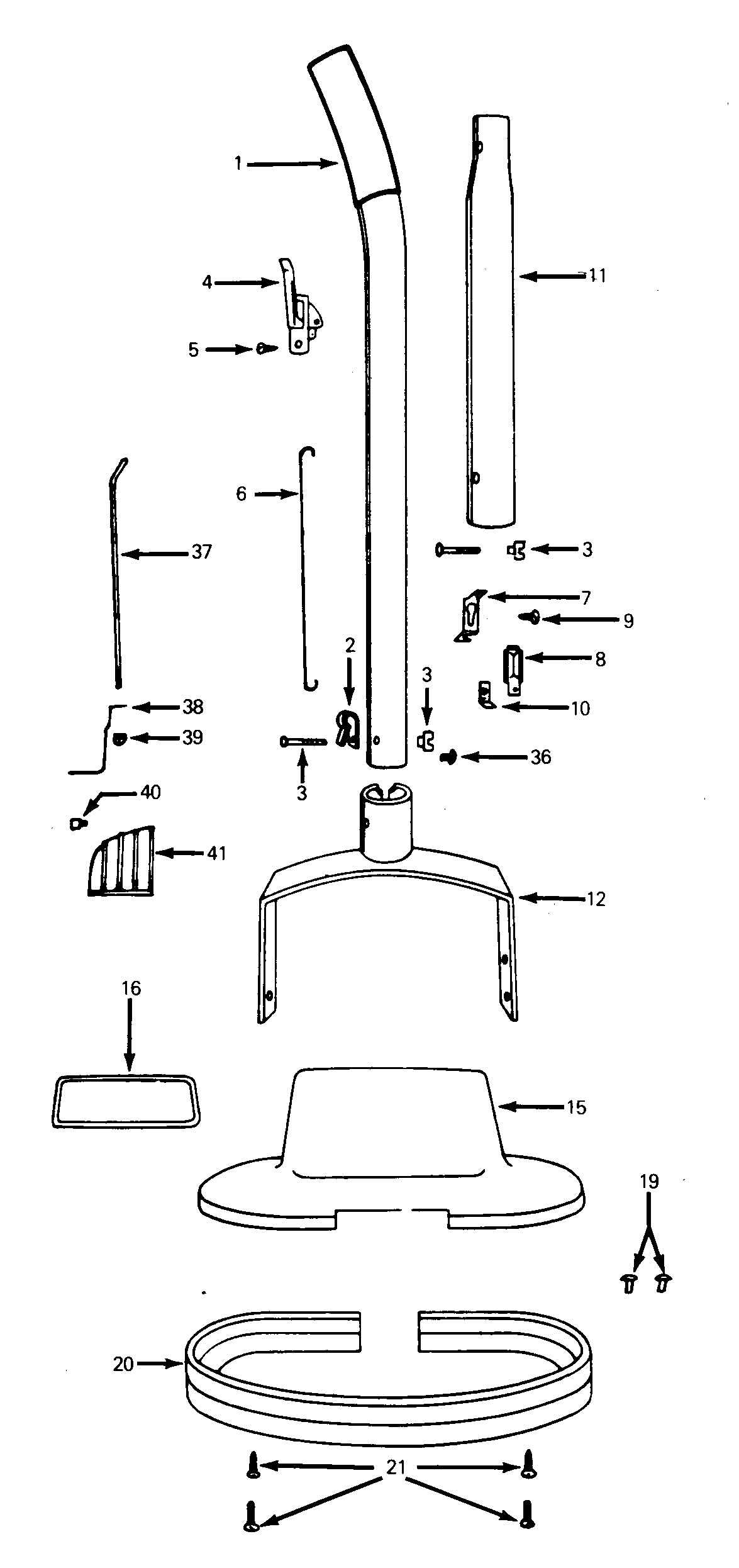

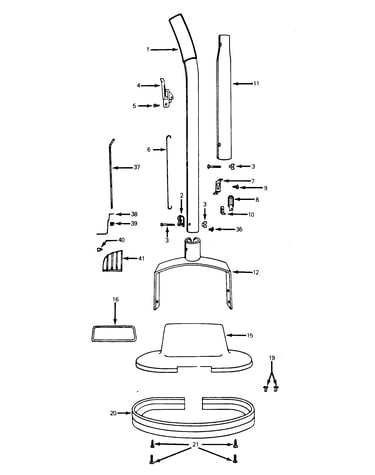

Handle, hood diagram

Vacuum handle

Part #48648022

The manufacturer no longer makes this part, and there's no substitute part

Bail Arm 41415002
#12

Handle, hood diagram

Bail arm

Part #41415002

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover 012165--
#17

Motor assembly, switch, brushcarriers diagram

Gear cover

Part #012165--

The manufacturer no longer makes this part, and there's no substitute part

Brush Gear 38541002
#53

Motor assembly, switch, brushcarriers diagram

Brush gear

Part #38541002

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 048969--
#8

Motor assembly, switch, brushcarriers diagram

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Valve Rod 019717--
#3

Tank, brushes_pads diagram

Valve rod

Part #019717--

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 47311005
#3A

Motor assembly, switch, brushcarriers diagram

Brush spring

Part #47311005

The manufacturer no longer makes this part, and there's no substitute part
