Kenmore
Room Air Conditioner

Model # 25370103000 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25370103000 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

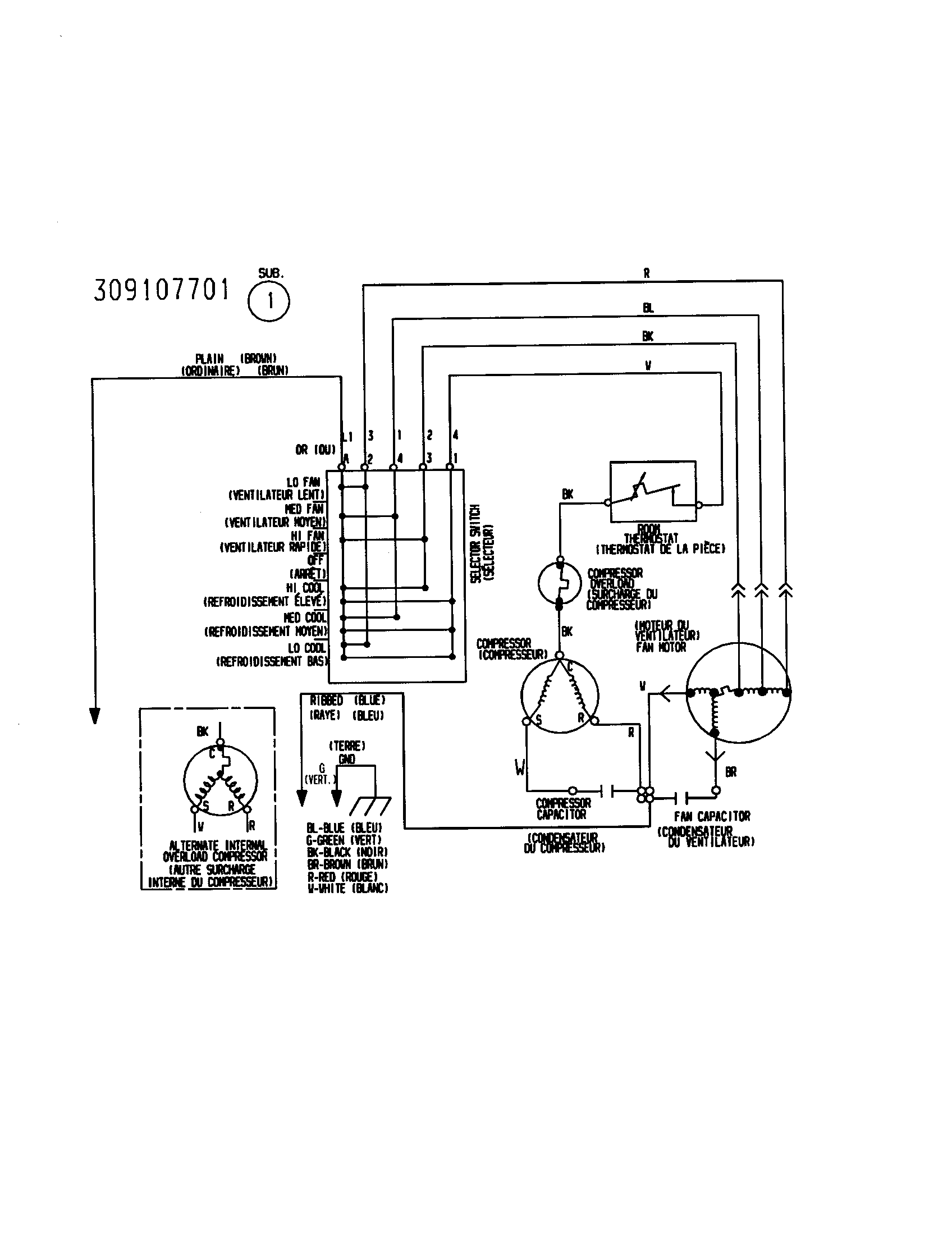

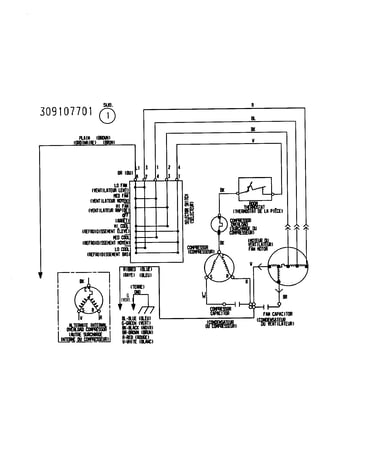

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Screw 3202975
#2

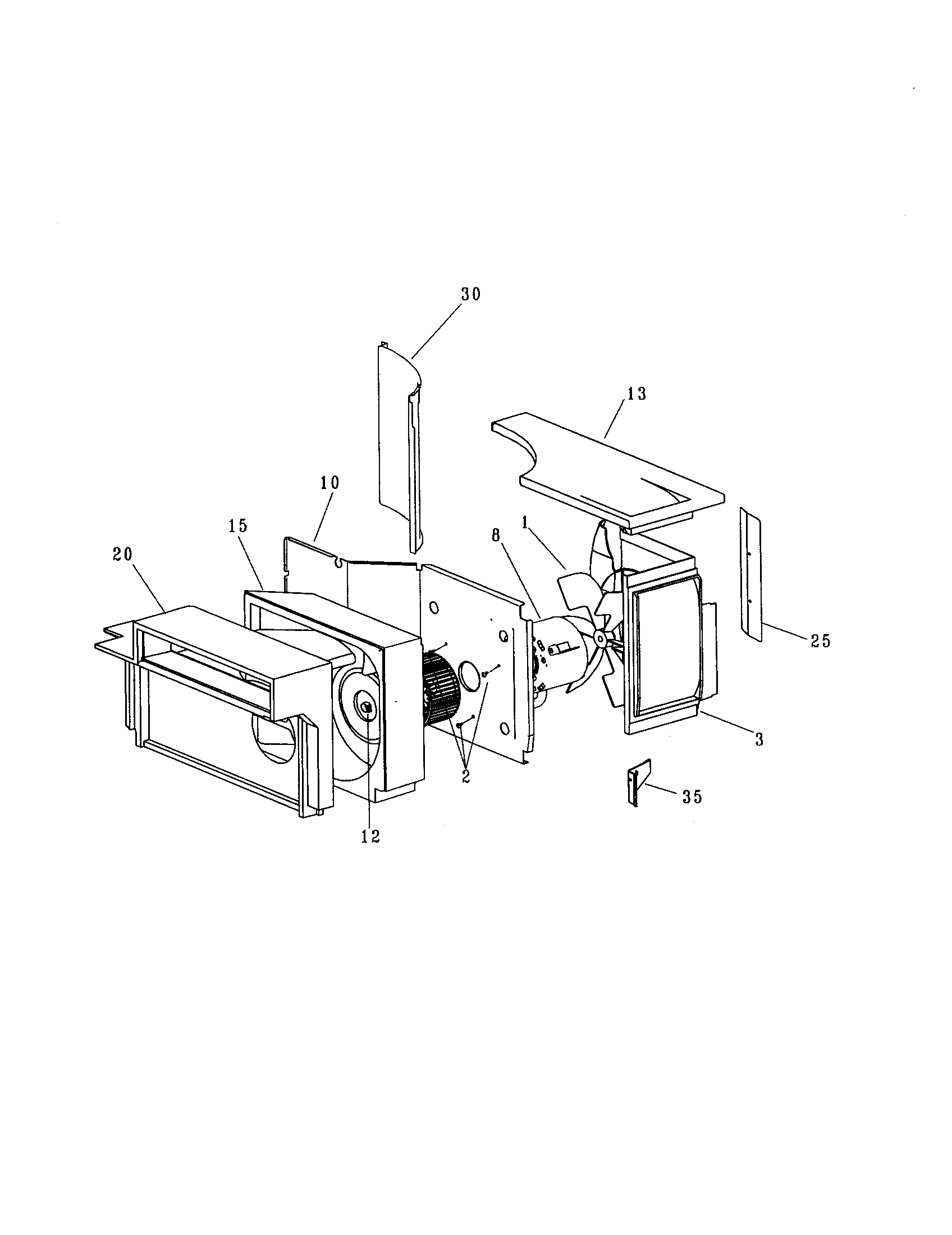

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Capacitor 5303318963
#13

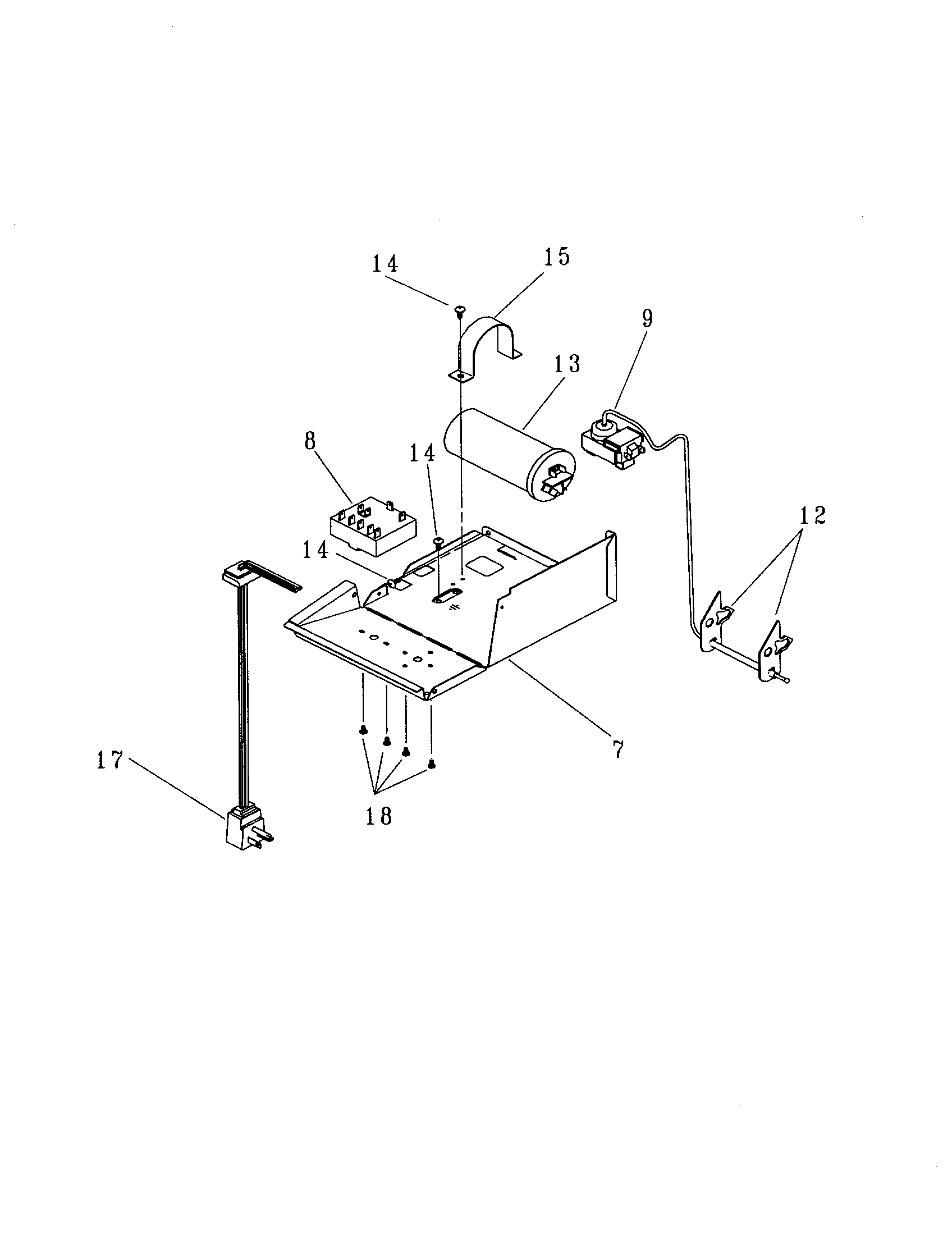

Controls diagram

Capacitor

Part #5303318963

Replaced by #5303291523

?
Manufacturer substitution
This part replaces 5303318963. Substitute parts can look different from the original.
$123.82
In Stock
Temperature Control 5304408746
#9

Controls diagram

Temperature control

Part #5304408746

The manufacturer no longer makes this part, and there's no substitute part

Control Box 309628501
#7

Controls diagram

Control box

Part #309628501

The manufacturer no longer makes this part, and there's no substitute part

Trim 309628603
#1

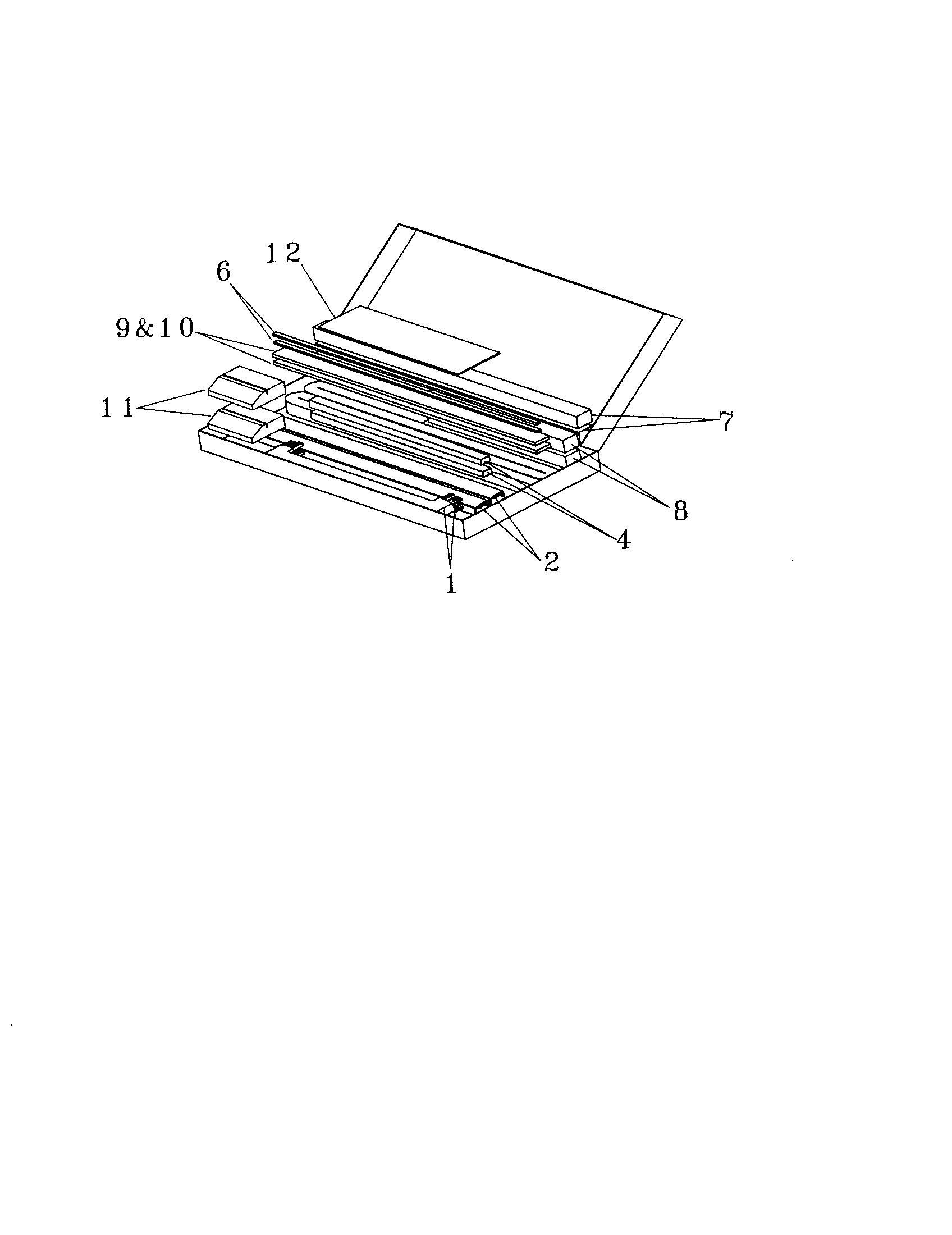

Window mounting diagram

Trim

Part #309628603

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

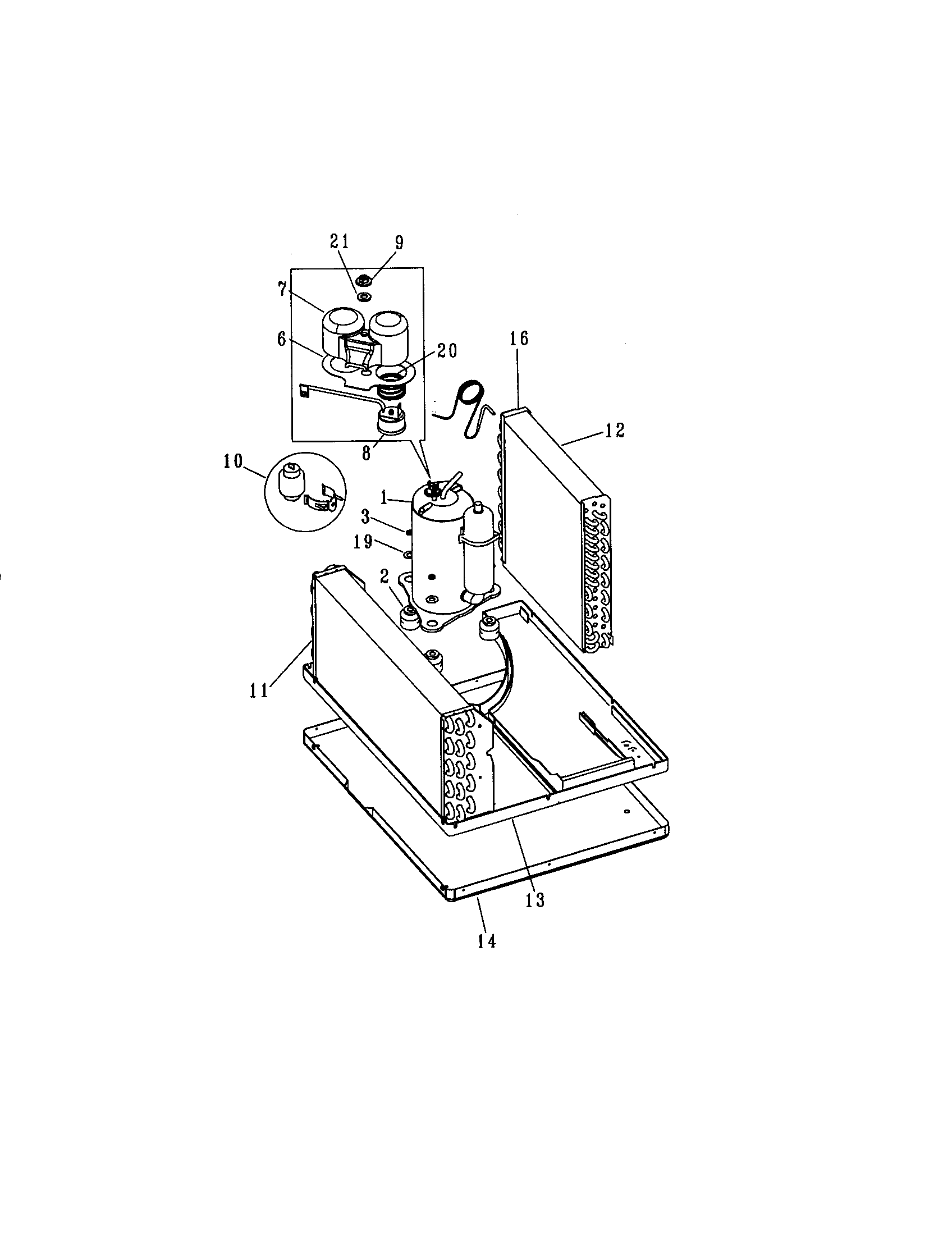

Compressor diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Baffle Condenser 309335001
#35

Air handling diagram

Baffle condenser

Part #309335001

The manufacturer no longer makes this part, and there's no substitute part

Panel-rear P 5304408740

#NI

All parts diagram

Panel-rear p

Part #5304408740

The manufacturer no longer makes this part, and there's no substitute part

Louver 309628104
#9

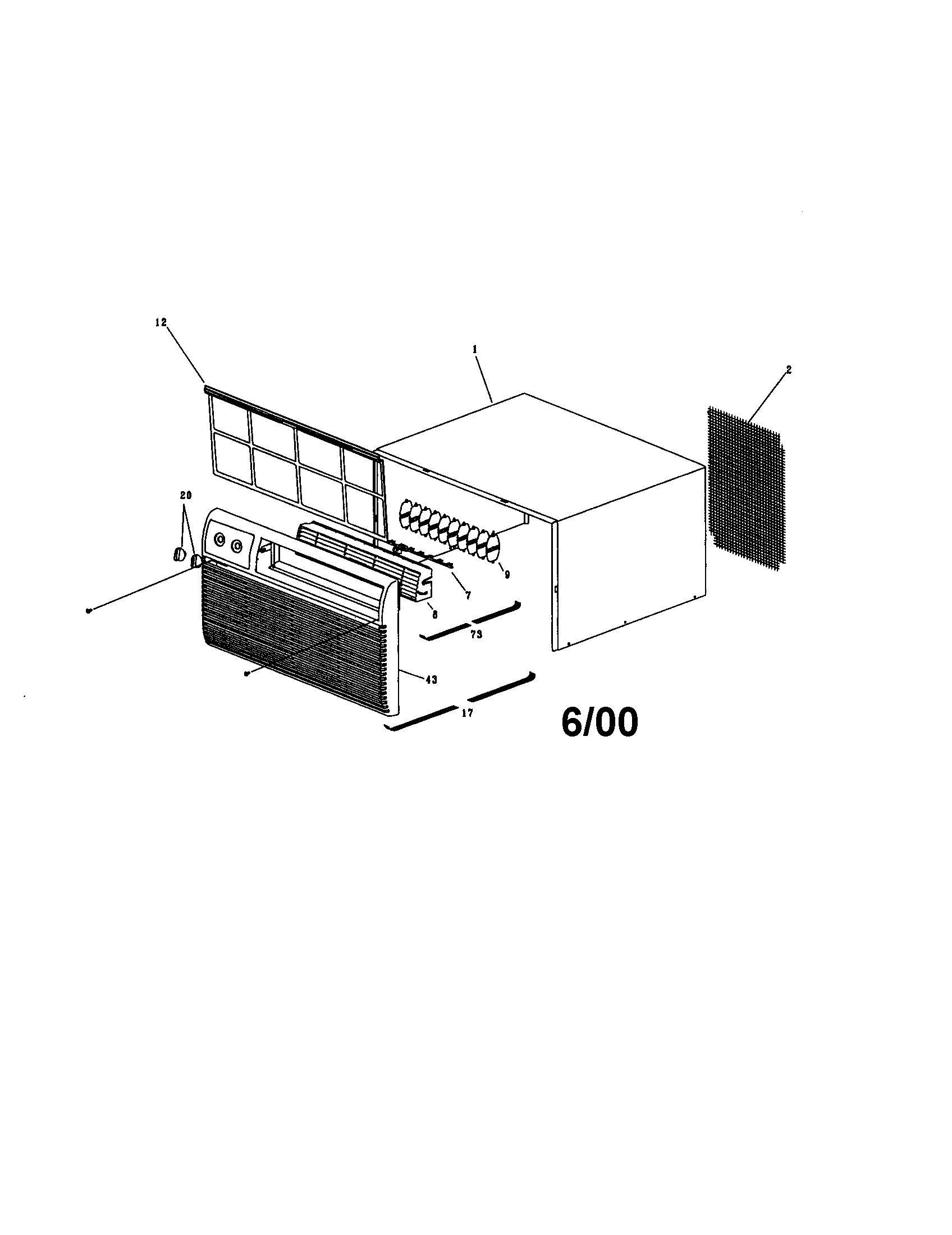

Cabinet front diagram

Louver

Part #309628104

The manufacturer no longer makes this part, and there's no substitute part

Partition 309629001
#30

Air handling diagram

Partition

Part #309629001

The manufacturer no longer makes this part, and there's no substitute part
