Model #ACM082PS2 Whirlpool air conditioner

Here are the diagrams and repair parts for Whirlpool ACM082PS2 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 54 parts

Nameplate

#2

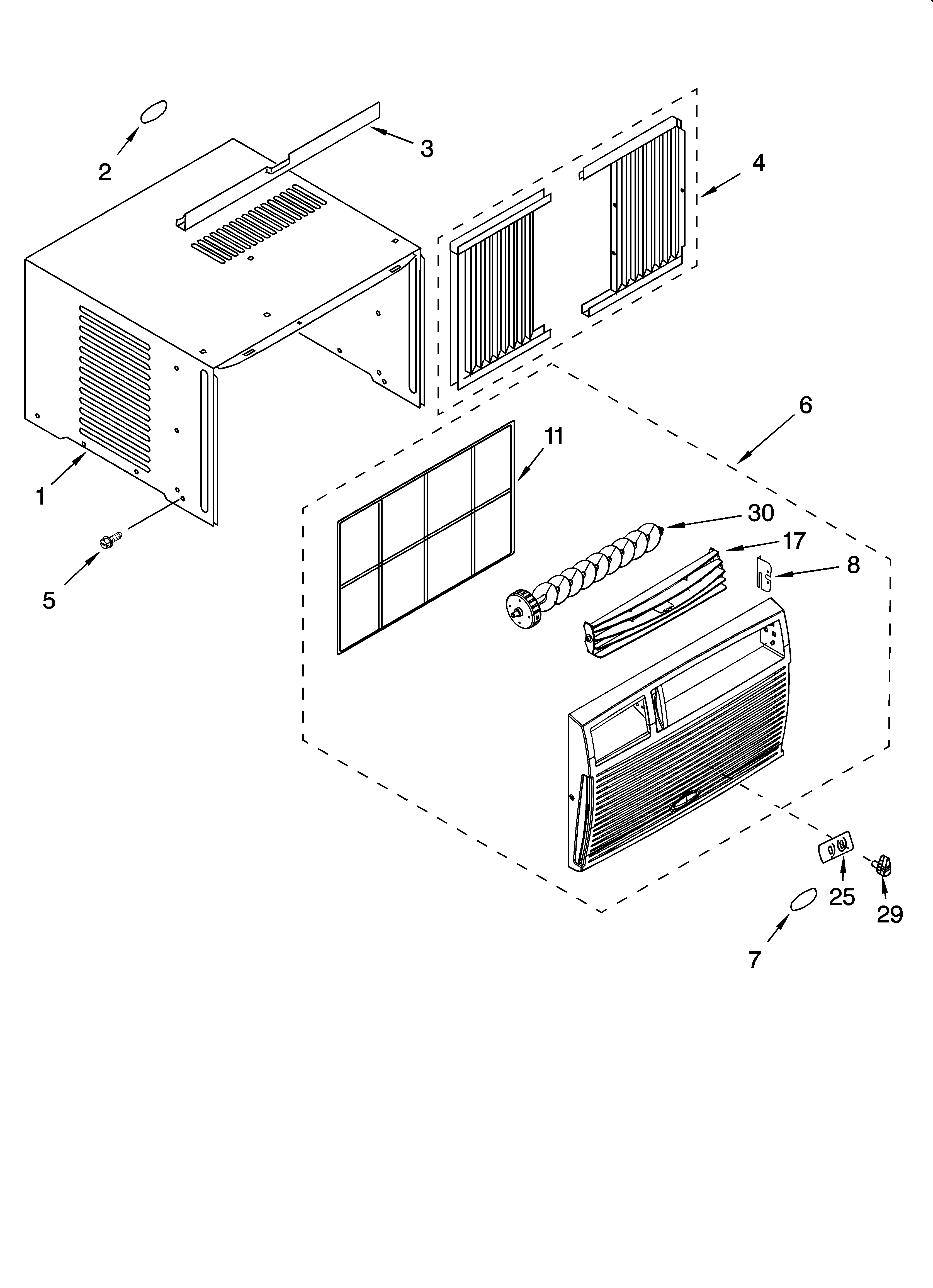

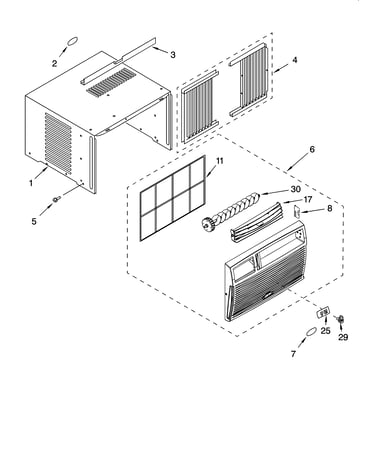

Cabinet parts Diagram

Nameplate

Part #8209738
$32.02

In Stock

Energy Guide

#1B

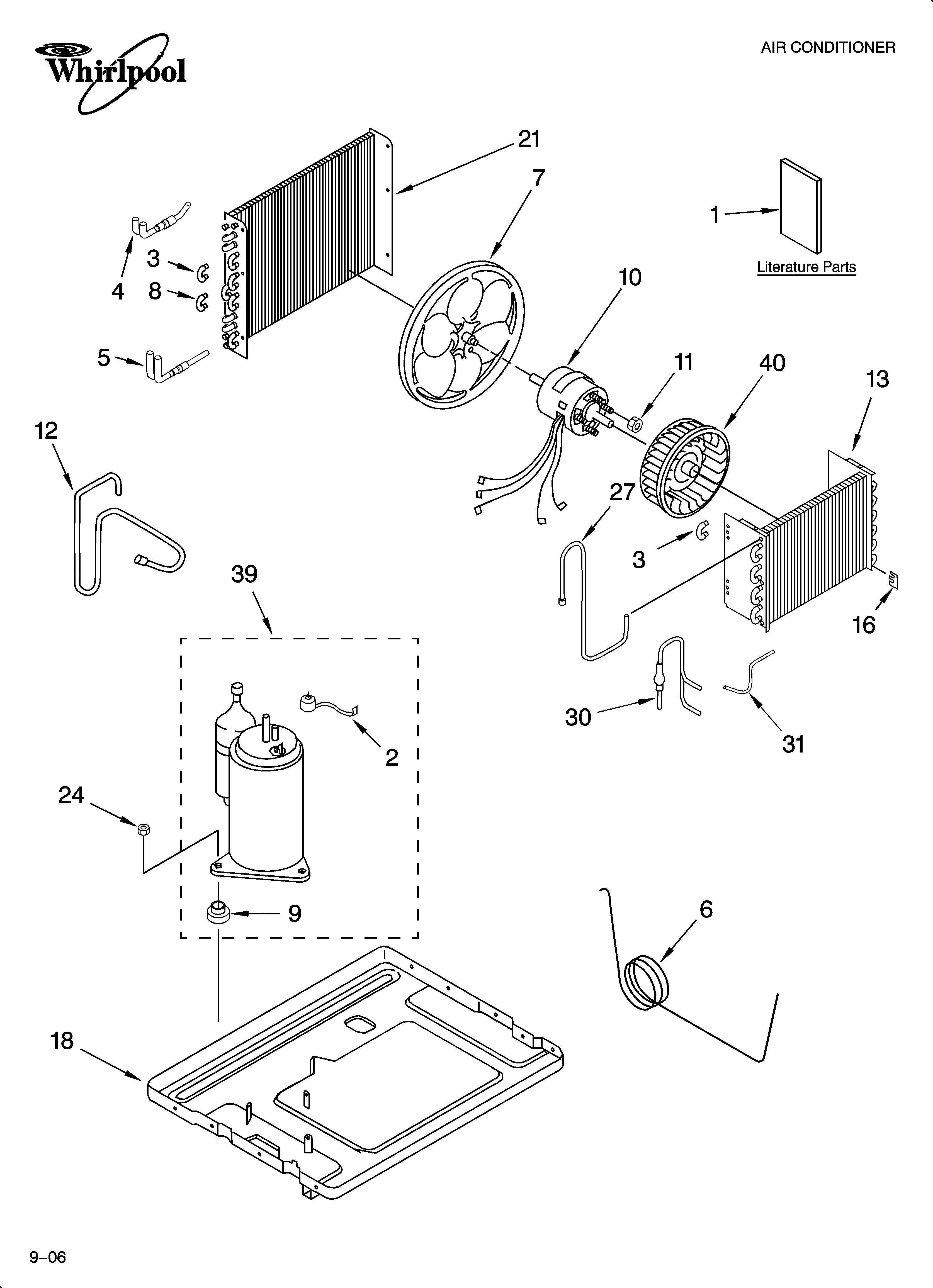

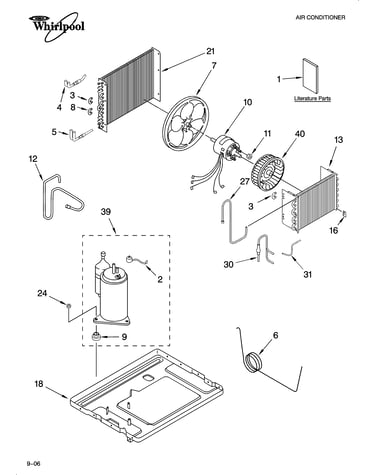

Unit parts Diagram

Energy guide

Part #8209876
This item is not returnable
$4.55

In Stock

Evaporator

#13

Unit parts Diagram

Evaporator

Part #8209854
$154.95

In Stock

Microwave Screw

#3

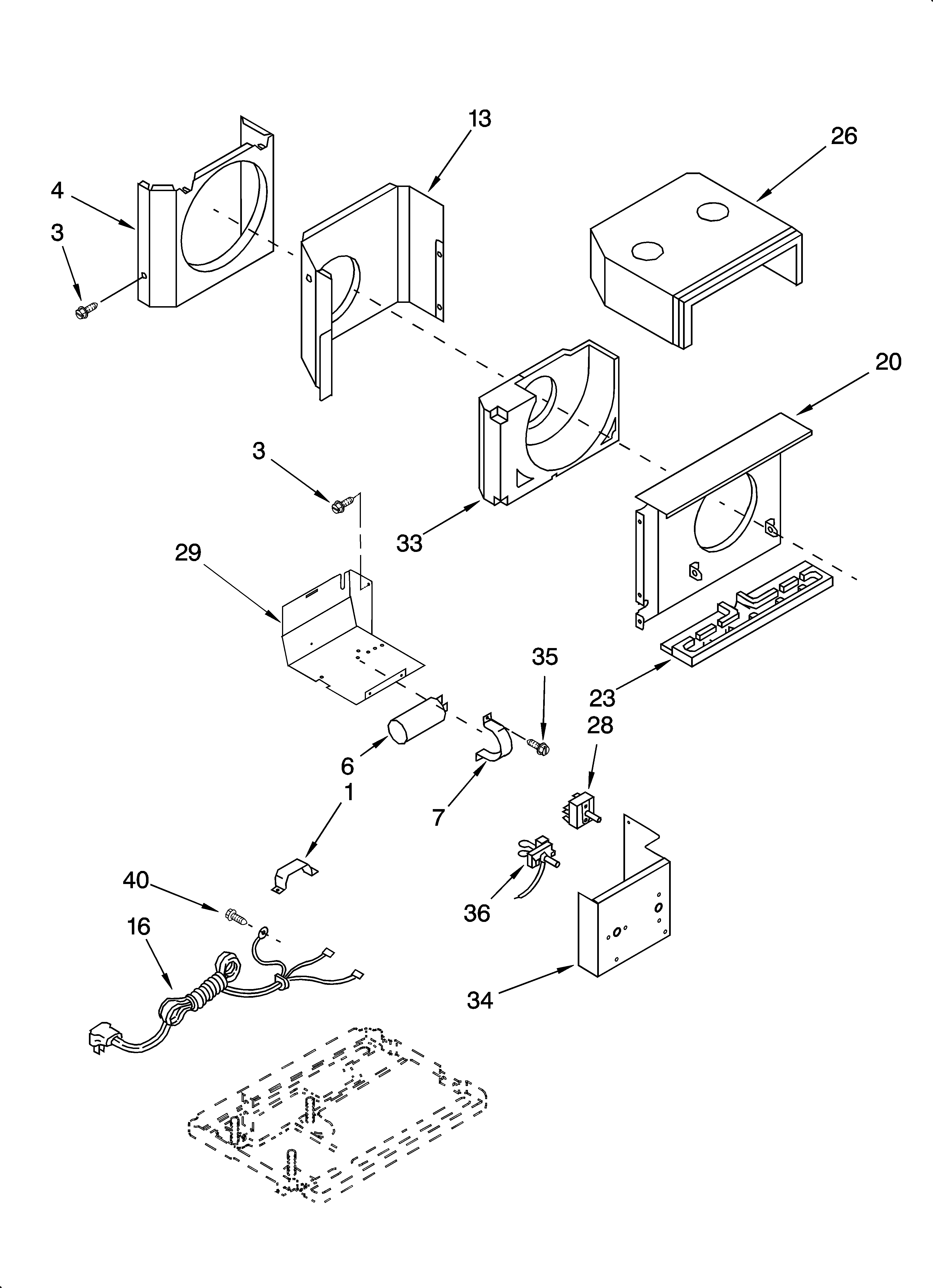

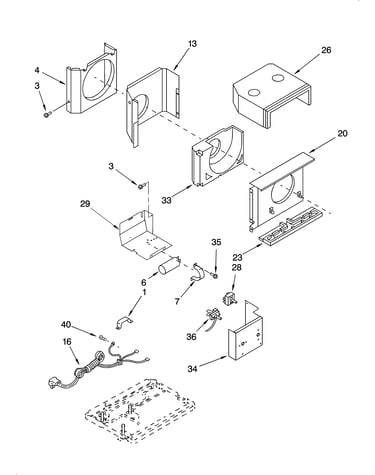

Air flow and control parts Diagram

Microwave screw

Part #8169474
?
Manufacturer substitution
This part replaces 8209674. Substitute parts can look different from the original.
This part replaces 8209674
This item is not returnable
$3.58

In Stock

Refrigerator Screw

#35

Air flow and control parts Diagram

Refrigerator screw

Part #W11245710
?
Manufacturer substitution
This part replaces 8209688. Substitute parts can look different from the original.
This part replaces 8209688
$7.79

In Stock

Nut

#11

Unit parts Diagram

Nut

Part #8209660

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel

#40

Unit parts Diagram

Air conditioner blower wheel

Part #8209673

The manufacturer no longer makes this part, and there's no substitute part

Dividing Wall

#13

Air flow and control parts Diagram

Dividing wall

Part #8209678

The manufacturer no longer makes this part, and there's no substitute part

Rotary Switch

#28

Air flow and control parts Diagram

Rotary switch

Part #8209744

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade

#7

Unit parts Diagram

Fan blade

Part #8209866

The manufacturer no longer makes this part, and there's no substitute part
