Craftsman
Gas Walk-Behind Mower

Model # 917371271 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371271 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

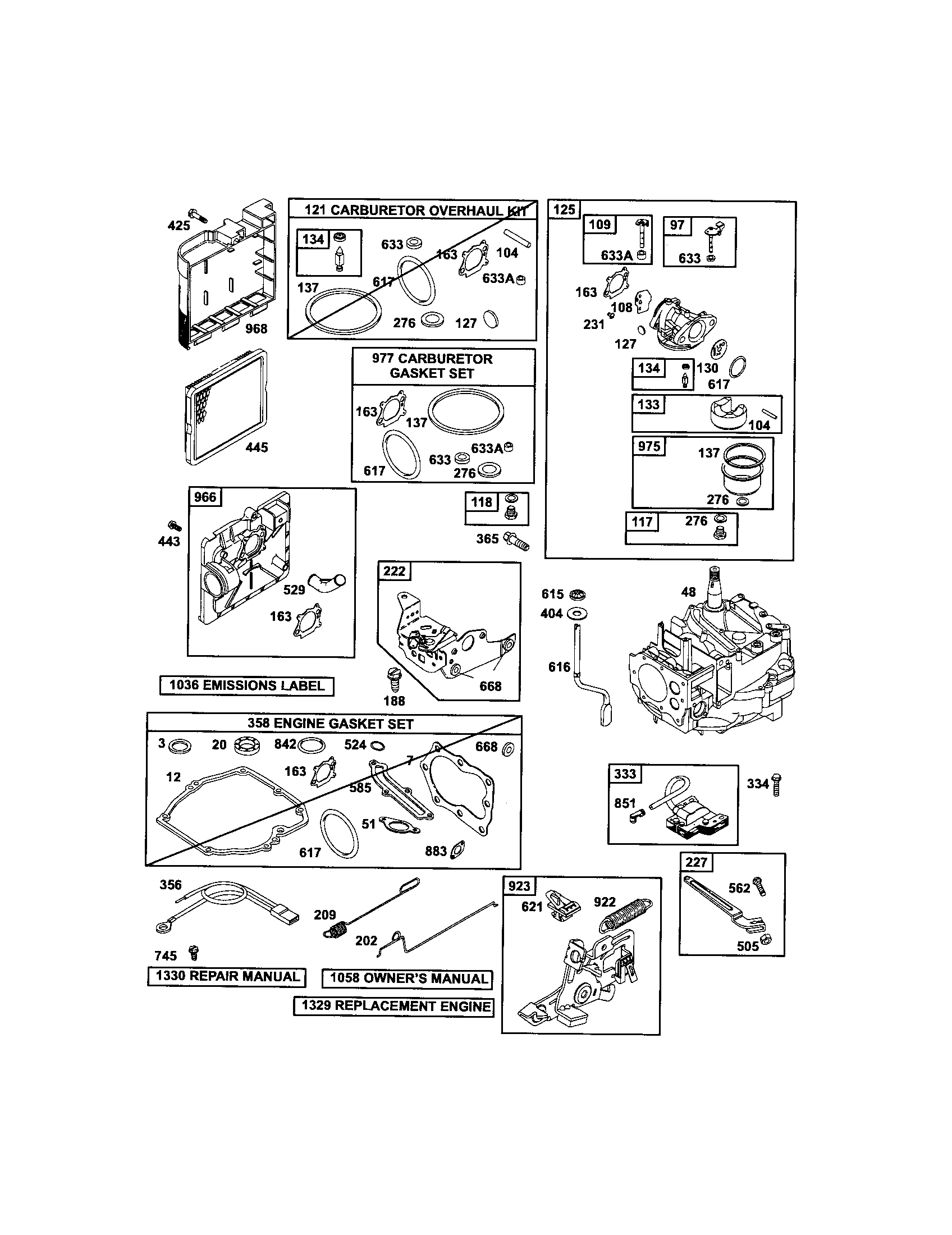

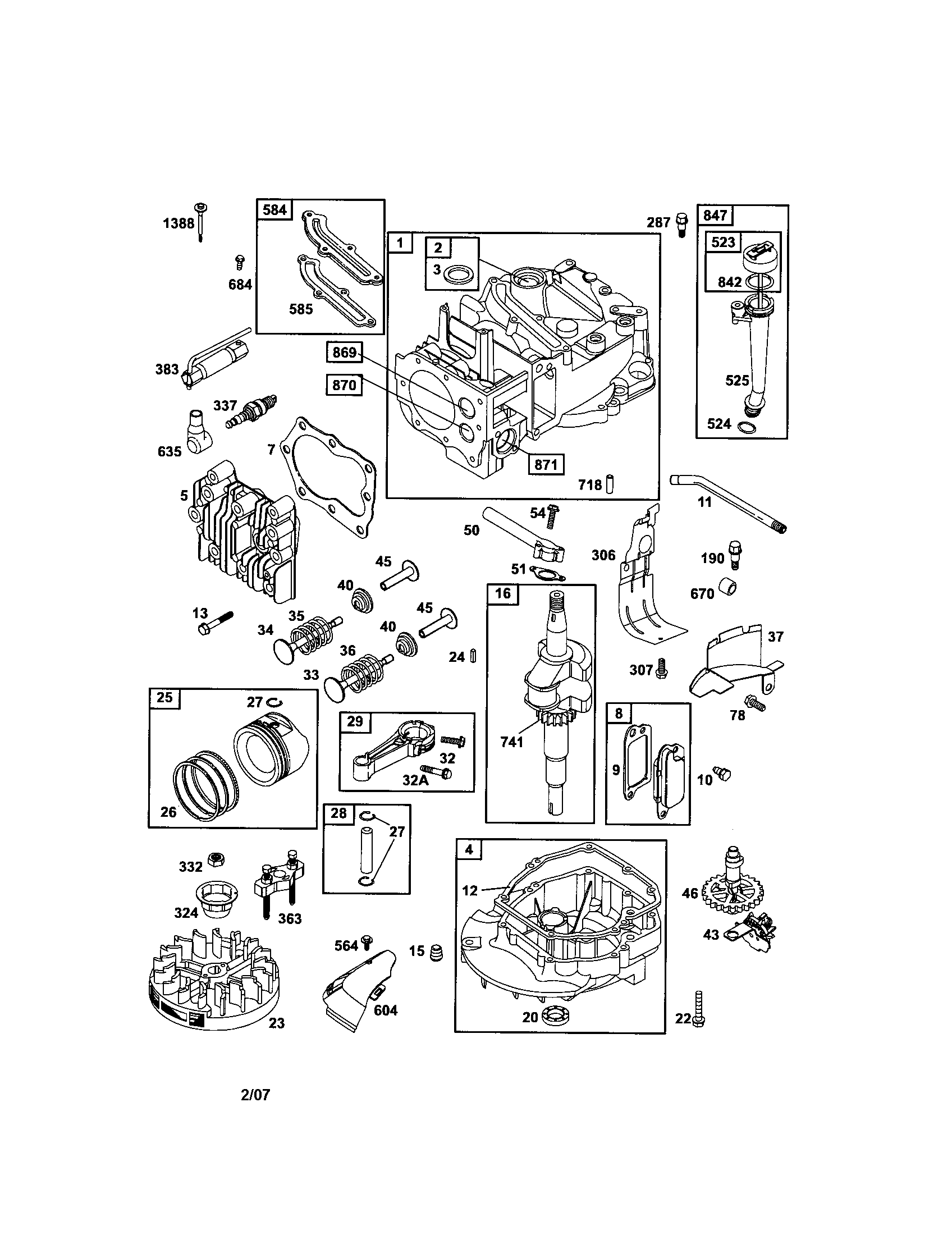

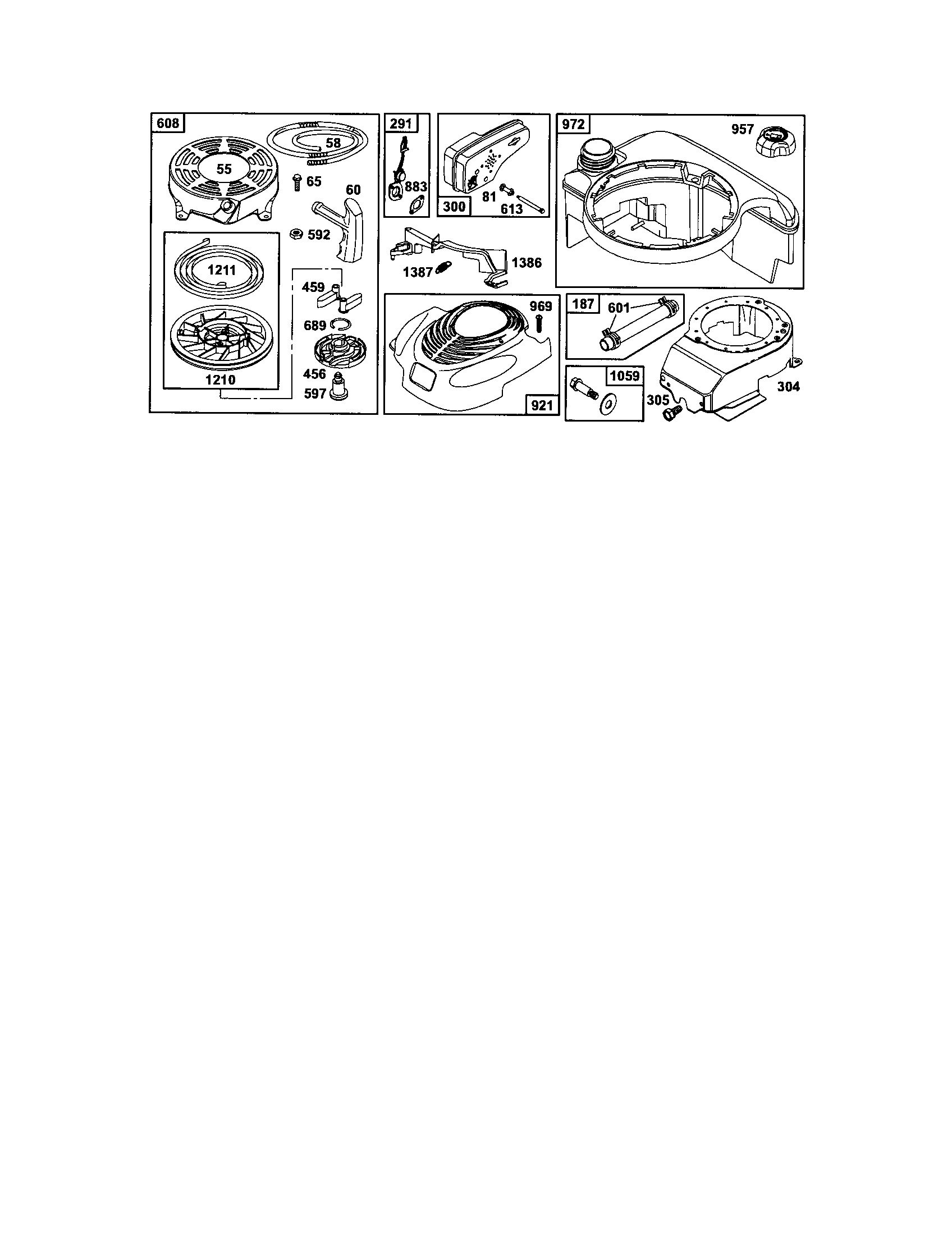

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |

Lawn Mower Drive Wheel 194231X427
#11

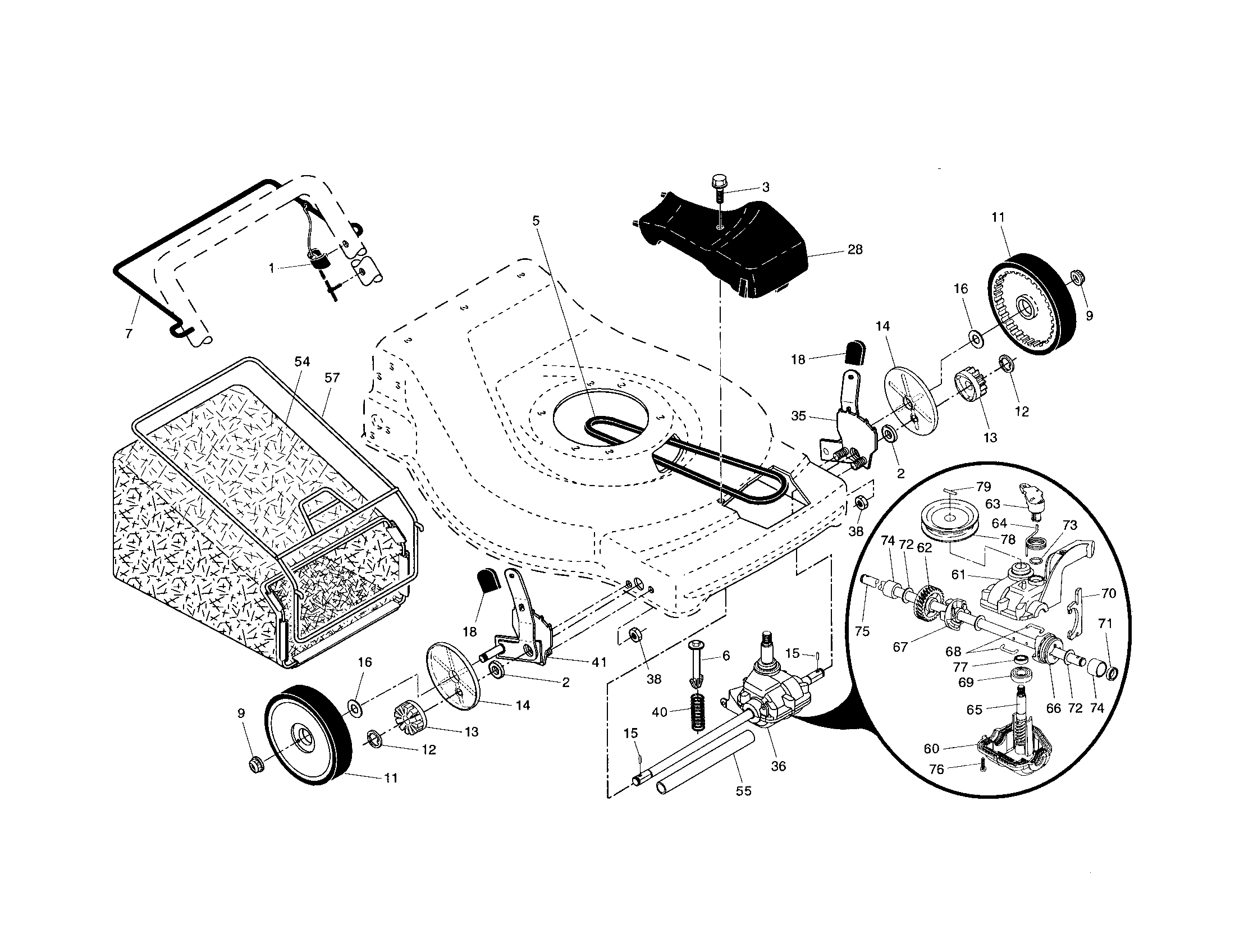

Drive control/gear case/wheels diagram

Lawn mower drive wheel

Part #194231X427

Replaced by #532403111

?
Manufacturer substitution
This part replaces 194231X427. Substitute parts can look different from the original.
BEST SELLER
$12.12
14% OFF Phone Price : $14.12
In Stock
Lawn & Garden Equipment Nut 409148
#9

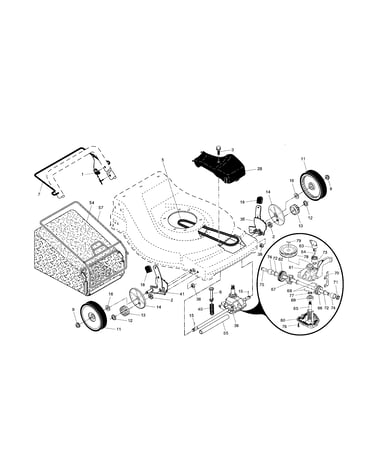

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74
17% OFF Phone Price : $5.74
In Stock
Hex Flange Lock Nut 145212
#25

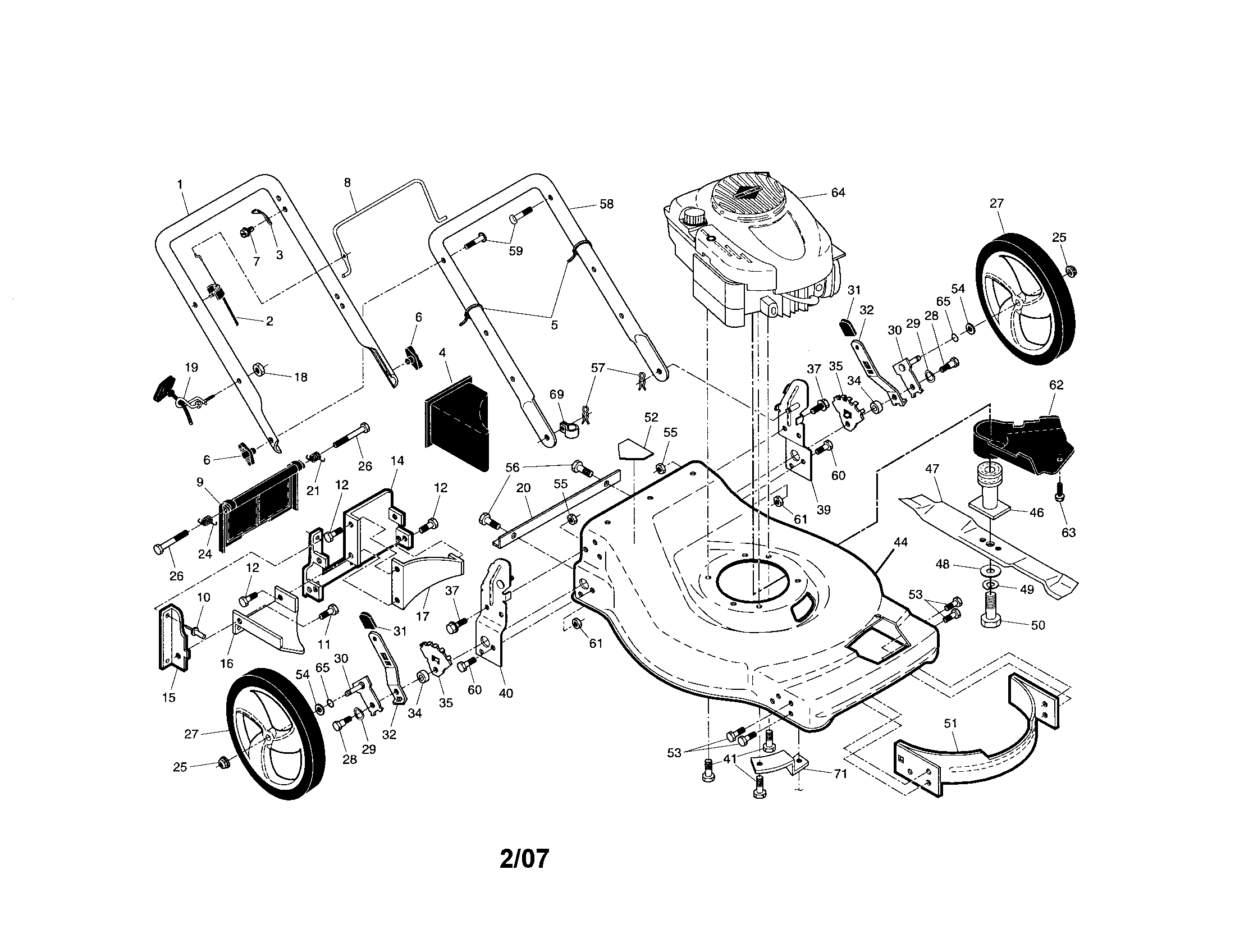

Engine/housing/handle diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74
17% OFF Phone Price : $5.74
In Stock
Hndl.knob.bl 189713X428
#6

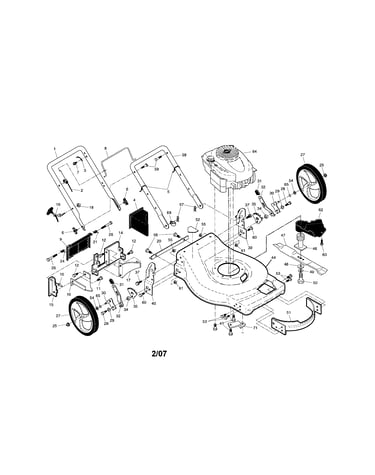

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.77
21% OFF Phone Price : $4.77
In Stock
Bearing 191039
#2

Drive control/gear case/wheels diagram

Bearing

Part #191039

Replaced by #421836

?
Manufacturer substitution
This part replaces 191039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.82
15% OFF Phone Price : $6.82
In Stock
Fuel Stabilizer 33500

#NI06

All parts diagram

Fuel stabilizer

Part #33500

Replaced by #95012

?
Manufacturer substitution
This part replaces 33500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$4.99
17% OFF Phone Price : $5.99
In Stock
Lock Nut 751592
Lock nut

Part #751592

Replaced by #73930600

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Drive control/gear case/wheels diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

BEST SELLER
This item is not returnable
$2.79
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69
21% OFF Phone Price : $4.69
In Stock
