Maytag CFU1736ARW freezer

Maytag CFU1736ARW freezer Parts

Here are the diagrams and repair parts for Maytag CFU1736ARW freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

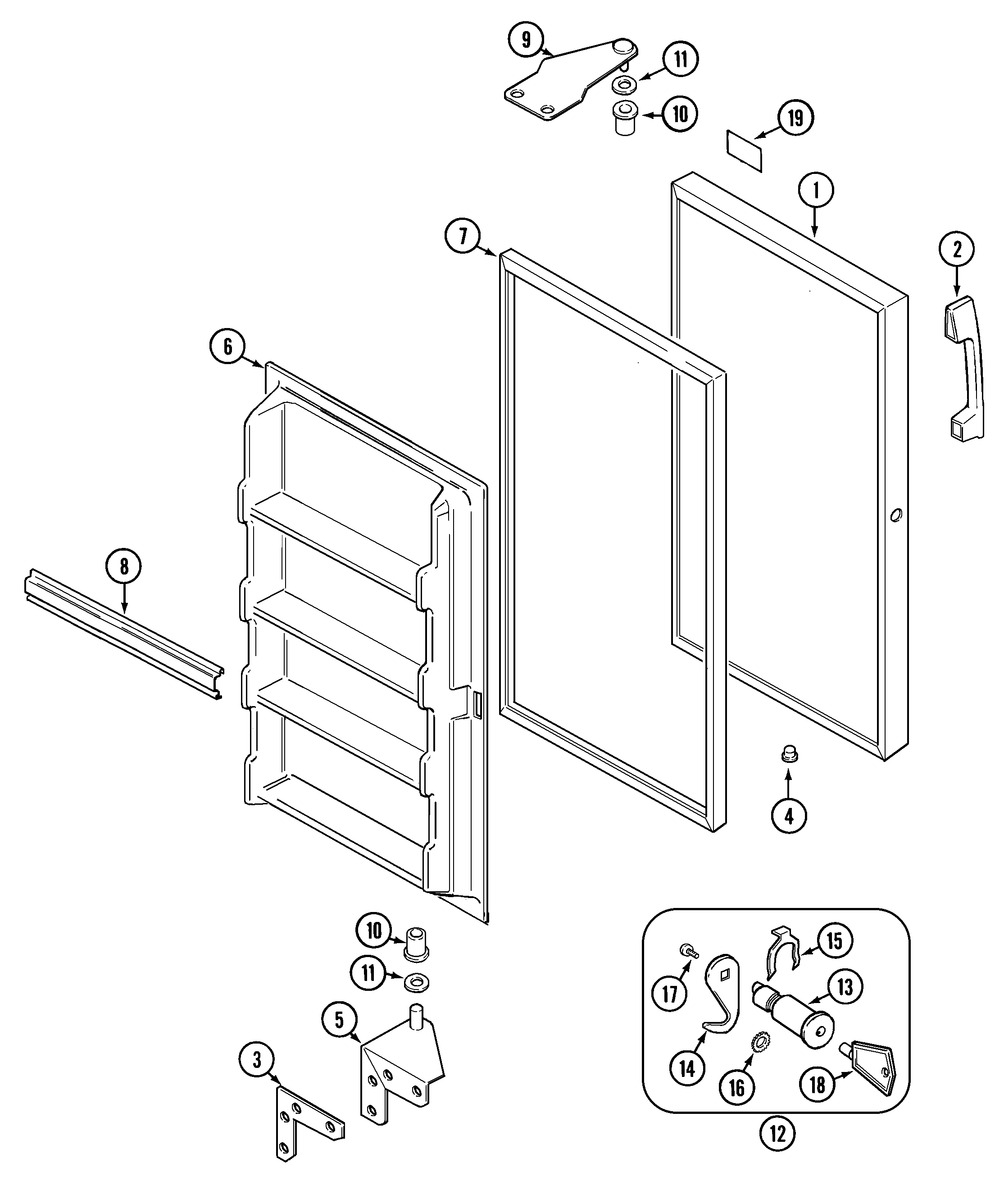

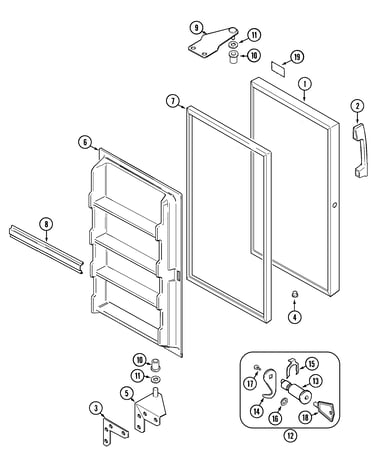

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CFU1736ARW Freestanding Freezers

  • Refrigerator Uv Filter Dryer for Maytag CFU1736ARW - Part WPW10143759

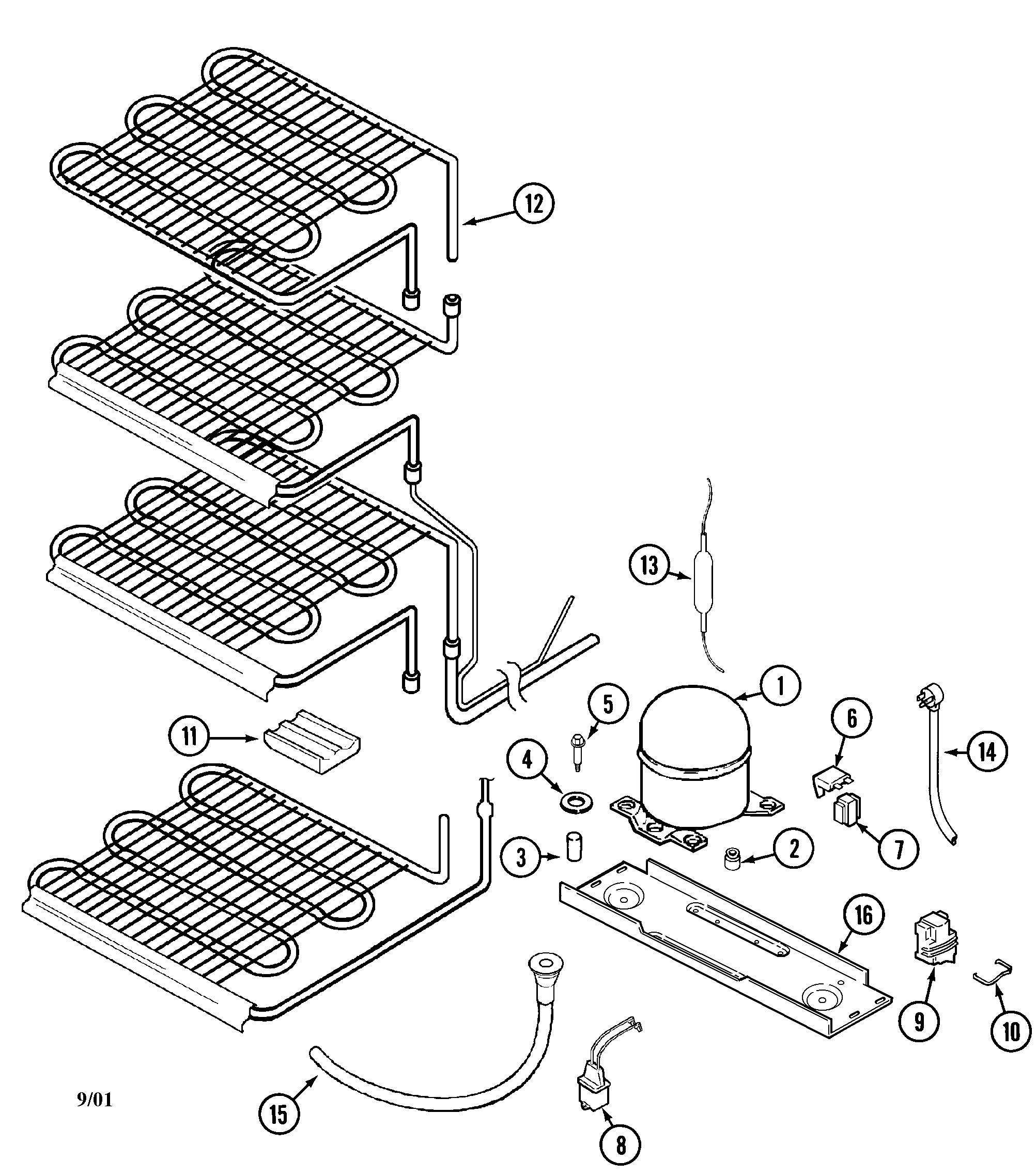

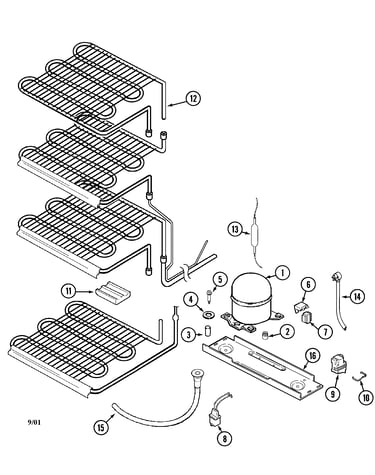

    Unit compartment & system diagram

    Refrigerator Uv Dye Dryer

    Part #13900-1

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces 13900-1. Substitute parts can look different from the original.
    In Stock
    $22.16
    21% OFF Phone Price : $28.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Run Capacitor for Maytag CFU1736ARW - Part WPW10662129

    Unit compartment & system diagram

    Run Capacitor

    Part #09100156

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces 09100156. Substitute parts can look different from the original.
    In Stock
    $43.74
    12% OFF Phone Price : $49.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Maytag CFU1736ARW - Part W11384469

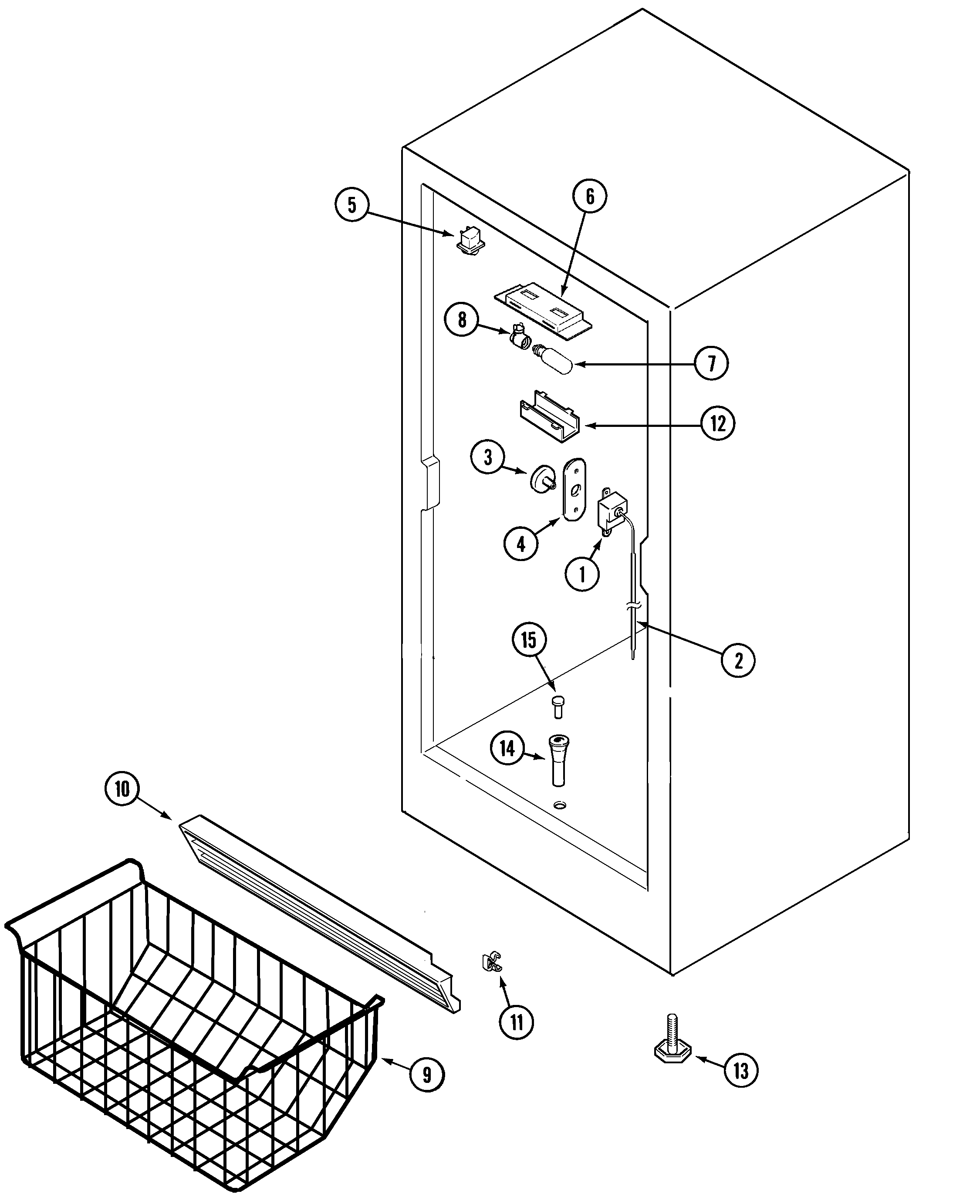

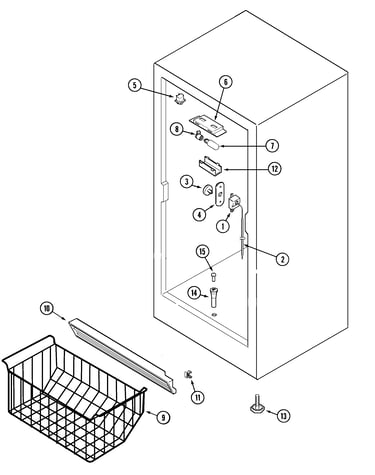

    Freezer compartment diagram

    Light Switch

    Part #68001324

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 68001324. Substitute parts can look different from the original.
    In Stock
    $25.13
    19% OFF Phone Price : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Maytag CFU1736ARW - Part W10309994

    Unit compartment & system diagram

    Compressor Kit

    Part #68001216

    Replaced by #W10309994

    Info Icon
    Manufacturer substitution
    This part replaces 68001216. Substitute parts can look different from the original.
    In Stock
    $501.34
    $12.00 OFF Phone Price : $513.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Overload And Start Relay for Maytag CFU1736ARW - Part WPW10189190

    Unit compartment & system diagram

    Start Relay

    Part #68001457

    Replaced by #WPW10189190

    Info Icon
    Manufacturer substitution
    This part replaces 68001457. Substitute parts can look different from the original.
    In Stock
    $93.70
    6% OFF Phone Price : $99.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Maytag CFU1736ARW - Part W10309990

    Unit compartment & system diagram

    Compressor

    Part #68001425

    Replaced by #W10309990

    Info Icon
    Manufacturer substitution
    This part replaces 68001425. Substitute parts can look different from the original.
    In Stock
    $398.15
    $12.00 OFF Phone Price : $410.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Light Bulb for Maytag CFU1736ARW - Part WPA3073101

    Freezer compartment diagram

    Light Bulb

    Part #09100073

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 09100073. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Evaporator Mounting Screw for Maytag CFU1736ARW - Part WP3-24004-109

    Unit compartment & system diagram

    Screw

    Part #046374-01

    Replaced by #WP3-24004-109

    Info Icon
    Manufacturer substitution
    This part replaces 046374-01. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Wire Harness for Maytag CFU1736ARW - Part 68001476

    Unit compartment & system diagram

    Wire Harness

    Part #68001476
    In Stock
    $112.62
    Minus Item
    Qty
    Plus Item
  • Refrigerator Toe Grille for Maytag CFU1736ARW - Part WP4-60461-005

    Freezer compartment diagram

    Kickplate Ki

    Part #68001194

    Replaced by #WP4-60461-005

    Info Icon
    Manufacturer substitution
    This part replaces 68001194. Substitute parts can look different from the original.
    In Stock
    $61.79
    9% OFF Phone Price : $67.79Info Icon
    Minus Item
    Qty
    Plus Item
