Model # 625349224 Official Kenmore iron filter

Here are the diagrams and repair parts for Official Kenmore 625349224 iron filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Waterworks Water Softener Seal Kit (replaces 7092163, 7134224, Ws35x10005) 7129716
Waterworks water softener seal kit (replaces 7092163, 7134224, ws35x10005)

Part #7129716

BEST SELLER
In Stock
Disc Seal Kt 7134224
#85

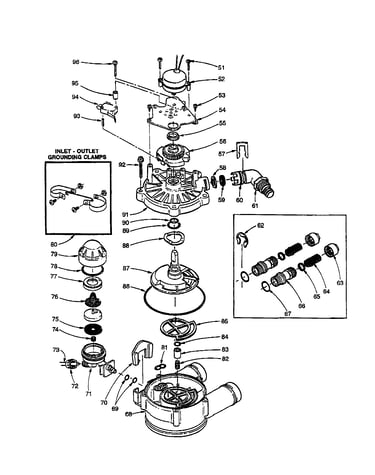

Valve body diagram

Disc seal kt

Part #7134224

Replaced by #7129716

?
Manufacturer substitution
This part replaces 7134224. Substitute parts can look different from the original.
BEST SELLER
In Stock
Kenmore Elite Water Softener Rotor And Disc (replaces 7103964) 7199232
#87

Valve body diagram

Kenmore elite water softener rotor and disc (replaces 7103964)

Part #7199232

BEST SELLER
$62.39
9% OFF Phone Price : $68.39
In Stock
Waterworks Water Softener Rotor Position Switch (replaces 7030705, 9001800, Ws21x10003) 7030713
#94

Valve body diagram

Waterworks water softener rotor position switch (replaces 7030705, 9001800, ws21x10003)

Part #7030713

BEST SELLER
$28.31
17% OFF Phone Price : $34.31
In Stock
Kenmore Elite Water Softener Valve Body (replaces 7080611, Ws15x10010) 7082053
#68

Valve body diagram

Kenmore elite water softener valve body (replaces 7080611, ws15x10010)

Part #7082053

BEST SELLER
$78.01
7% OFF Phone Price : $84.01
In Stock
Water Softener Ferrule Nut (replaces 7031450, Ws03x10017, Ws3x10017) 1202600
Water softener ferrule nut (replaces 7031450, ws03x10017, ws3x10017)

Part #1202600

BEST SELLER
$8.89
10% OFF Phone Price : $9.89
In Stock
Whirlpool Water Softener Clip (replaces 3442009, Ws3x10006, Ws60x10004) 7116713
#62

Valve body diagram

Whirlpool water softener clip (replaces 3442009, ws3x10006, ws60x10004)

Part #7116713

BEST SELLER
$20.47
23% OFF Phone Price : $26.47
In Stock
Ecodyne Water Softener Clip (replaces 7080653, Ws03x10023, Ws3x10023) 7142942
#57

Valve body diagram

Ecodyne water softener clip (replaces 7080653, ws03x10023, ws3x10023)

Part #7142942

BEST SELLER
This item is not returnable
$8.89
10% OFF Phone Price : $9.89
In Stock
Water Softener O-ring (replaces 0900215) 7170254
#5

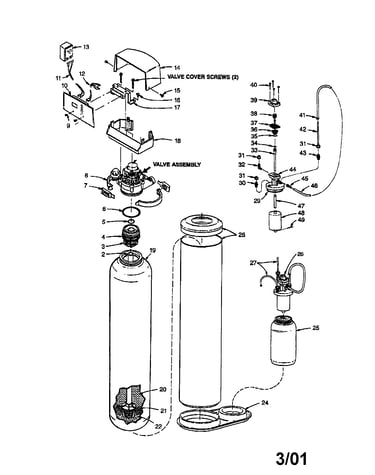

Iron filter diagram

Water softener o-ring (replaces 0900215)

Part #7170254

BEST SELLER
$9.39
10% OFF Phone Price : $10.39
In Stock
Water Softener Distributor, Lower (replaces 7066497, 7084518, 7085580, 7089055, 7089788) 7105047
#2

Iron filter diagram

Water softener distributor, lower (replaces 7066497, 7084518, 7085580, 7089055, 7089788)

Part #7105047

$95.89
11% OFF Phone Price : $107.89
In Stock
