Kenmore 2538765082 air conditioner Parts
Here are the diagrams and repair parts for Kenmore 2538765082 air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for 2538765082 Air Conditioner
#NI
All parts diagram
Label
In Stock$25.84
Qty

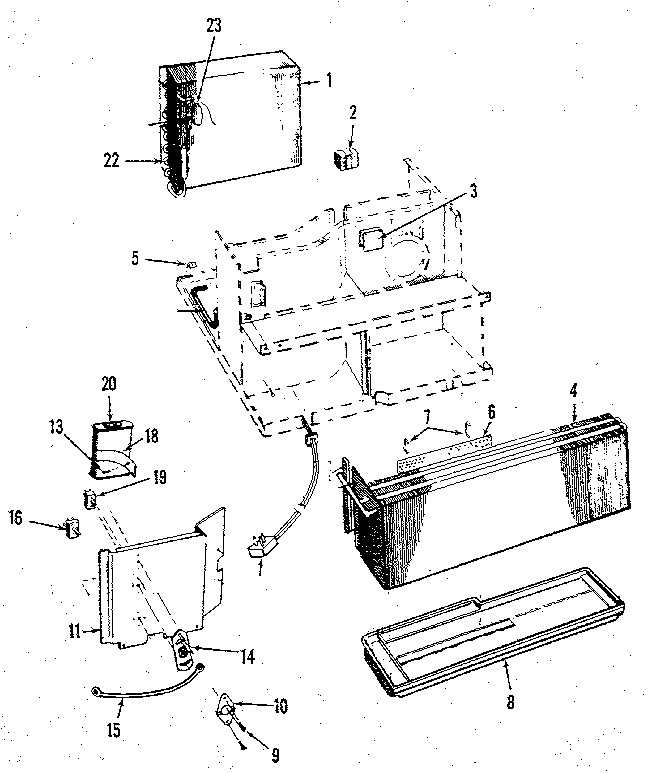

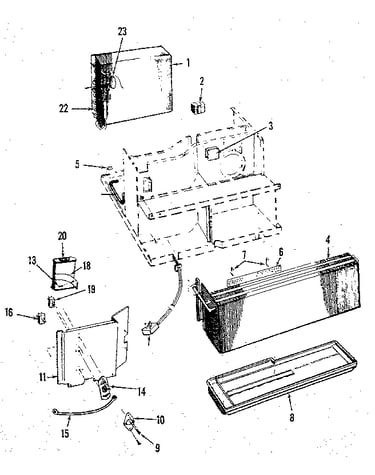

Electrical system and unit diagram
Drain Tube
In Stock$34.32QtyElectrical system and unit diagram
Control Panel
In Stock$30.88QtyElectrical system and unit diagram
Screw
Part #521776Replaced by #08011095
Manufacturer substitutionThis part replaces 521776. Substitute parts can look different from the original.In Stock$27.06QtyElectrical system and unit diagram
Thermostat
Part #3002083Replaced by #5308007143
Manufacturer substitutionThis part replaces 3002083. Substitute parts can look different from the original.In Stock$121.12QtyElectrical system and unit diagram
Cord
Part #3017507Replaced by #5303303001

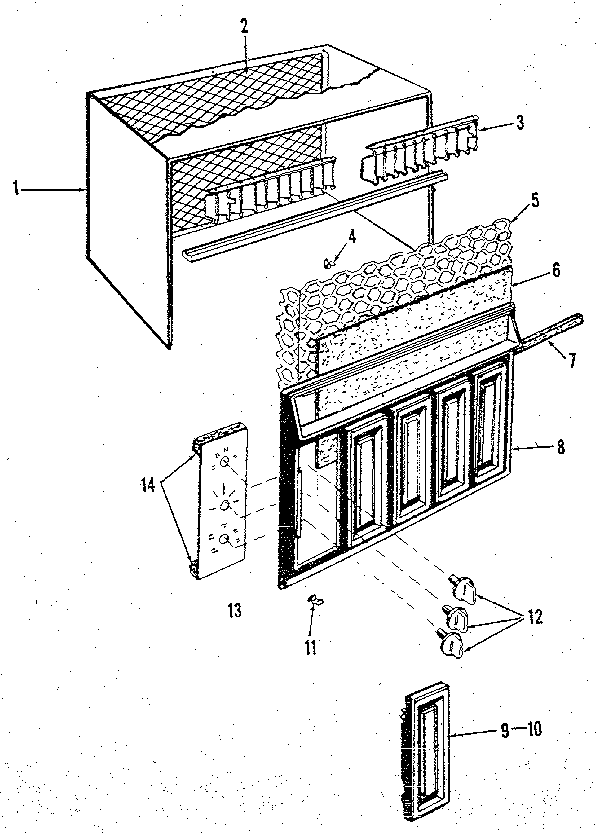

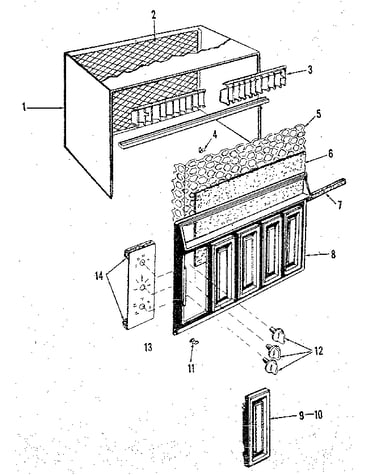

Manufacturer substitutionThis part replaces 3017507. Substitute parts can look different from the original.In Stock$111.00QtyCabinet and front panel diagram
Screen
Part #3002330Replaced by #5303002330
Manufacturer substitutionThis part replaces 3002330. Substitute parts can look different from the original.In Stock$36.90Qty#NI
All parts diagram
Strainr Assy
Part #3017503Replaced by #5300265301
Manufacturer substitutionThis part replaces 3017503. Substitute parts can look different from the original.In Stock$290.45QtyCabinet and front panel diagram
Louver
Part #521754Replaced by #5300421404

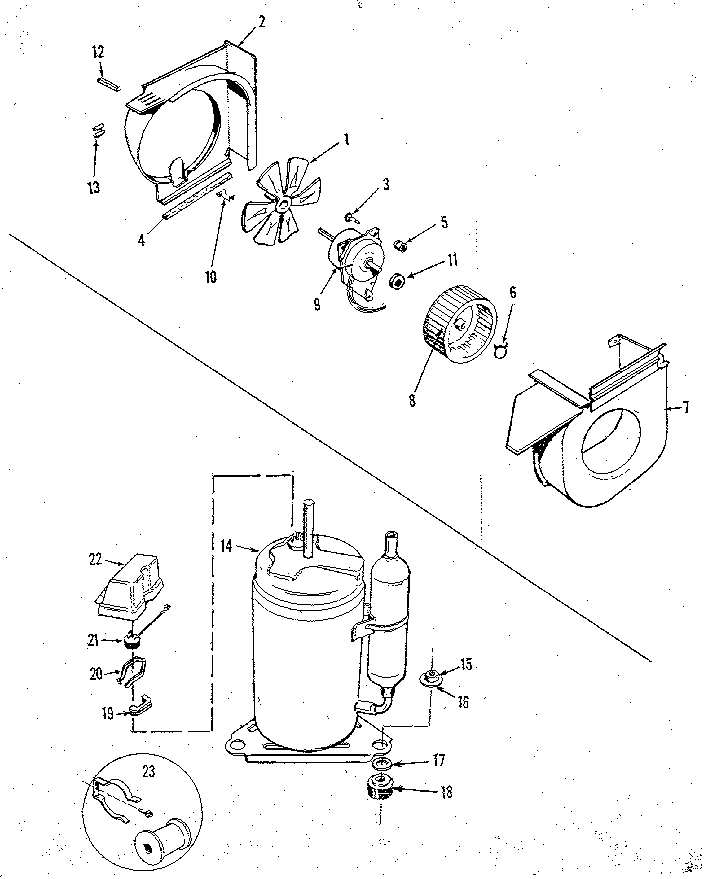

Manufacturer substitutionThis part replaces 521754. Substitute parts can look different from the original.In Stock$189.92QtyAir handling and compressor diagram
Seal
Part #521798Replaced by #5308006456
Manufacturer substitutionThis part replaces 521798. Substitute parts can look different from the original.In Stock$25.26Qty
