Kenmore
Gas Water Heater

Model # 183338012 Official Kenmore 55 gas water heater

Here are the diagrams and repair parts for Official Kenmore 183338012 55 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

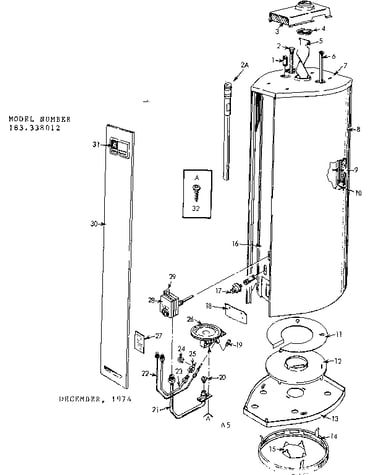

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Emblem 028226
#31

Replacement parts diagram

Emblem

Part #028226

The manufacturer no longer makes this part, and there's no substitute part

Anode, Mag Primary 016010
#2

Replacement parts diagram

Anode, mag primary

Part #016010

The manufacturer no longer makes this part, and there's no substitute part

Clip, Orifice F145-0089
#24

Replacement parts diagram

Clip, orifice

Part #F145-0089

The manufacturer no longer makes this part, and there's no substitute part

Anode, Magnesium N/P

#NI

All parts diagram

Anode, magnesium

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Plate, Mod & Rate Avail Upon Return Of Old Plate Only 027002
#27

Replacement parts diagram

Plate, mod & rate avail upon return of old plate only

Part #027002

The manufacturer no longer makes this part, and there's no substitute part

F/183.330813 051002
#23

Replacement parts diagram

F/183.330813

Part #051002

The manufacturer no longer makes this part, and there's no substitute part

Nipple Pipe 056048
#1

Replacement parts diagram

Nipple pipe

Part #056048

The manufacturer no longer makes this part, and there's no substitute part

F/153.333310 153.333410 153.333610 023036
#20

Replacement parts diagram

F/153.333310 153.333410 153.333610

Part #023036

The manufacturer no longer makes this part, and there's no substitute part

F/183.338011 119126
#12

Replacement parts diagram

F/183.338011

Part #119126

The manufacturer no longer makes this part, and there's no substitute part

Bottom, Jacket 119125
#13

Replacement parts diagram

Bottom, jacket

Part #119125

The manufacturer no longer makes this part, and there's no substitute part
