Sony
DVD Player

Model # BDP-BX59 Official Sony dvd player

Here are the diagrams and repair parts for Official Sony BDP-BX59 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Cable Flex 183954431
#110

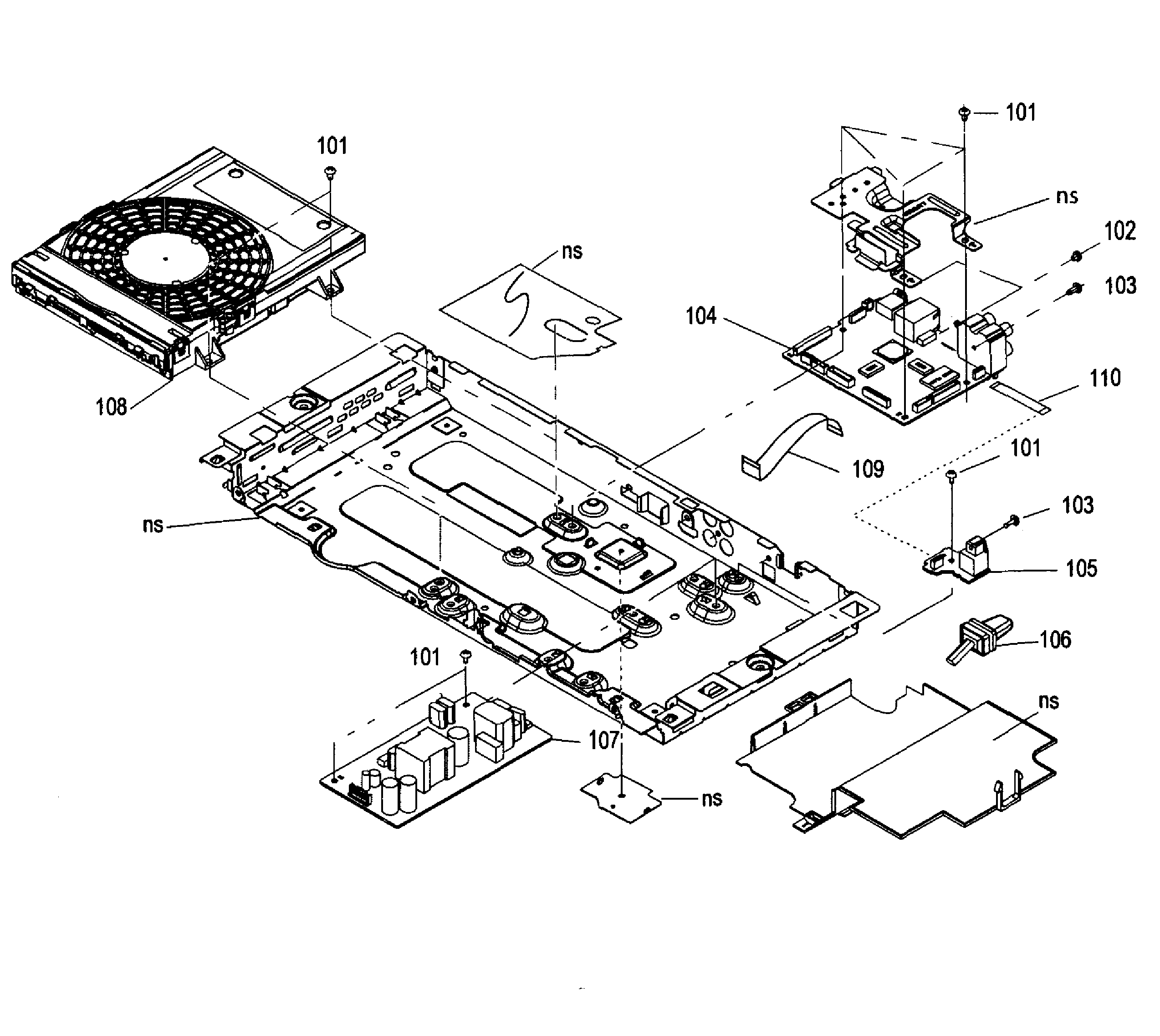

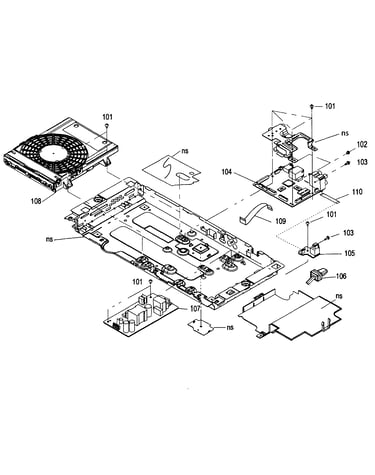

Chassis assy diagram

Cable flex

Part #183954431

The manufacturer no longer makes this part, and there's no substitute part

Op Service A1856203A
#105

Chassis assy diagram

Op service

Part #A1856203A

The manufacturer no longer makes this part, and there's no substitute part

Fl Service A1856202A
#10

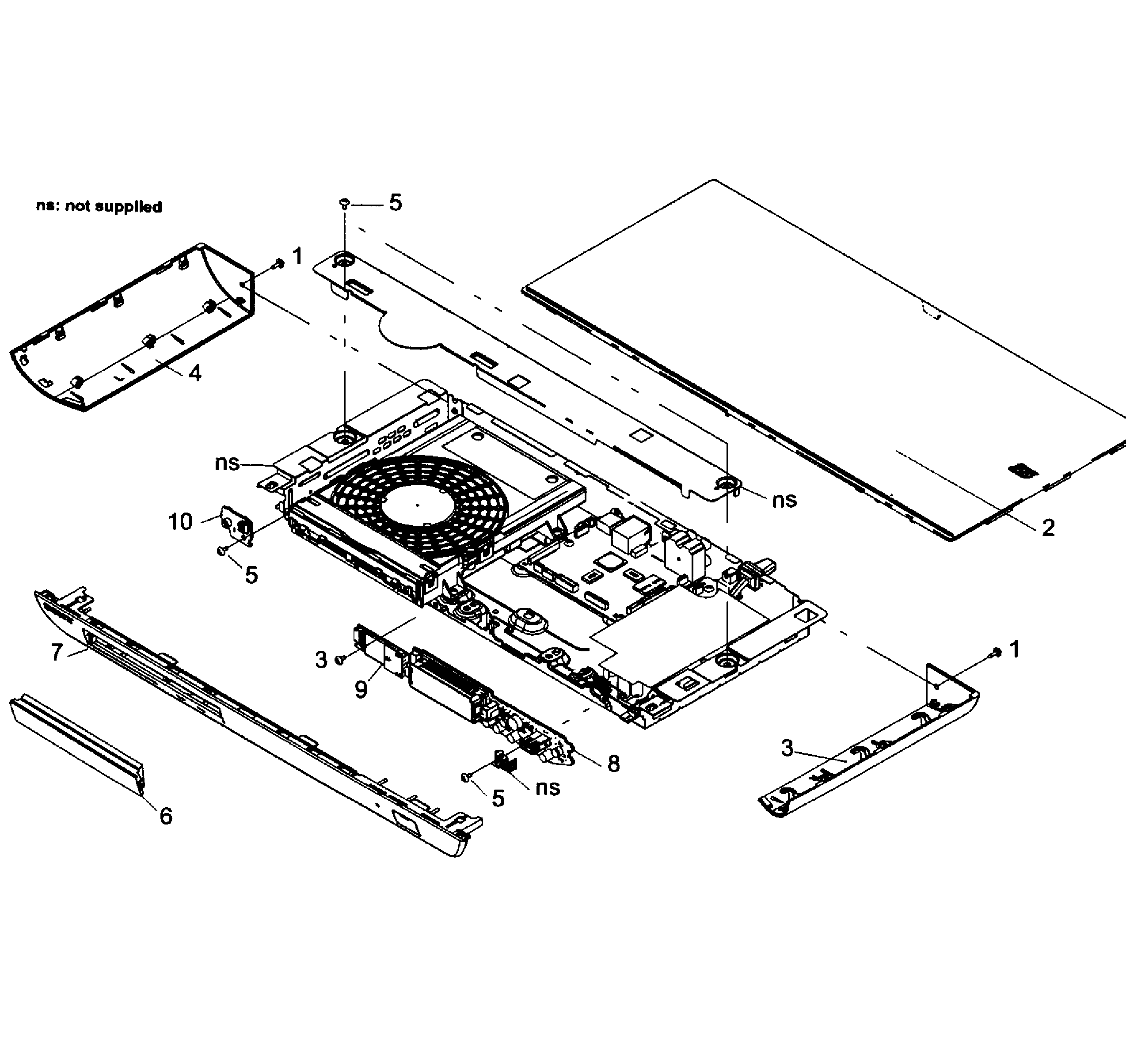

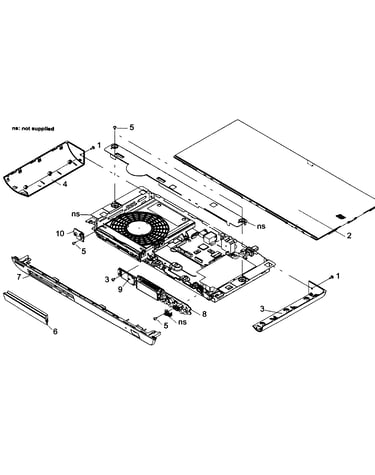

Cabinet parts diagram

Fl service

Part #A1856202A

The manufacturer no longer makes this part, and there's no substitute part

Cable Opt- 183954011
#154

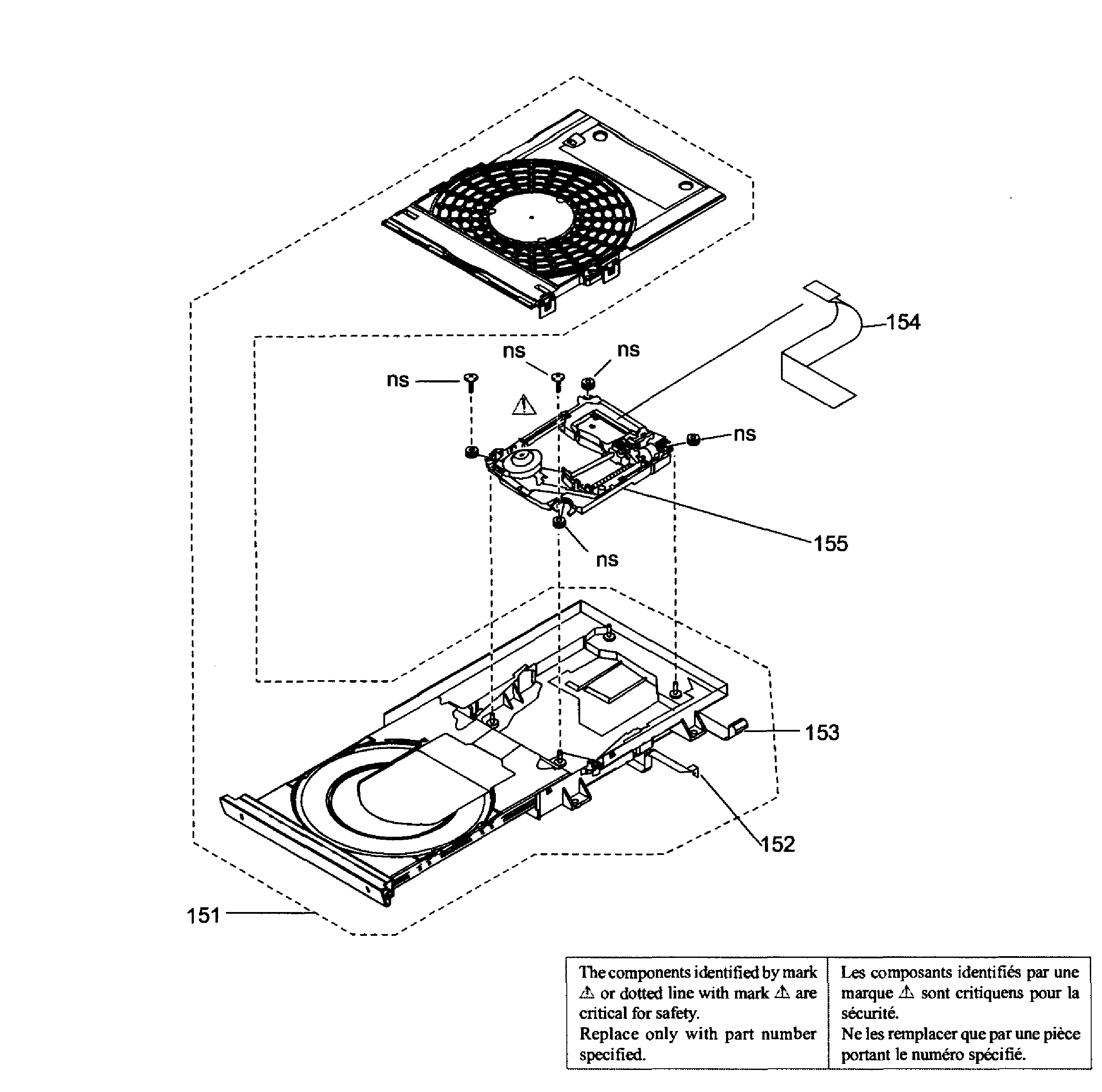

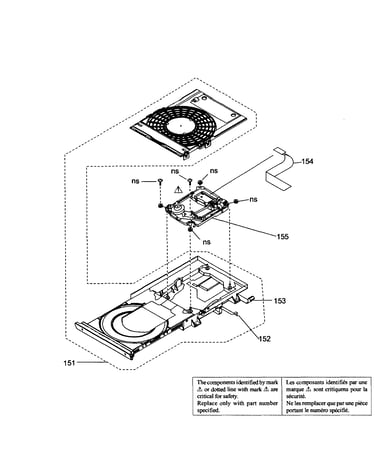

Bd section diagram

Cable opt-

Part #183954011

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 149002712
#NI

Cabinet parts diagram

Remote control

Part #149002712

The manufacturer no longer makes this part, and there's no substitute part

Loading Fo A1850153A
Loading fo

Part #A1850153A

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Screw 307733121
Home electronics screw

Part #307733121

The manufacturer no longer makes this part, and there's no substitute part

Panel X25832351
#7

Cabinet parts diagram

Panel

Part #X25832351

The manufacturer no longer makes this part, and there's no substitute part

Mb Service A1856200A
#104

Chassis assy diagram

Mb service

Part #A1856200A

The manufacturer no longer makes this part, and there's no substitute part

Card Landing 145849411
#9

Cabinet parts diagram

Card landing

Part #145849411

The manufacturer no longer makes this part, and there's no substitute part
