Jenn-Air
Electric Cooktop

Model # JEI0536ADS0 Official Jenn-Air electric counter unit

Here are the diagrams and repair parts for Official Jenn-Air JEI0536ADS0 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Display W10122344
#19

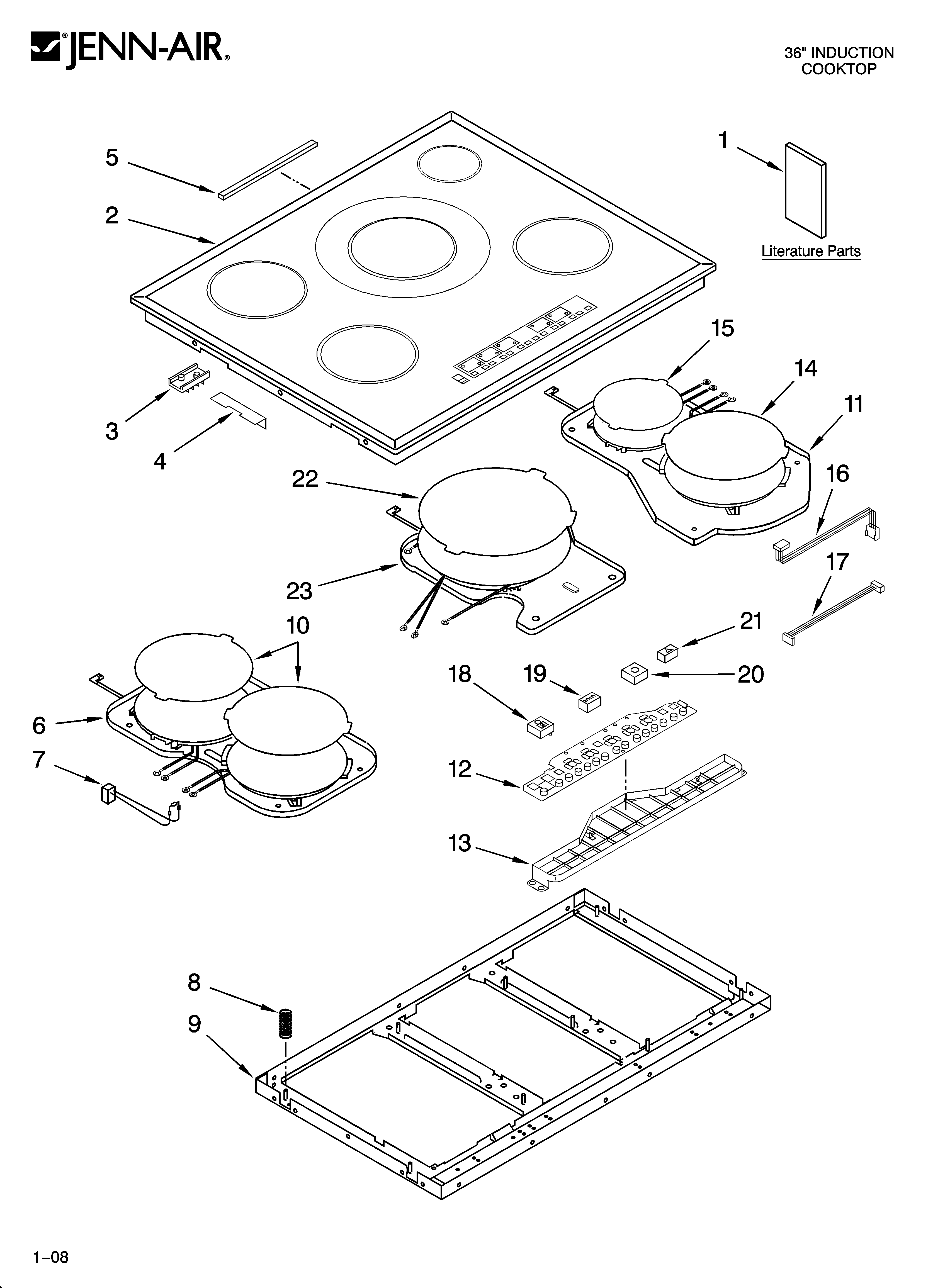

Cooktop parts diagram

Display

Part #W10122344

$10.79
In Stock
Display W10122341
#18

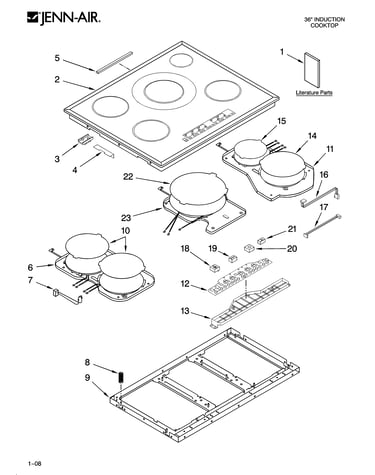

Cooktop parts diagram

Display

Part #W10122341

$10.79
In Stock
Wire Harness W10122354
#17

Cooktop parts diagram

Wire harness

Part #W10122354

$35.51
In Stock
Display W10122343
#20

Cooktop parts diagram

Display

Part #W10122343

$12.00
In Stock
Fuse Block W10122373
#19

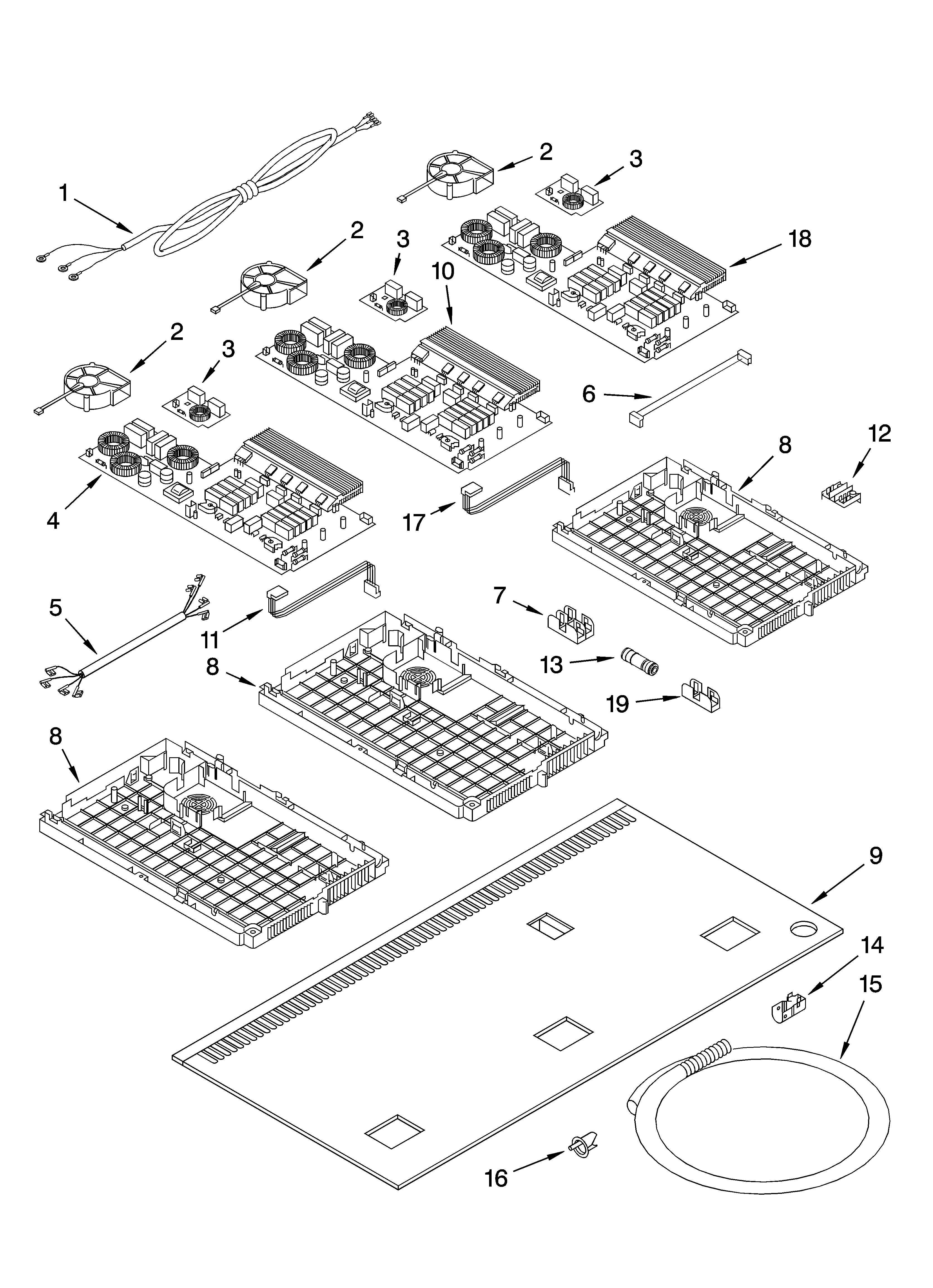

Interior parts diagram

Fuse block

Part #W10122373

$186.22
In Stock
Terminal Block W10122379
#12

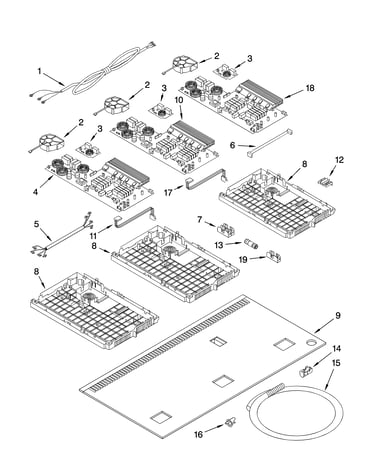

Interior parts diagram

Terminal block

Part #W10122379

$85.33
In Stock
Fuse Block W10122375
#7

Interior parts diagram

Fuse block

Part #W10122375

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Wire Harness W10122349
#16

Cooktop parts diagram

Cooktop wire harness

Part #W10122349

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket W10122356
#4

Cooktop parts diagram

Mounting bracket

Part #W10122356

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness W10122353
#7

Cooktop parts diagram

Wire harness

Part #W10122353

The manufacturer no longer makes this part, and there's no substitute part
