Model # FEC6X6XABC Official Frigidaire electric cooktop - 5995294229

Here are the diagrams and repair parts for Official Frigidaire FEC6X6XABC electric cooktop - 5995294229, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

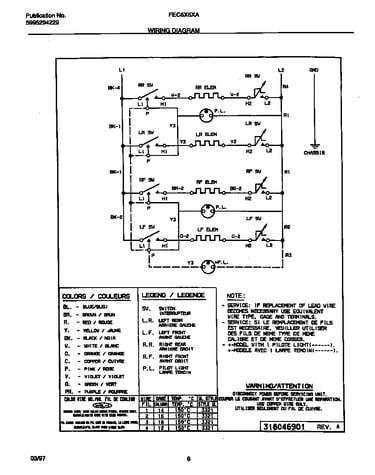

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Range Drip Pan 5303013588
#19

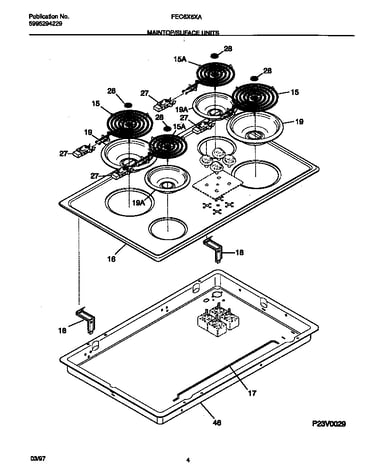

Maintop/suface units diagram

Range drip pan

Part #5303013588

Replaced by #316048413

?
Manufacturer substitution
This part replaces 5303013588. Substitute parts can look different from the original.
BEST SELLER
$7.53
69% OFF MSRP : $24.00
In Stock
Range Drip Pan, 6-in 5303280336
#19

Maintop/suface units diagram

Range drip pan, 6-in

Part #5303280336

Replaced by #316048414

?
Manufacturer substitution
This part replaces 5303280336. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.97
57% OFF MSRP : $14.00
In Stock
Range Surface Element Receptacle 5301167733
#27A

Maintop/suface units diagram

Range surface element receptacle

Part #5301167733

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5301167733. Substitute parts can look different from the original.
BEST SELLER
$8.34
31% OFF MSRP : $12.00
In Stock
Surface Switch 318120504
#54A

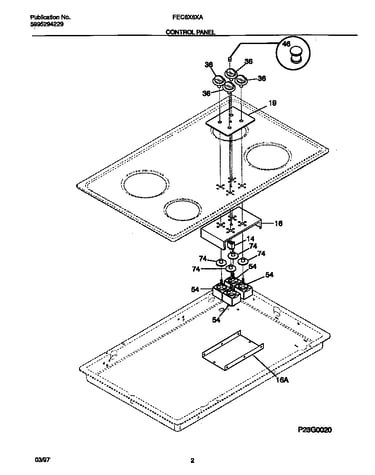

Control panel diagram

Surface switch

Part #318120504

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 318120504. Substitute parts can look different from the original.
BEST SELLER
$43.22
10% OFF Phone Price : $48.22
In Stock
Screw 5303305528
#54B

Control panel diagram

Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
In Stock
Nut 3051038

#NI

All parts diagram

Nut

Part #3051038

This item is not returnable
In Stock
Cooktop Element Center Medallion 5303301461
#28

Maintop/suface units diagram

Cooktop element center medallion

Part #5303301461

In Stock
Range Coil Surface Element, 8-in 5308011964
#15

Maintop/suface units diagram

Range coil surface element, 8-in

Part #5308011964

$153.29
6% OFF Phone Price : $163.29
In Stock
Bushing 08007822
#74

Control panel diagram

Bushing

Part #08007822

Replaced by #318146010

?
Manufacturer substitution
This part replaces 08007822. Substitute parts can look different from the original.
In Stock
Range Screw 5303300195
#27C

Maintop/suface units diagram

Range screw

Part #5303300195

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303300195. Substitute parts can look different from the original.
This item is not returnable
In Stock
