Model # SD750(5FCA) Official Smith Corona word processor

Here are the diagrams and repair parts for Official Smith Corona SD7505FCA word processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

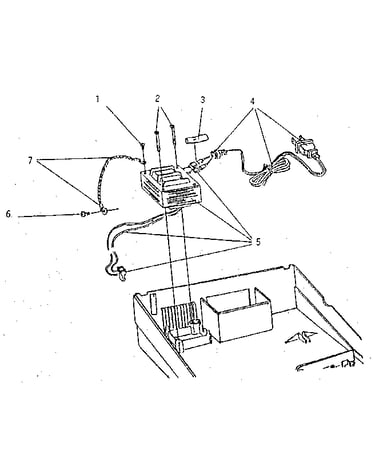

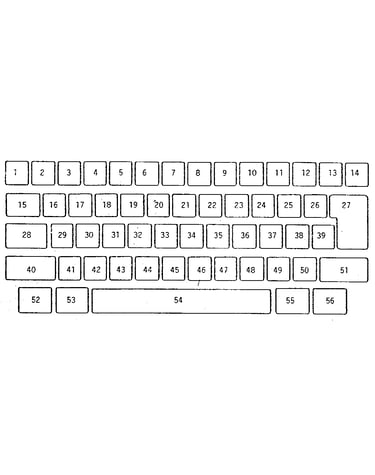

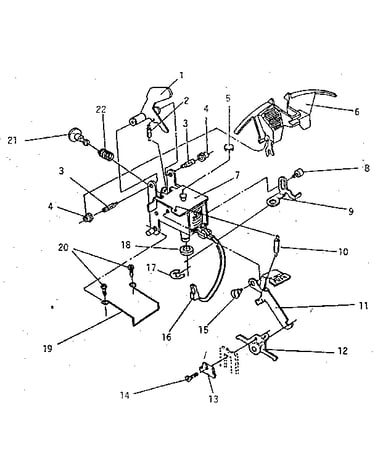

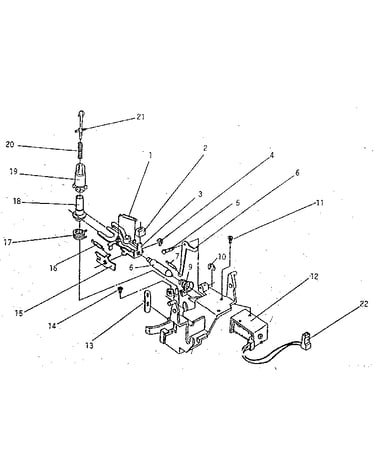

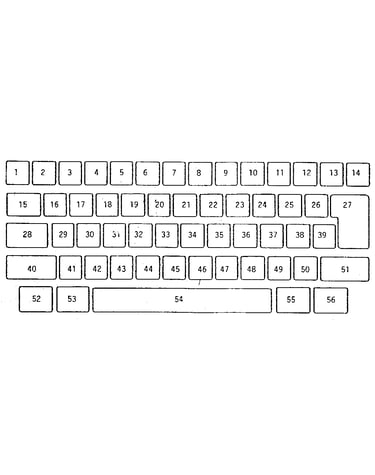

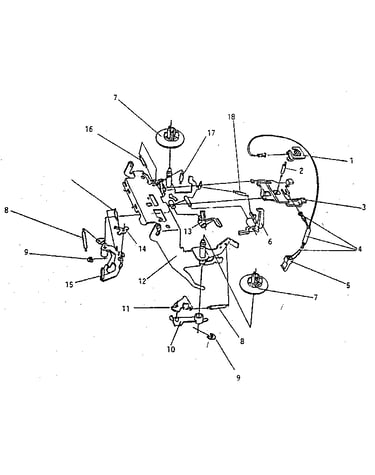

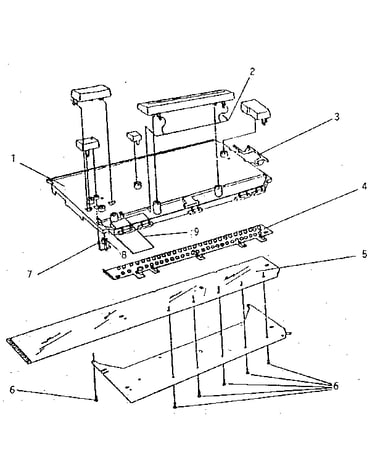

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 233 parts  |
Left End Switch Bracket 783191
#5

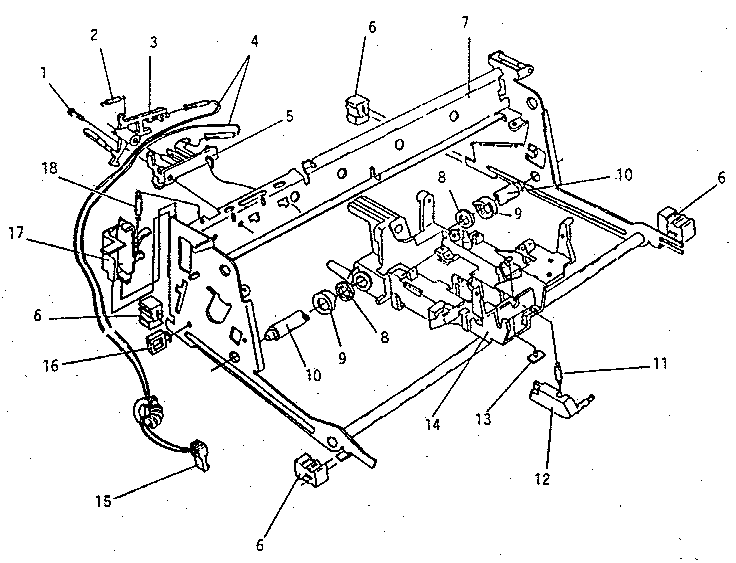

Carrier molding, rails, & frames diagram

Left end switch bracket

Part #783191

The manufacturer no longer makes this part, and there's no substitute part

Keyboard Cover (5fea, 5fwa, 5fma, 5fda) 783091
#9A

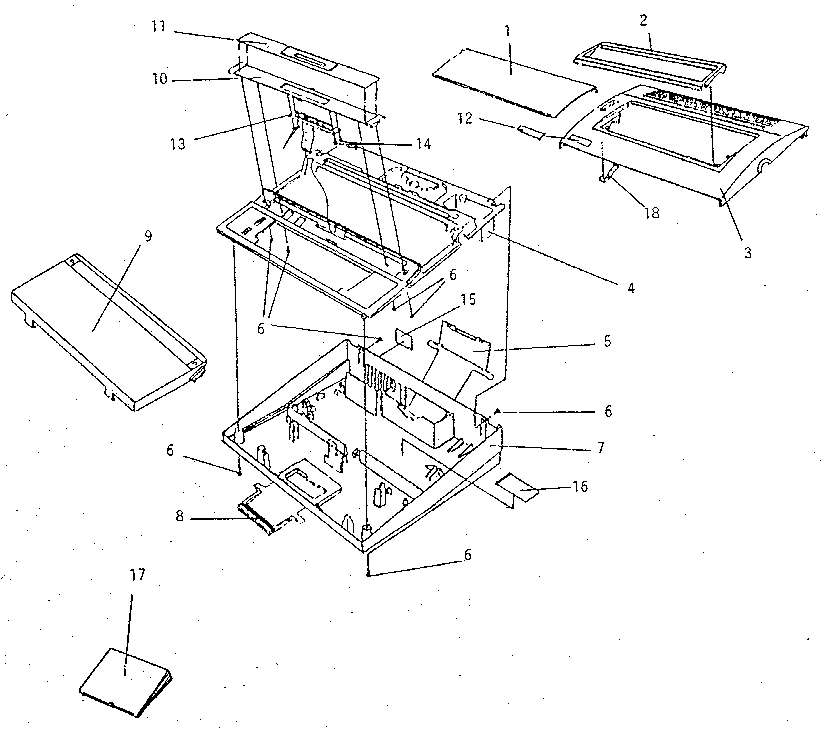

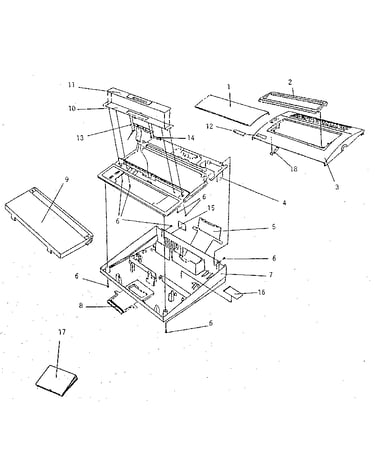

Jackets diagram

Keyboard cover (5fea, 5fwa, 5fma, 5fda)

Part #783091

The manufacturer no longer makes this part, and there's no substitute part

5 778581
5

Part #778581

The manufacturer no longer makes this part, and there's no substitute part

Ground Cable Assembly, Right Front 760921
#5

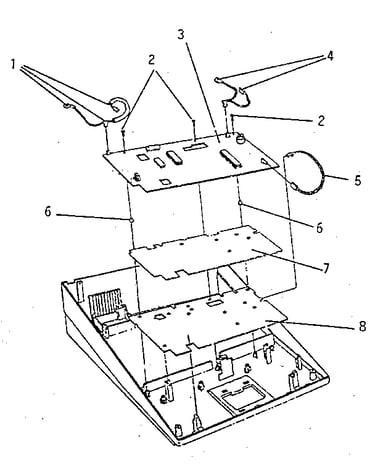

Control pc board diagram

Ground cable assembly, right front

Part #760921

The manufacturer no longer makes this part, and there's no substitute part

Carrier Return Bracket 768862
#3

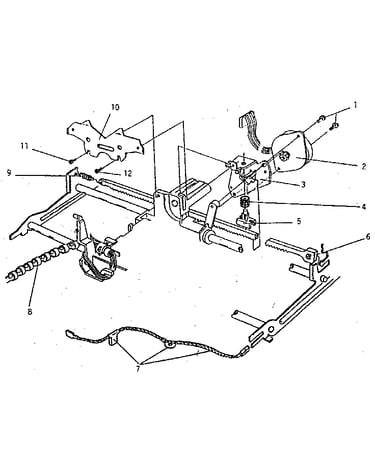

Carrier drive diagram

Carrier return bracket

Part #768862

The manufacturer no longer makes this part, and there's no substitute part

Ground Cable (ref. Only) N/P
#7

Carrier drive diagram

Ground cable (ref. only)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Self Tap Screw 783194
#1

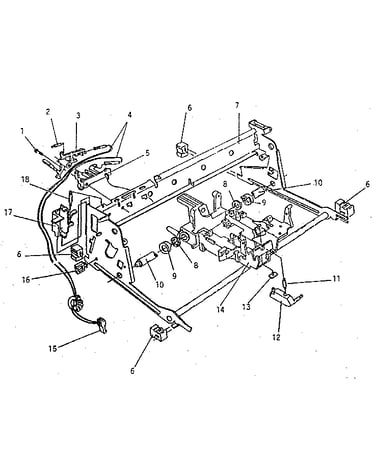

Carrier molding, rails, & frames diagram

Self tap screw

Part #783194

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 783609
#17

Jackets diagram

Owner's manual

Part #783609

The manufacturer no longer makes this part, and there's no substitute part

E-ring 771930
#2

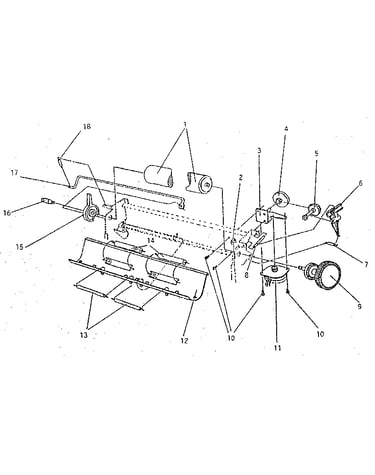

Paper feed diagram

E-ring

Part #771930

The manufacturer no longer makes this part, and there's no substitute part

Thrust Washer 752735
#9

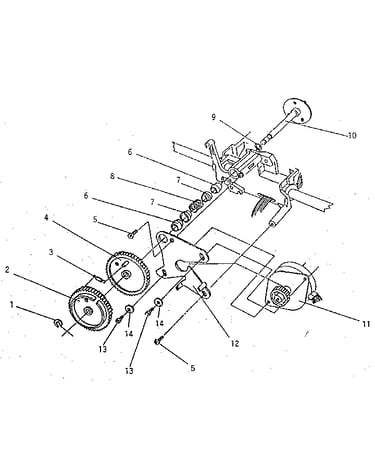

Element drive diagram

Thrust washer

Part #752735

The manufacturer no longer makes this part, and there's no substitute part
