Craftsman
Power Sander

Model # 315116900 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116900 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

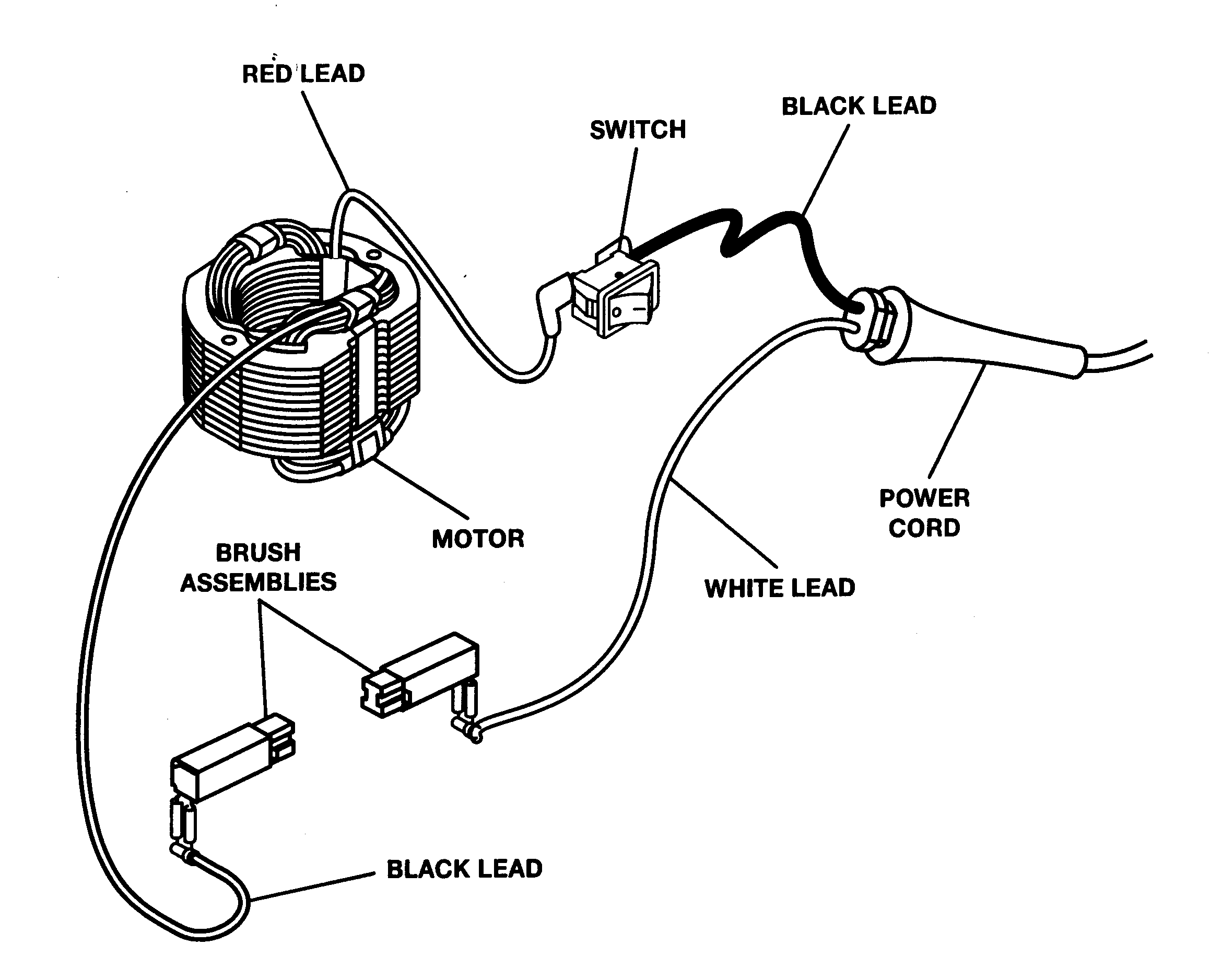

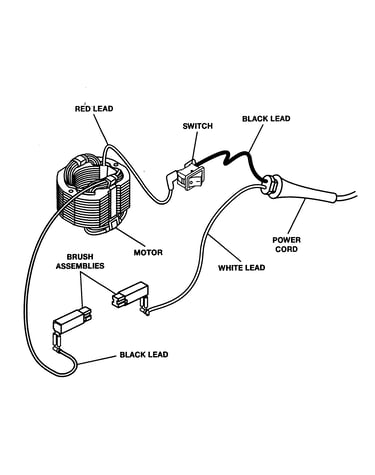

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Sander Screw, 4.2 X 16-mm 030155001002
Sander screw, 4.2 x 16-mm

Part #030155001002

The manufacturer no longer makes this part, and there's no substitute part

Armature 030155001012
#3

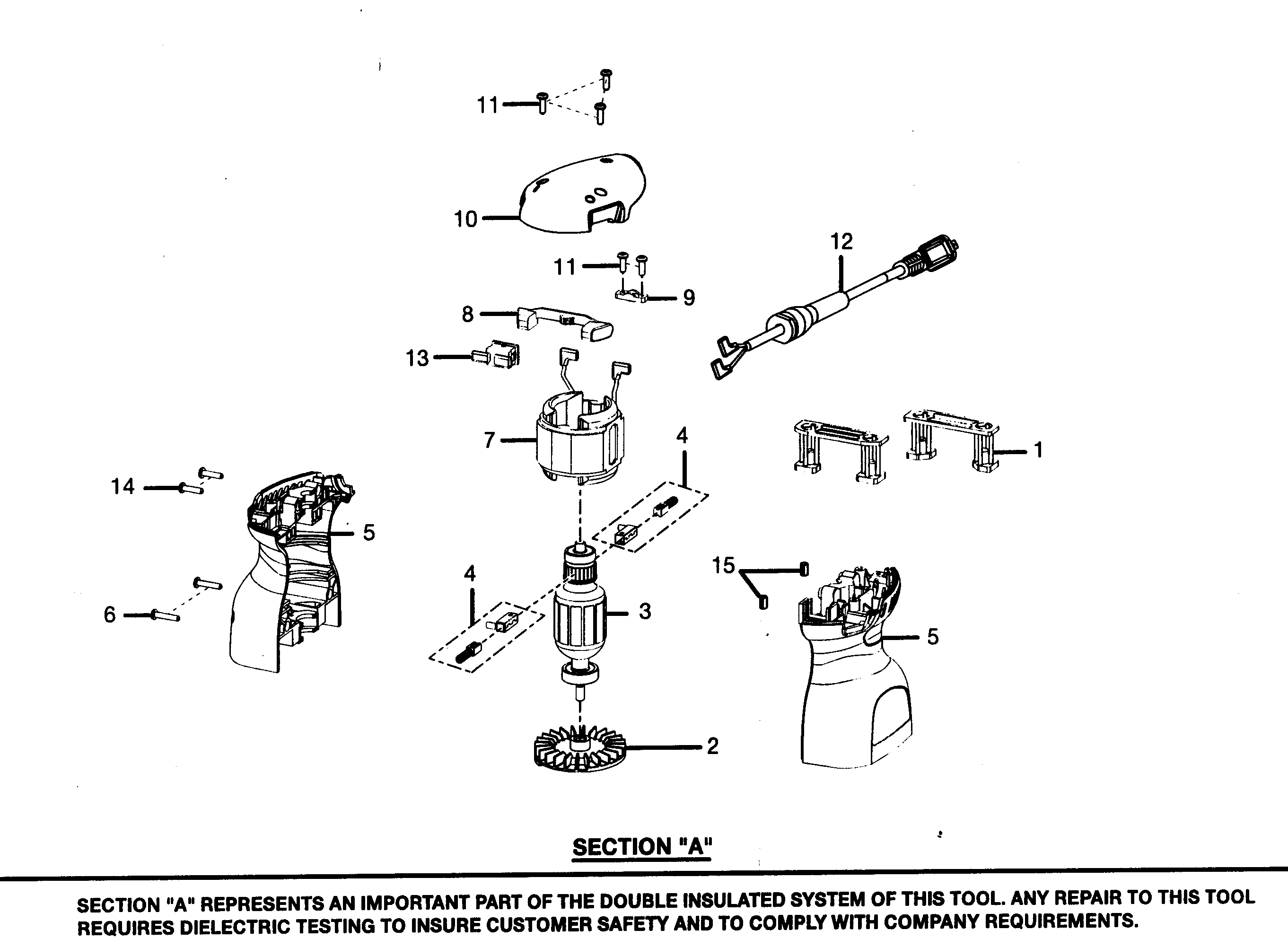

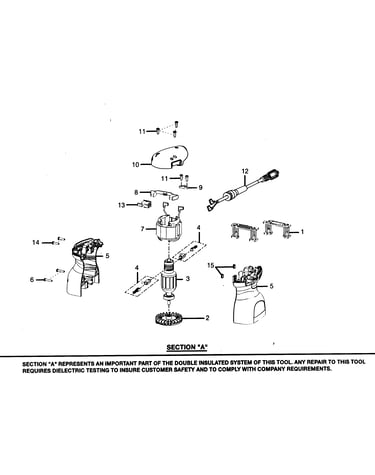

Motor assy diagram

Armature

Part #030155001012

The manufacturer no longer makes this part, and there's no substitute part

Sander Base Plate Spring Clamp Retainer 030155001009
#5

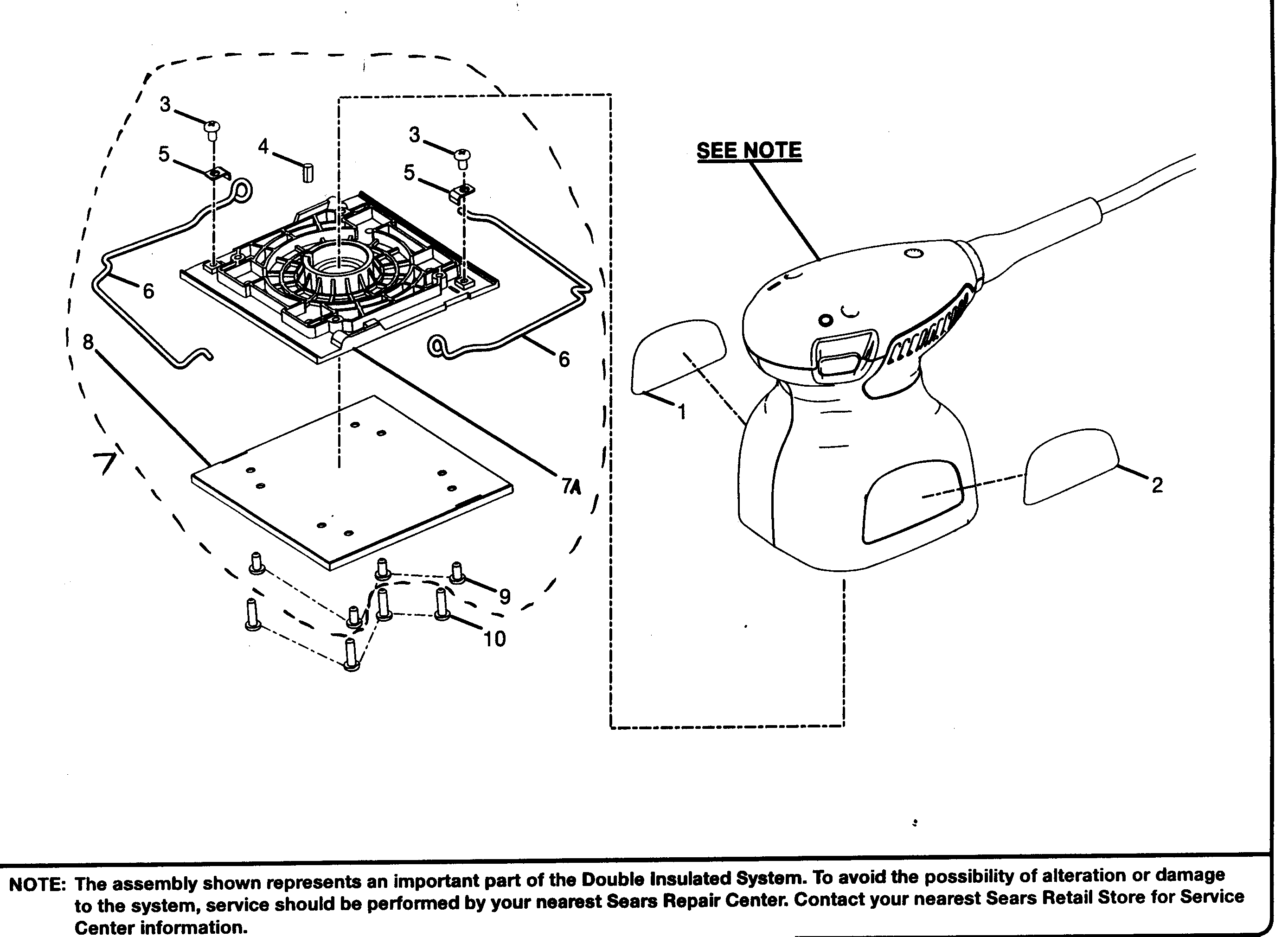

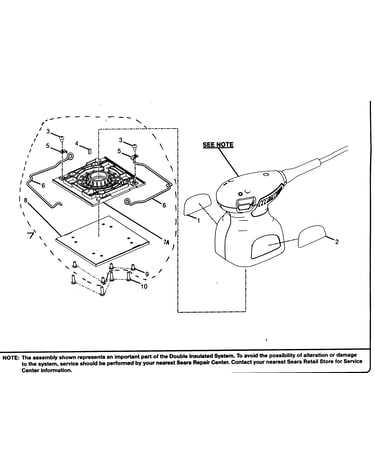

Sander assy diagram

Sander base plate spring clamp retainer

Part #030155001009

The manufacturer no longer makes this part, and there's no substitute part

Platen Assembly 030155001001
#7

Sander assy diagram

Platen assembly

Part #030155001001

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 030155001018
#7

Motor assy diagram

Field assembly

Part #030155001018

The manufacturer no longer makes this part, and there's no substitute part

Screw 030155001016
#6

Motor assy diagram

Screw

Part #030155001016

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000438R
#NI

Sander assy diagram

Repair sheet

Part #983000438R

The manufacturer no longer makes this part, and there's no substitute part

Sander Base Post 030155001010
#1

Motor assy diagram

Sander base post

Part #030155001010

The manufacturer no longer makes this part, and there's no substitute part

Label 030155001014
#2

Sander assy diagram

Label

Part #030155001014

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 030155001007
Sander motor housing rubber plug

Part #030155001007

The manufacturer no longer makes this part, and there's no substitute part
