Schwinn
Exercise Cycle

Model # 3700014 Official Schwinn cycle

Here are the diagrams and repair parts for Official Schwinn 3700014 cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Brake Pad 92874
#48

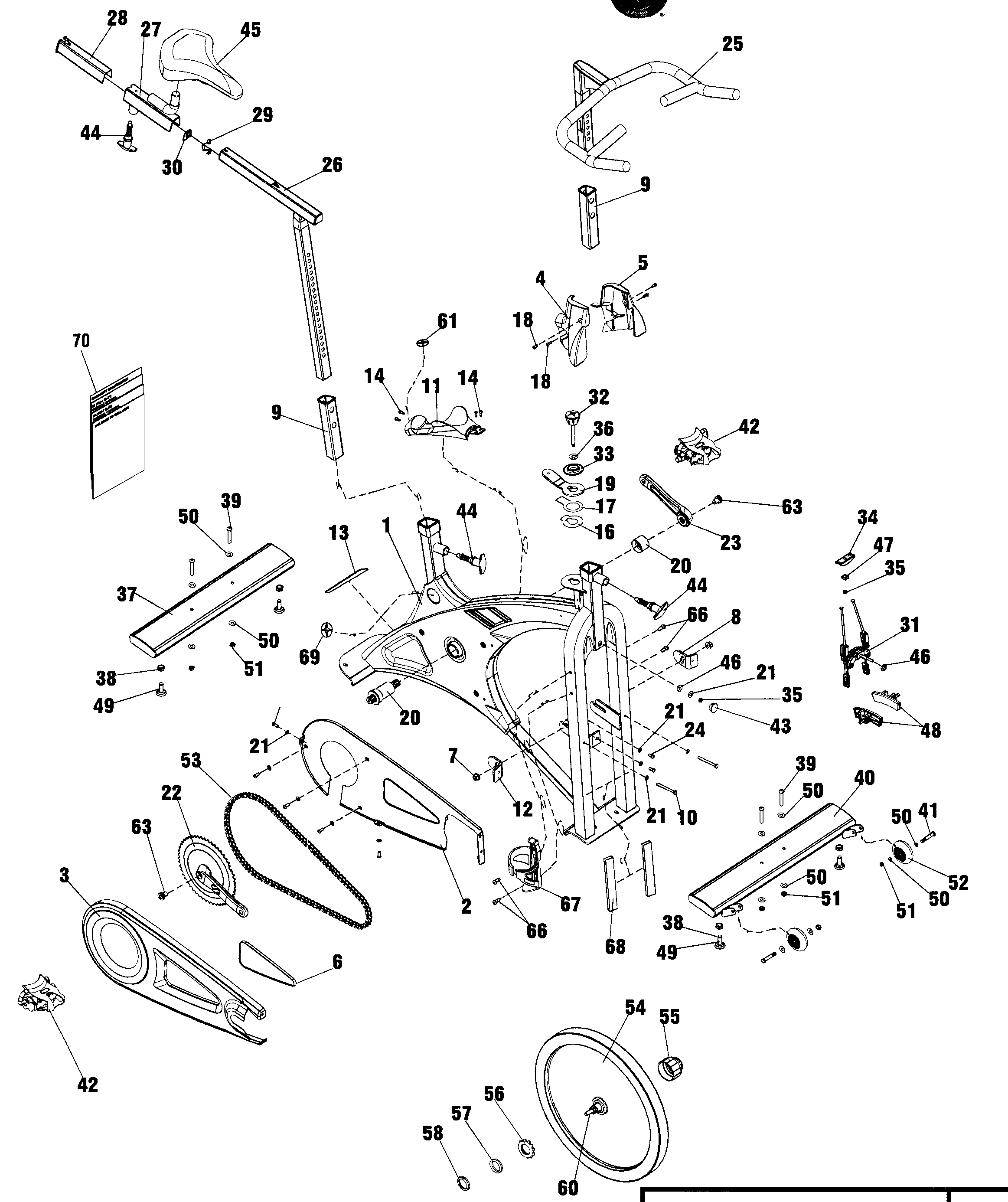

Cycle diagram

Brake pad

Part #92874

The manufacturer no longer makes this part, and there's no substitute part

Selt-tapping Screw 80040
#14

Cycle diagram

Selt-tapping screw

Part #80040

The manufacturer no longer makes this part, and there's no substitute part

Badge Schwinn Logo 80047
#61

Cycle diagram

Badge schwinn logo

Part #80047

The manufacturer no longer makes this part, and there's no substitute part

Retaining Pin 80006
#29

Cycle diagram

Retaining pin

Part #80006

The manufacturer no longer makes this part, and there's no substitute part

Protective Sticker 80041
#16

Cycle diagram

Protective sticker

Part #80041

The manufacturer no longer makes this part, and there's no substitute part

Pin Cover 80013
#30

Cycle diagram

Pin cover

Part #80013

The manufacturer no longer makes this part, and there's no substitute part

Handle Bar 84991
#25

Cycle diagram

Handle bar

Part #84991

The manufacturer no longer makes this part, and there's no substitute part

Chain Adj.bracket-r 84989
#12

Cycle diagram

Chain adj.bracket-r

Part #84989

The manufacturer no longer makes this part, and there's no substitute part

Seat Adj.bracket 84993
#27

Cycle diagram

Seat adj.bracket

Part #84993

The manufacturer no longer makes this part, and there's no substitute part

Brake Lever 80009
#19

Cycle diagram

Brake lever

Part #80009

The manufacturer no longer makes this part, and there's no substitute part
