Whirlpool
Microwave/Hood Combo

Model #WMH31017HS8 Official Whirlpool microwave hood, 1.7 cubic foot

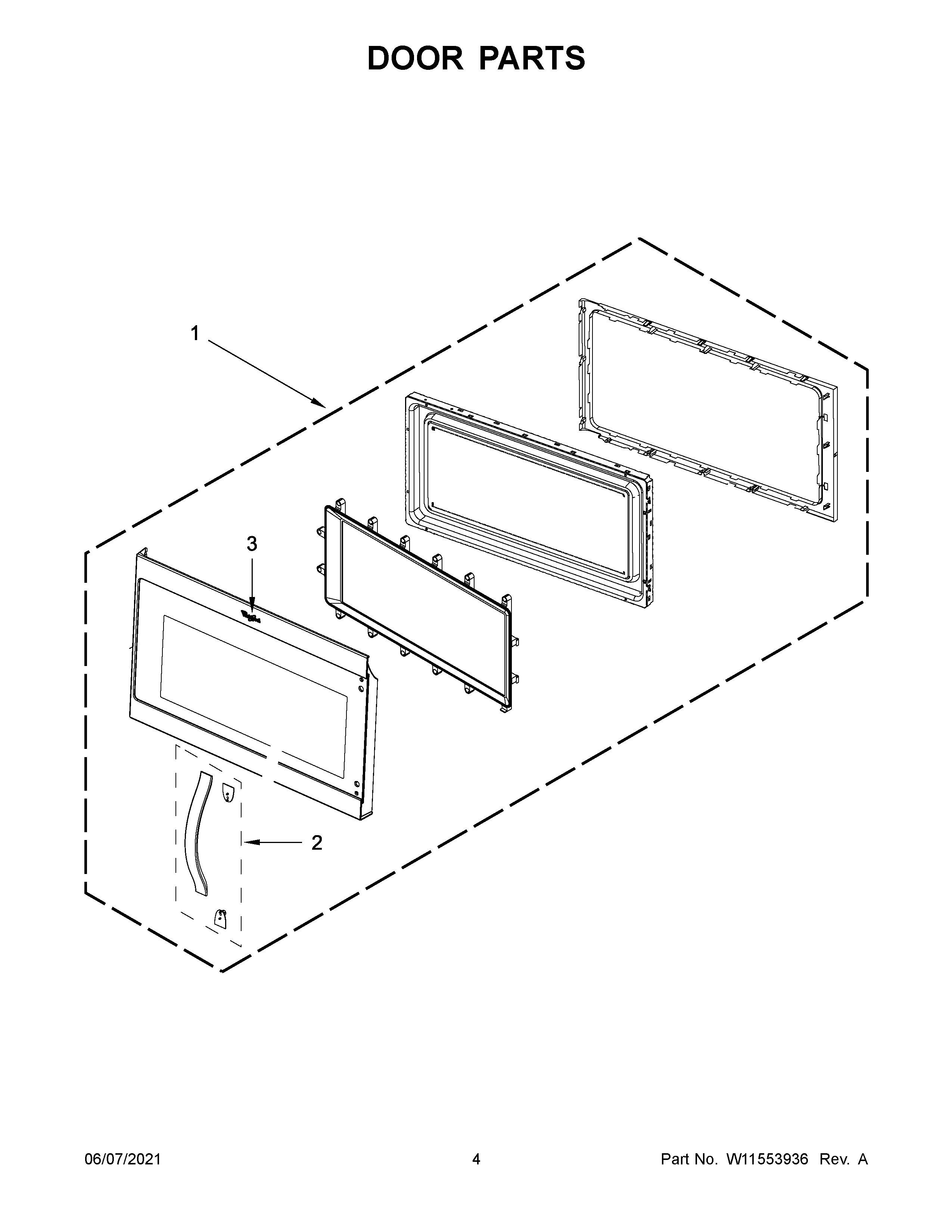

Here are the diagrams and repair parts for Whirlpool WMH31017HS8 microwave hood, 1.7 cubic foot, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 72 parts

Microwave Surface Light Bulb, 40-watt#3

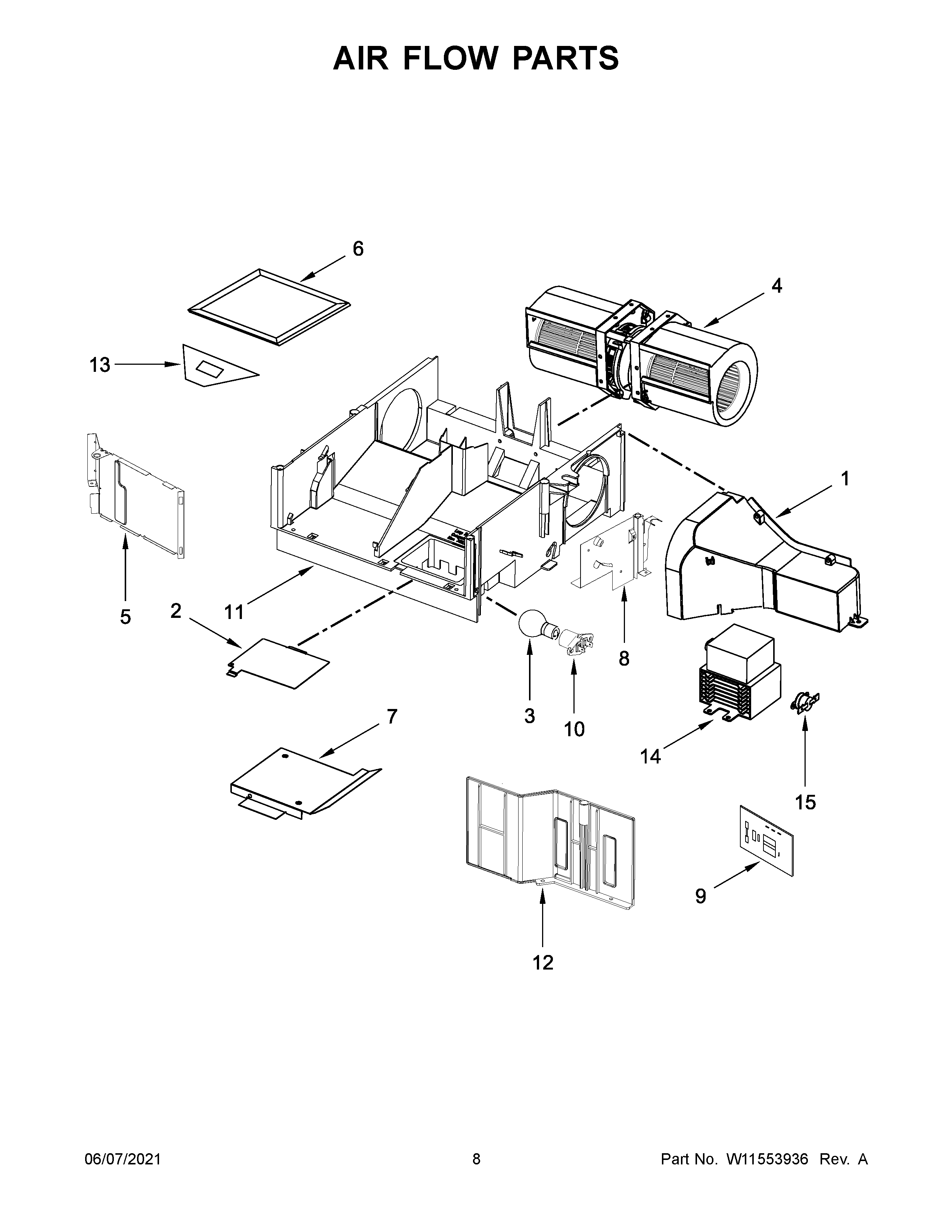

Air flow parts Diagram

Lamp assembly

Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.66 |
13% OFF
Phone Price: $7.66
Microwave Surface Light Bulb, 40-watt#2

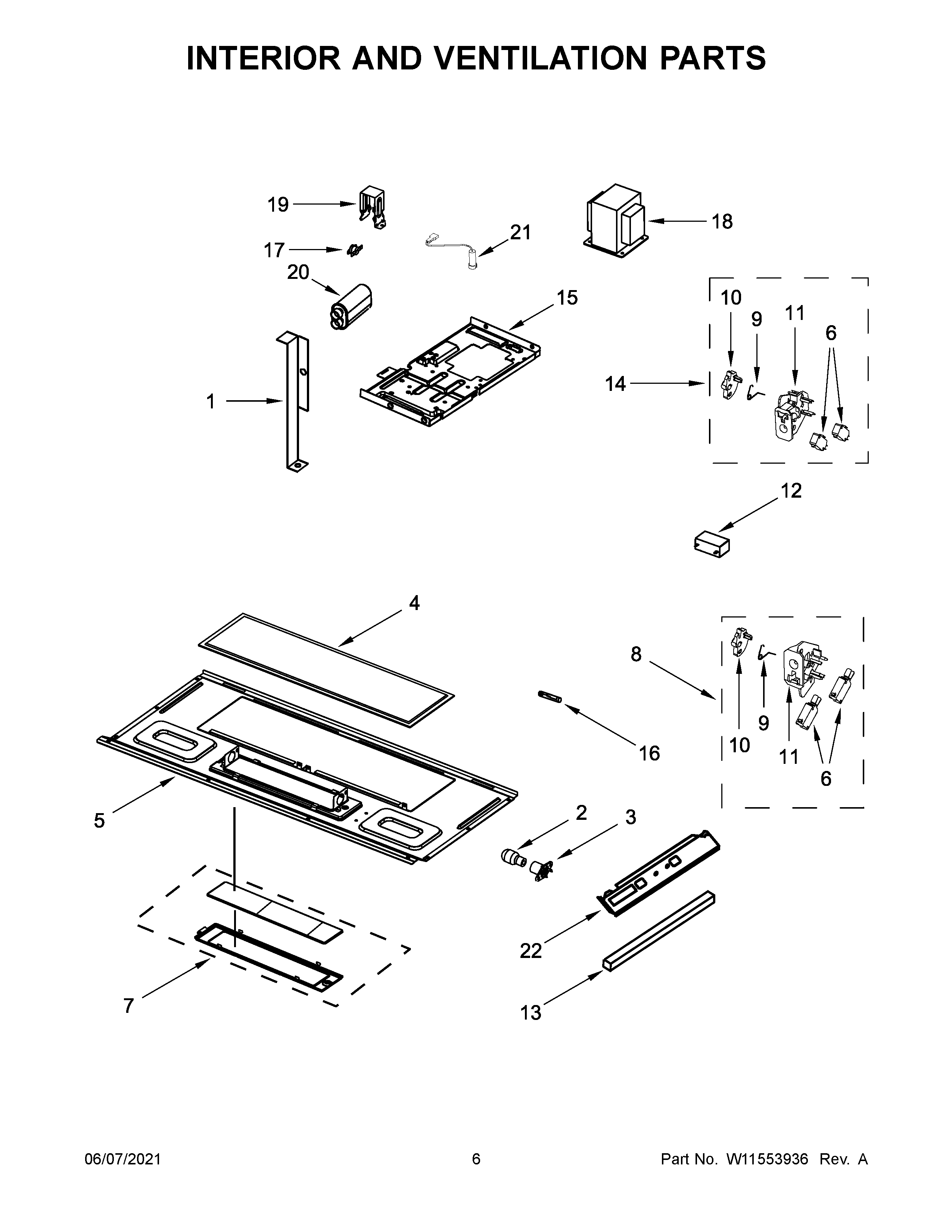

Interior and ventilation parts Diagram

Microwave/hood light bulb

Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.66 |
13% OFF
Phone Price: $7.66
Microwave Installation Template#NI

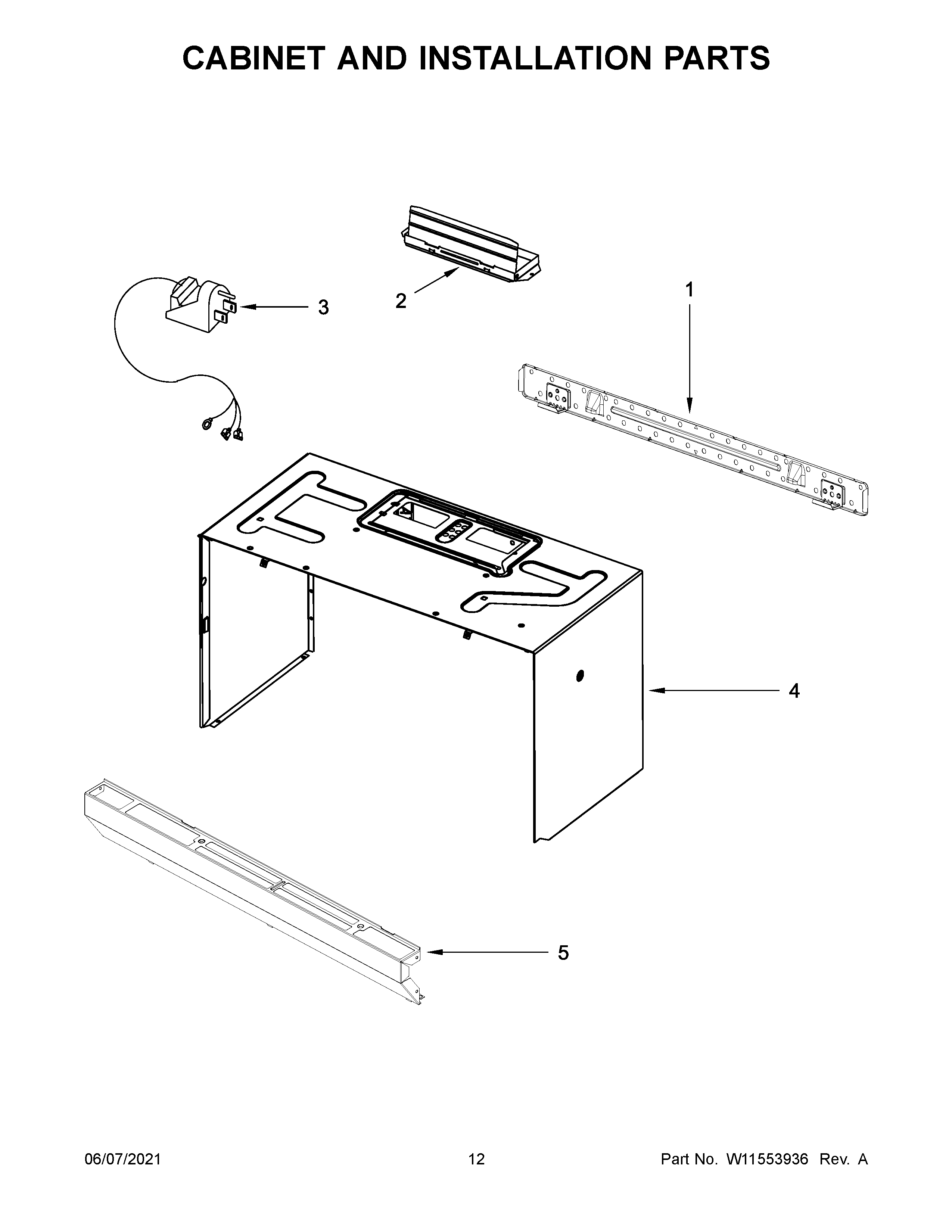

Cabinet and installation parts Diagram

Microwave installation template

Part #W10190018
BEST SELLER
This item is not returnable
In Stock
$6.39 |
14% OFF
Phone Price: $7.39
Microwave Light Socket#3

Interior and ventilation parts Diagram

Microwave light socket

Part #W10210871
BEST SELLER
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Microwave Screw#NI

Cabinet and installation parts Diagram

Microwave screw

Part #8169704
Replaced by #WP8169704
?
Manufacturer substitution
This part replaces 8169704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$4.99 |
17% OFF
Phone Price: $5.99

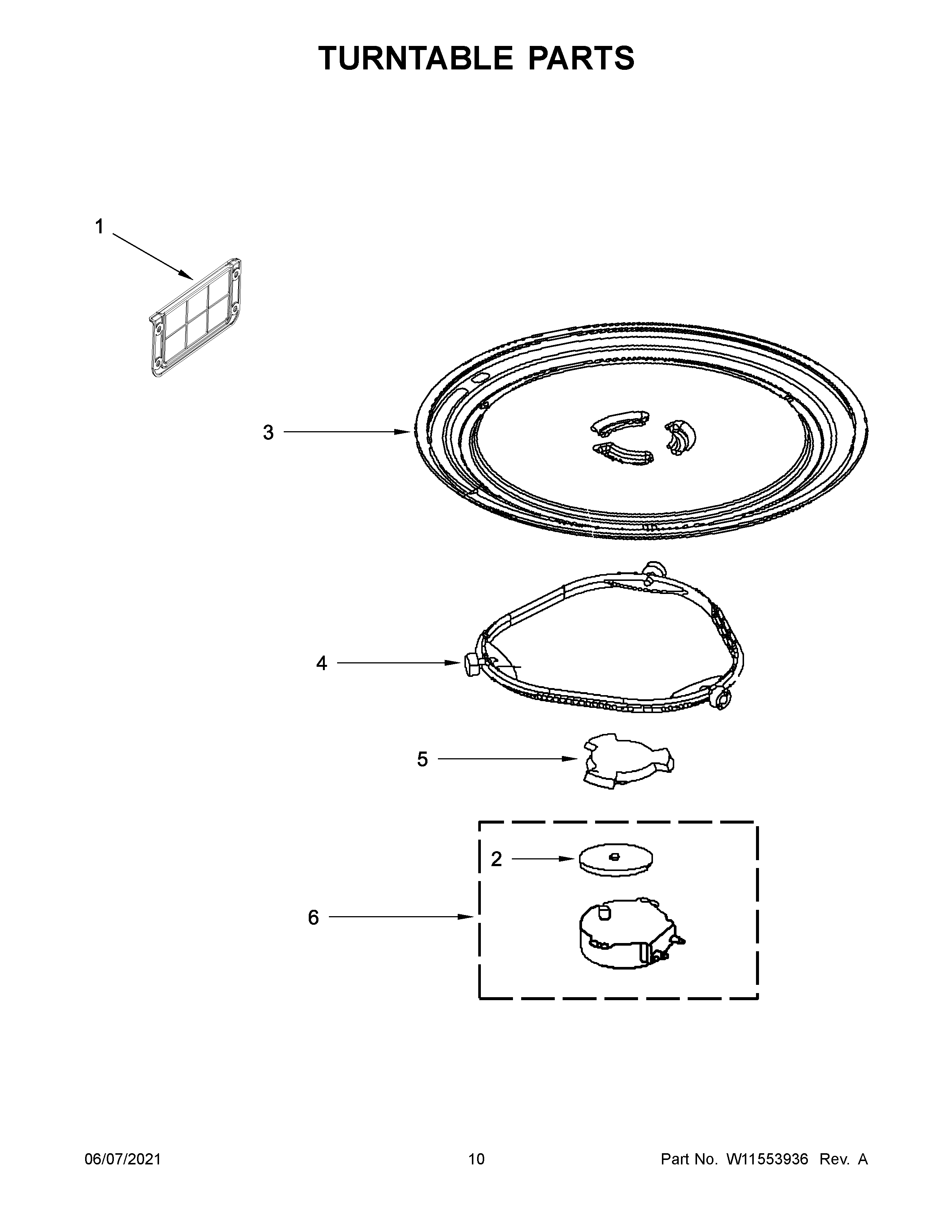

Microwave Turntable Tray Support#4

Turntable parts Diagram

Ring, turntable (with rollers)

Part #W11193600
Replaced by #W11252182
?
Manufacturer substitution
This part replaces W11193600. Substitute parts can look different from the original.
BEST SELLER
In Stock
$30.18 |
14% OFF
Phone Price: $35.18
Microwave Electronic Control Board#5

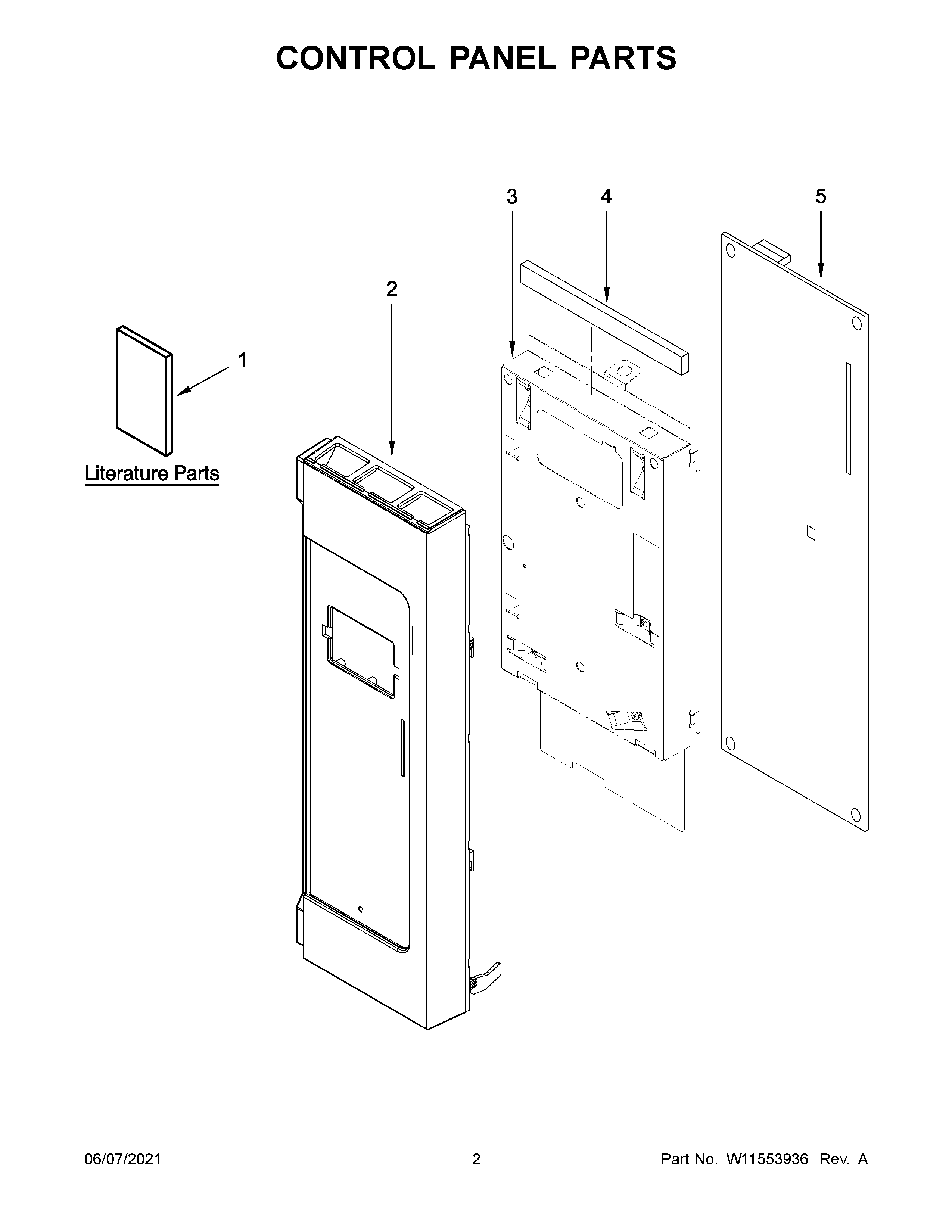

Control panel parts Diagram

Electronic control

Part #W10849829
Replaced by #W11552018
?
Manufacturer substitution
This part replaces W10849829. Substitute parts can look different from the original.
BEST SELLER
In Stock
$54.09 |
8% OFF
Phone Price: $59.09
Microwave Installation Hardware Kit#NI

Cabinet and installation parts Diagram

Microwave installation hardware kit

Part #W10821385
BEST SELLER
In Stock
$48.89 |
22% OFF
MSRP: $63.00
Microwave Door Interlock Support, Upper#11

Interior and ventilation parts Diagram

Microwave door interlock support, upper

Part #8206419
Replaced by #WP8206419
?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
In Stock
$10.90 |
36% OFF
MSRP: $17.00
Microwave Vent Louver Motor Cam Plate#10

Interior and ventilation parts Diagram

In Stock
$11.59 |
15% OFF
Phone Price: $13.59
