Model # 2582323680 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582323680 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Shelf Kit 10004-637
#111

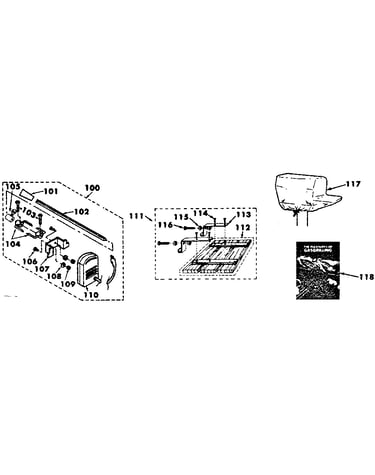

Optional accessories diagram

Shelf kit

Part #10004-637

The manufacturer no longer makes this part, and there's no substitute part

Tank 10930-12
#23

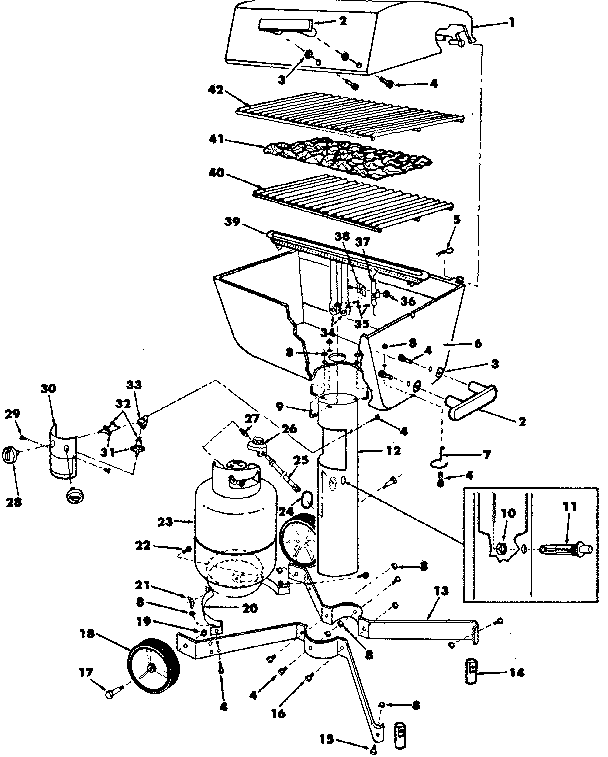

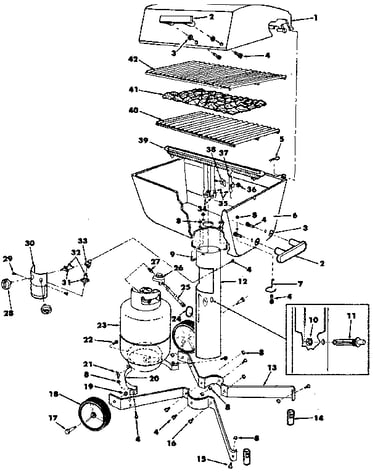

Grill, burner section and cart diagram

Tank

Part #10930-12

The manufacturer no longer makes this part, and there's no substitute part

Rotissorie 10004-657
#100

Optional accessories diagram

Rotissorie

Part #10004-657

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10724-37
#112

Optional accessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Liquid Propane Valve 10691-66
#31

Grill, burner section and cart diagram

Liquid propane valve

Part #10691-66

The manufacturer no longer makes this part, and there's no substitute part

Bolt Y-12540
#22

Grill, burner section and cart diagram

Bolt

Part #Y-12540

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610802
#35

Grill, burner section and cart diagram

Screw

Part #STD610802

The manufacturer no longer makes this part, and there's no substitute part

Liquid Propane Orifice 10403-38
#32

Grill, burner section and cart diagram

Liquid propane orifice

Part #10403-38

The manufacturer no longer makes this part, and there's no substitute part

Leg 10271-16
#14

Grill, burner section and cart diagram

Leg

Part #10271-16

The manufacturer no longer makes this part, and there's no substitute part

Grill Bottom 10909-26
#6

Grill, burner section and cart diagram

Grill bottom

Part #10909-26

The manufacturer no longer makes this part, and there's no substitute part
