Amana
Countertop Microwave

Model # RR-8B/P74365-1M Official Amana microwave

Here are the diagrams and repair parts for Official Amana RR-8B-P74365-1M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

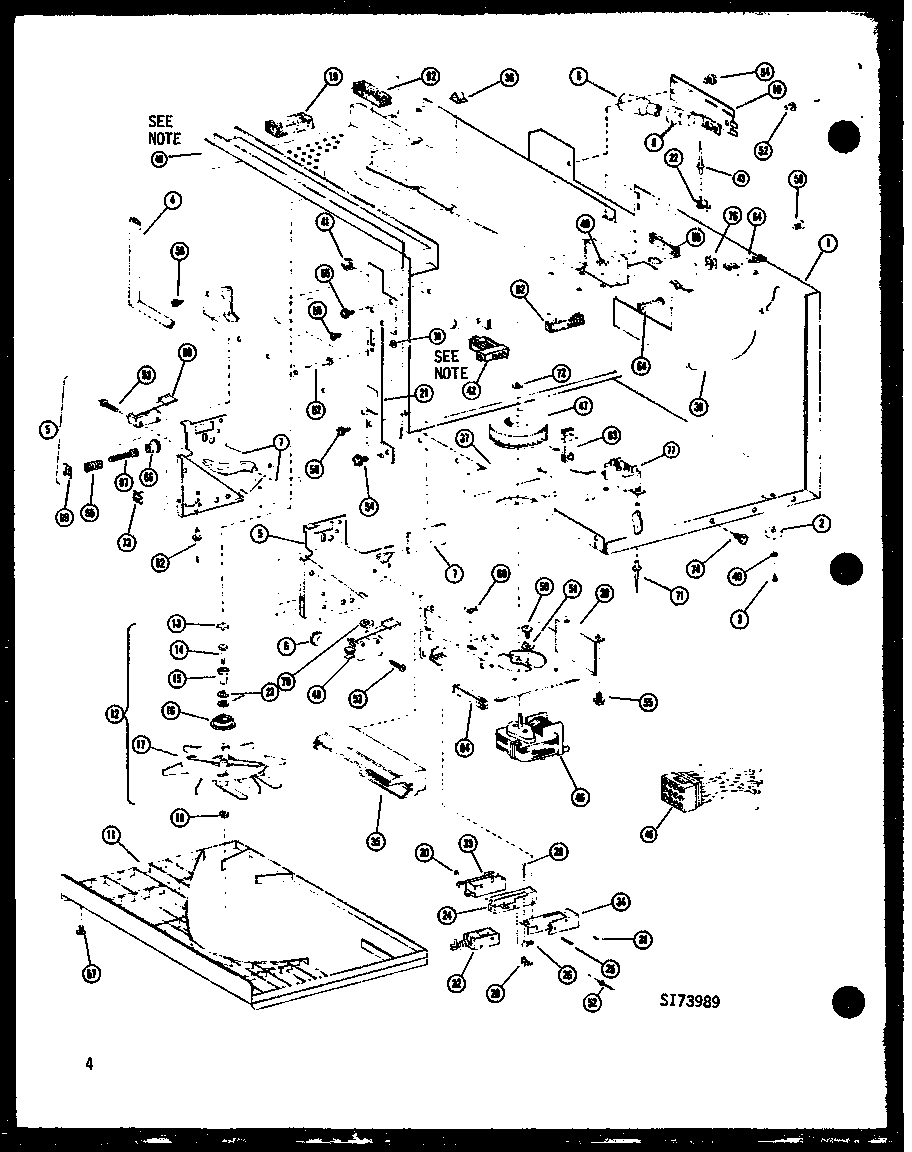

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Torx Screw M0234016
#19

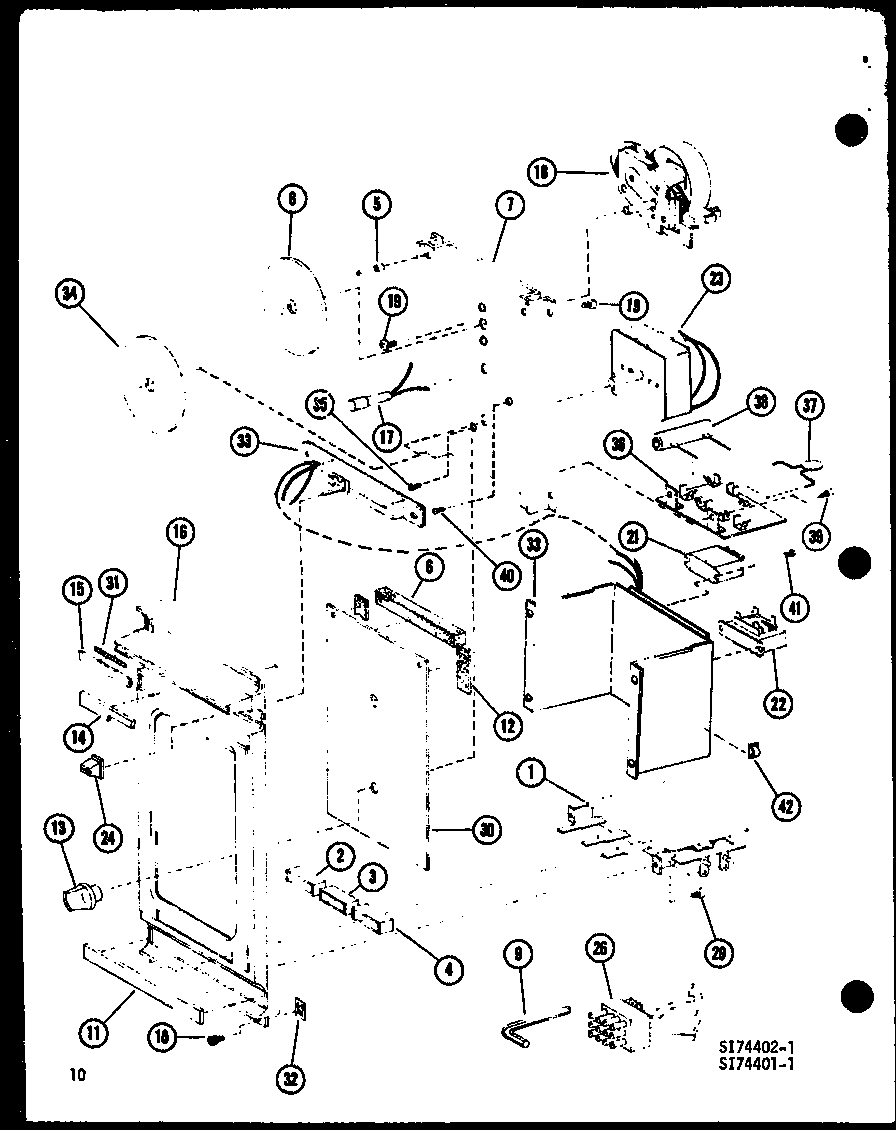

Timer diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bulb A3167501

#NI

All parts diagram

Bulb

Part #A3167501

Replaced by #WPA3167501

?
Manufacturer substitution
This part replaces A3167501. Substitute parts can look different from the original.
$30.98 |
14% OFF Phone Price : $35.98
In Stock
Torx Screw M0216616
#38

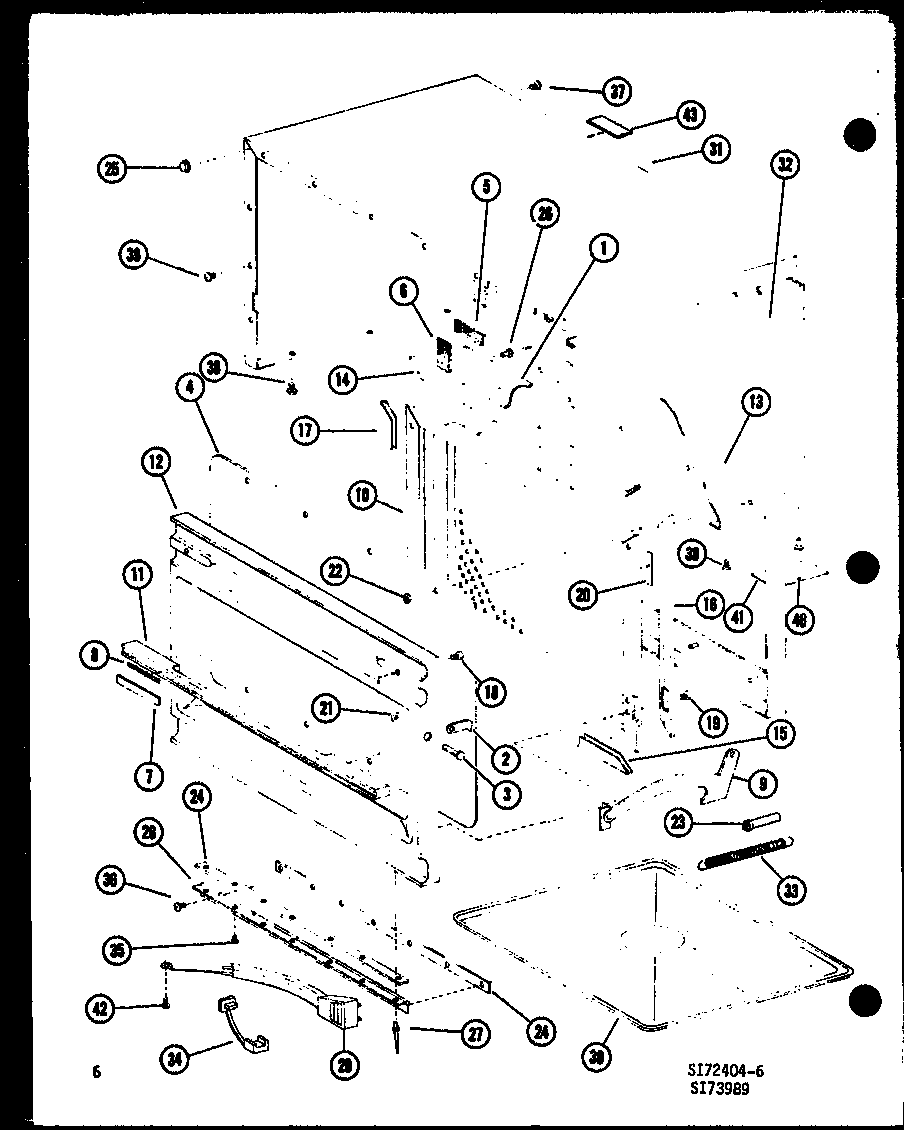

Outer cabinet diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Capacitor D8547901
#27

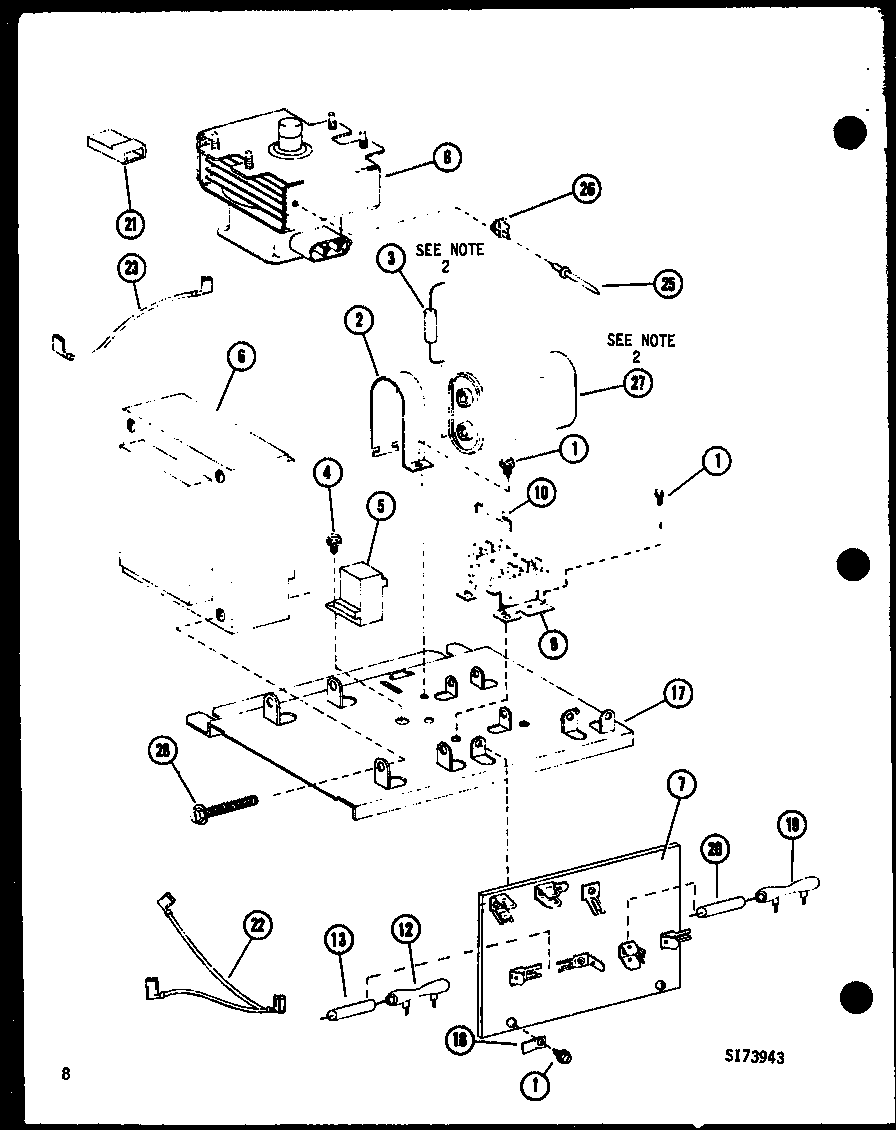

Transformer/capacitors diagram

Capacitor

Part #D8547901

Replaced by #D8547901

?
Manufacturer substitution
This part replaces D8547901. Substitute parts can look different from the original.
$31.49
In Stock
Screw M0229916
#10

Timer diagram

Screw

Part #M0229916

Replaced by #M0229916

?
Manufacturer substitution
This part replaces M0229916. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Shim A3127102
#24B

Outer cabinet diagram

Shim

Part #A3127102

The manufacturer no longer makes this part, and there's no substitute part

Splater Shield D7367701

#NI

All parts diagram

Splater shield

Part #D7367701

The manufacturer no longer makes this part, and there's no substitute part

Spring M0775001
#33

Outer cabinet diagram

Spring

Part #M0775001

The manufacturer no longer makes this part, and there's no substitute part

Microwave Wiring Harness D7438201

#NI

All parts diagram

Microwave wiring harness

Part #D7438201

The manufacturer no longer makes this part, and there's no substitute part

Assembly Magnetron With R.f. C (c8761706 May Also Be Used) C8761707
#8A

Transformer/capacitors diagram

Assembly magnetron with r.f. c (c8761706 may also be used)

Part #C8761707

The manufacturer no longer makes this part, and there's no substitute part
