Model # AZ38H12EABM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ38H12EABM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Room Air Conditioner Control Knob WP12X10002
#1108

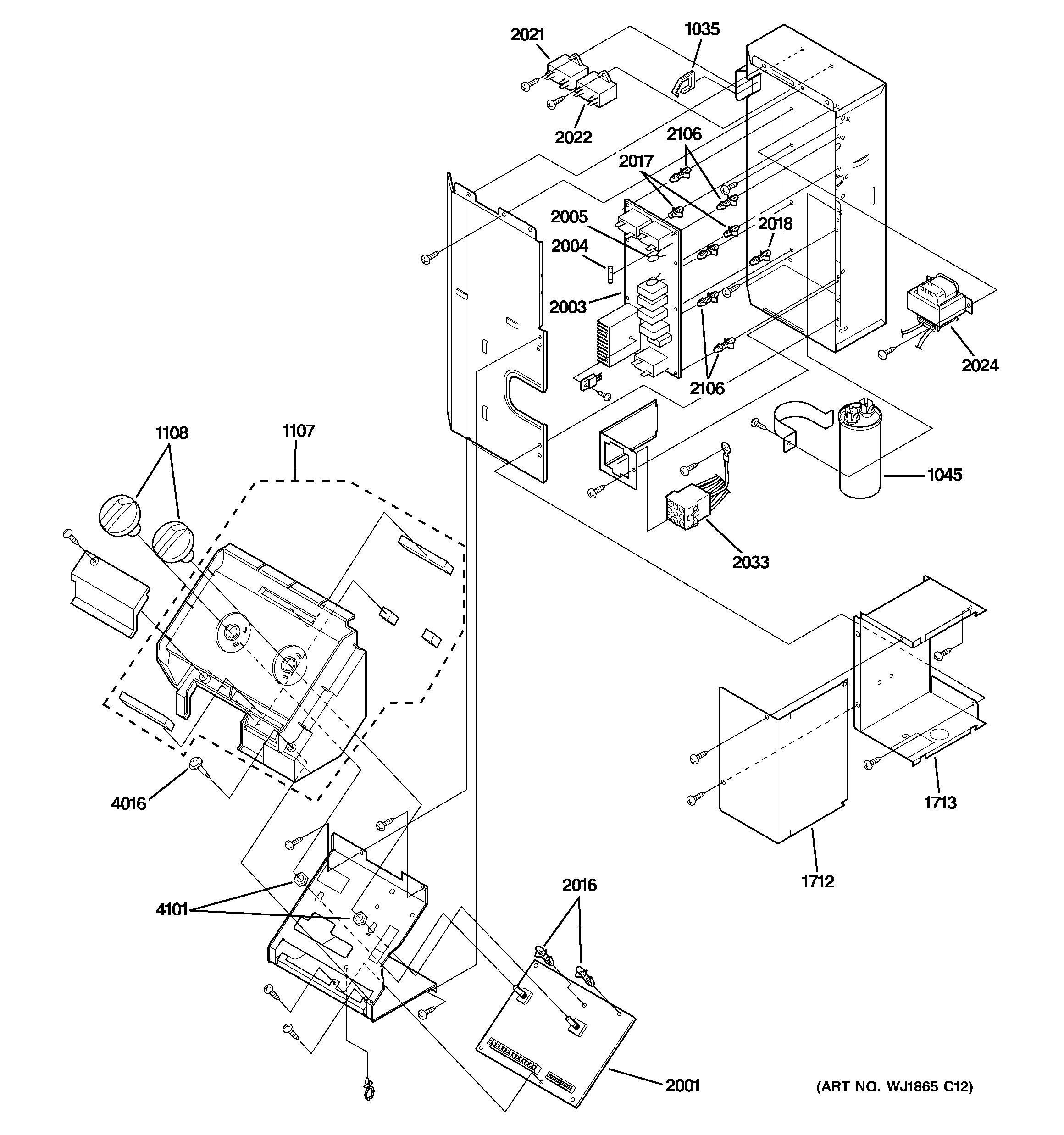

Control parts diagram

Room air conditioner control knob

Part #WP12X10002

$12.29
14% OFF Phone Price : $14.29
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10014
#2028

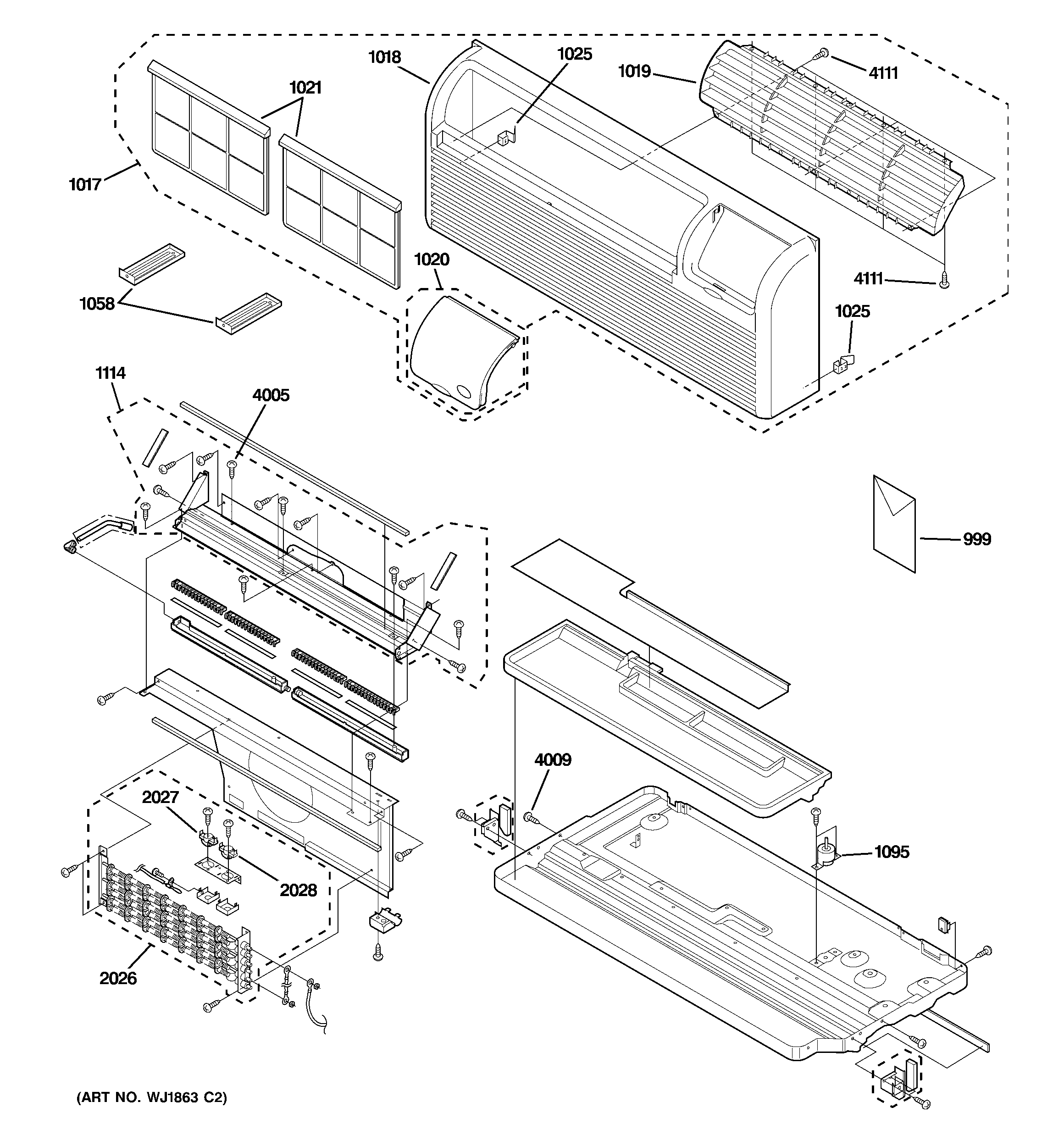

Grille, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10014

In Stock
Gasket Washer WJ01X10003
#3009

Unit parts diagram

Gasket washer

Part #WJ01X10003

This item is not returnable
In Stock
Spring Protector WJ02X10001
#3072

Unit parts diagram

Spring protector

Part #WJ02X10001

In Stock
Spacer WJ01X10043
#2018

Control parts diagram

Spacer

Part #WJ01X10043

This item is not returnable
In Stock
Special Screw WJ01X10037
Special screw

Part #WJ01X10037

In Stock
Spacer WJ01X10155
#2017

Control parts diagram

Spacer

Part #WJ01X10155

This item is not returnable
In Stock
Room Air Conditioner Air Filter WP85X10008
#1021

Grille, heater & base pan parts diagram

Room air conditioner air filter

Part #WP85X10008

This item is not returnable
$26.02
16% OFF Phone Price : $31.02
In Stock
Spring WP02X10001
#1025

Grille, heater & base pan parts diagram

Spring

Part #WP02X10001

In Stock
Bulkhead Insert WJ40X10015
#1014

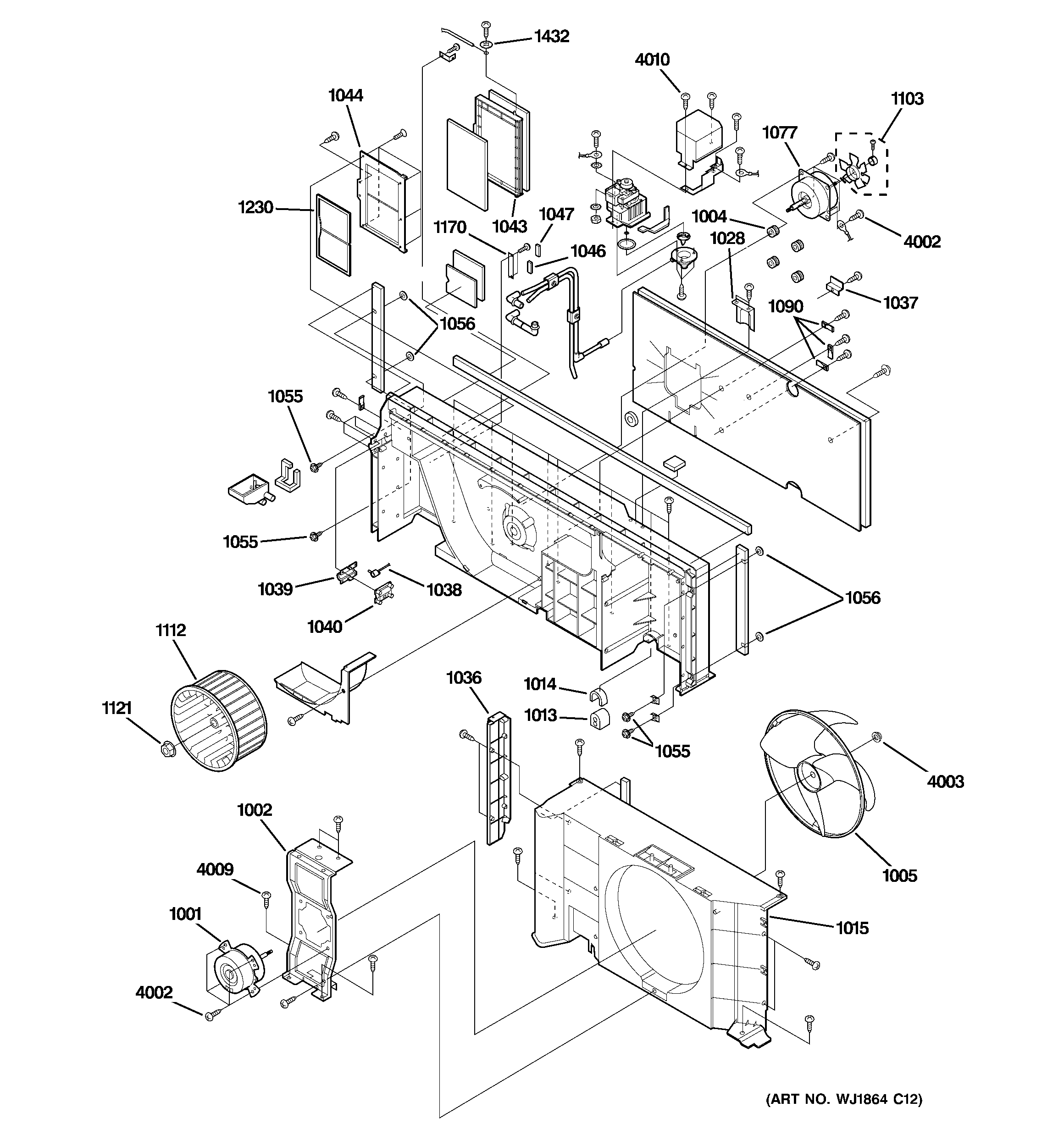

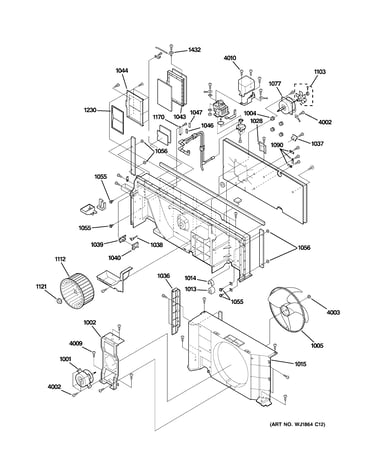

Motor & chassis parts diagram

Bulkhead insert

Part #WJ40X10015

This item is not returnable
In Stock
