Model #2537760620 Official Kenmore air conditioner
Here are the diagrams and repair parts for Kenmore 2537760620 air conditioner, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

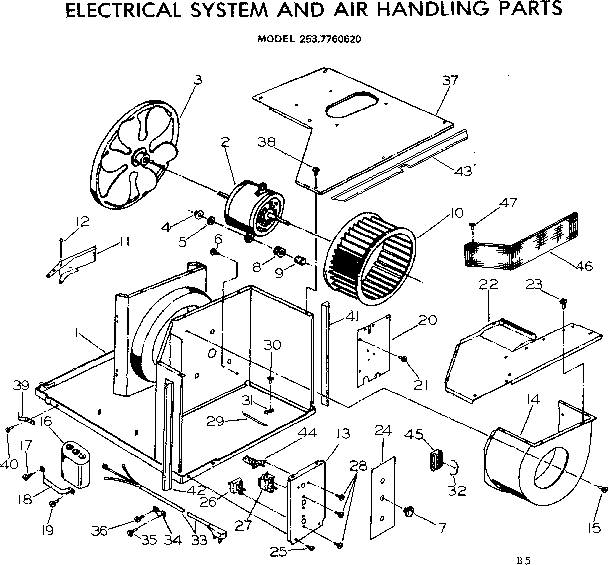

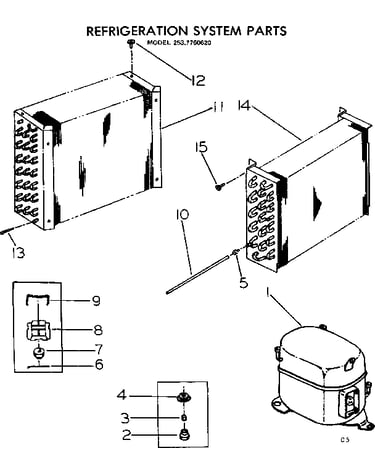

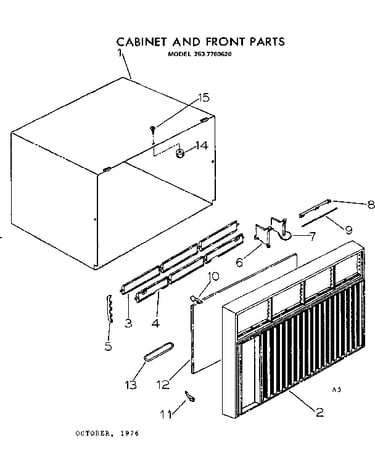

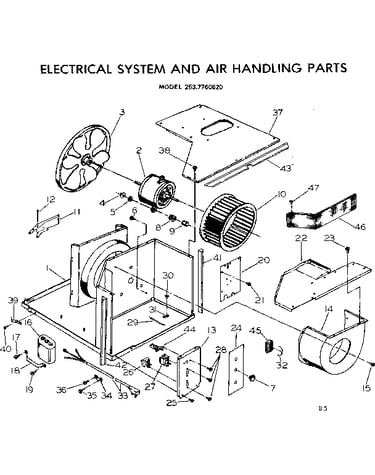

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 78 parts
#NI
All parts Diagram
Washer
Hinge pin
Part #136497
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts Diagram
Base pad
Part #501707
The manufacturer no longer makes this part, and there's no substitute part
See All Related Diagrams
Screw
Part #129778
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts Diagram
Post - corner
Part #503203-01
The manufacturer no longer makes this part, and there's no substitute part
Cord
Part #99731
The manufacturer no longer makes this part, and there's no substitute part
