Model # TRO500 TYPE 2 Official Black & Decker toaster oven

Here are the diagrams and repair parts for Official Black & Decker TRO500-TYPE-2 toaster oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Insulator 173078-00
#43

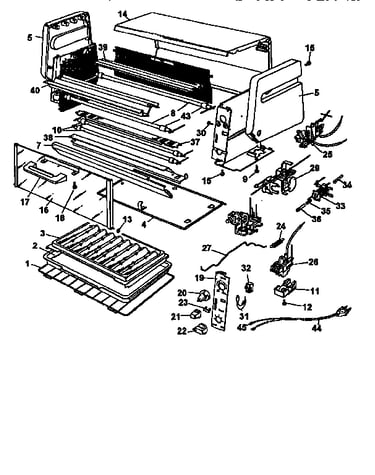

Replacement parts diagram

Insulator

Part #173078-00

The manufacturer no longer makes this part, and there's no substitute part

Frt Channl 182678-05
#7

Replacement parts diagram

Frt channl

Part #182678-05

The manufacturer no longer makes this part, and there's no substitute part

Heat Frame 182723-00
#37

Replacement parts diagram

Heat frame

Part #182723-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 164819-01
#12

Replacement parts diagram

Screw

Part #164819-01

The manufacturer no longer makes this part, and there's no substitute part

Frt Reflectr 168608-00
#38

Replacement parts diagram

Frt reflectr

Part #168608-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 167284-00
Screw

Part #167284-00

The manufacturer no longer makes this part, and there's no substitute part

Hood Assembly 182782-00

#NI

All parts diagram

Hood assembly

Part #182782-00

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 182789-04
#44

Replacement parts diagram

Ac cord

Part #182789-04

The manufacturer no longer makes this part, and there's no substitute part

Core 165165-00
#36

Replacement parts diagram

Core

Part #165165-00

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 165197-00
#11

Replacement parts diagram

Switch cover

Part #165197-00

The manufacturer no longer makes this part, and there's no substitute part
